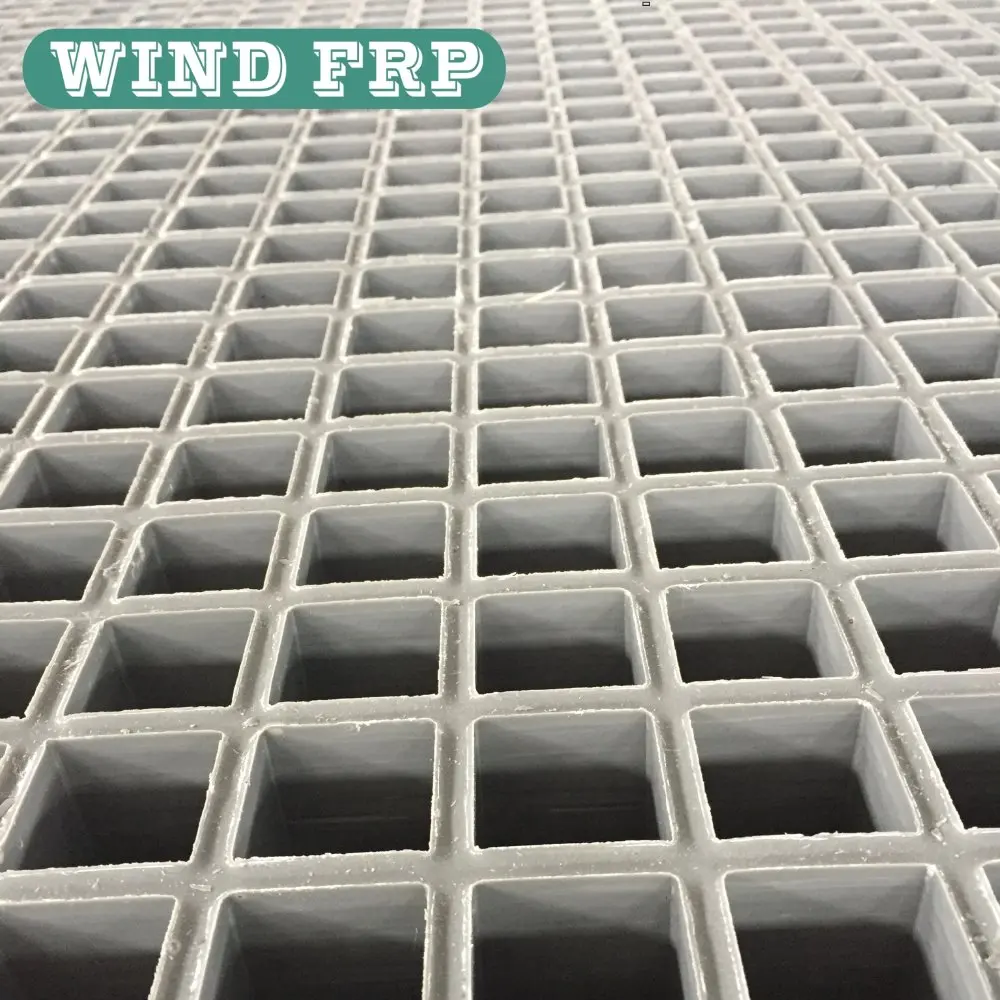

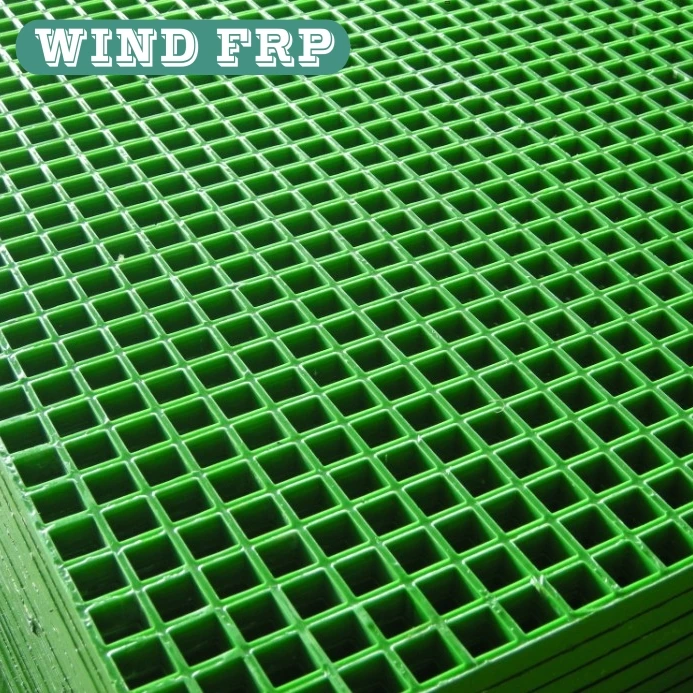

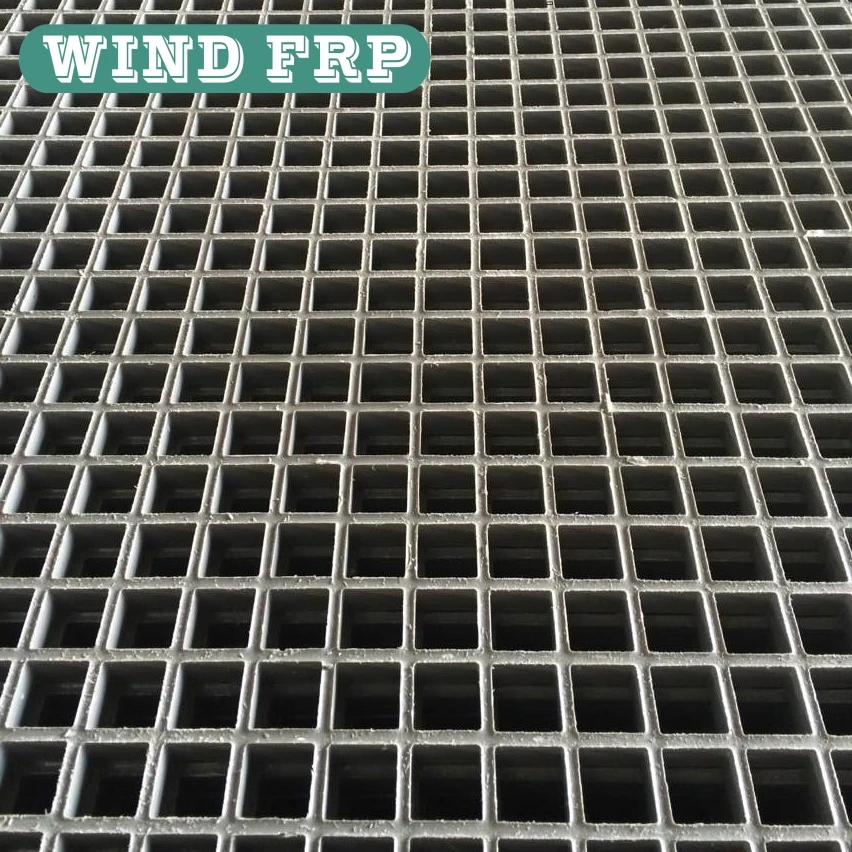

High quality good price fiber glass sheet,frp grill

Product Overview

Description



1.Excellent properties as follows:

(1).Safety:FRP is recommended when corrosion protection and safety are your goal.



(2).Stability:Expansion and contraction is 24% and 50% less than aluminum and steel,  providing greater dimensional stability.



(3).Durability:Superior durability to Stainless Steel, Aluminum, and Galvanized Gratings, especially in highly corrosive environments.



(4).Strength:50%higher tensile strength than hot rolled steel and better impact resistance.



2.Cutting method:

Serging four side,Serging three sides,Serging opposite sides,Serging the neighboring sides,Non-serginh.

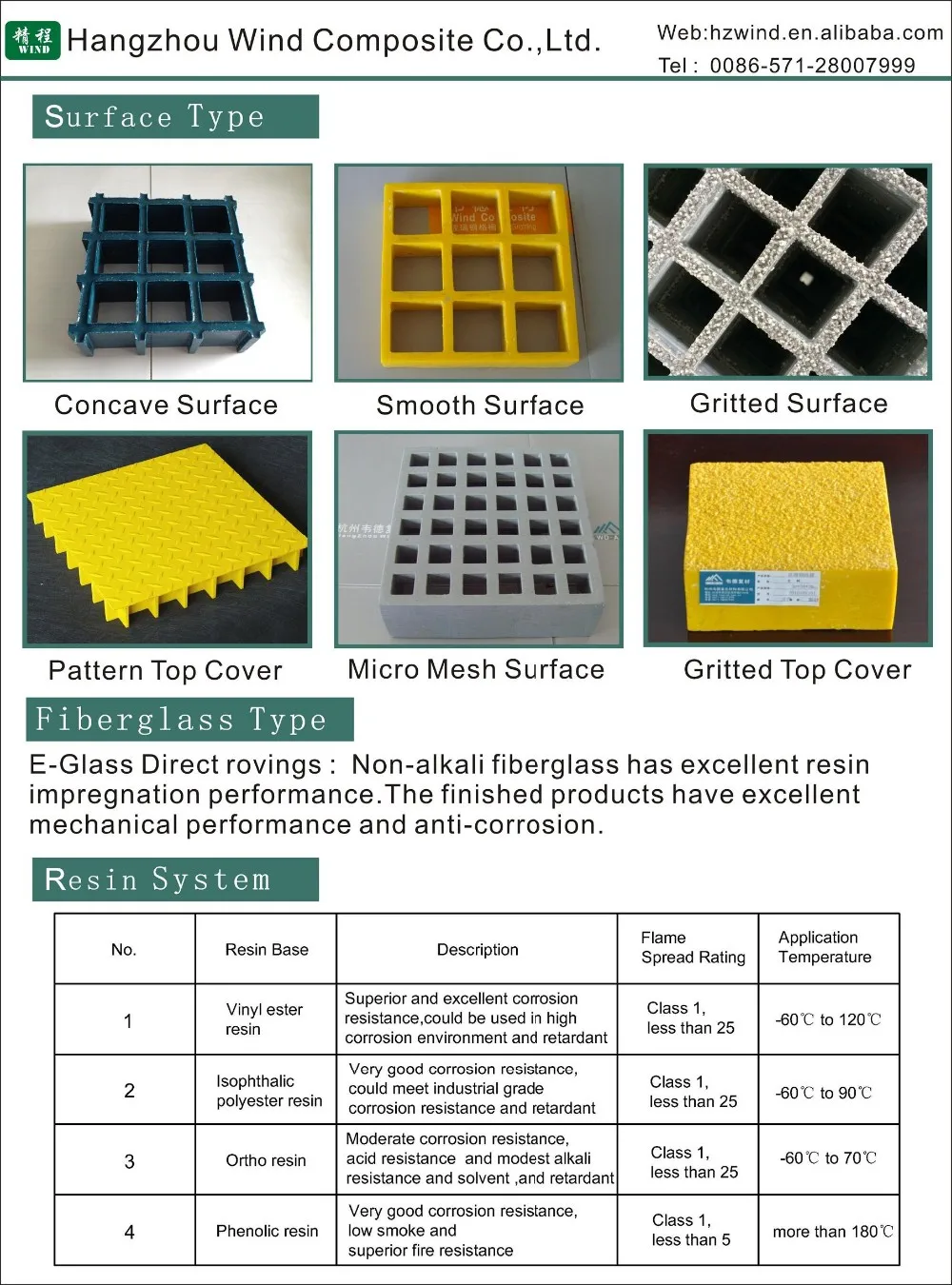

3.Surface Treatment: Smooth surface grating,Concave surface grating, Microvoid grating, Sandy grating,Cover board gratin,Transparent grating

a)Smooth surface and italic grid make it easy to clean.

b)Cross distributing loads equally to improve the bearing capacity.

c)Surface grooves prevent slipping, covered sand type is better in anti-slipping.





4.Installation manual:



Three types of stainless steel Standard fixture: L, M, C



Use stainless steel clamp to connect gratings and fix the grating and frame.







5.Mechanical Performance:



Type	Item	Spec	Hieight	Deformation 5.1mm Linear load	Max Linear load	Deformation 5.1mm Average Load	Average Load
Molding Grid	1	38*38	25	300	5200	800	27000
	2	25*100	25	500	6000	1300	30000
	3	38*38	30	500	6500	1100	35000
	4	38*38	38	900	9600	2300	50000
	5	40*40	40	1000	11000	3900	57500
	6	50*50	50	1900	16000	5000	88000
