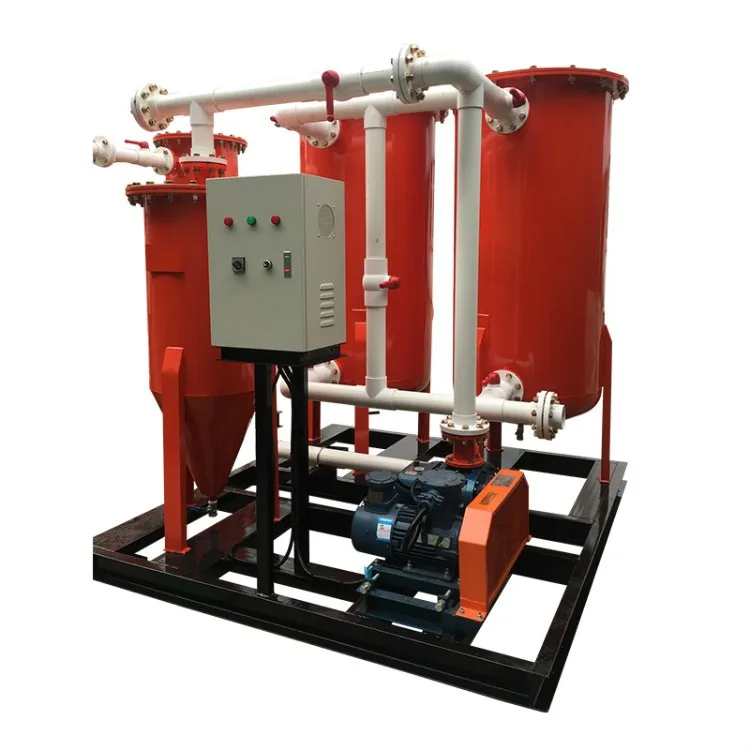

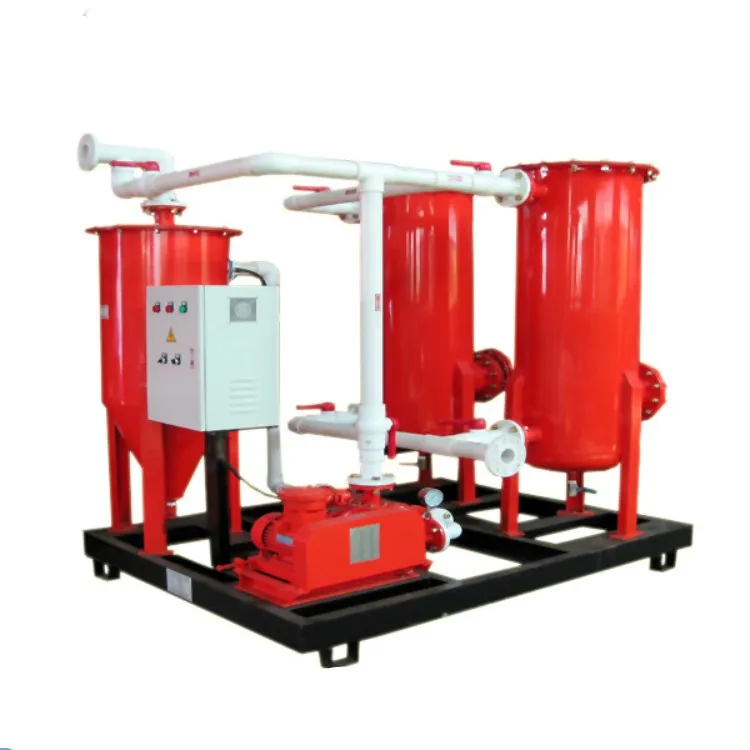

Biogas scrubber and Pretreatment of biogas system KDCL 300 WQ

Product Application

The skid-mounted biogas pre-treatment system adopts the dry desulfurization method which is applicable for small industrial devices whose H2S is less than 2000ppm. Based on the principles of safety, high-efficiency, stability, and economic feasibility, we design the biogas pretreatment system according to features of raw biogas and requirements of quality for biogas generator sets.

Main Features

1) Simple structure in linear type ,easy for installation and maintation.

2) Adopting advanced world famous brand components in electric system to increase and maintain pressure.

3) Efficiently remove the H2S, dust and water in the biogas.

4) Running in a high automatization and intellectualization,no pollution.

5) Apply flange to connect with pipe ,which can directly inline with biogas generator .

Machine Parts

Name: Desulfurization tower

Material:SS304

Original: China

Adopt stainless steel to avoid the corrosion, efficiently decrease the H2S below 200ppm. Two desulfurization tower can be used for series or parallel.

Main Features

Name: Buffer tank
Material: Q235A
Original: China
Adopt Q235A carton steel, efficiently remove the dust and water in the biogas.

Machine Parts

Name: Roots blower
Brand: CAMDA
Original: China
Adopt anti-explosion and variable frequency motor, efficiently control the stable output pressure.

Main Features

Name: Electrical box
Brand: CAMDA
Original: China
Adopt domestic famous frequency converter, efficiently control the blower and there has selecter can realize the switch between main power and genset power.
