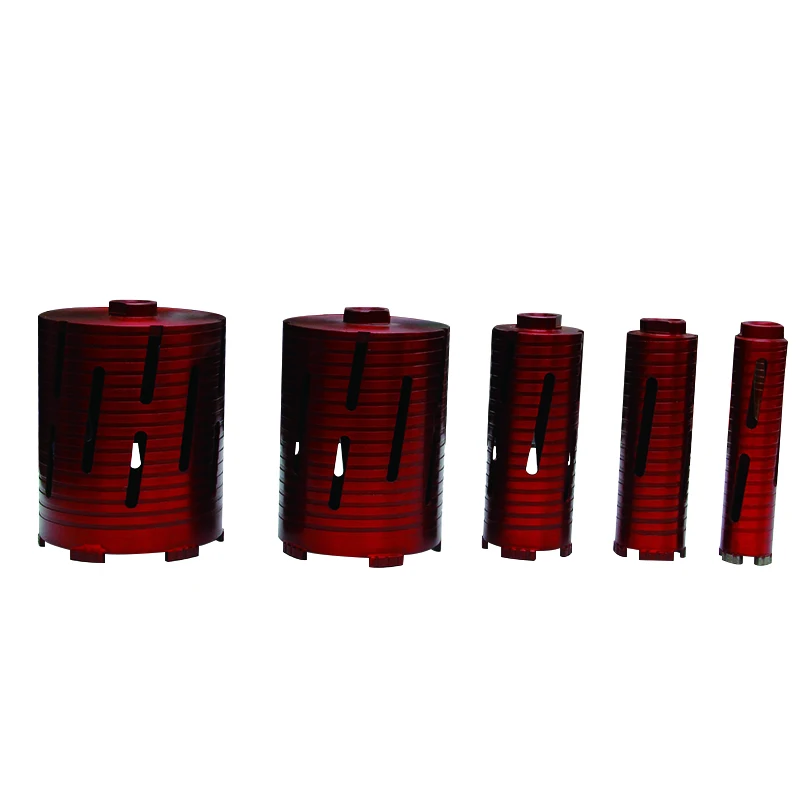

Dry Diamond Core Drill Bit Set

Product Overview

Description

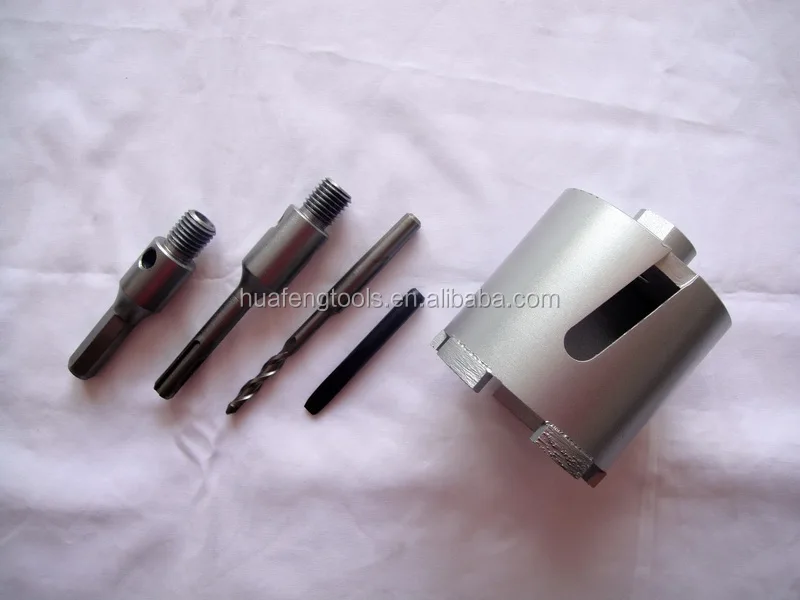

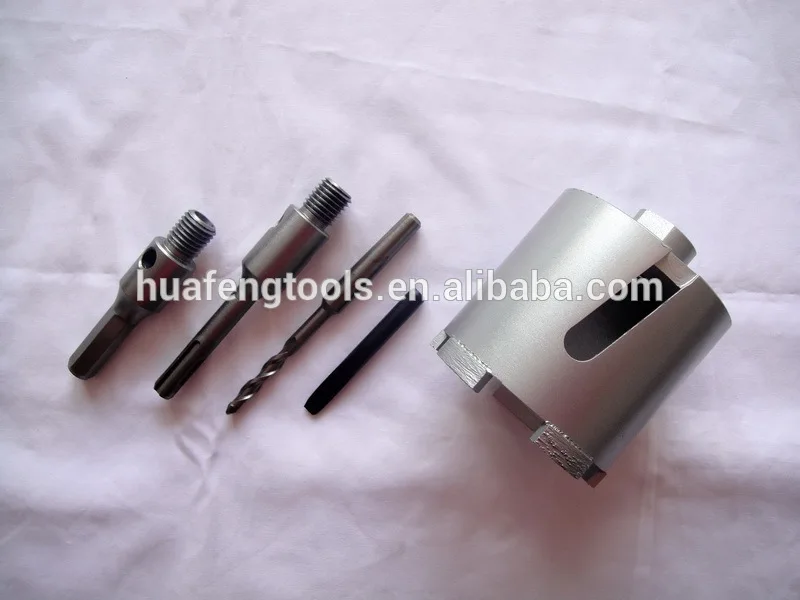

Dry Diamond Core Drill Bit Set With SDS Plus Adaptor



Dry Diamond Core Drill Bits for Dry Cutting.

Diameter 68 mm and 82 mm.

Working Length 70mm.

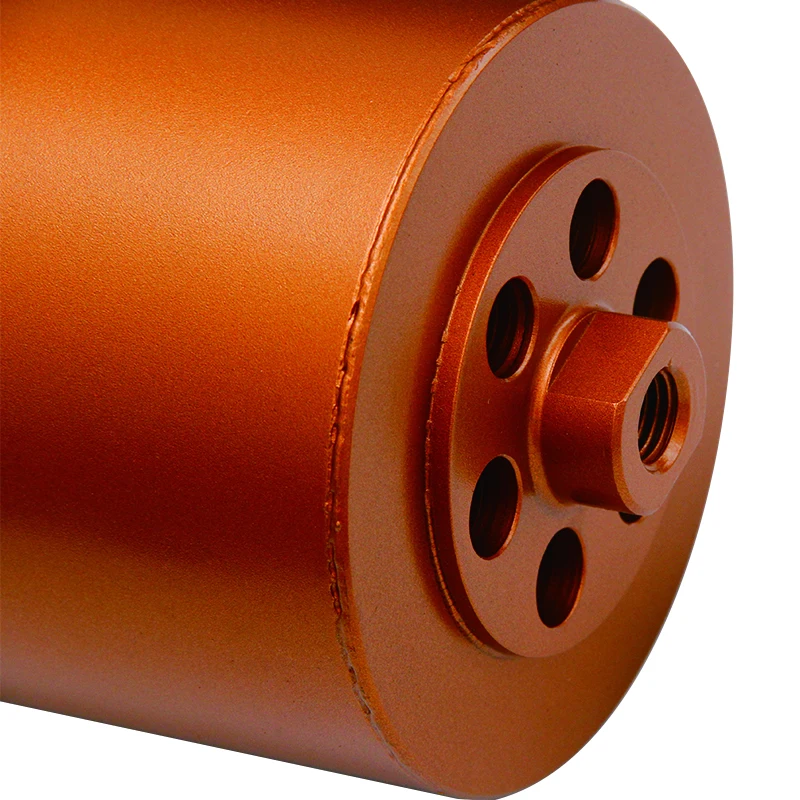

Connection M16 Female.

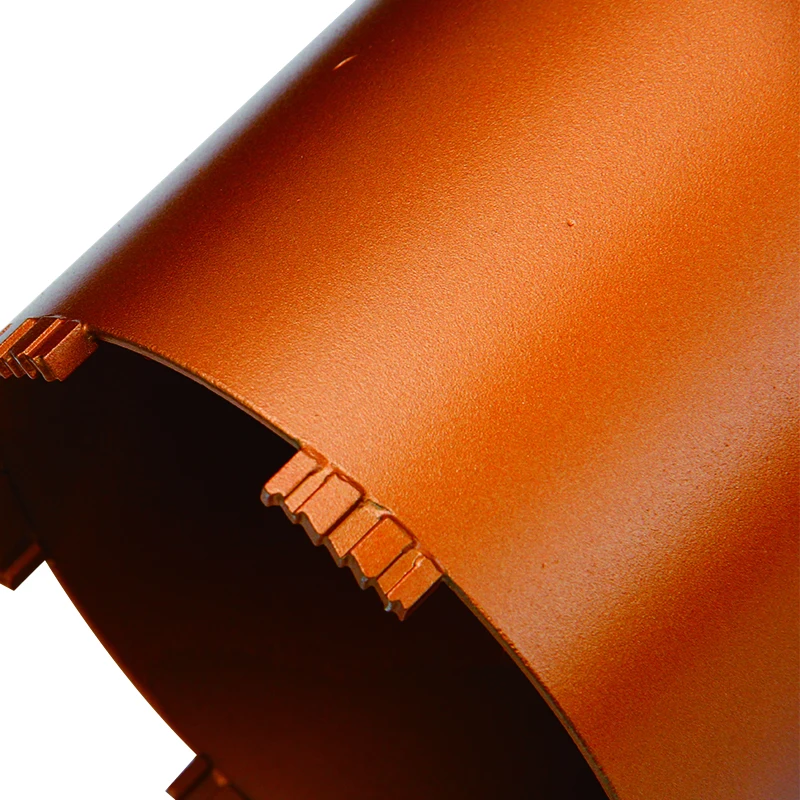

Segments Height at 7.0mm, 8.0mm or 10.0mm.

Segments Numbers could be 3, 4 or 5 according to customer's request.

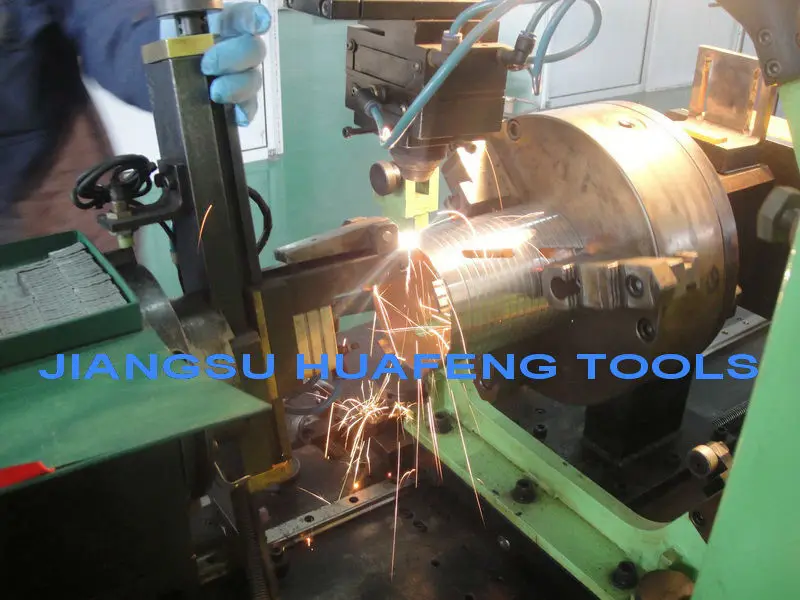

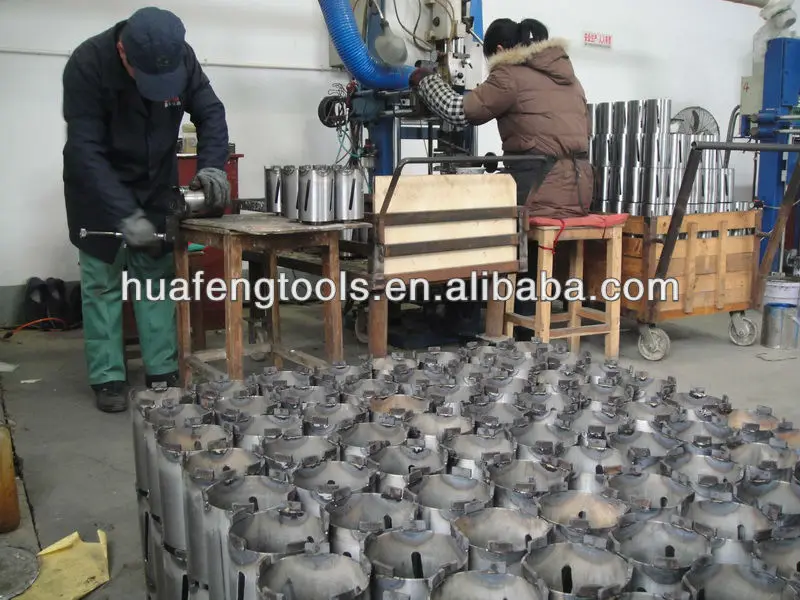

Segments could be brazed or laser weld.

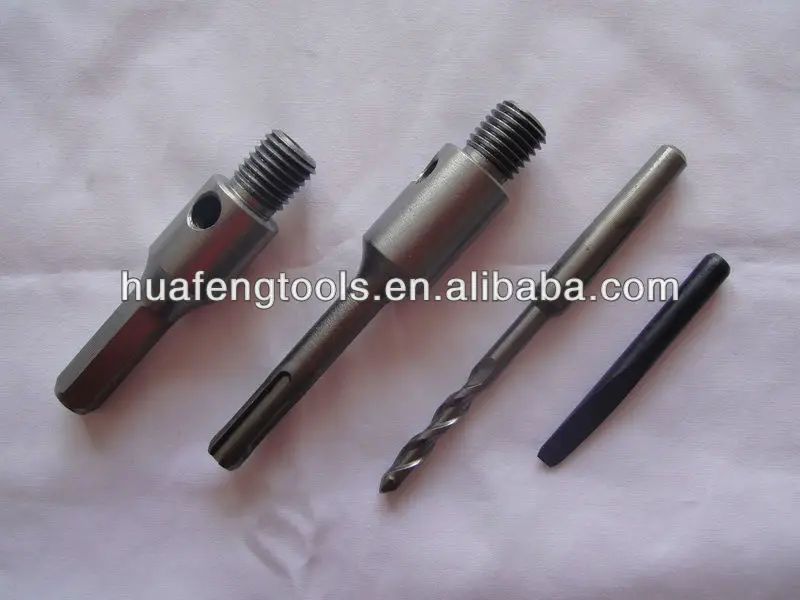

With Adaptors & Accessories:

SDS Plus Adaptor  X 1

HEX Adaptor  X 1

A-Taper Pilot Drill X1



Drift Key. X1

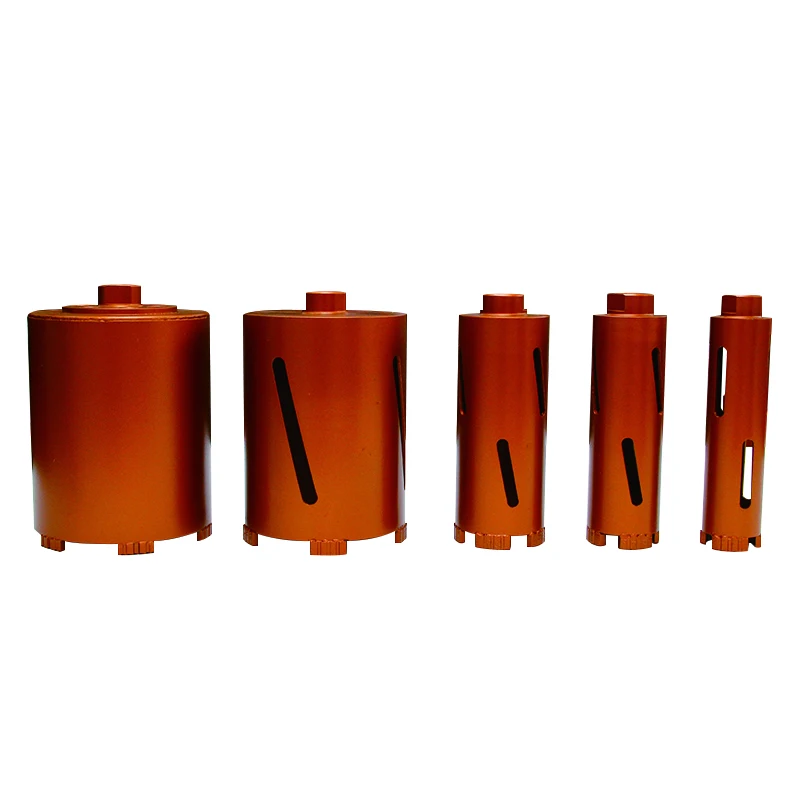

Ø mm	Segment No.	Segment Height.mm	Wrorking Length mm	Connection Thread	Weld
32	3	8	70	M16 Female	Brazed or Laser Weld
42	3	8	70	M16 Female	Brazed or Laser Weld
47	3	8	70	M16 Female	Brazed or Laser Weld
52	3	8	70	M16 Female	Brazed or Laser Weld
57	3	8	70	M16 Female	Brazed or Laser Weld
62	3	8	70	M16 Female	Brazed or Laser Weld
68	3	8	70	M16 Female	Brazed or Laser Weld
72	3	8	70	M16 Female	Brazed or Laser Weld
82	4	8	70	M16 Female	Brazed or Laser Weld
92	4	8	70	M16 Female	Brazed or Laser Weld
102	5	8	70	M16 Female	Brazed or Laser Weld
112	5	8	70	M16 Female	Brazed or Laser Weld
