Fence Arm 10 Million Cycles Heavy Duty Parking Barrier Gate

Product Overview

Description

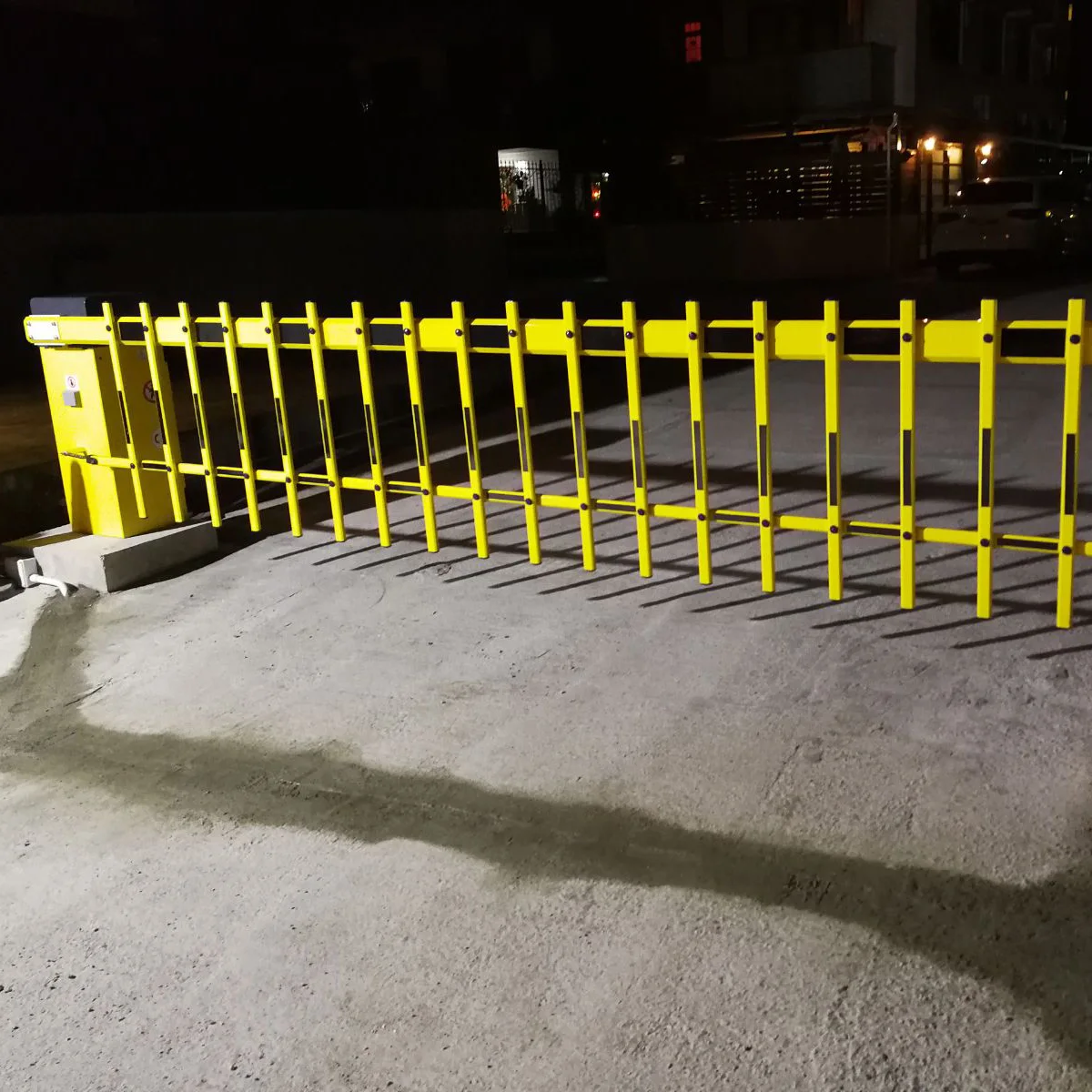

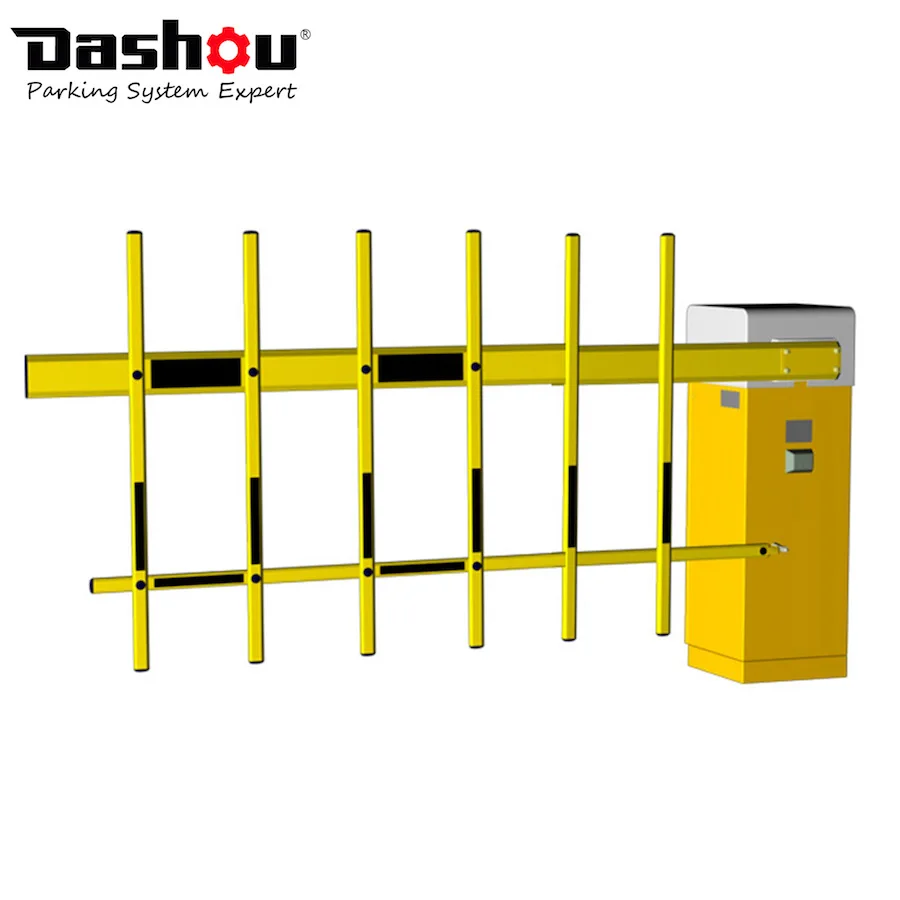

10 Million Cycles Heavy Duty Fence Arm Parking Barrier Gate



This Fence Arm Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle, for parking lots with high traffic flow such as residential community, shopping center, exhibition center, hospitals, airport etc..







Description

1)  Opening/closing time:  4 sec.

2)  Max. 4.5m fence arm with rubber bar

3)  Inclusive of arm, air switch & "push button" which opens/closes barrier

4)  Exclusive of remoter and boom bracket: need to buy extrally

5)  Can`t be equipped with LED light bar and anti-collision  mechanism

6)  Optional housing color: yellow (default),orange, white, red and blue

7)  Optional boom arm direction: leftward or rightward





Model No.	Open/Close Time	Max. Boom Length	Boom Type
PAB-BD-NFN	4s	4.5	Single Fence Boom

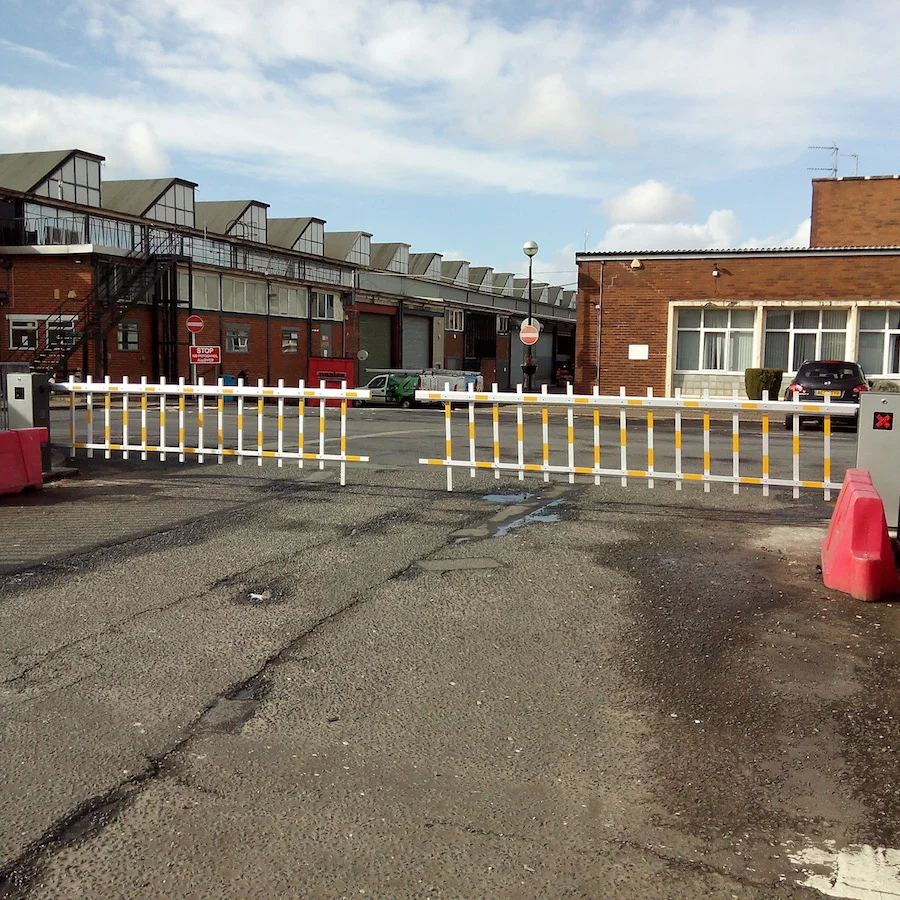

PAB-BD-NFN2	4s	4	Double Fence Boom





Features

•

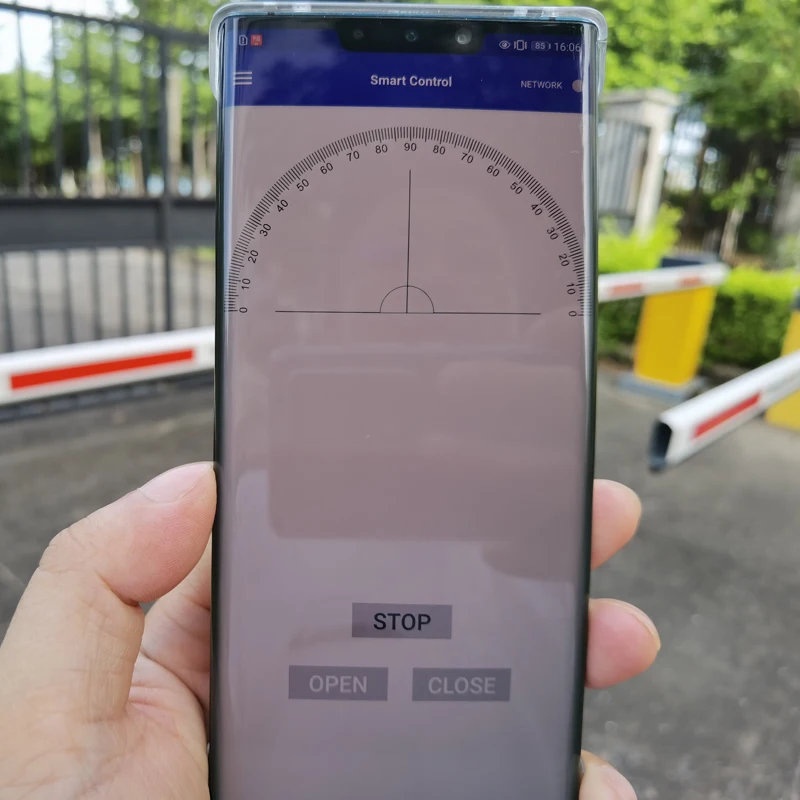

  Control Barrier On Smartphone (Optional)





•


  TCP-IP Port for Easy Integration (Optional)





• Torque motor with 100% duty cycle & 10 million MTBF


•


  Manually Control When Power Is Off





•


  Automatically Check Status & Report Error





•


  Boom Auto-reverse On Obstacle





•


  Boom Swing-off Protects Boom & Vehicle





•


  Boom Direction Is Exchangeable without Replacing Any Part





•


  Backup Solar Panel or Lead-acid Cell





•


  56 Hours Aging Test Ensures Quality





• Variable frequency controller automatically detects and optimizes boom moving, ensures smooth moving without shake


• Simplified design, easy installation and maintenance reduces your labor cost


• Boom open up fully or close down in case of power failure


• Safety of Vehicle--- Boom Auto-reversing on Obstacle


• Safety of Vehicle--- Anti-hit by Loop Detector (Optional)


• Safety of Vehicle--- Anti-hit by IR photocell (Optional)


• Safety of Vehicle--- Anti-hit by “Opening Priority”


• Automatically close after the given time (proagrammable)


• Automatically close or open by loop detector (Optional)


• Heavy-duty and simple-design housing


• Anti-condensation in cold climate


• Transparent plastic covers on Control Board







Specifications

Open/close time	4 sec.
Octagonal Arm	Max. 4.5mtr. ;45×100mm Aluminum alloy
Power Supply	AC 85~264V,50/60HZ
DC Motor	50W concreted decelerating brushless torque motor
Controller	ARM 32 Cortex™-M3 CPU variable frequency board
Remote distance	20~50mtr.
RS 485 interface	9600bps, ASCII decimal encoded (optional)
Housing material	2mm cold roller steel plate
Housing Painting	Powder coating, 10 years without rust,shedding and fading
IP level	IP 54
Housing size	950mm×320mm×329mm
Package size	1100mm×480mm×430mm
G.W	46 KG
Operating temperature	-40°c -75°c
Humidity	10%-95%











Contact us for Catalogue and pricelist of PAB-BD Beyond covers all models with different boom shape(straight/crank/fence), boom length( Max.6m) and open/close time (0.7/2/3/4 sec.). PAB-E Economic barrier also be your economic choice.





Recommended Hot Sale Models











1. Warranty:     1 year

2. Certificates:  CE

3. MOQ:           1 piece

4. OEM:           Available

5. Lead time :  2~7 working days after deposite received
