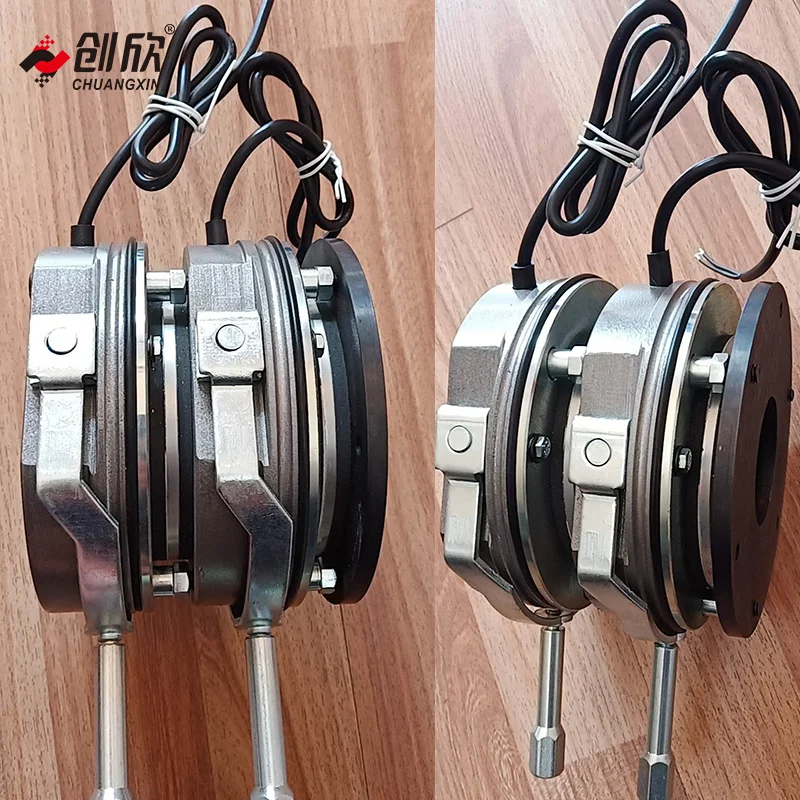

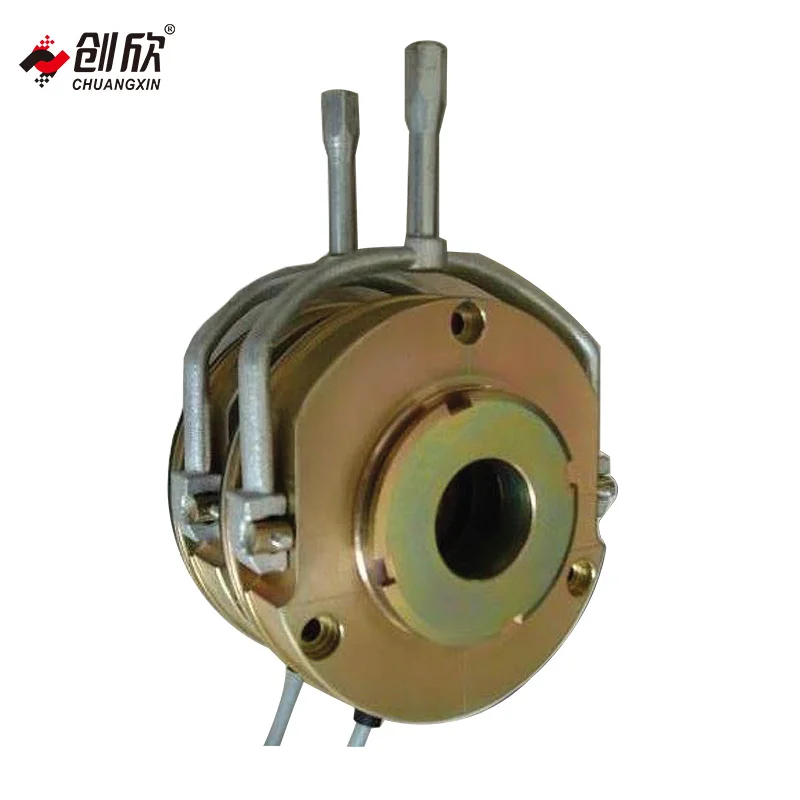

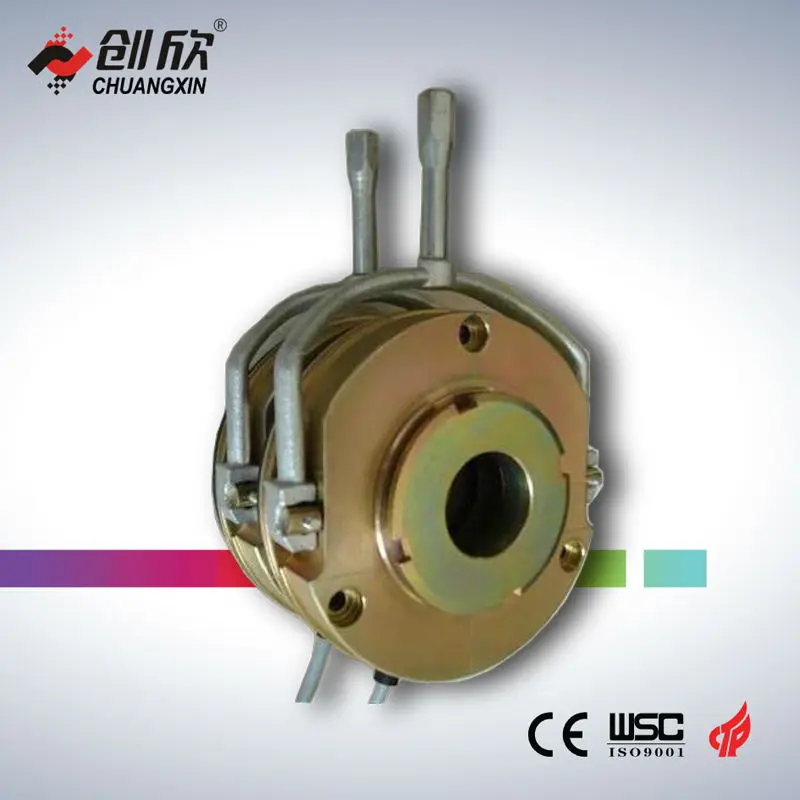

DZS1-SB Series Electromagnetic lose electric brakes
DZS1 - SB series double electromagnetic brakes is losing electricity power-cut occurs. it (release), Without electricity sping brake friction drum brake (hereinafter referred to as the brake). Its main With Y series motor supporting into YEJ electromagnetic braking series three-phase asynchronous electrical Motivation. Widely used in metallurgy, construction, chemical, food, machine tool, packing The machinery, and in case of a power cut safety (FangXian) brake occasions, realizing fast Speed parking and accurate positioning. This kind of brake be doubly braking torque, and pleasant Used for ascension equipments and other special requirement for safe operation of the field.
Torque (N.m)
4-400
Voltage(V)
24V 96V 170V
Coil
100% Copper
YEJ motor model No.
63-225
Type(two kinds)
1.No adjust 2.adjustable
Power(W)
20-150
Working Air Crack (mm)
0.3-0.8
Working Conditions
Brakes on the following terms and conditions can be reliable work: 1. Altitude 2000m, no more than air relative humidity is not more than 85%; the ambient temperature - 15 ~ + 40 ℃ 2. Around medium no explosion danger, and no enough to corrode metal and destroy the insulation of gas and dust, 3. The brake adopts class B insulation and the protection grade is IP23(If you want to reach the IP55,we can usean extra protective ring);Voltage fluctuation does not exceed 15% ~ + 5% rated voltage, 4 .Its installation mode is axial horizontal, and its working mode is continuous working system. 5.Ensure normal working air gap, do not exceed the maximum working air gap value; friction slices surface must be without oil conditions of use.
Company Profile
Certifications
Our Advantages
About us
Anhui Pioneering Electromagnetic Clucthes Co.,Ltd is located in Economic development zone,Guangde county,Anhui Province,cover on area of 37,000 square meters.We are a profession to produce all kinds of Automatic Transmission Equipment such as Electromagnetic Clucth,Electromagnetic Brake ,Electromagnetic braking three-phase asynchronous motor,etc.,there are ten series of thousand of varieties.Our company has electromagnetic clucth type of R&D centers and intelligent laboratory .At present, our company has passed IS09001 quality management system certification and CE certification, and obtained the national special equipment type test certificate. It is a member of Anhui High-tech Enterprise, China Construction Machinery Industry Association Construction Crane Branch, Anhui Provincial Contract-honoring and Credit Enterprise, Anhui Province "professional, elite, special, innovative" listed enterprises. Our products are rated as Anhui famous brand products. The trademark won the famous trademark of Anhui Province, and the scientific research project won the national enterprise innovation fund. The product has obtained 19 patents, including 1 invention patent.Since our company was founded,the themem of quanlity and safety throughout production processing,in the “doing find,and stronger”traditional industries,adhere to the “scientific and technological innovation The most Pursuit of Excellence”concept and strive to build first-class supplier of Brakes and Clucthes.
Product packaging
FAQ
Q: Are you a trading company or a manufacturer? A: We are a manufacturer.major in motor brake and elevator brake
Q: What is the MOQ (minimum order quantity)? A: 1 pc for sample order, and 100pcs for bulk order.
Q: What do you need to know if I need a recommendation on brake? A: Normally we need to know dimensions, rated voltage, torque etc.
Q: Can I ask you for help if I know nothing about brakes? A: Yes, our pleasure. We are nice people with big hearts.
Q: Where is your loading port ? A: Shanghai or Ningbo Port, China.
Q: What is your production capacity? A: About 10000 PCS per month.
Q: How to start Trade Assurance order online? A:1.Send inquiry for the products and tell us that you want Trade Assurance. 2.We will start Trade Assurance for you. 3.You will got an order link then we can discuss the details for the contact. 4.If everything is ok,please be ready to pay the deposit by Alibaba. 5.Then we are ready the goods and ship on time. 6.The last,please make sure you are already receive the goods by Alibaba.
