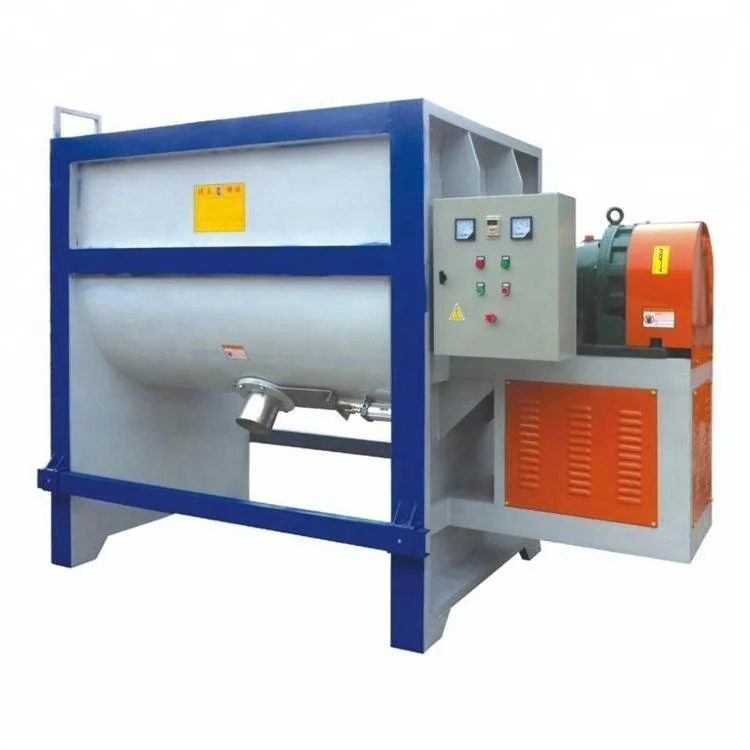

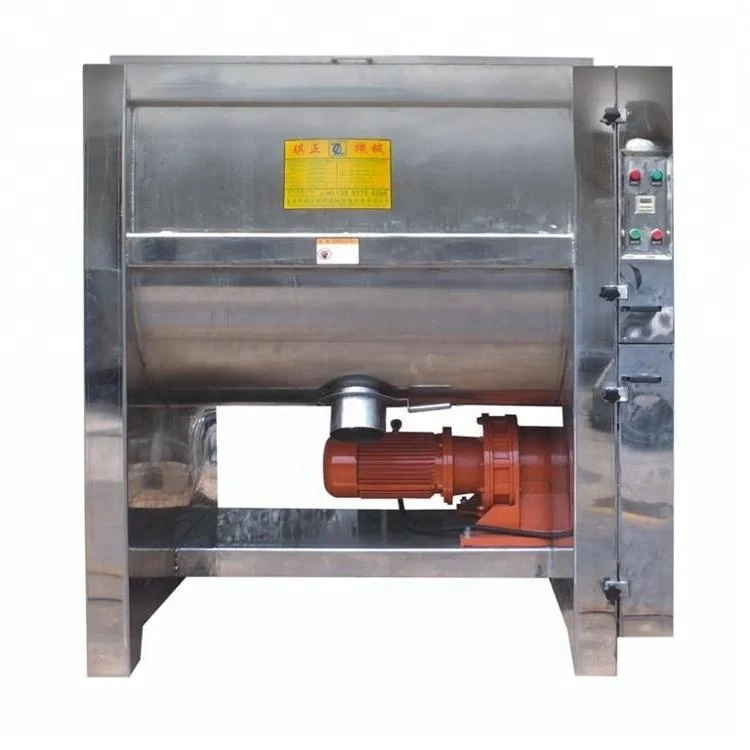

The Ribbon Mixer consists of U-shape body, robust frame, high quality motor and speed gear set reducer, control box and S-shape paddles. The paddles stir the material towards centre continuously to achieve complete and even blending. It is suitable for plastic materials, building materials and other materials which requires high standards mixing.
Features:
Ribbon Mixer :
1)Heating drying type designed with double U-shape barrel, and the inner is made by stainless steel.
2)Heat conduction oil is used as heating medium, heating evenly and controlling conveniently.
3)Owing to the central axis with totally stainless steel and S-type paddle, the mixer are durable and with good homogenization.
4)Motor and reducer are from famous factory.Large output and stable performance.
5)With the screw conveyor, eliminating the feeding platform. It’s safe and quick and convenient.
6)Manual or pneumatic discharge port can be made according to clients’ demand.
7)Mixing and drying are united in wedlock. It can be used for mixing and homogenizing after closing the heating switch.
8)The Ribbon Mixer can be made of carbon steel according to clients’ demand so that reducing investment outlay.
Specification:
Model
Name
Power
Heating Power
Dimension (mm)
QZ-W200
Ribbon Mixer
4KW-4
9KW
2000*750*1500
QZ-W300
5.5KW-4
10KW
2400*800*1650
QZ-W500
5.5KW-6
12KW
2200*1100*1800
QZ-W1000
11KW-6
24KW
2900*1350*2200
QZ-W1500
11KW-6
24KW
3300*1350*2200
QZ-W2000
18.5KW-6
32KW
3400*1450*2400
QZ-W2500
18.5KW-6
32KW
3600*1450*2400
QZ-W3000
22KW-6
36KW
4200*1600*2600
QZ-W5000
37KW-6
48KW
4500*1950*2800
The Ribbon Mixer can be made by different material quality according to clients, because of the different proportion of material in every industry. The specifications above are common model, it need to be deployed to increase the power and heating power if the bigger proportion of density by material.

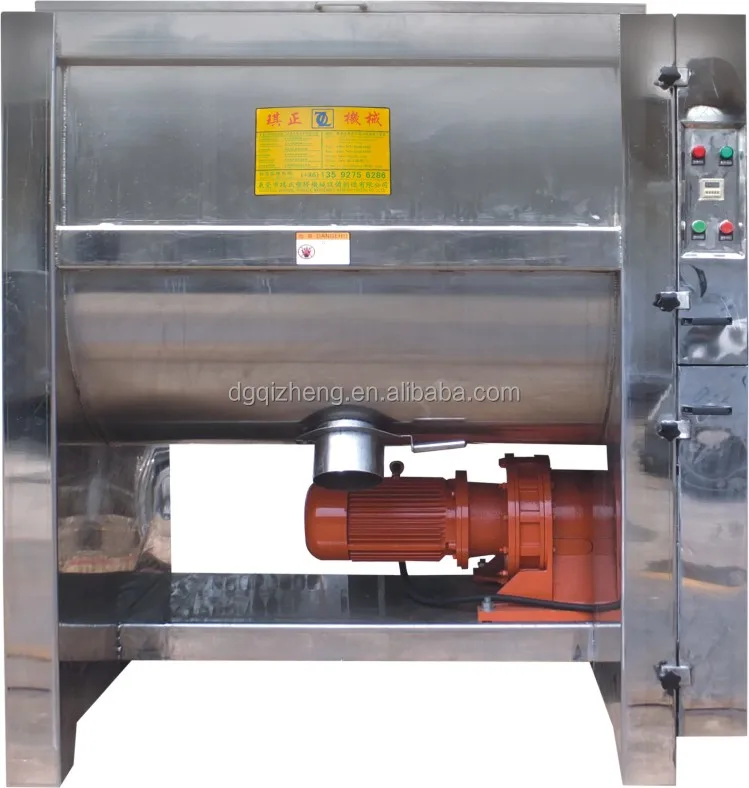

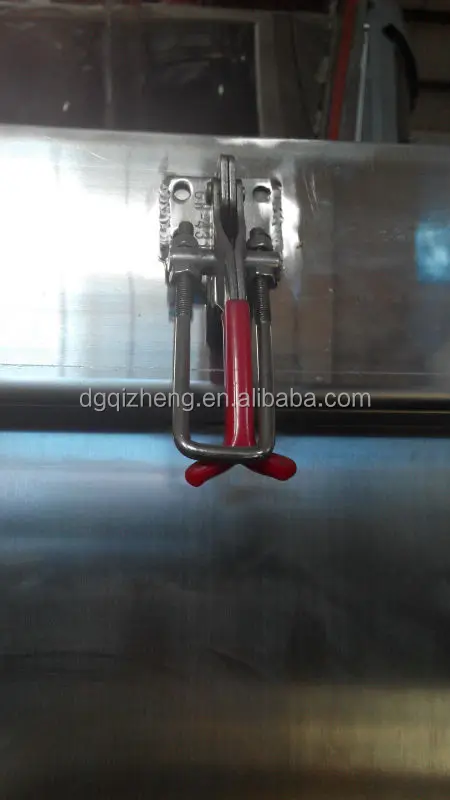

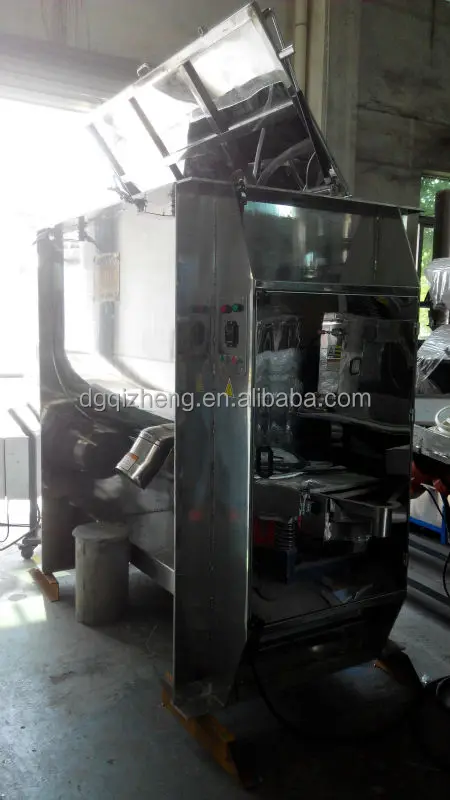

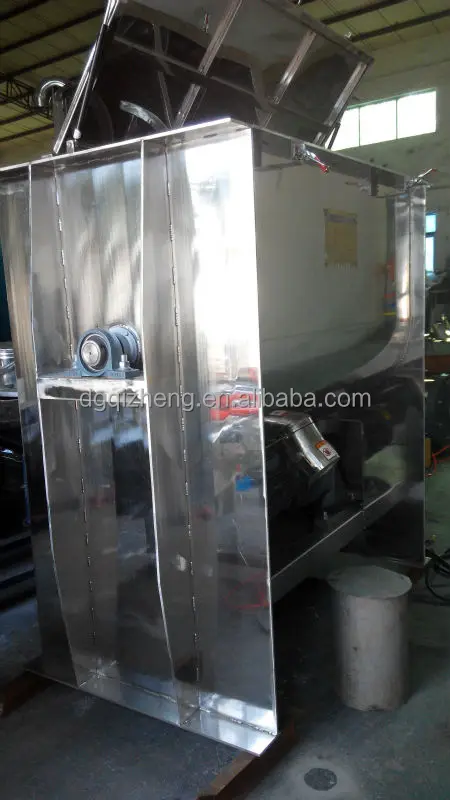

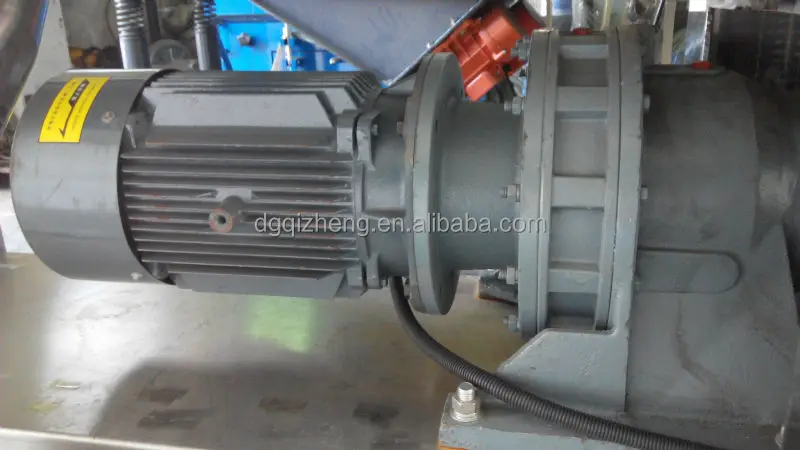

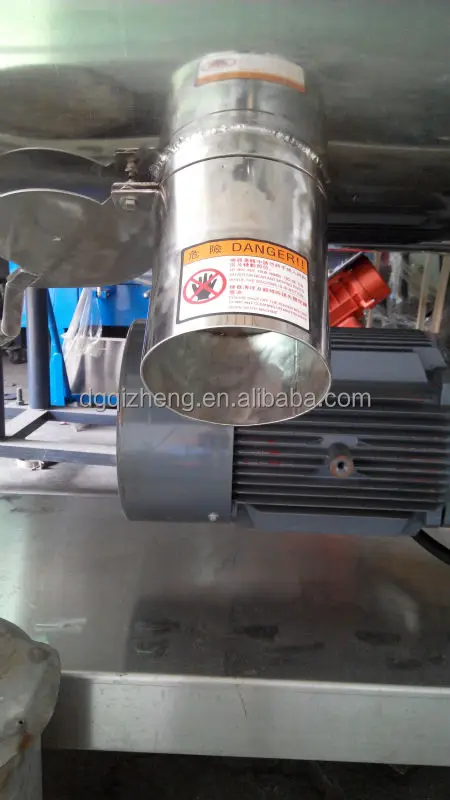

Detailed Drawing of Ribbon Mixer :
Packaging & Shipping

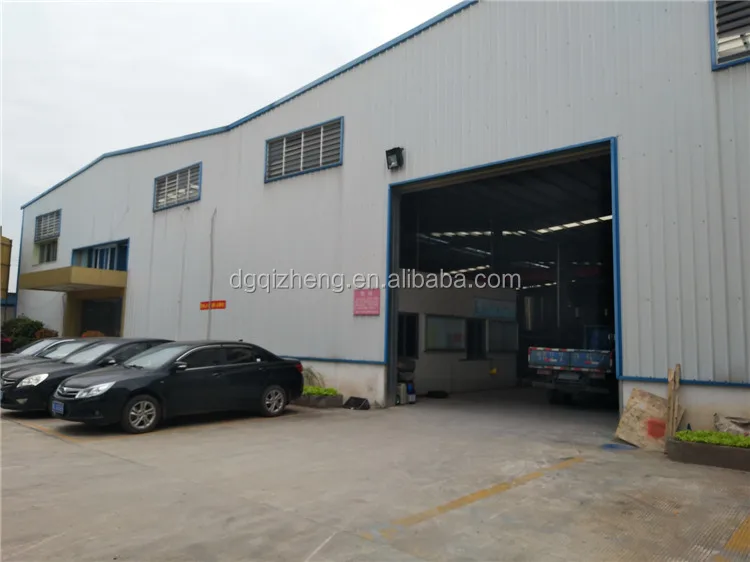

Company Information
Our products include raw material regeneration large plastic granule vertical agitating machine (500kg-15t), large horizontal mixing material machines (200kg-5t), plastic crushers, plastic mixers, ribbon mixer, vibrating screeners, vertical mixers, dehydraters, automatic feeding machines, sinks, high-precision mold temperature controllers, industrial chillers, plastic dryers and series of press peripherals and other varieties. There are more than 10 kinds and almost 100 models of products. We have an experienced and professional team.
Our Services
Warranty
1)12 months warranty, besides the man-made damage.
2) Welcome to contect with me if any other requirements.
3) More products you buy,more preferential for you.
Payment Terms
We accept T/T,Western Union,MoneyGram. 30% in advance as deposit,and 70% balance before delivery.
