Sawdust / wooden chips / wooden pellets storage steel silos price

Product Overview

Description

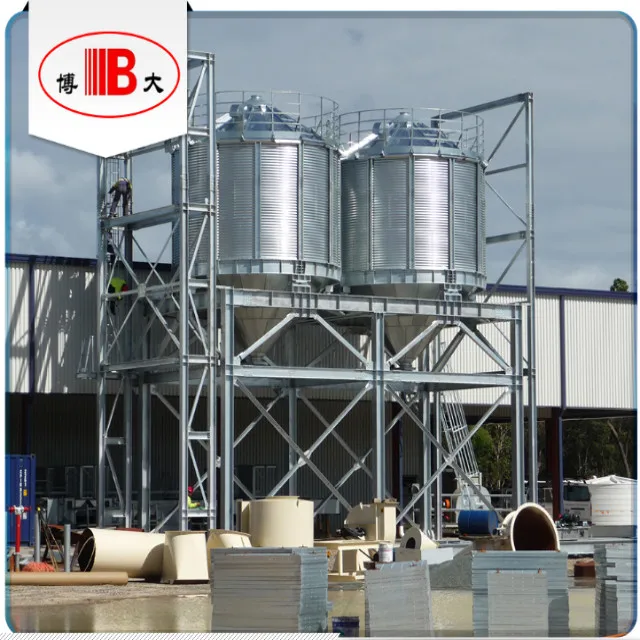

Above pictures are showing you our silos installed in Queensland, Australia.



Silo roof degree is 30. Silo roof sheeting and four (4) roof vents with bird mesh, to be galvanized not less than 275g/m2.

Each silo roof to incorporate a galvanized safety fence around the roof perimeter, in compliance with Australian design standards AS1657.

 Steel Silo TCK09111

(sawdust:0.3t/m3, silo diameter:9.167m, V=870M3,C=260T)

with external stiffeners, silo door and platform

30°roof degree

about 18.5m overall height

with steel support structure

300mm ringbeam with 15legs,each 250UB



All silos include

Boda silo itself includes these components that come free of charge (the silo diameter should be equal to or more than 5.5m)

l Roof Natural vents

l Roof guardrail

l Roof manhole

l Roof ladders

l Silo door

l Silo door platform

l Inside and outside ladders on silo body

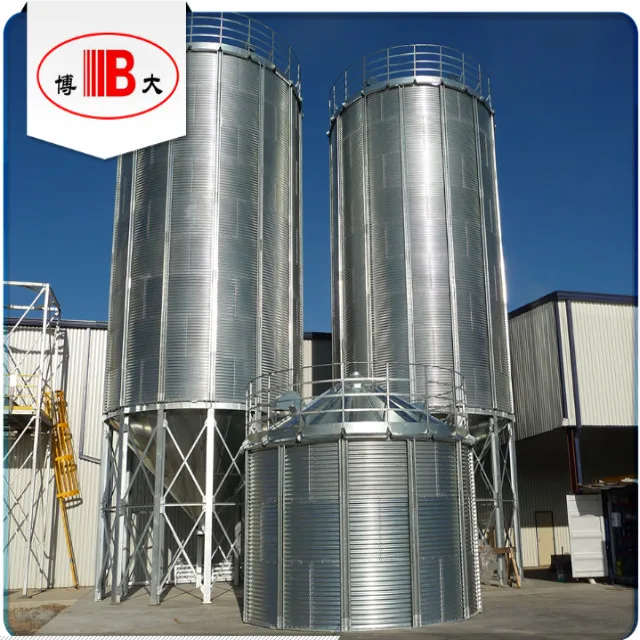

Above picture showing you Steel Silos of TCZK06409



(silo diameter:6.417m, V=348M3)



with external stiffeners, silo door and platform



30°roof degree



about 10.15m of silo body height



with lintel girder, hopper, steel support legs and lacing wire



with 15pcs of legs, each 175UB





Hopper Bottom Steel Silo Main Technical Specifications (Grain Density:0.75t/m3)
Capacity	50 ton	100 ton	150 ton	200 ton	300 ton	500 ton	1000 ton	1500 ton
Model	TCZK 03605	TCZK 04507	TCZK 05507	TCZK 06406	TCZK 06410	TCZK 08210	TCZK 10013	TCZK 12812
Diameter(m)	3.667	4.584	5.5	6.417	6.417	7.334	10.084	12.834
Total Height(m)	9.56	12.53	13.25	12.85	17.33	18.78	23.58	23.62
Volume(m3)	69	150	222	274	419	718	1380	2139





Boda silo company has 20 years of designing, production and installation experience. We have a modern enterprise management system, first-class equipments, perfect detection means, high-quality scientific research people, high-quality tracking service, and faces customers with highly dedicated spirit.



1. Real Factory and perfect after-sales service.

2. Alibaba Assessed Gold Supplier.

3. Detail Design Thoughtful

4. 100% QC inspection Before Shipping.

5. Cases in many countries.

6. Foreign 72 hours to provide solutions
