simple ice cream maker machine 6238

Product description

offer all popular soft serve variations from low or non-fat ice cream to custards,yogurt and sorbet.

suitable for the hotel, restaurant chain organizations, business street, the school, the place of larger demand

 Feature:

1.Table model

2.Air cooling

3.Single flavour

4.Gravity feed freezer

5. Stainless Steel Panels

6.Touch button control panel

Specification

Voltage:210-230V/50Hz

Power:2.8KW

N.W.(KG):150kg

G.W.(KG):170kg

Dimension Net (mm):917*554*1065

Dimension Packing(mm):850*645*1250

Output

38LIter/Hour(At 4°Cliquid &24°CAmbient)

Freezing cylinder

one,3.2 Liter

Mix hopper

one,15 Liter

separate hopper refrigeration(Pre-cooling)maintains mix below 4.4°C.

Microprocessor controls

microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.

Mix low light

The mix low light turns"on" to alert operator to add mix,preventing cylinder over freezing.

Standby

Maintains product temperature in the mix hoppers and freezing cylinders below 4.4°Cduring long no-use periods.

Counter

Records number of dispenses per day and total number of dispenses.

Agitator in the hopper

Mixture has better liquidity, the temperature of the Mix to be more uniform.

Electrical requirements

One dedicated electrical connection is required.

Make voltage steady when machine is on.

Main motor

one,2.0HP

Refrigeration system

one compressor:6486 BTU/hr. R404a

separate hopper refrigeration(pre-cooling):one compressor:400BTU/hr.R134a

(BTU may vary depending on  compressor used.)

Air cooled

Minimum clearance of 152 mm on both sides is to achieve optimum performance.

Refer to the local situation to regulate the parameters,on basic of  the data label.Specificaitons of the improvements are subjuct to change without  notice.

Options

Local specific plugs of power supply wire

Cup dispenser

Power supply 220V/60Hz

Picture of product simple ice cream maker machine 6238

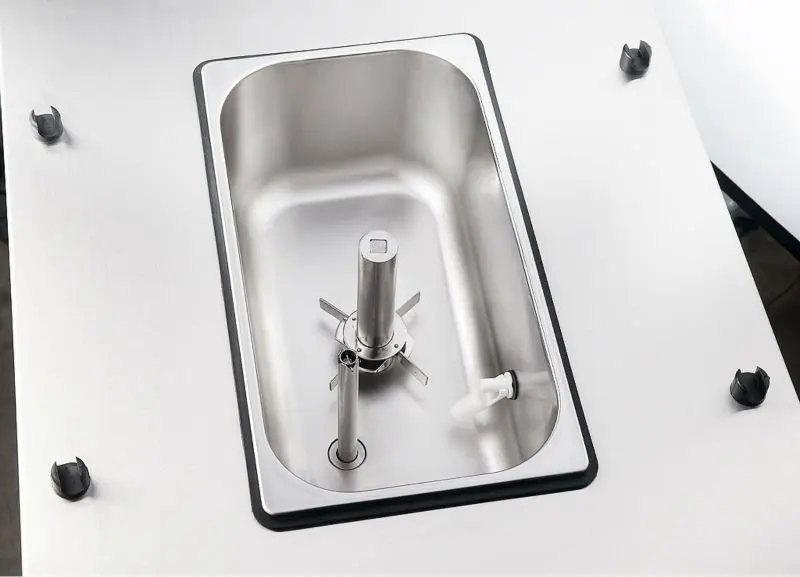

Picture of  Mix hopper,feeding tube,hopper agitator and low mix sensor

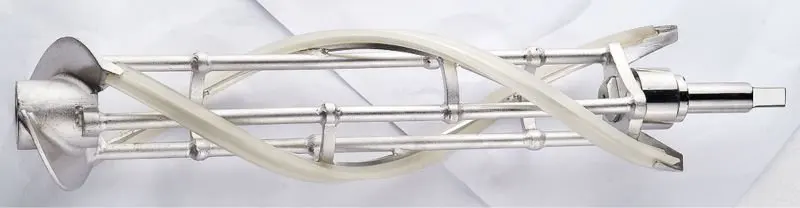

Picture of Flexible blade beater
