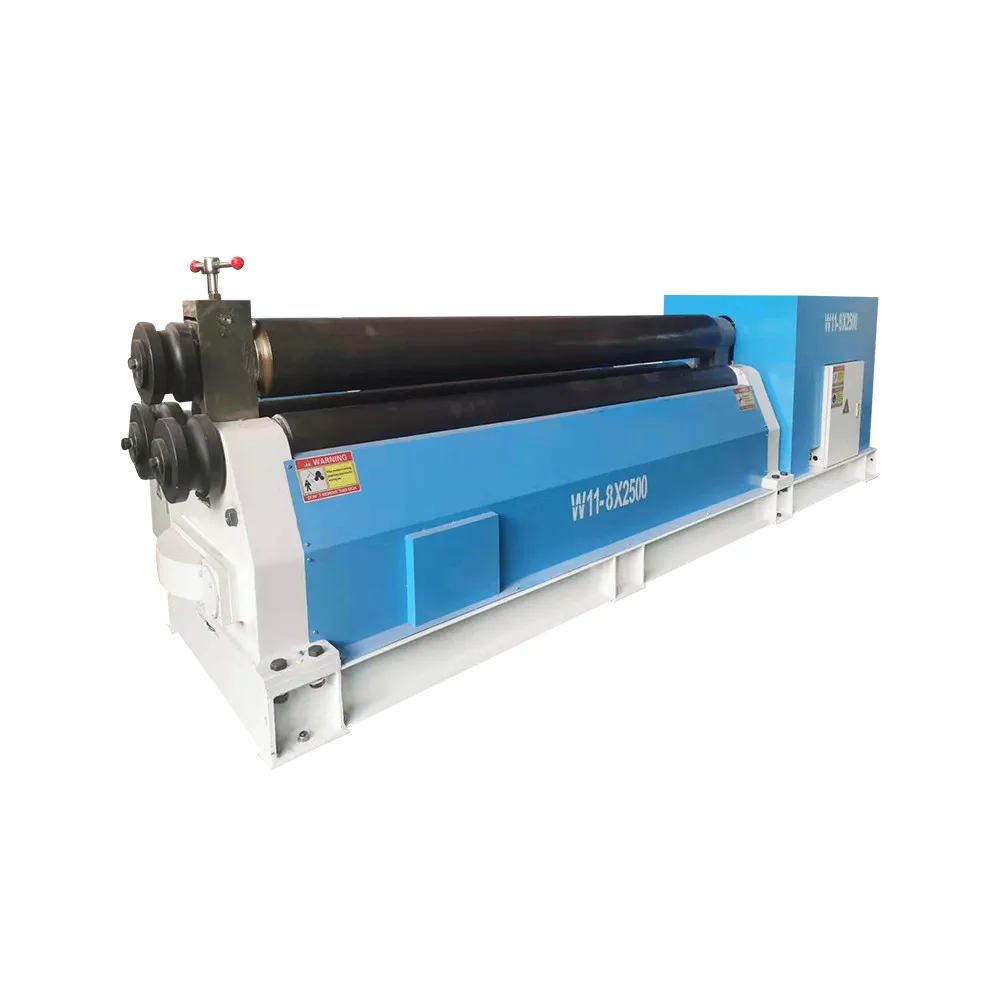

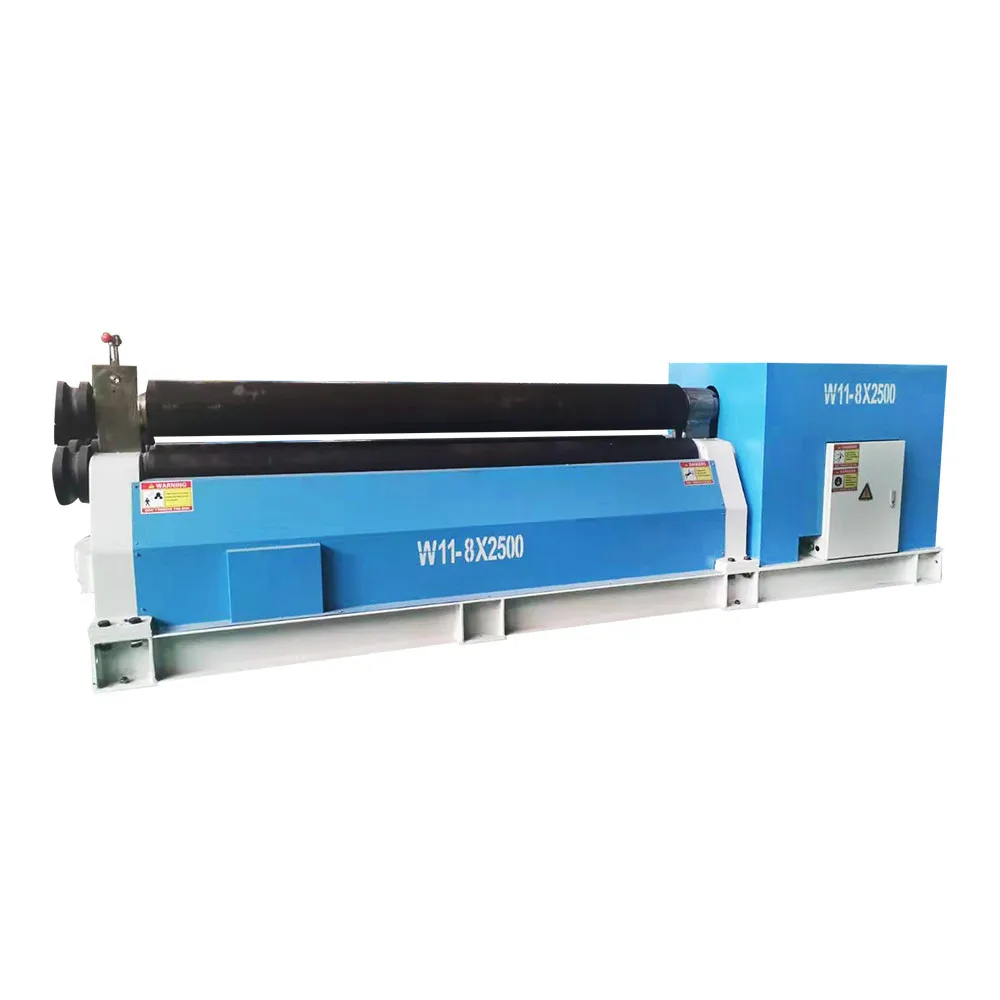

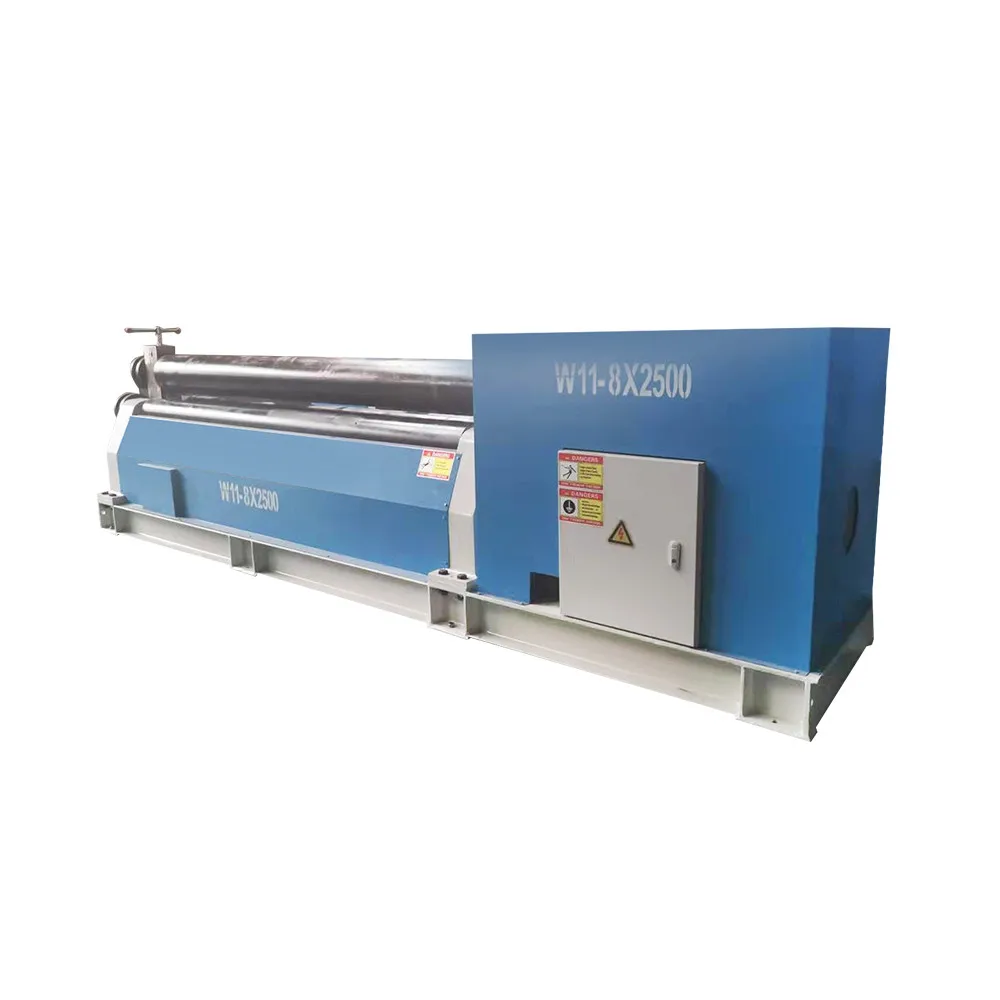

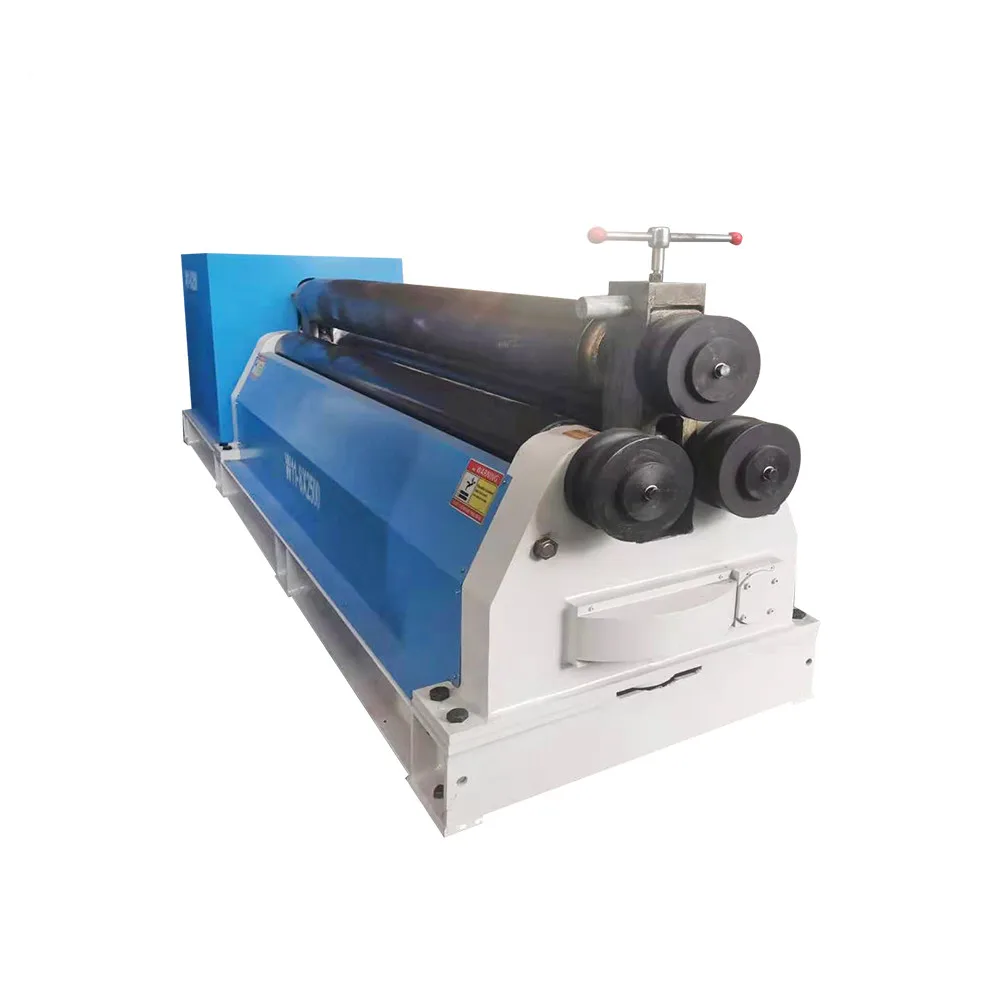

4mm ms 3 roller arch small bending machine flat aluminum bending machine
Bending Rolling Machine
Product Overview
W11 mechanical rolling machine
1. W11 series plate rolling machine with mechanical drive. When take away workpieces, upper roller can be separated. Upon request,we can install kinds of side wheels to bend different types metal sheet.
2. Note: 25*2500 above specifications used hydraulic fell discharge
3. Special specifications can be customized: length of the 1000-4000mm optional.
FEATURES AT A GLANCE
1.Upon request,we can install kinds of side wheels to bend different types metal sheet.
2. Note: 25*2500 above specifications used hydraulic fell discharge
3. Special specifications can be customized: length of the 1000-4000mm optional.
2. Note: 25*2500 above specifications used hydraulic fell discharge
3. Special specifications can be customized: length of the 1000-4000mm optional.
Cone rolling machine
Special rolling bending machine
Oval-shaped rolling machine
PRODUCT SPECIFICATIONS
Model | Max. bending thickness(mm) | Max.bending width(mm) | Top roller diameter(mm) | Bottom rolling diameter(mm) | Central distance(mm) |
W11-4x1500 | 4 | 1500 | 150 | 140 | 200 |
W11-6x2000 | 6 | 2000 | 170 | 160 | 220 |
W11-6x2500 | 6 | 2500 | 180 | 170 | 250 |
W11-8x1500 | 8 | 1500 | 170 | 160 | 220 |
W11-8x2000 | 8 | 2000 | 180 | 170 | 250 |
W11-8x2500 | 8 | 2500 | 240 | 180 | 280 |
W11-12x2000 | 12 | 2000 | 240 | 180 | 280 |
W11-12x2500 | 12 | 2500 | 260 | 220 | 320 |
W11-12x3000 | 12 | 3000 | 280 | 240 | 360 |
W11-16x2000 | 16 | 2000 | 260 | 220 | 320 |
W11-16x3000 | 16 | 3000 | 340 | 270 | 440 |
W11-20x2500 | 20 | 2500 | 340 | 270 | 440 |
W11-25x2000 | 25 | 2000 | 340 | 270 | 440 |
W11-25x2500 | 25 | 2500 | 370 | 280 | 480 |
W11-30x2500 | 30 | 2500 | 420 | 360 | 550 |
W11-30x3000 | 30 | 3000 | 450 | 390 | 600 |
W11-40x2500 | 40 | 2500 | 500 | 400 | 600 |
PRODUCT CONFIGURATION

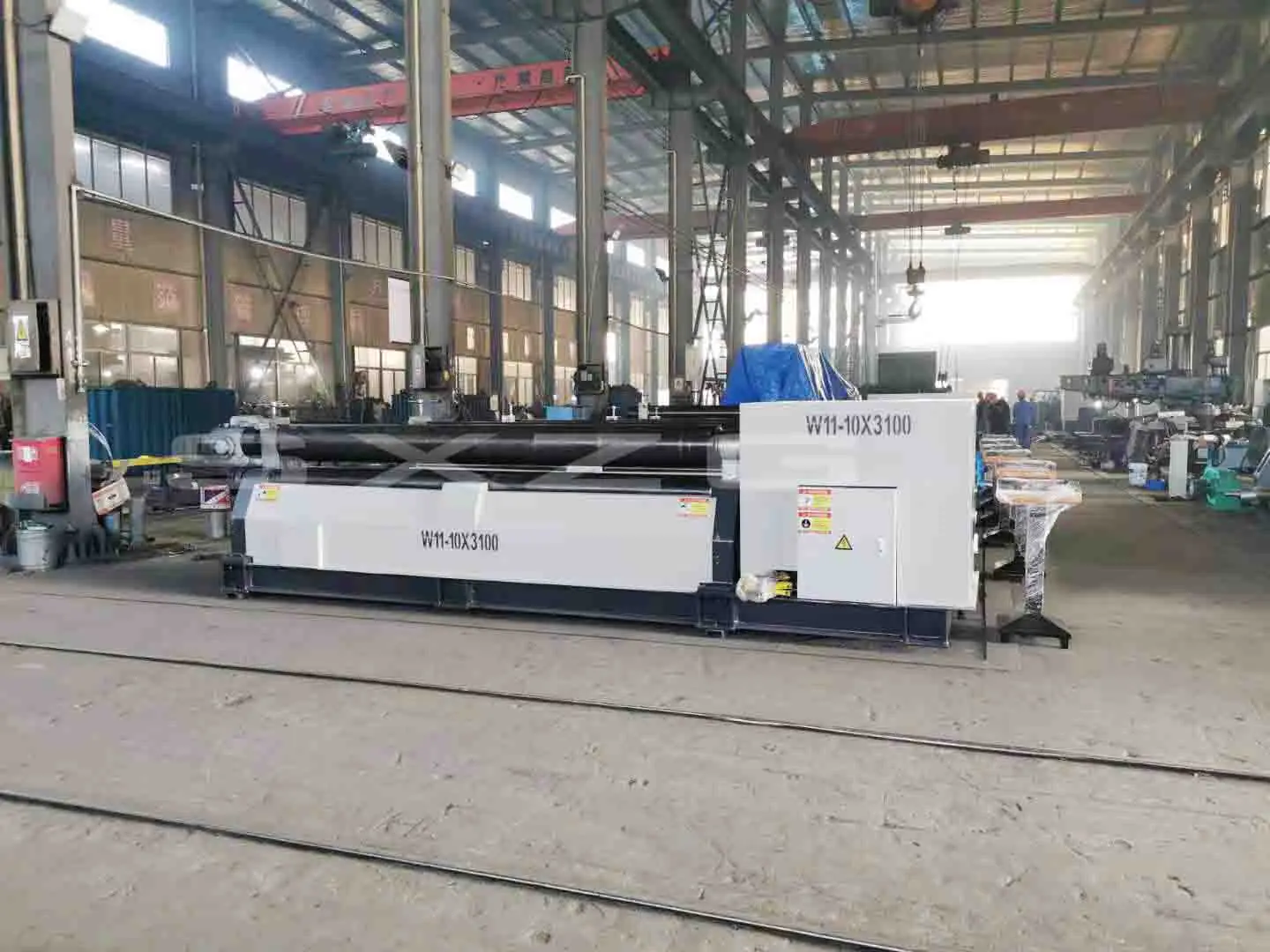

W11 rolling machine
The structure style of this machine is 3 roller symmetrical. They rotate by the meshing between the output gear of the gearbox and the bottom roller and supply the torque for bending plate. It’s compact easy operate and maintain. Extended shaft for profile bending.
The structure style of this machine is 3 roller symmetrical. They rotate by the meshing between the output gear of the gearbox and the bottom roller and supply the torque for bending plate. It’s compact easy operate and maintain. Extended shaft for profile bending.
Iron sheet rolling machine
Safety standards (2006/42 / EC) Open the electrical cabinet door to power off Domestic pedal switch ( safety grade 4 ) Body metal safety rail conforms to CE standards Safety relay monitors the pedal switch, safety protection
Safety standards (2006/42 / EC) Open the electrical cabinet door to power off Domestic pedal switch ( safety grade 4 ) Body metal safety rail conforms to CE standards Safety relay monitors the pedal switch, safety protection

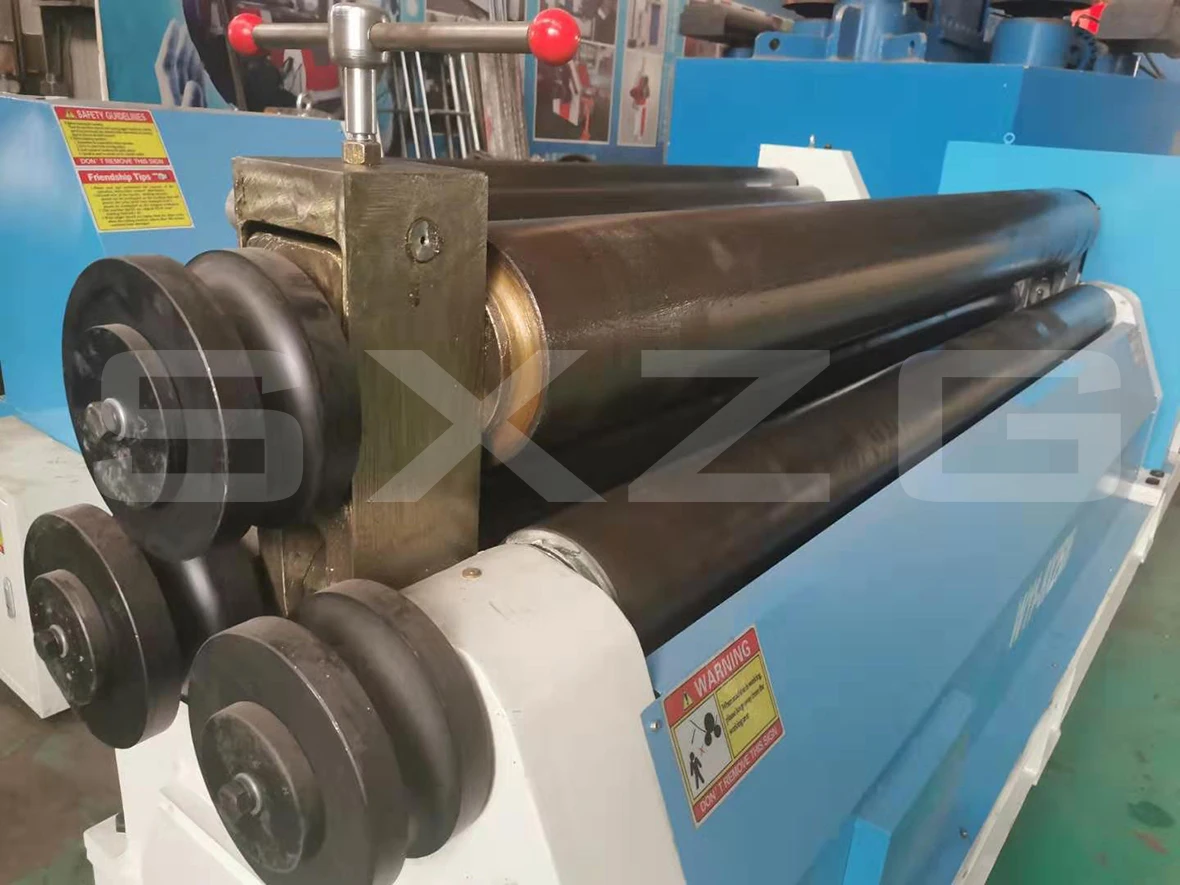

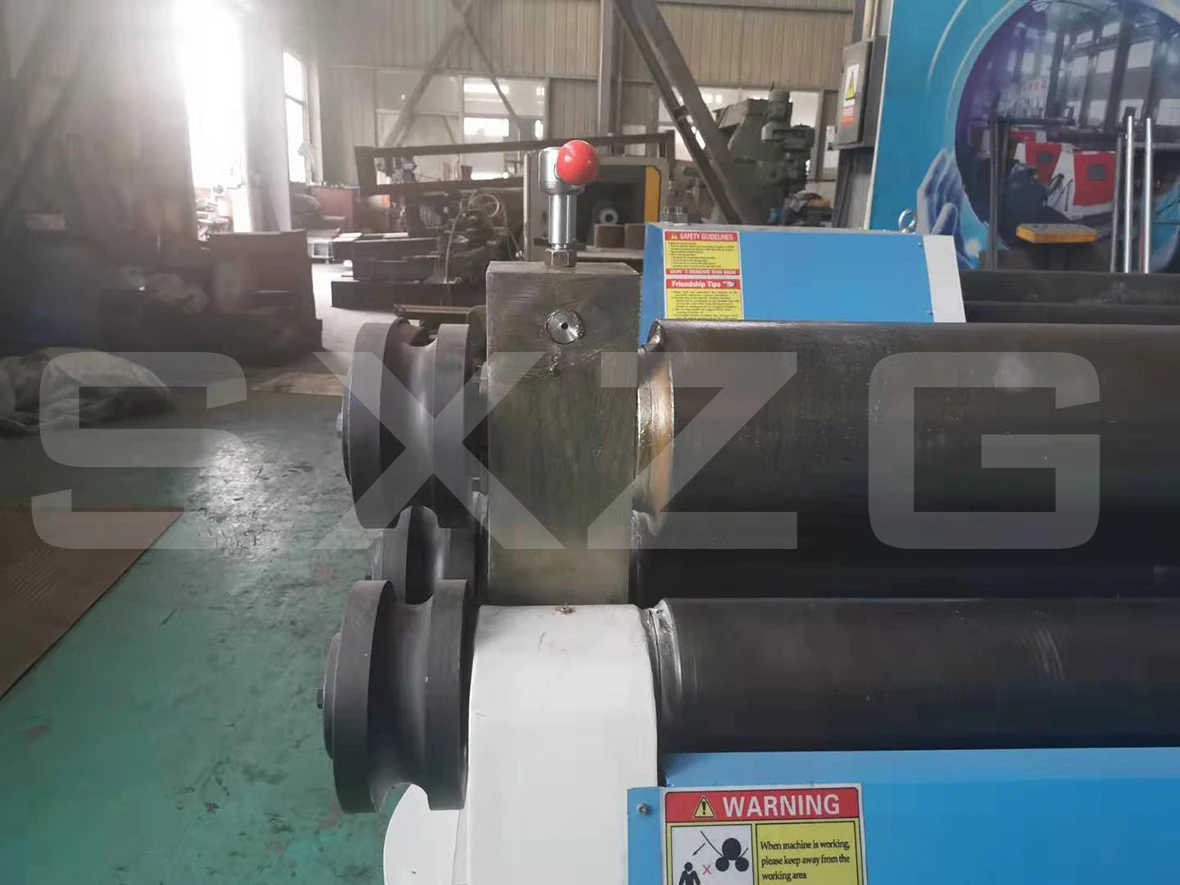

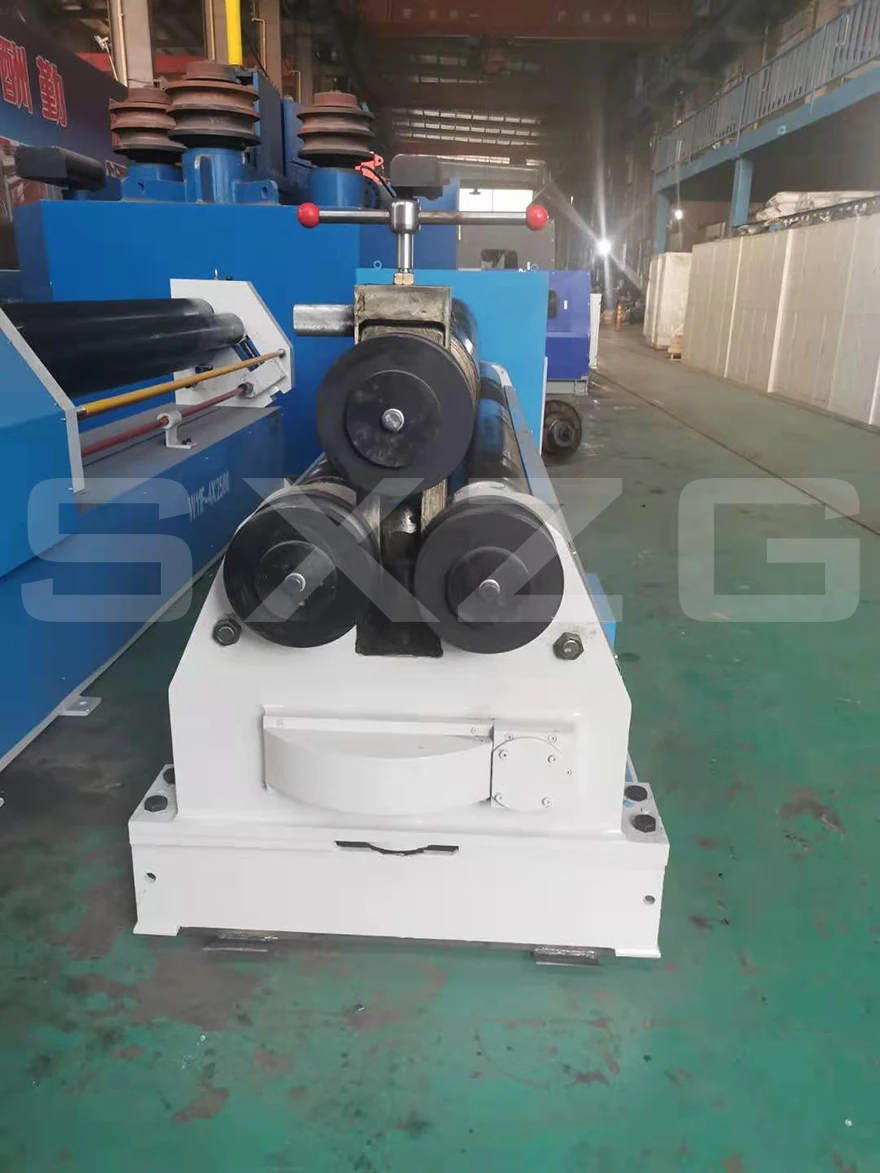

Roller
The top roller do the movement of elevation in the central position of the two bottom rolls. It is transmitted by screw nut and worm gear two bottom rolls are main drive rolls. Safety
The top roller do the movement of elevation in the central position of the two bottom rolls. It is transmitted by screw nut and worm gear two bottom rolls are main drive rolls. Safety
Release device
The offloading device is used after the round cylinder have been finished. Before leaving the left bearing sear, raised the upper roller to standard height, and make the upper roller stop with balance pull rod at the bottom of upper roller. Then draw out pin shaft on the tilting bearing sear, overturn the tilting bearing seat,then the coiled product can emerge from one end of the upper
roller.
The offloading device is used after the round cylinder have been finished. Before leaving the left bearing sear, raised the upper roller to standard height, and make the upper roller stop with balance pull rod at the bottom of upper roller. Then draw out pin shaft on the tilting bearing sear, overturn the tilting bearing seat,then the coiled product can emerge from one end of the upper
roller.
Optional section bending function

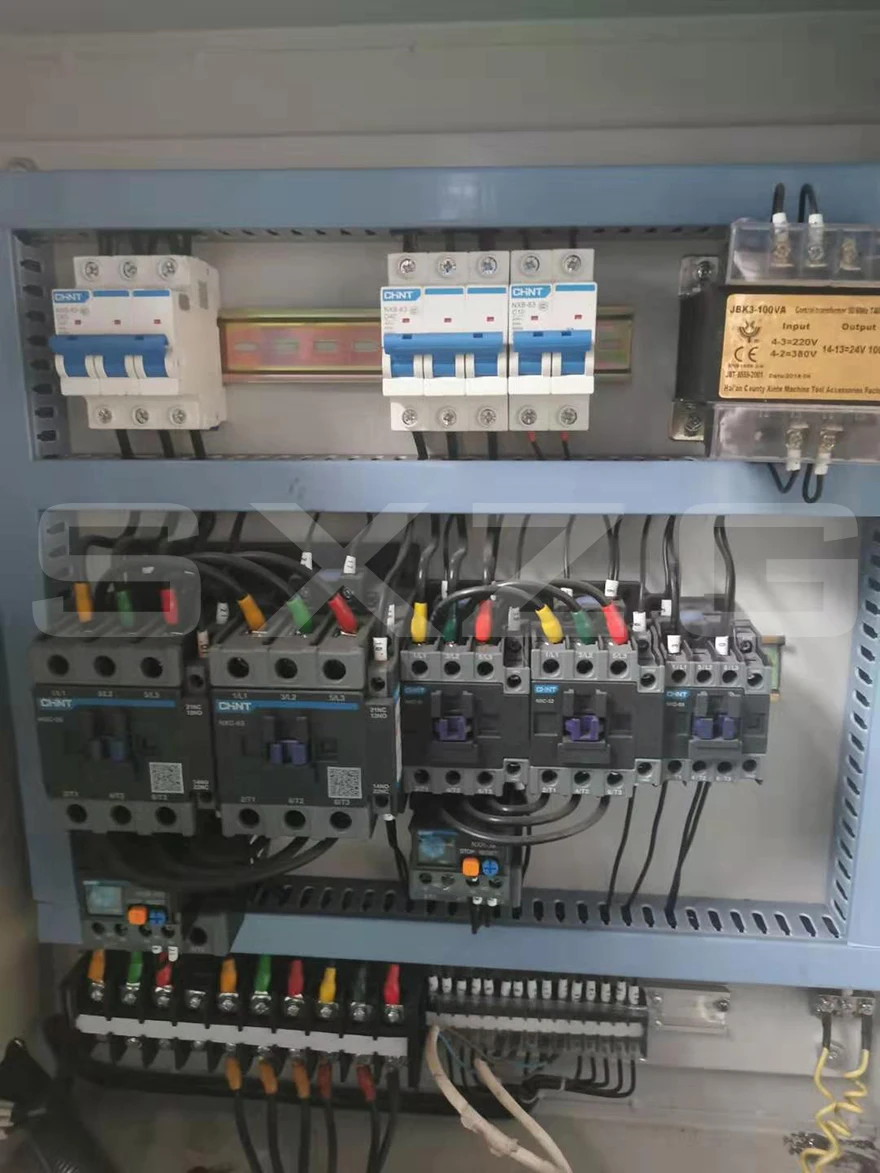

Electrical cabinet
