Automatic servo intelligent capping machine for hand wash, soap, sanitizer gel and detergent

Product Overview

Description

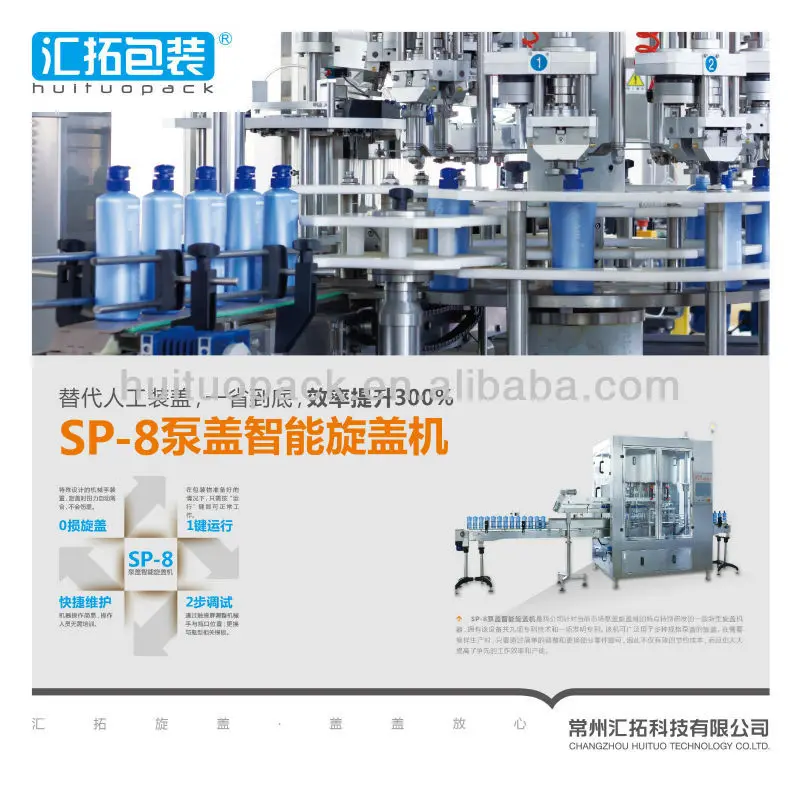

  Automatic 8-head capping machine



Major characteristics:

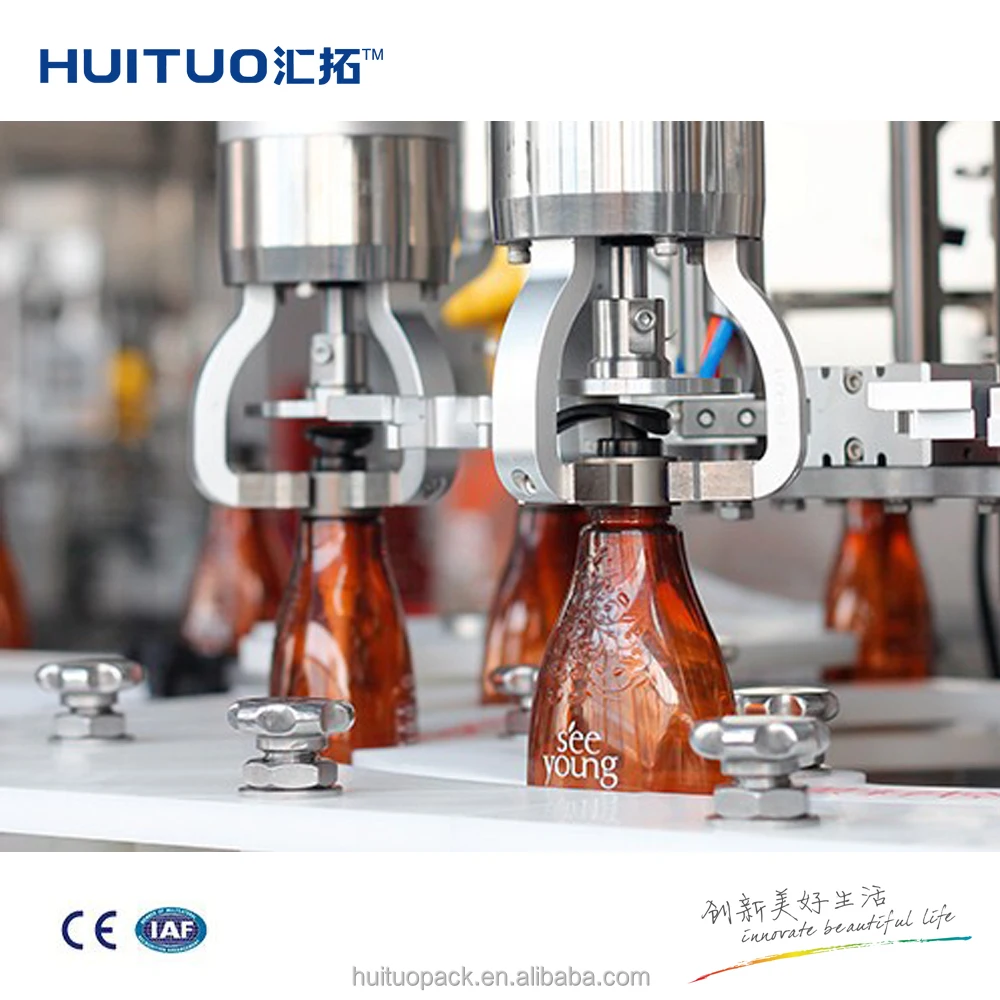

(1) Three claws structure, obtained many patents on technology, suitable for pump caps

(2) PLC controlled ,integrated cap feeding ,grasping ,capping ( can affiliate with automatic cap sorter)

(3) Automatic cap-feeding and bottle position-setting and orientation, adjustable torque control.

(4) Gentle operation, no scratch and injury to caps and containers

(5) Easy changeover, one line can accommodate several products

(6) Connected with filling machine and labeling machine easily

(7) Module structure, manipulate on the touch screen, easy maintenances

(8) Suitable for containers made of PET/PP/PE/HDPE and so on

(9) Production capacity can achieve 5000-10000b/h, higher speed can be customized.

(10) Applicable in liquid detergent, window cleaning detergent, kitchen cleaning detergent,and many other daily chemical products.





Main technical parameter:



No.	Item	Description
01	Overal dimension	2000mm(L)×1600mm(W)×2600mm(H)
02	Suitable bottle size	Customized
03	Suitable inner-plug size	Customized
04	No. of capping heads	8
05	Production capacity	5000~10000 bottles/hour
06	Power supply	AC 380V,50Hz
07	Allowing Pour spout mouth deviation range	≤±5°
08	Machine power	5kw
09	Air operated resource	0.6Mpa clean and stable compressed air
10	Air consuming	24 m3/h
11	Weight	About 5000Kg
12	Working noise	≤80db(test place should 1 meter away from machine)





Packaging & Shipping:





After-sales Service:
(1)     Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2)     Long time technology will be supplied.
(3)     We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets,accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD150.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
