JYT 20 Self Adhesive Label Coating Machine(ce) Coating Machine Mechanical Spare Parts Automatic Hot Product 2019 Customized 380V (786893415)

Share on:


Price:$20,000.00
Price in USD:Details

Quantity:


Product Overview

Description


JYT-20 Self Adhesive Label Coating Machine(ce) Coating Machine Mechanical Spare Parts Automatic Hot Product 2019 Customized 380V



Range of application:

JYT-20self adhesive hot melt Coating Machine developed in the new century is especially suitable for the need of research, development and low product. Whether you want to test various thermosols or develop new prodcut, it will be your good assistant and a coating system with small investment and good benefit.

Characteristic:

JYT-20 hot melt coating machine(Label coating machine)
1. Adopts single-arm structure for loading and unloading the material easily
2. It can coat the material up to a width of 200mm, so it is a standard and ideal equipment for one-person operation.
3. If it is equipped with the tension controller of magnetic powder, you can obtain high production efficiency.



Technical Parameter:














































































Model JYT20
Length2200mm
Width980mm
Height1300mm
Width of Roller240mm
Max.Width of Glueing200mm
Max.Diameter of Base Material400mm
Diameter of Paper Core76mm
Releasing Device2sets
Rolling Device1sets
Weight of Coating7 -120g /m²
Max,speed70m /min
Max,power2:5kw
Working Pressure0.2-0.7Mpa
High viscidity Hot melt extruding coating system


Please note: above is standard parameter. we can customize machine according to customers' requirement. Email me if you need.

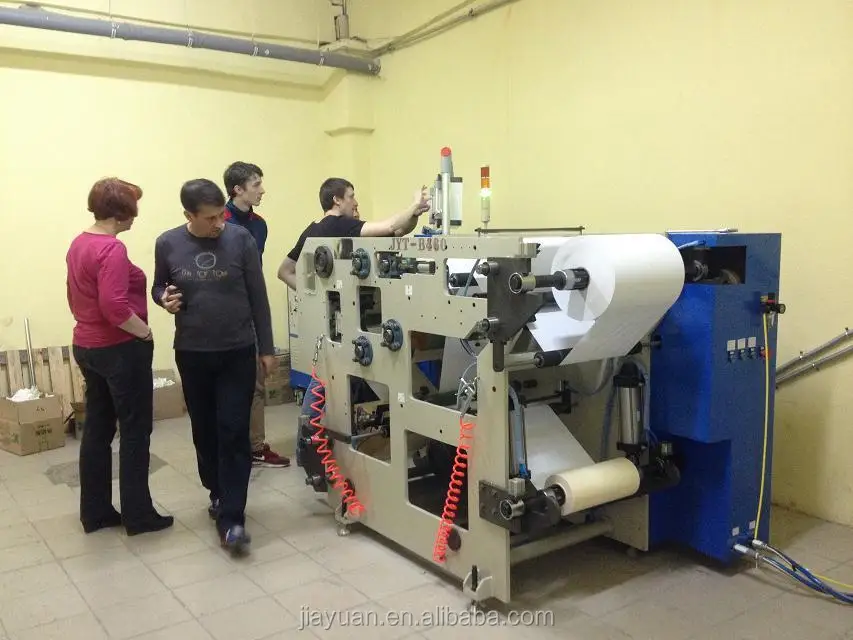

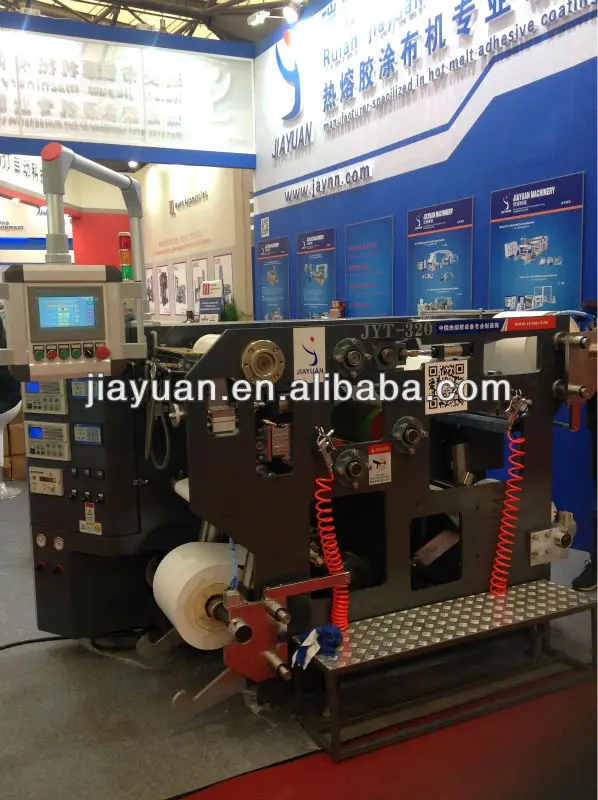

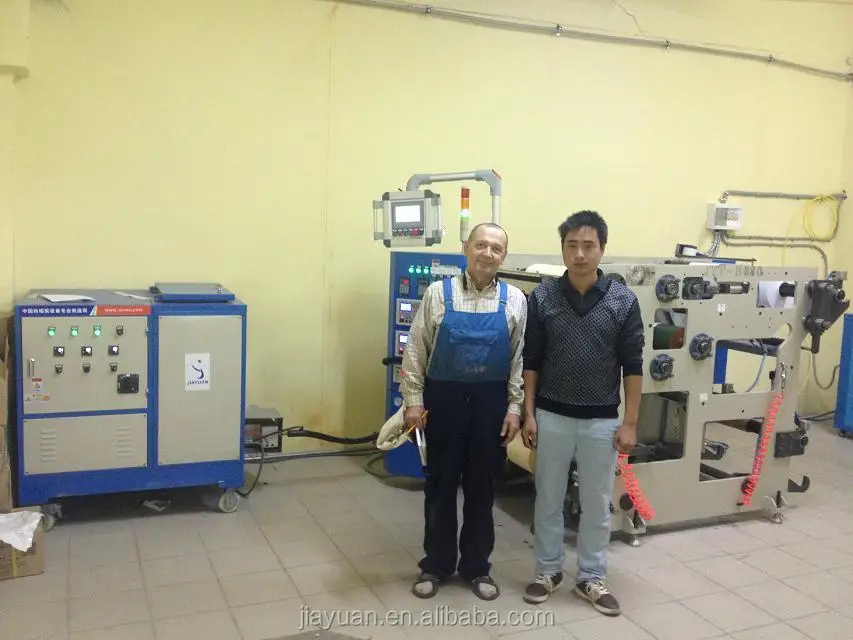

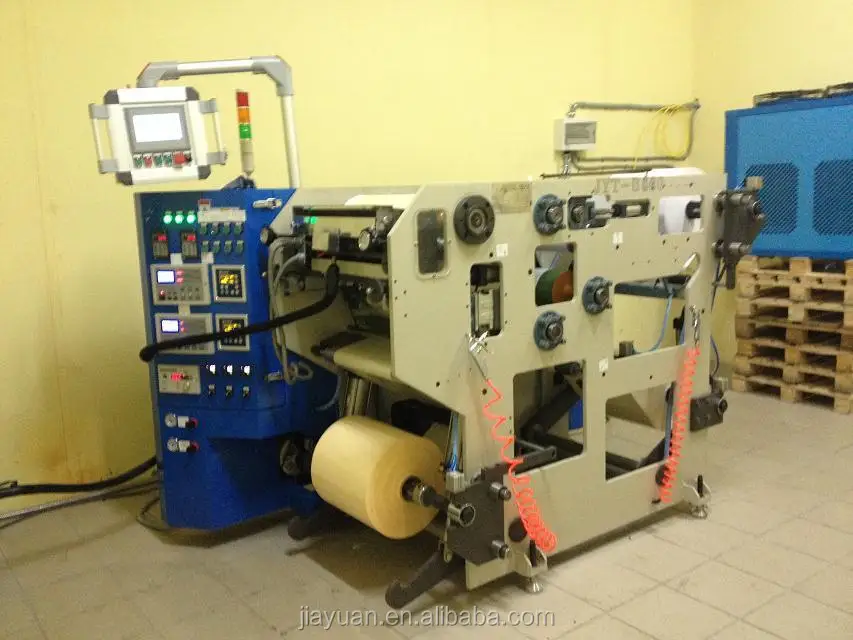

Main picture:

 .jpg.jpgJYT-320.JPGJYT-320 (1).JPGJYT-320 (2).jpgMedical tape.jpg







CE Certificate.jpg






FAQ





1. Q: How about the after-sales service?





    A: Our machines have one year guarantee, life-long maintenance.We have a strong team, special for after-sales service. We can arrange engineers to do service for you.





2. Q: Are you a factory or trading company?





    A: We are a factory in this field nearly 10 years.





3. Q: Where is your factory located? How can I visit there?





    A:Our factory is located in Wenzhou City, Zhejiang Province, China, near to the Wenzhou airport. You can fly to Wenzhou airport directly or take train to Ruian Station.





4. Q:How does your factory do regarding quality control?





    A:Quality is our invariable topic,it is the basement of company's development.From the beginning of opening company,we especially focus on quality job.Our hotmelt adhesive coating equipment have passed CE and SGS certification.





5.Q:What information should I let you know if I want to get quotation?





   A:-the details of your products,such as substrate,adhesive material,coating width etc.


      -if it is possible,please provide us the pictures or the design drawings,our designer will analyze your samples and give you exact details.





Should you have some other details not sure? such as videos,specification, components, working process, payment terms etc, please don't hesitate to contact  us
