60L/min Hydraulic sand mortar pump cement plastering mixing machine for sales

Product Overview

Description

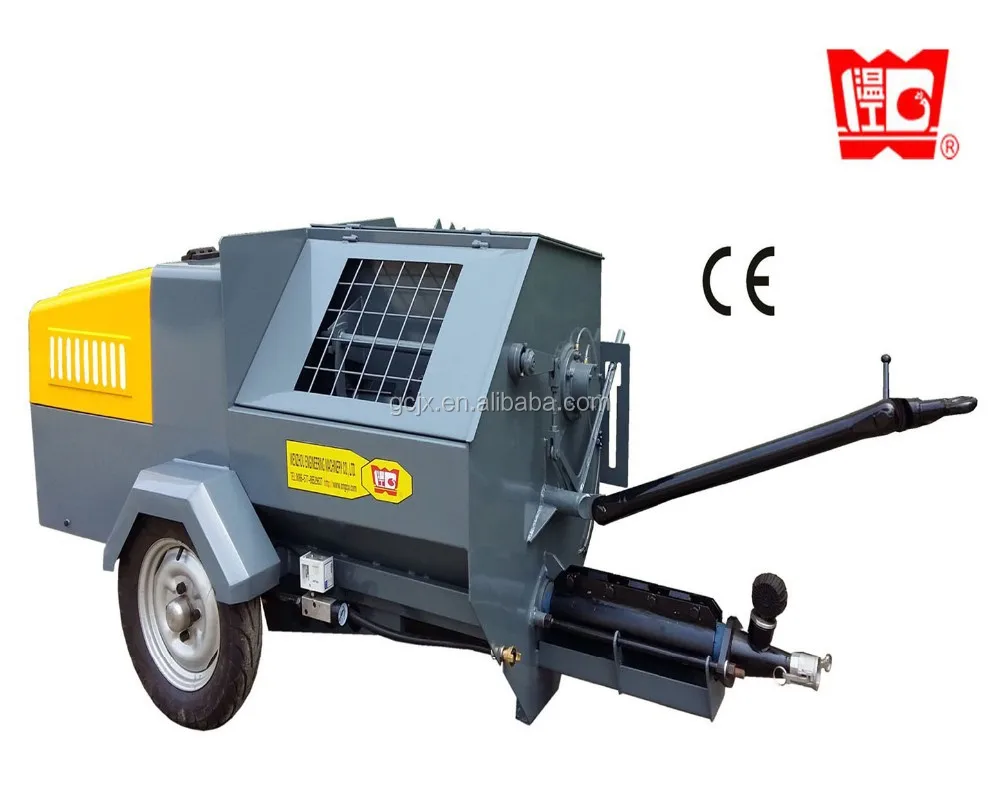

                                 JP60D-W   Hydraulic sand mortar pump



1. JP60D-W is the high efficiency machine introduced German technology.

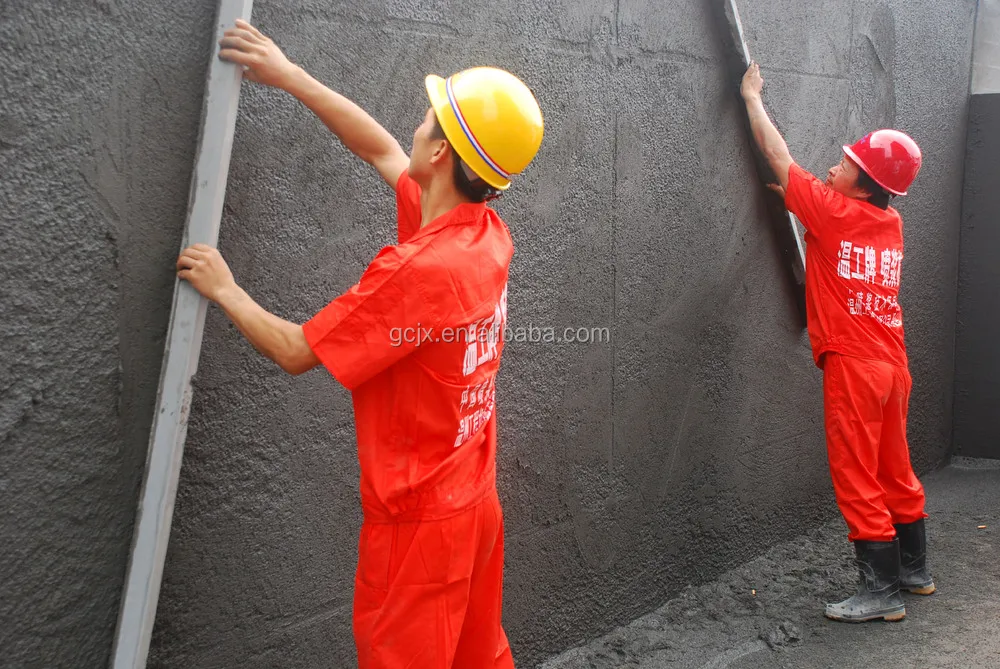

2. It's applicable to large area plastering for plastering mortar, thermal insulation mortar, and thick layer of mortar and construction and application for masonry mortar, reinforced mortar, filling mortar, perfusion mortar, fiber mortar, self-leveling mortar.



3.With variable speed regulation, can freely choose output, pressure and controlling pressure according to mortar characteristics and use.



4.Sets the pressure protection system, and achieves the remote control. With simple design and high power, it equips with large output conveying pump with steady work. It has combined functions of mixing, pumping, bonding and plastering.







Technical parameters of JP60D-W Mortar plastering machine



Model	—	JP60D-W
Supply power	—	400V 50Hz
Motor power	kw	7.5
Maximum grain size	mm	5
Output	l/min	40
Delivery pressure	bar	30
Horizontal delivery distance	m	60
Vertical delivery distance	m	40
Mixer power	kw	3
Mixer volume	L	250
Hopper volume	L	230
Net weight	kg	580
Dimension (L×W×H)	mm	2600×1170×1100

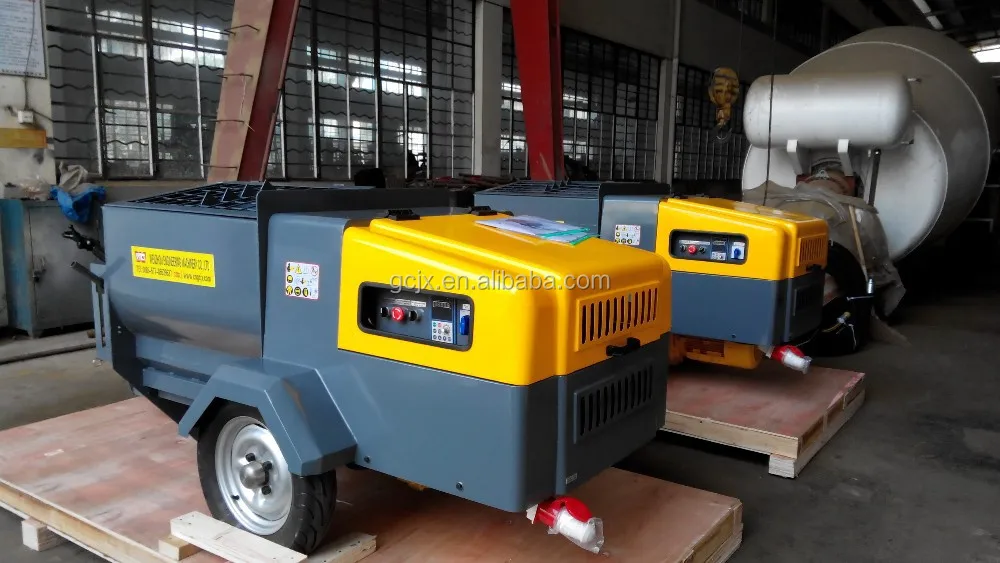

1. JP60D-W mortar spraying machine includes Mortar Mixer, air compressor and pump:











The wet mixed mortar will be discharged from mixer tank  into below Worm  pump tank system,



JP60-DW with long mortar conveyor shaft can ensure to deliver mortar continuously and evenly in long working time!

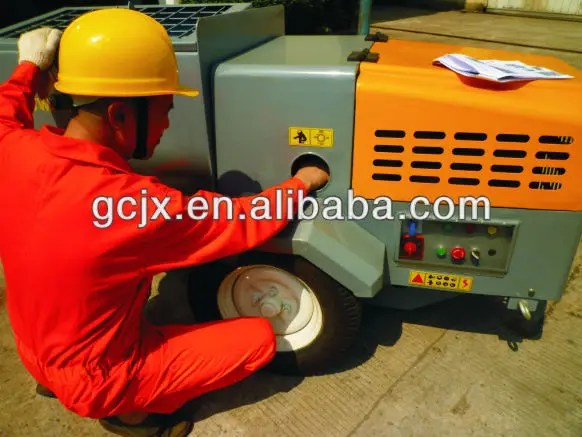

JP60-DW plastering speed can be adjusted freely by handwheel on electric motor.

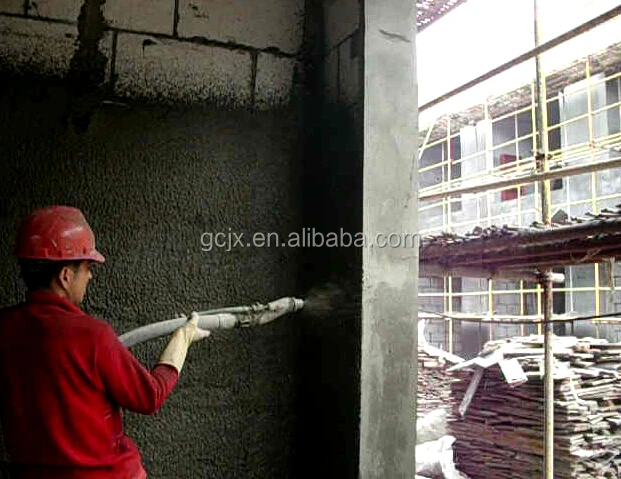

2. Spraying fireproof inslution mortar into 3D panle surface

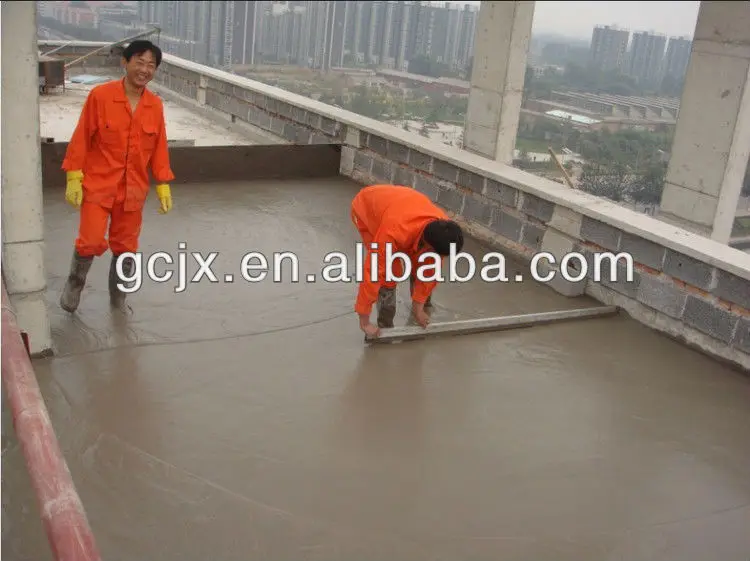

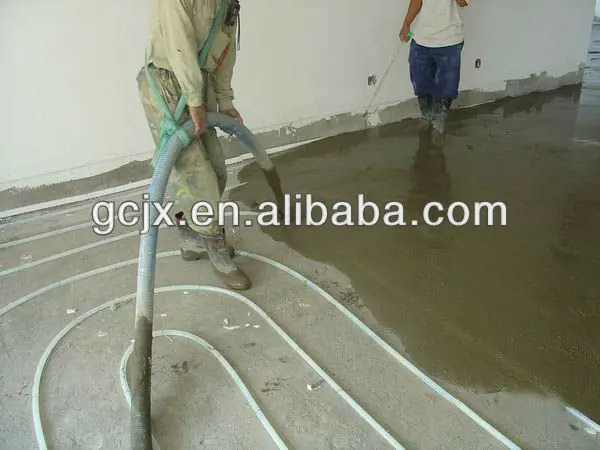

3. wall screeding plaster machine can screed the mortar to floor
