AL S 1600 мм PP машина для изготовления нетканых тканей, машина для изготовления нетканых тканей, используемая для сумок/упаковки/сельскохозяйственной машины
- Category: >>>
- Supplier: Dongyang Aolong Nonwoven Equipment Co. Ltd.
Share on (789961150):
Product Overview
Description
Product Overview

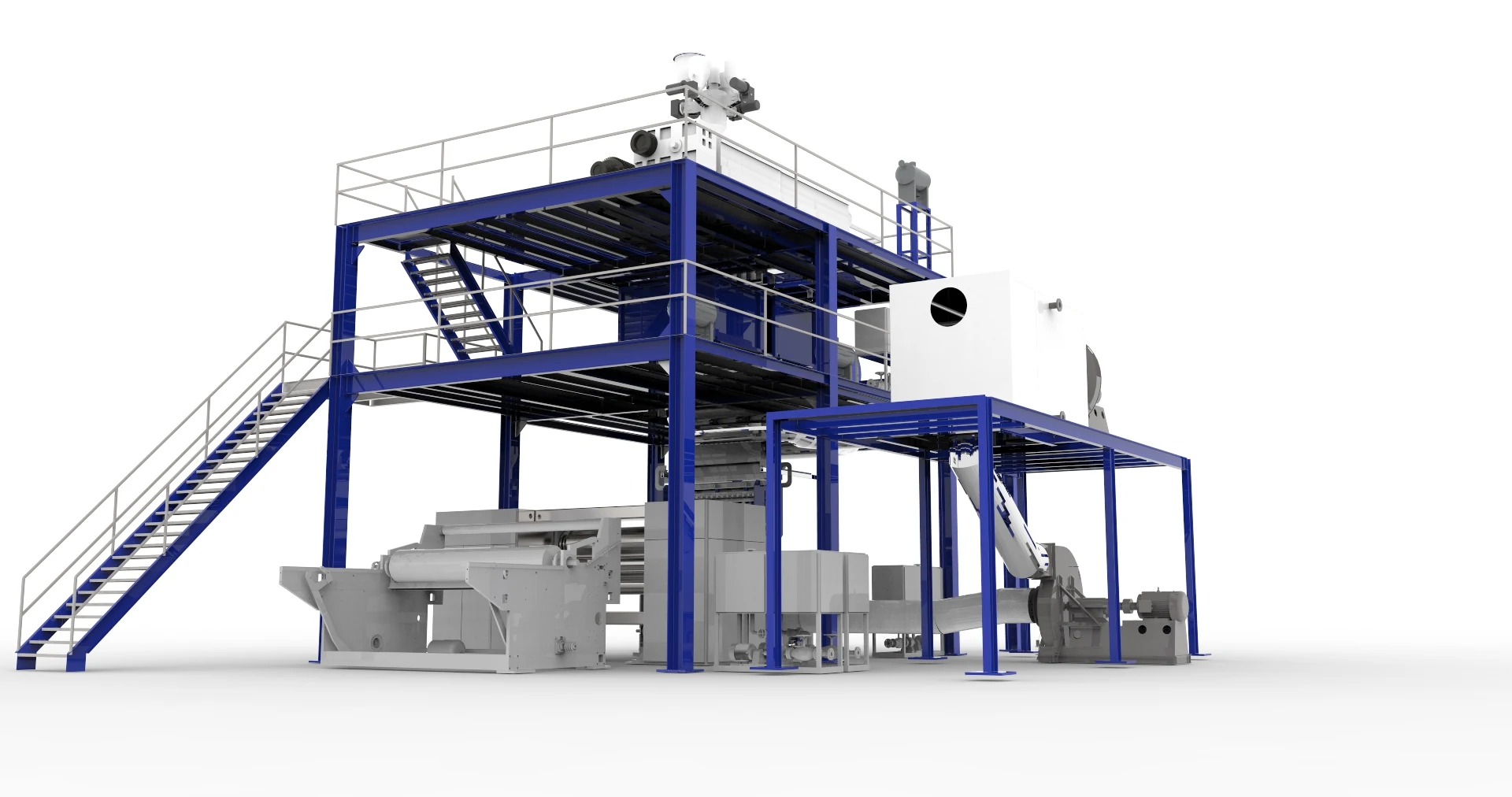

AL-- S 1600mm PP Non Woven Fabric Making Machine nonwoven fabric making used for bags /packing/Agriculture machine
1：Raw Material :Polypropylene granule,Polypropylene powder ,Polypropylene recycle,additive
2：Final Products Name:PP Spun-bond Non-woven Fabric Making Production Line
3：Fabric width:1600mm(standard width after edge trimming)
4：Spinning size :No. of spinning beam: 1set for spunbond
5：Fines of filament:spunbond system≤2.5den(1.8d-2.5d);
6：Basic weight:S: 10-200g/ m2
7：Machine speed:10-150m/min
8：Kinds of product :S spunbond nonwovens fabric
9：Machine size :18m * width: 15m * height: 13m
10：Electrical :Transformer (actual need) : 500KVA (buyer's preparation)
Power consumption:200KW/ h
2：Final Products Name:PP Spun-bond Non-woven Fabric Making Production Line
3：Fabric width:1600mm(standard width after edge trimming)
4：Spinning size :No. of spinning beam: 1set for spunbond
5：Fines of filament:spunbond system≤2.5den(1.8d-2.5d);
6：Basic weight:S: 10-200g/ m2
7：Machine speed:10-150m/min
8：Kinds of product :S spunbond nonwovens fabric
9：Machine size :18m * width: 15m * height: 13m
10：Electrical :Transformer (actual need) : 500KVA (buyer's preparation)
Power consumption:200KW/ h

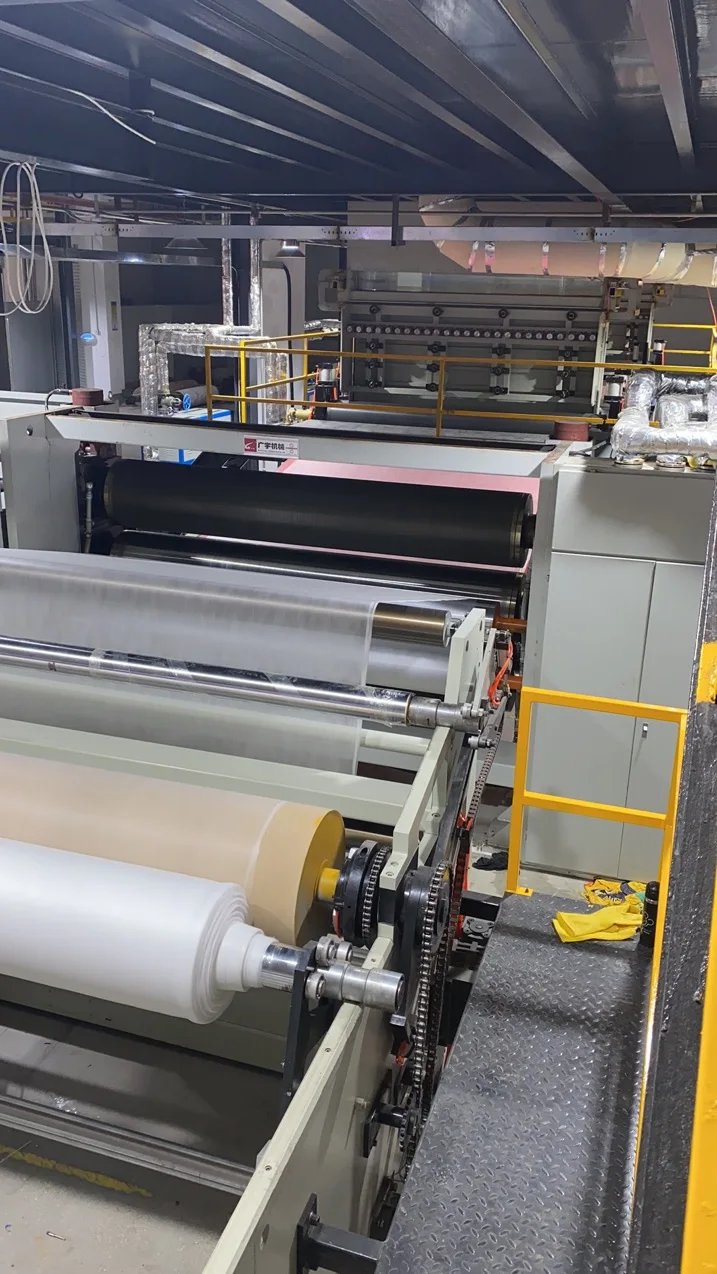

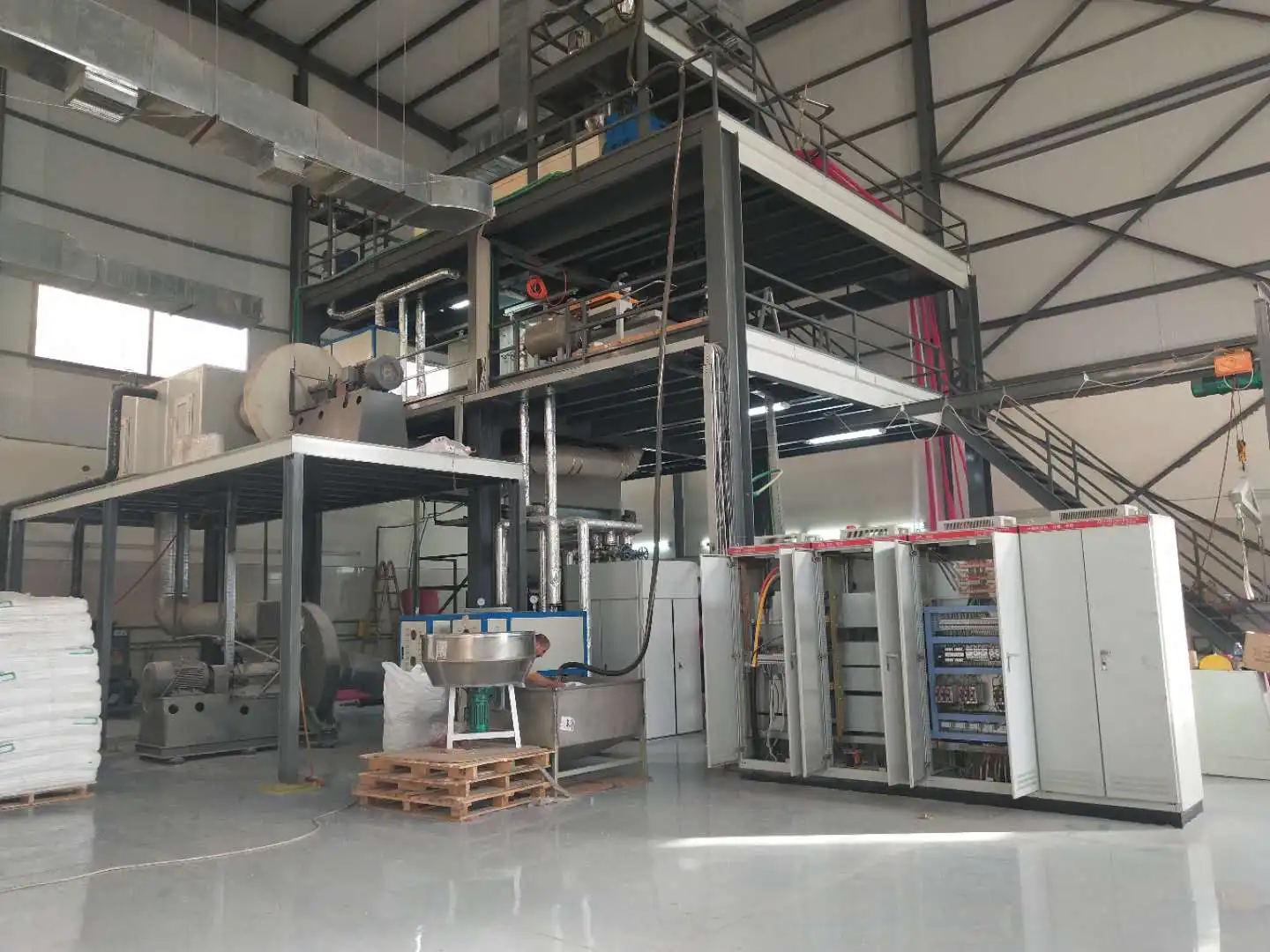

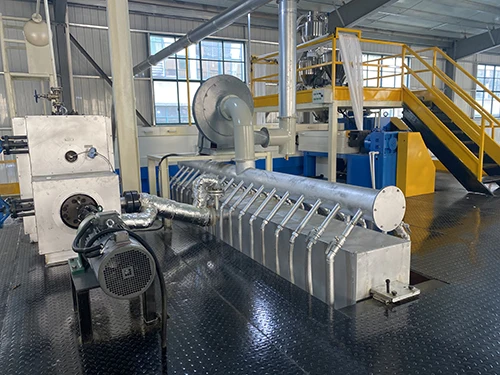

Detailed Images
Working Process:
1.Feeding→2.Extruding&Melting→3.Filtering→4.Metering→5.Spinning→6.Cooling→7.Stretching→8.Web forming →9.Calender→10.online slitting→11.Online Slitting&Winding
1.Feeding→2.Extruding&Melting→3.Filtering→4.Metering→5.Spinning→6.Cooling→7.Stretching→8.Web forming →9.Calender→10.online slitting→11.Online Slitting&Winding

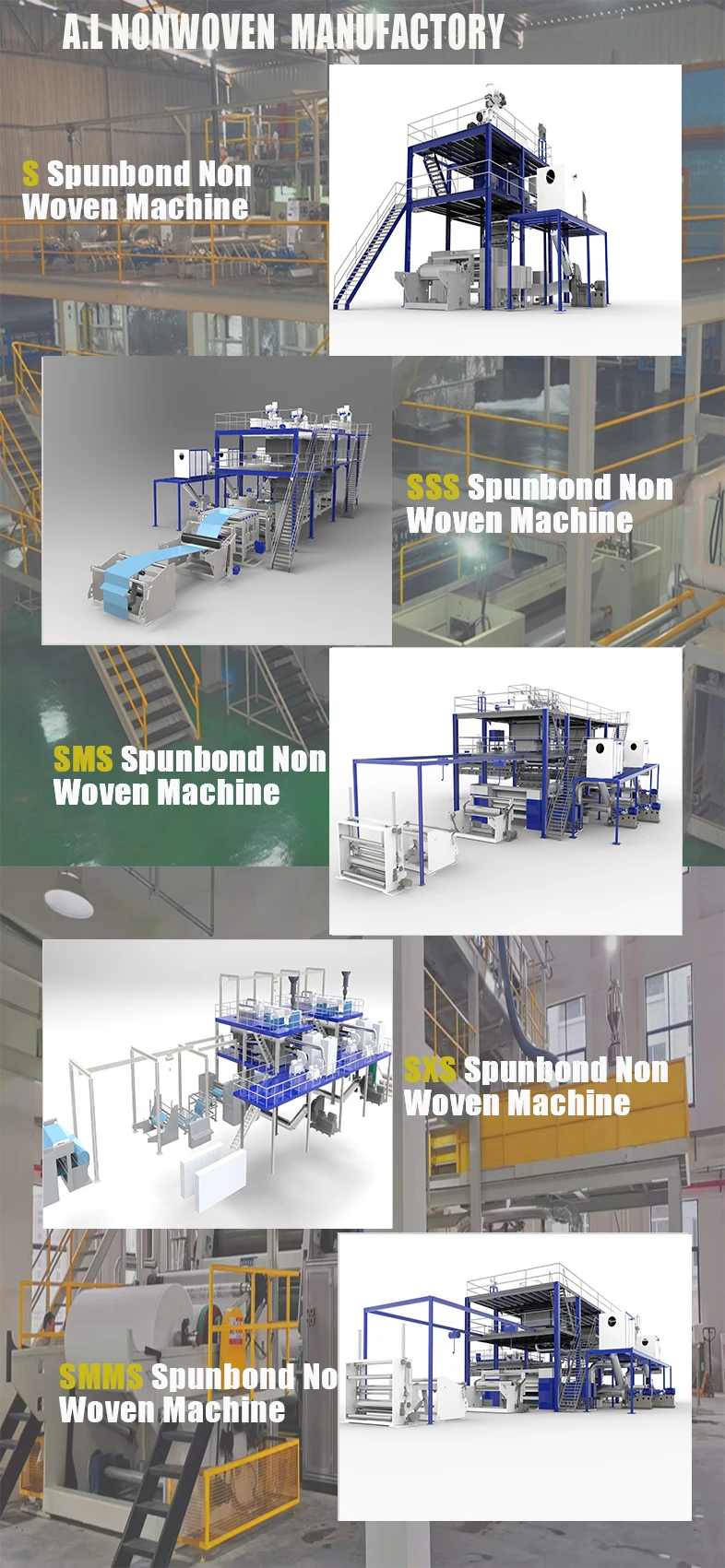

Machine Model
S Model
Working Width | Fabric GSM | Power input | Consumption | Annual Output/Year |
1600mm | 9-250 | 200KVA | 130KW | 1500T |
2400mm | 9-250 | 250KVA | 180KW | 2400T |
3200mm | 9-250 | 300KVA | 200KW | 3000T |
4200mm | 9-250 | 450KVA | 300KW | 3800T |
SS Model
Working Width | Fabric GSM | Power Input | Consumption | Annual Output |
1600mm | 10-250 | 300KVA | 200KW | 3000T |
2400mm | 10-250 | 350KVA | 250KW | 4800T |
3200mm | 10-250 | 600KVA | 300KW | 6000T |
4200mm | 10-250 | 800KVA | 450KW | 7500T |
SSS Model
Working Width | Fabric GSM | Power Input | Consumption | Annual Output |
1600mm | 12-250 | 600KVA | 300KW | 4000T |
2400mm | 12-250 | 850KVA | 400KW | 6000T |
3200mm | 12-250 | 1000KVA | 600KW | 8000T |
SMS Model
Working Width | Fabric GSM | Power Input | Consumption | Annual Output |
1600mm | 15-250 | 600KVA | 400KW | 3500T |
2400mm | 15-250 | 800KVA | 600KW | 5000T |
3200mm | 15-250 | 1000KVA | 800KW | 6500T |
Packing & Delivery
NUDE PACKING , WOODEN CASE IS OPTIONAL. CASE PACKING:CARDING MACHINE, LAPPER AND ELECTRIC BOXES WOODEN CASE PACKAGED.
OTHER MACHINES NUDE PACKAGING.
ANY DAMAGE IN TRANSPORT OF MACHINES IS NOT DUTY OF THE SELLER.
OTHER MACHINES NUDE PACKAGING.
ANY DAMAGE IN TRANSPORT OF MACHINES IS NOT DUTY OF THE SELLER.
Our service

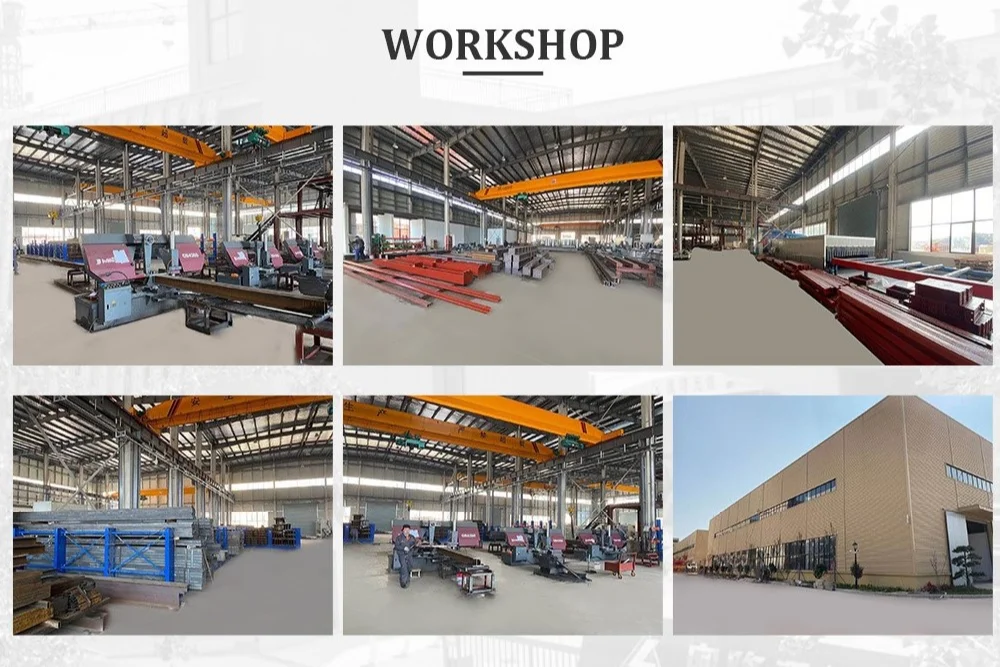

Our Company
FAQ
1. Are you factory or trading company? We are factory with export rights. We manufacture machines and export& nbsp ;to customers by ourself.
2.Do you have a separate after-sales team?
yes,we have it .we have 4peoples for after-sales
3.How to going to visit you factory ?
we near the shanghai ,by fast tran need 1:30hours .near yiwu,just 30min .
2.Do you have a separate after-sales team?
yes,we have it .we have 4peoples for after-sales
3.How to going to visit you factory ?
we near the shanghai ,by fast tran need 1:30hours .near yiwu,just 30min .
