XKP 400/450/560 дробилка с пункта розничного сбыта на резиновой крошки пиролиза отходов шин для дробления резиновых изделий перед загрузкой
- Category: Rubber Recycling Machinery >>>
- Supplier: Qingdao Chaoguangyue Industry Co. Ltd.
Share on (796455596):
Product Overview
Description

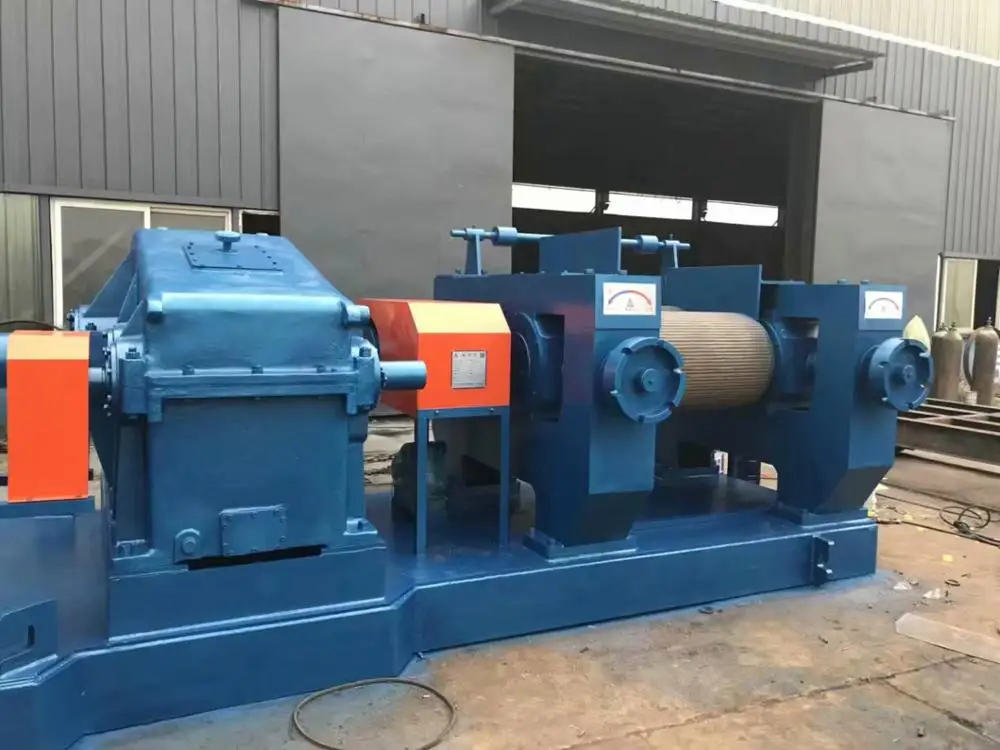

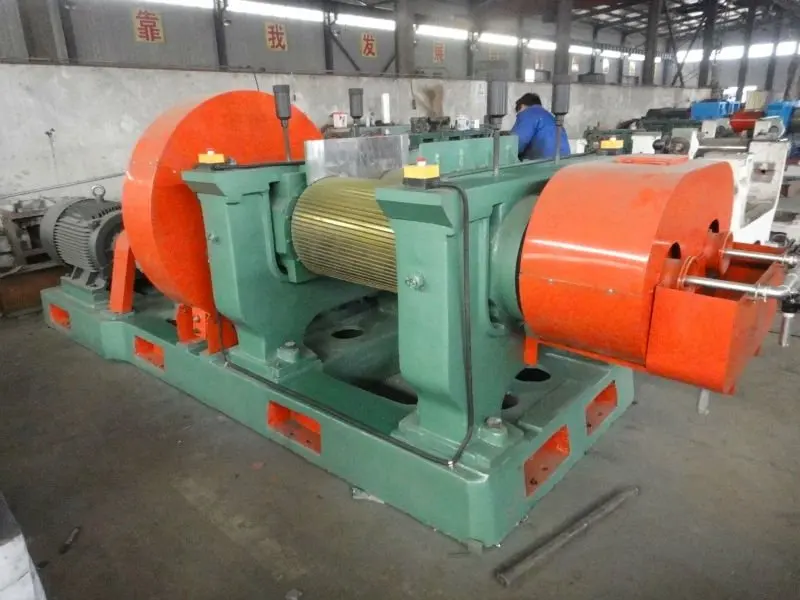

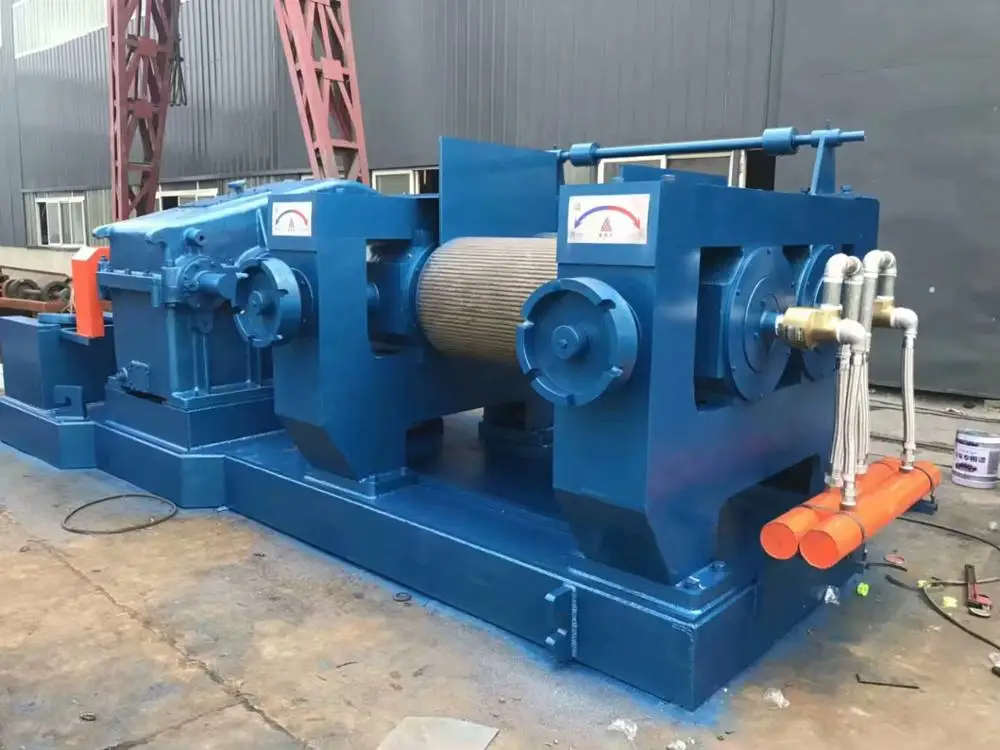

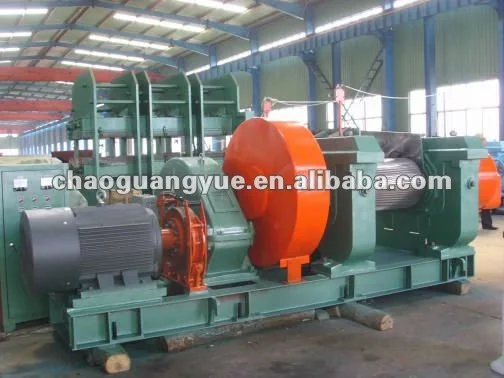

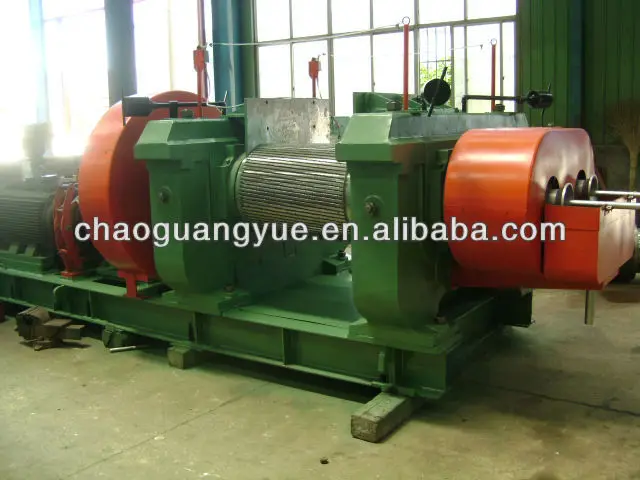

Rubber Crusher Machine/Tyre recycling machnie/Tire shredder machine
1.rolls made of chilled alloy cast iron
2.rear roll is grooved
3.protective device to protect the main parts from damage

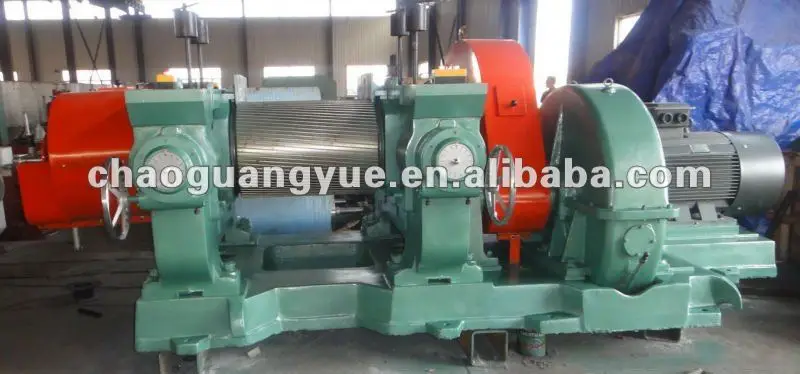

rubber cracker
Main Application :
This machine is mainly used to crush waste tire and rubber ,the structure is gear transmission.
Note: this machine is only one part of the whole production line.
Structure:
This kind of machine consists of seat, Rack, two rollers,motor,cooling system,heating system etc
1.Rollers are made of chilled cast iron ,which are abrasion resistant with long service life
2.Rear roller is equipped with distance adjustment device,easy operation and convenience,turn the turbine to adjust the distance
3.Perfect emergency stop device can ensure the safety of personnel and equipment.
4.the seal structure with special design can eliminate the leaking phenomenon of lubricating oil.
5.Human nature designed operating system reduces labor intensity
A load test running will be made to the assembled equipment in our company to save debugging time for customers.
features:

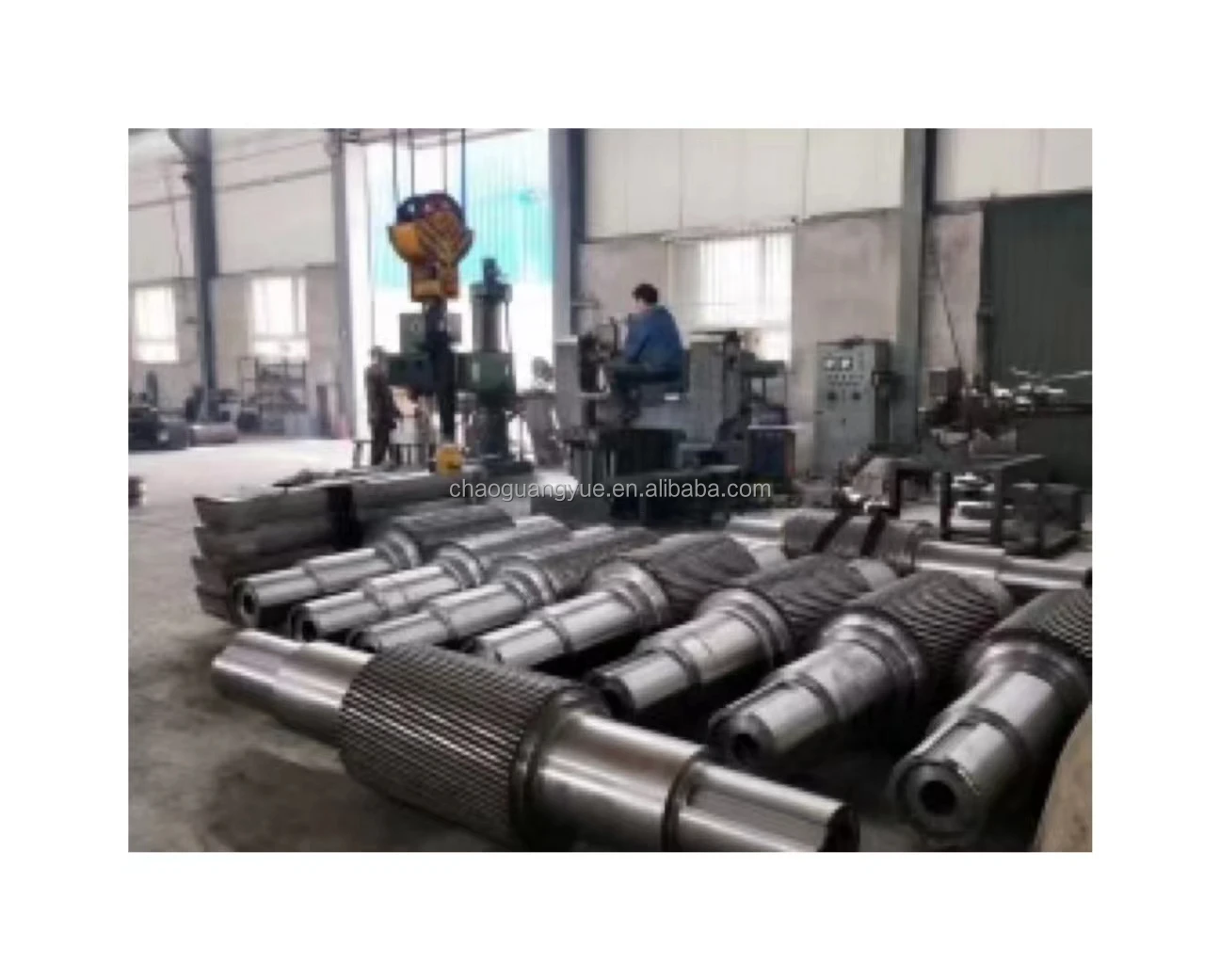

1. The roll is made of chilled cast iron of vanadium and titanium alloys. (Rolls of G model are made of high grade steel with hard alloy welded on the surface.)
2.The roll face is hard and anti-wear. Both the front roll and the back roll are fluted. The internal cavity of the roll is processed to ensure temperature well proportioned on the roll surface.
3.The machine is equipped with an overload protection device to prevent the major components from being damaged due to overloading.
4.By LTG rollers - cold hard cast-iron security, its surface hardness is made, 68 ~ 75 HS grinding and smooth surface. Inside the hollow cylinder for use, can according to the requirement, the steam and cooling water is used to regulate the temperature of the rolls. Two rolls with different relative rotation speed, rubber roller into two broken sewing machinery in the process.
5.The machine is also equipped with an emergency device. When an emergent accident happens, just draw the safety pull-rod, and the machine will stop immediately.
| Parameter | Version | |||||
| XKP-400 | XKP-450 | XKP-560 | XKJ400 | XKJ-480 | ||
| Front roll diameter | 400 | 450 | 560 | 400 | 480 | |
| Back roll diameter | 400 | 450 | 510 | 480 | 612 | |
| Roll length | 600 | 650 | 800 | 650 | 800 | |
| Front roll surface speed | 17.32 | 23.2 | 25.56 | 18.01 | 26.6 | |
| Friction ratio | 1:1.38 | 1:1.38 | 1:1.30 | 1:1.88 | 1:1.75 | |
| Max .nip | 8 | 8 | 15 | 10 | 15 | |
| Feeding capacity per | 200-300 | 600-800 | -1500 | -300 | -500 | |
| Power | 45 | 55 | 75 | 55 | 75 | |
| Size | 3950*1800*1780 | 4770*1846*1835 | 5064*2284*1978 | 4770*2300*1835 | 50702800*1978 | |
| Weight | 7000 | 12000 | 19000 | 12800 | 20000 | |

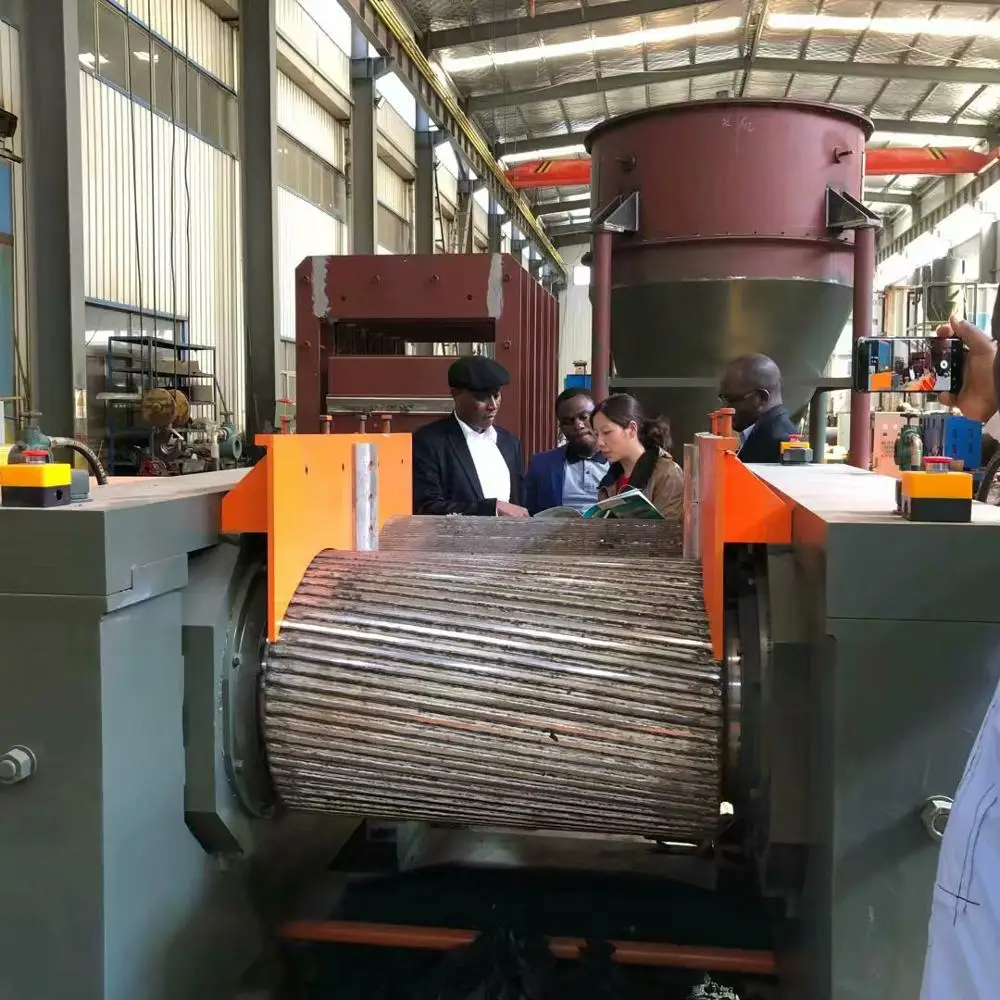

Exibition&Customers
Exibition & Customers
Company Information
Qingdao Chaoguangyue Industry Co.,Ltd is one of the important backbone enterprises in rubber machinery and textile machinery industry in China and is one member of Shandong machinery union company.The company owns powerful technical strength,advanced technic,the best design and strict quality guarantee system,which owns a high reputation in China rubber machinery industry.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 30 countries and areas,such as America,Japan,Korea,India,England,Germany,Russia,Pakistan etc.
The main products are vulcanizing tank,plate vulcanizing press,open mixing mill,rubber kneader,rubber extruder,used tire recycling machine,used tire retreading machine,rubber machinery and textile machinery.All of the products are designed visually by three-dimension CAD design,quickly built module,limited element analysis,analogue action and interfering inspection.The combination of three dimension CAD system and internet guarantees the synchronization with international advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time,the company keeps good contact with several universities and researh institutes.
Certifications
All the product are CE,ISO,SGS Approved.
Packaging & Shipping
Packaging Details: Wood Pallet & Film Wrap
Delivery Detail: 60 Working Days Since Down Payment
Our Services
1.pre-sale services
Act as a good adviser and assistant of client enable them to get rich and generous returns on their investments.
1)select equipment model
2)design and manufacture products according to clients' special request
3)train technical personnel for clents.
2.services during the sale
1)Recheck and accept products ahead of delivery
2)Help clients to draft solving plans
3.after-sale services
1)provide considerate services to minimize client's worries.
2)Help client to solve the assembly question
3)take responsibility if any technical problem
FAQ
Q:Are you factory or trading company?
A:We are a manufacturer with over than 15years of experience in Rubber Machine.
which include: plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber machinery, textile machinery,shot blast cleaning machine, foundry machinery, woodworking machinery, wheel barrow and tire etc
Factory Add: Huang Shan Economic Zone, Jiaonan, Qingdao, Shandong, China (Mainland)
Welcome your visiting and we can arrange our driver to pick up you.
Q:What advantages do you have?
We have15 years trust of our customers. Guarantee Quality and timely Delivery !
Skilled QC staff and do the best quality control,Fast shipment as per customers requirement.
Q: What are your delivery times?
The delivery time is 20-45 days after order be confirmed. For the exact date,please check with our sales team.
Q:What kind of surface treatment do you provide for your goods?
Galvanized ,chrome coating or powder coating are available. We can also make it according to our customer’s requirement.
Q:I’m not sure about your product, can you send me sample for reference?
Our standard product samples are free of charge except for the freight fee.
For customized products, sample fee as well as the freight fee are charged.
