double head miter saw for plastic or vinyl profile/Plastic window door frame making machine/plastic window cutting saw

Product Overview

Description

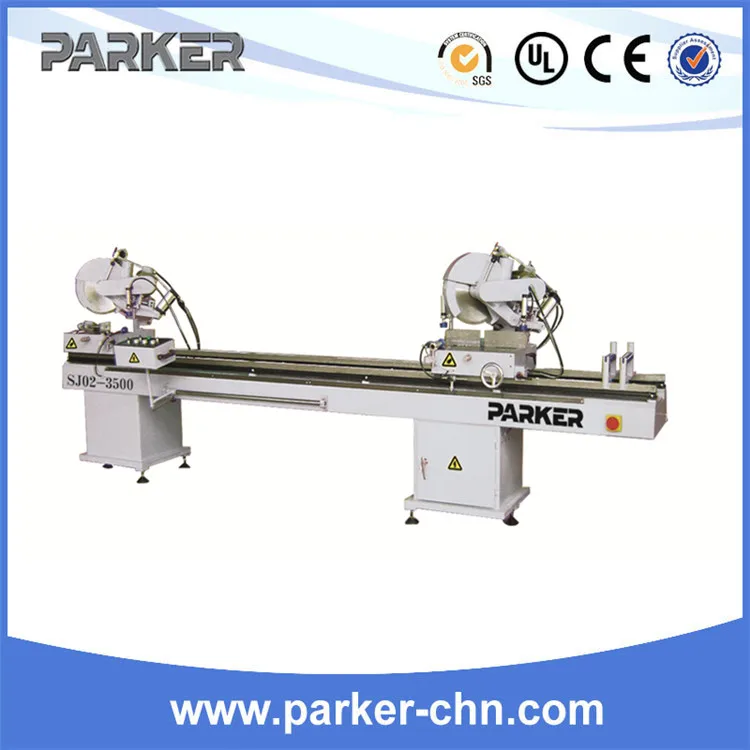

double head miter saw for plastic or vinyl profile/Plastic window door frame making machine/plastic window cutting saw













Model:  SJ02-3500



Features:

• The machine is made up of saw heads, working table, machine frame, etc. Air pressure drives feeding and pressing, and the speed can be adjusted.
•  It features swinging feeding and high cutting precision. There are movable shields on the saw heads.
• The working table moves agility, and can be locked in the location what do you need.
• The machine is used for 45-90 degree cutting processing of PVC profile with single or double saw heads.
• It features high efficiency and flexible operation and is the necessary equipment for PVC door processing.

Parameter:

Voltage:	380V   50HZ
Motor Power:	3KW
Air pressure:	0.4-0.6MPa
Air consumption:	100L/min
Blade specification:	Φ350XΦ30X3.2  Z=100
Max. Cutting width:	200mm
Max. Cutting height:	100mm
Double saw head cutting length:	450mm-3500mm
Overall dimension:	4000mm x 1120mm x 1500mm
Weight:	650KG

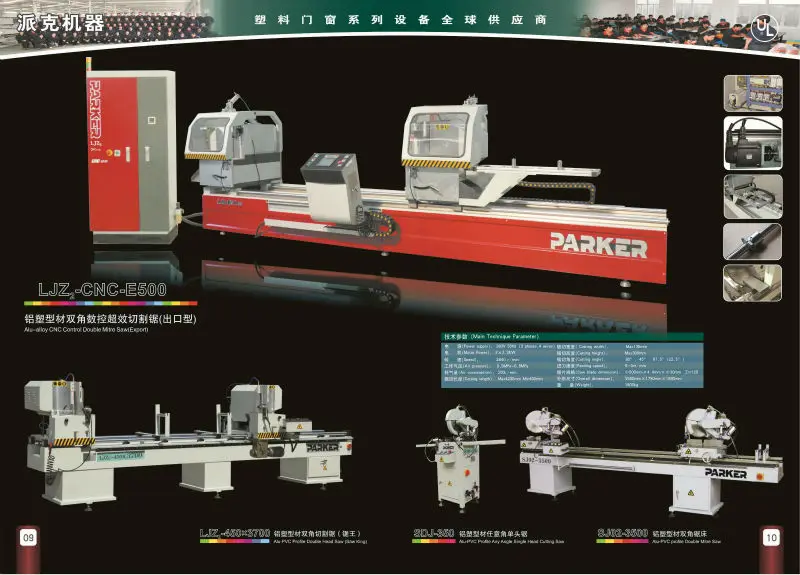

Other cutting machines in our factory:
