led light bulb injection blow molding machine

Product Overview

Description

      Zhangjiagang Jiuwei Machinery Co., Ltd. is a professional manufacturer of injection blow molding machines. We have 15 years of experience in the plastic area and have a good reputation in this field.





Our standard workshop

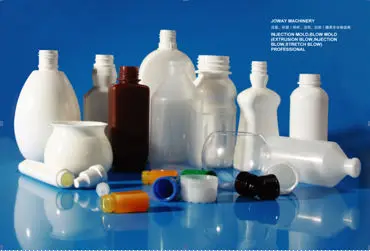

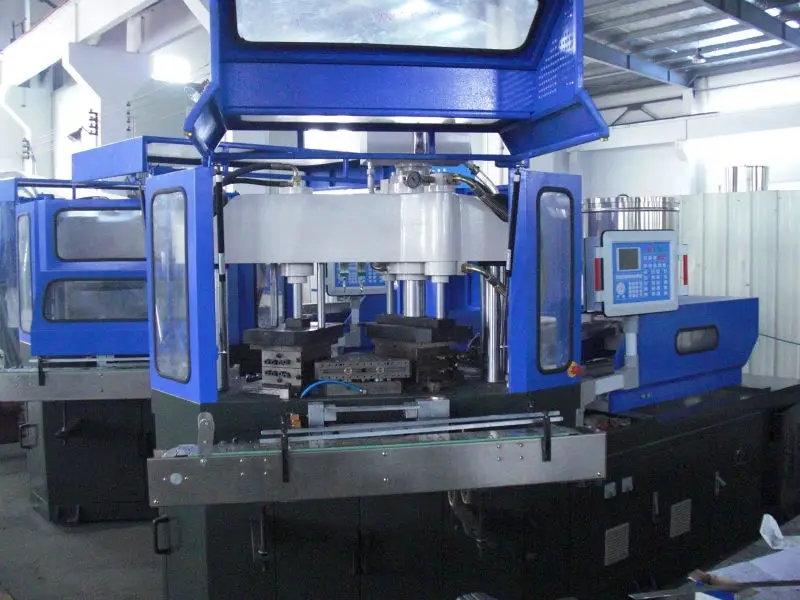

JWM300 Injection Blow Molding Machine is suitable for producing high quality plastic bottles,used as medicine and cosmetic.



Features:
1) High pressure& speed injection system

2) V.D pump control for more energy saving
3) Jinhua control system for high speed information communication and high precision temperature control
4) Hot-runner injection-blow mold with horizontal three positions for
   continuous production with no leftovers or waste material
5) Top brand electric parts and hydraulic parts for long service life

6) High speed: cycle time only 10.5sec  for 40ml bottle mould in 14 cavities

    Suitable for high quantity production.

7) Bottle size: 3 to 1000mL .

8) 10mL, Cav-9, 100mL, Cav-4.

9) Materials: PP, PE, PS, SAN. EVA.





led light bulb injection blow molding machine



Specification of  led light bulb Injection Blow Molding Machine



Injection system	Unit	JWM350-V-I
Screw Diameter	mm	40
Screw L/D	L/D	20.6-23:1
Injection Weight	cm³	200
Clamping force of injection	KN	300
Clamping force of blowing	KN	46
Drycycles	S	3.2
Max.Platen size(L×W)	mm	400×270
Mold thickness	mm	180
Suitable bottle volume	ml	5-800
Bottle height	mm	≤ 200
Diameter of the bottle	mm	≤ 100
Stripping storke	mm	≤ 200
Hydraulic pressure	Mpa	15
Total power	KW	25
Motor power	KW	15
Heating capacity	KW	8.3
Min.Air pressure	Mpa	1
Compressed air emissions	m³ /min	≥ 0.6
Cooling water consumption	m³ /h	3
Dimension( L×W×H )	m	3.4 × 1.2 × 2
NET weight	T	4.5
