waste tyre recycled tires rubber powder machine / machine to make rubber powder

Product Overview

Description

Your best choice:


 Lowest Price Fully Automatic Waste Tyre Recycling Rubber  Powder  Production Line with CE ISO







Note: We can design the different size of machine according to the requests for products.





Brief description:

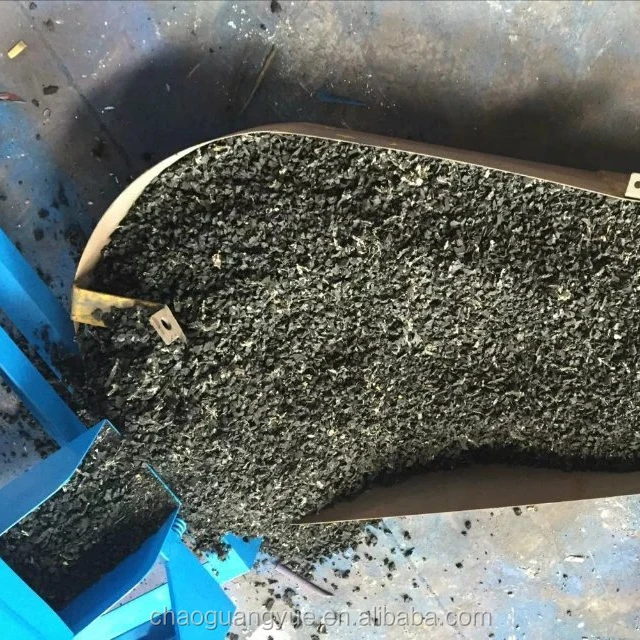

Fully automatic waste tyre recycling machine,used to manufacture all various of size of rubber powder(crumb)

the inout capacity : 8000 tons per year

the output capacity: 5000-7000 tons  per year for 10-30 mesh rubber powder.

worker : 2-3

floor area: 1200 SQ.M

power:272.8KW

suitable for both radial tyres and  nylon/fiber tyres.


Production capacity and energy consumption:





Working Process:



Draw steel wire from the tire ring by Tire wire drawing machine-if the diameter of tire is bigger than 825mm, can choose to use tire cutting machine to cut the tire to several pieces--- put the small tires or pieces into tire shredder to make tire blocks-put the tire blocks to the tire crusher to make rubber powder-finished rubber powder.





Flow Chart:



Waste tire---whole tire de-beader---whole tire cutting---whole tire shredding---Rubber crushing--- magnetic separating(Nylon fiber separator if recycle nylon tires) ---Rubber powder

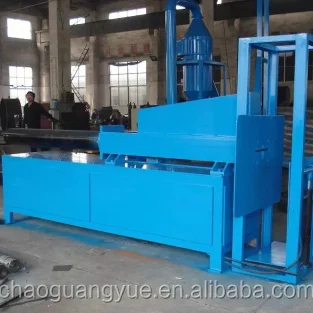

1, Whole tire debeader-

whole tire wire drawing machine( Draw out the steel wires from the tire bead. )

Model No.	TD-1200
Feed size of tire(mm)	≤φ1200
Capacity(tires/h)	80-100
Power(KW)	7.5
Overall dimensions(m)	4.7*0.9*1.7
Equipment weight (T)	2.8





2, Whole tire cutter

Functions:Whole tire cutter , it is used to cut big tires into small pieces.



Model No.	TC-1200	TC-1400
Feed size of tire(mm)	≤φ1200	≤φ1400
Capacity(tires/h)	30-40	30-40
Power(KW)	4	7.5
Overall dimensions(m)	2.2*0.8*1.5	2.4*1.0*2.0
Equipment weight (T)	1.2	2.5







3,Whole tire shredder



This  whole tire shredder can cut whole tire into 50x50mm , and 60x60mm rubber block as you need.



Model	TS-900	TS-1200
Production capacity	0.8-2ton/h	1.5-3ton/h
Size of feeding	≤900mm whole tyre	≤1200mm whole tyre
Specification of the slice	≤50*50mm	≤60*60mm
Motor power	45kw	55kw
Cutter rotate speed	16r/min	31r/min
Screener rotate speed	6r/min	8r/min
Dimension	2.8*2.1*2.4m	5.2*2.8*3.5m
Weight	6.2T	14.8T





4.Rubber crusher



Type&Specification	XKP-400	XKP-450	XKP-560
Feeding size	3.5CM	3.5CM	3.5CM
Discharging size	10—30 mesh powder	10--30 mesh powder	10--30 mesh powder
Rubber crusher throughput(kg/h)	100--150kg	250—300kg	350—420kg
Motor power(kw)	45	60	75
Outside measurement(m)	4.1×1.8×1.9	4.4×1.9×1.9	5.5×2.2×2.1
Weight(t)	7.5	11	19



5, Auxiliary Equipment





6, Application:

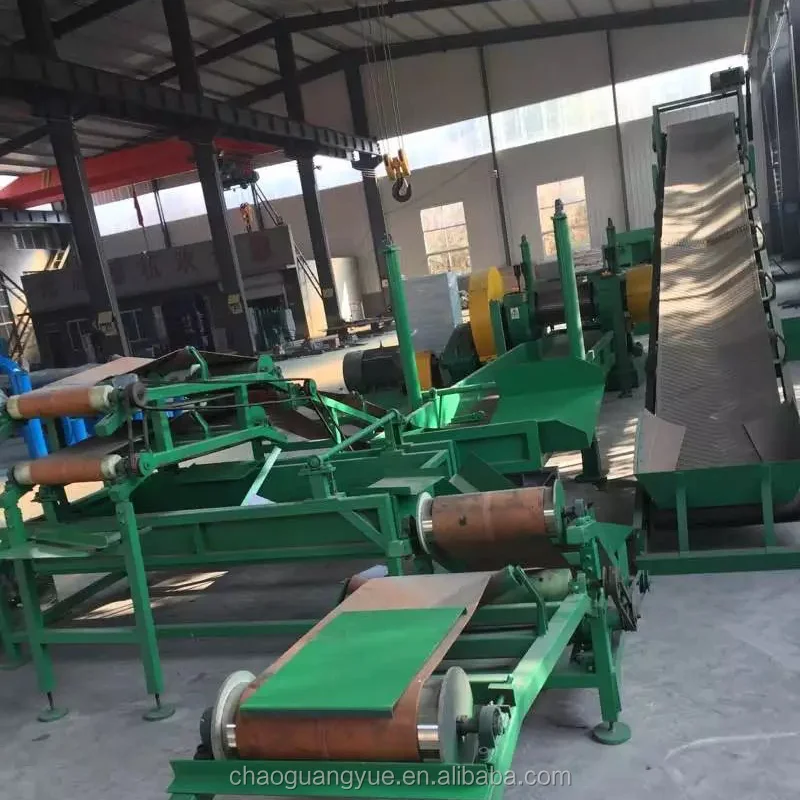

Workshop and customers visiting:









 Others lines:

1, The whole production line for reclaimed rubber sheet:

KNEADER- CONVEYOR-- OPEN MIXING MILL-- CALENDER--BATCH OFF COOLER







2, Rubber powder to Reclaimed Rubber Making Line:









Our cert: CE,SGS,ISO9001

 FAQ:



1,Are you manufacturer?
Yes,we are BV approved rubber products manufacturer in China.

2,Can you design new product for us?
Yes,we have a professional development team that make new products according to your requirements.

3,Can you supply sample?
Yes,we can supply you free small samples,but air cost will be paid by customers.

4,What’s your payment term?
Common is 30% deposit by T/T,the balance paid against shipping documents.
Or L/C at sight.

5,Are you near to Qingdao airport?
Yes,only within 1.5hours.
And within 1 hour to Qingdao sea port.

50 minutes to Qingdao Railway Station.

6,Do you have any certificate of your products?
Yes, CE, BV, SGS, REACH.

7,Do you have any certificate of your company?
Yes, ISO 9001:2000.

8,Did your products apply the patent?
Yes,we have waste tyre recycling machine & rubber tile making machine protector patent.
