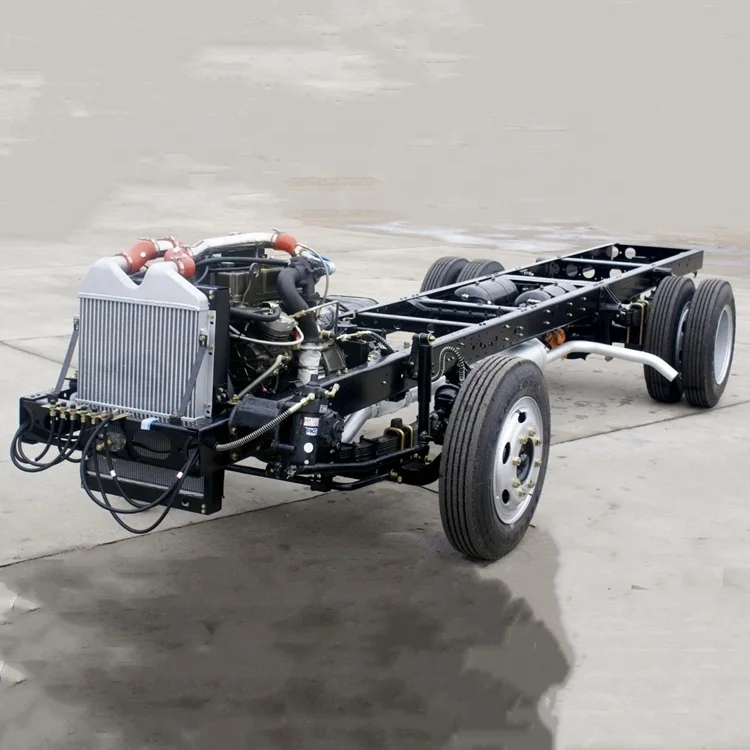

Dongfeng new bus chassis for sale 6.6m bus chassis

Product Overview

Description

Hot sale!!!Dongfeng brand new bus chassis ,new bus chassis for sale in China(EQ6660KSND)

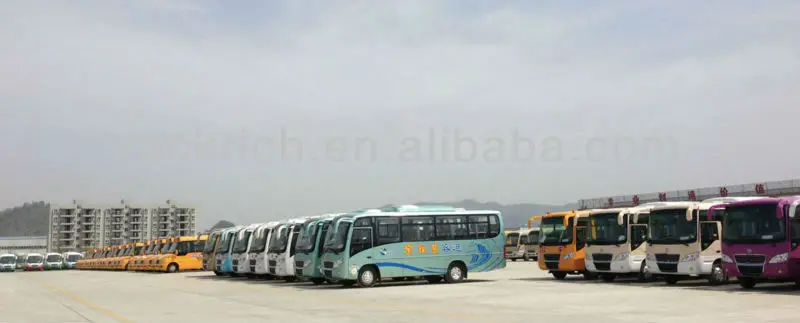

1,Company picture

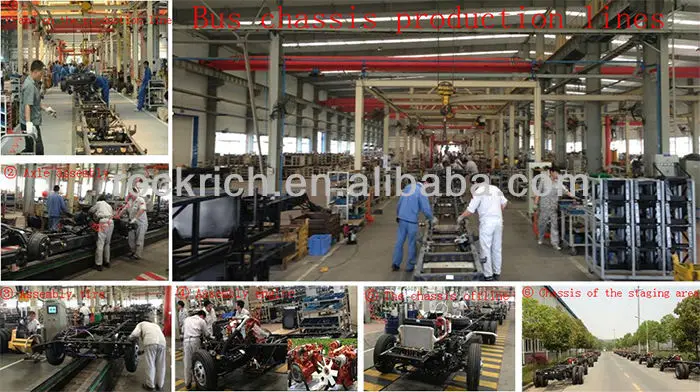

2,Bus chassis production line

3,Bus chassis specification

Specification
Dimensions(mm)		6500*2055
Track(mm)		Front                                                                                   1750
		Rear                                                                                                     1586
Wheel base(mm)		3300
Front/Rear Suspension		1050*2050
Min Ground Clearance(mm)		Rear Axle                                         165(6.50-16 tire,rear axle)
Ground Clearane of upper frame(leaded) (mm)		Front axle
		Rear axle
Dry mass(Kg)		2100
Authorized total mass(Kg)		6600
Front/rear axle load(Kg)		2400/4200
Max.speed (Km/h)		105
Min.turning diameter(m)		14
Max. grade ability(%)		30
Limited mode Fuel consumtion/100km(L)		14
Ramp angle(°)		Approach angle                                                                       24
		Departure angle                                                                         16
Equipment
Engine	Model	NQ100N
	Type	Water cooling,4L, natural inspirafion, CNG electra-control engine
	Rated power(Kw/r/min)	73.6/2800
	Max.torque(N.m/r/min)	280/1400-1800
Gearbox	Model&Operation way	Manual 5, telemechanics Flexible shaft 535
	Files bit rate ratio	0.753, 1, 000, 1.661, 2.863, 5.169,4.667 ®
Front axle pattern		Fist type & I axle
Rear axle	Pattern	Ramming welding rear axle case,one grade differential
	Differential Ratio	4.875
Frame	Overall cast rear axle
Clutch	Φ
Steering Gear	Mechanical Steering
Suspension system	8/10 Multiple Spring
Braking system	Double Route Brake, Drum Brake
Braking system	Center Brake
Tire specification	6.50-16 7.00-16
Alternator	24V,35A,70A
Note	Front natural gas engine (short Front Suspension)
