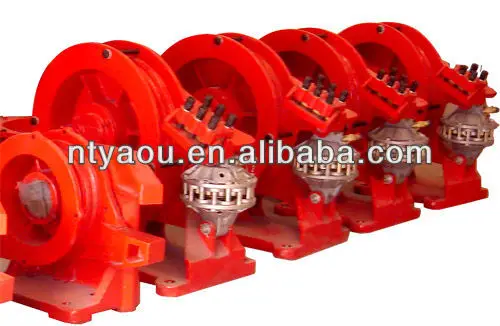

JZG18A DEADLINE ANCHOR As Per API,Oil rig equipment

Share on (853113596):


Price:

Quantity:


Product Overview

Description





Application Areas

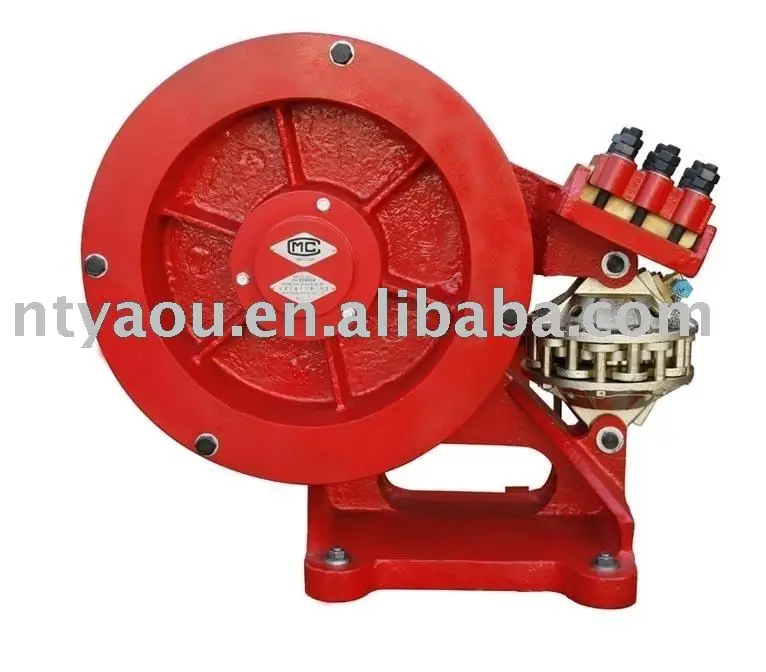

    JZG20A Deadline Anchor is a mechanism that converts deadline pull of a drilling rig into liquid pressure. It is one of the important components of weight indicating system, which can be used with JZG18.1.5 sensor made by the company to work as the primary instrument, and then makes a weight indicating system together with weight indicator and recorder.


Technical Specifications


1. Maximum deadline pull: 200kN


2. Sensator: JZG18.1.5


3. Error of output pressure f deadline anchor: ±1%


4. Size: 1060mm×762mm×365mm


5. Weight: 550kg


6. Slickline diameter: Φ29mm,Φ26mm





































































































































































































Type Anchor Type Form of Primary Instrument Max.Deadline load(kN) Number of Lines Load(kN)
JZ900 JZG72 Horizontal 720 1410080
12 8640
JZ700 JZG60 Vertical 600 148400
12 7200
JZ500 JZG42 Vertical 420 125040
10 4200
JZ500A JZG41 Horizontal 410 124920
10 4100
JZ400 JZG35 Vertical 350 124200
103500
2800
JZ400B JZG34A Horizontal 340 124080
10 3400
JZ250 JZG24 Vertical 240 122880
102400
1920
JZ200 JZG20 Horizontal 200 102000
81600
1200
JZ150A JZG18A Vertical 180 101800
81440
1080
JZ150 JZG18 Horizontal 180 10*1800
81440
1080
JZ100 JZG15 Horizontal 150 101500
81200
900
JZ60 JZG10 Straight pull 100 8800
6600
400
JZ40 JZG10A Horizontal 100 6600
400
