Galvanized 8mm Sash Chain

Product Overview

Description

Galvanized sash chain

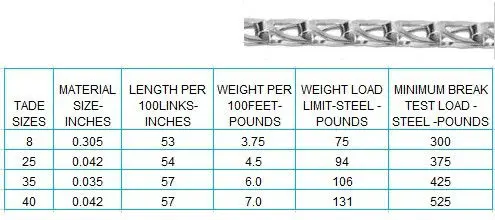

Specification:



Steel sash chain is a stamped, formed chain slightly stronger than jack chain, a flat metal chain for suspension of double hung sash, easily installed.

It operates smoothly over pulleys.

Also suitable for many industrial assemblies.

Material: Low carbon steel.

Finish-Copper dip, bright zinc finishes.

Other finishes upon application.

Packing: Reels, cartons, and plastic boxes.

WARNING! Working load limit must not be exceeded.

Do not use overhead lighting.







We also supply other type chains:

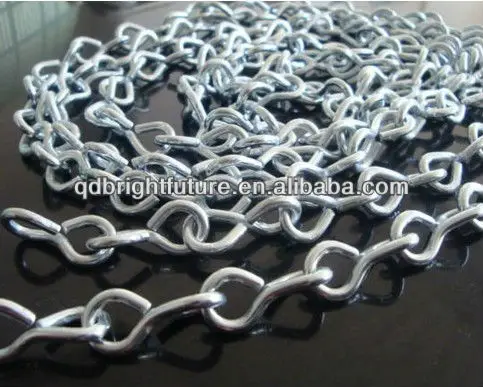

Single Jack Chain

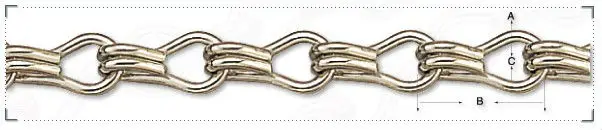

Galvanized Double chain



Specification:



Material:Low carbon steel

Size A(Dia.) B(outside length) C(inside length) Weight Per 100FT WLL.(Lbs) mm lnch mm lnch mm lnch kgs Lbs #18 1.2 0.047 14.0 0.551 4.0 0.157 1.25 2.756 6.0 #17 1.4 0.055 22.0 0.882 8.0 0.295 1.60 3.527 10.0 #16 1.6 0.063 16.0 0.630 6.0 0.217 2.45 5.401 18.0 #16-L 1.6 0.063 22.0 0.866 7.0 0.276 1.80 3.968 18.0 #14 2.0 0.079 25.4 1.000 8.0 0.295 3.25 7.165 30.0 #20 2.4 0.094 29.0 1.122 8.0 0.315 4.85 10.692 45.0 Finish-Bright Zinc,Brass Plated Black Polymer,nickel,other finishes available upon application. Note:We also can supply other material:stainless and solid brass,Aluminum. Use:suitable for operating furnace doors,ducts or dampers,skyright mechanisms.etc. Caution:Do not use for overhead lifting.working load limit must not be exceeded.





















If have any questions, pls feel free to contact us.
