Product Overview
Description

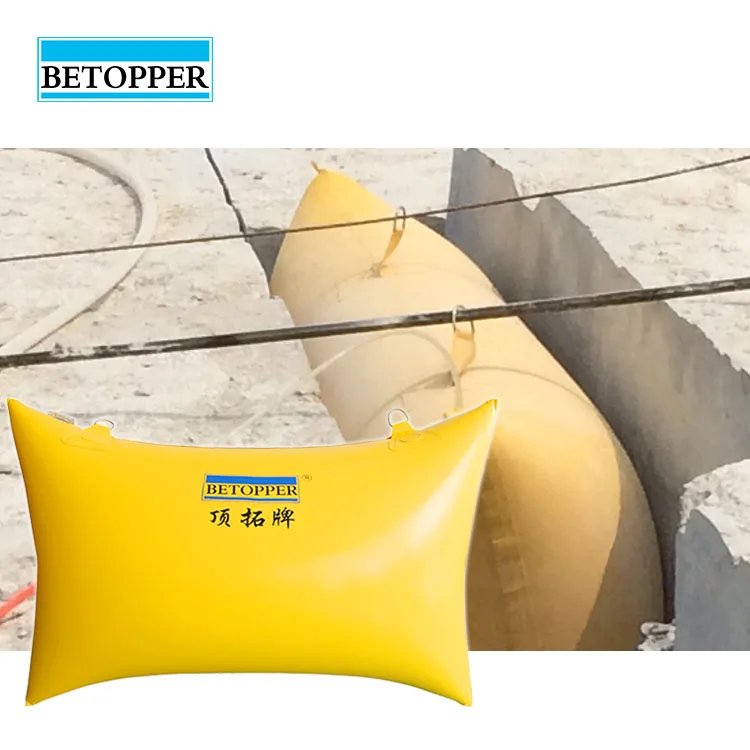

Manufacturers of Mining Equipment China Gold Quarry Stone Machine Block Pushing Air Bag
Product Description

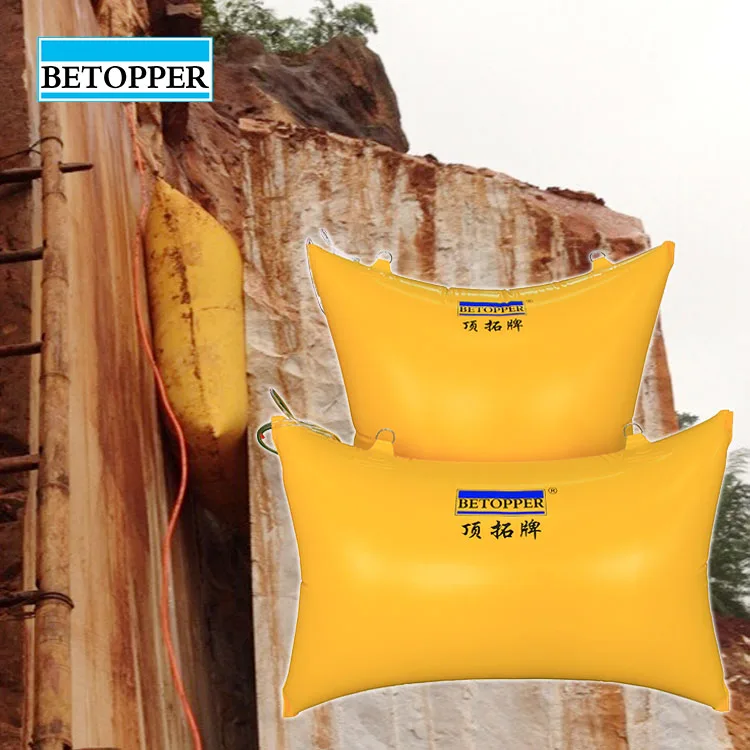

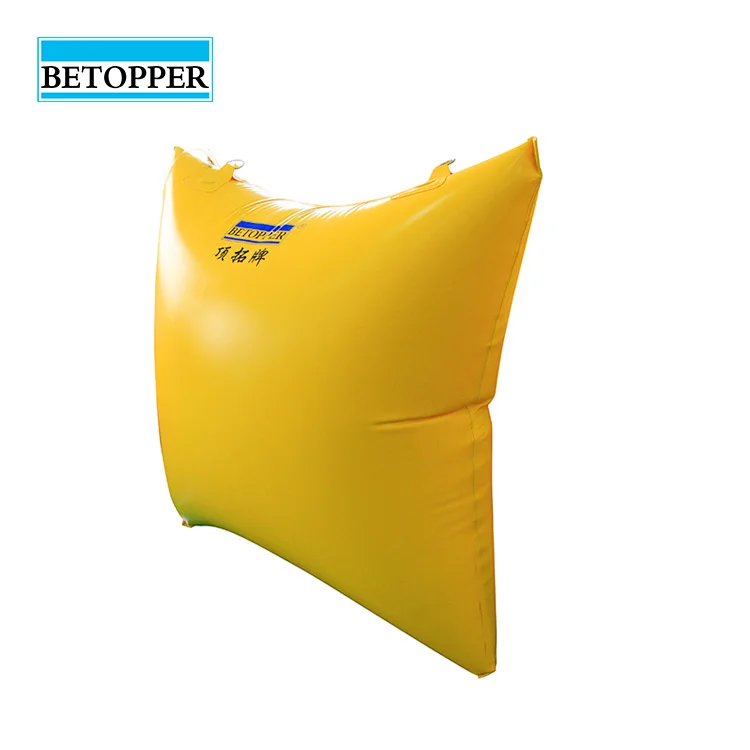

Betopper air pushing bag is displacing equipments like hydraulic jack and hydro bag in quarries of marble, granite, limestone and so on, no matter blocks cutting by wire saw, blade saw, chain saw or flame jet etc.
| Technical Parameters | ||||||||
| Model | Size(mm) | Pushing Power(ton) | Working Stroke | Net Weight(kg) | ||||
| (mm) | (inch) | 1A | 2A | 3A | 6A | |||
| DT0505 | 500*500 | 15 | - | - | - | - | - | - |
| DT1005 | 1000*500 | 25 | - | - | - | - | - | - |
| DT1010 | 1000*1000 | 50 | 600 | 23 3/5" | 3.8 | 3.8 | 4.2 | 3.3 |
| DT1015 | 1000*1500 | 75 | 650 | 25 3/5" | 5.5 | 5.5 | 5.8 | 5.1 |
| DT1020 | 1000*2000 | 100 | 660 | 26" | 6.8 | 6.8 | 7.5 | - |
| DT1515 | 1500*1500 | 115 | 850 | 33 1/2" | 7.7 | 7.7 | 9.2 | - |
| DT2015 | 2000*1500 | 150 | 940 | 37" | 9.8 | 9.8 | 10.8 | 9.4 |
| DT1818 | 1800*1800 | 165 | - | - | - | - | - | - |
| DT2018 | 2000*1800 | 180 | - | - | - | - | - | - |
| DT2020 | 2000*2000 | 200 | 1100 | 43 1/3" | 12.8 | 12.8 | 13.8 | - |
| DT2022 | 2000*2200 | 220 | - | - | - | - | - | - |
Note:We can manufacture any sizes as per your special requirements. | ||||||||
How To Use
- Carefully clear debris from block clearance.
- Choose suitable sizes and quantity of air pushing bags according to block sizes.

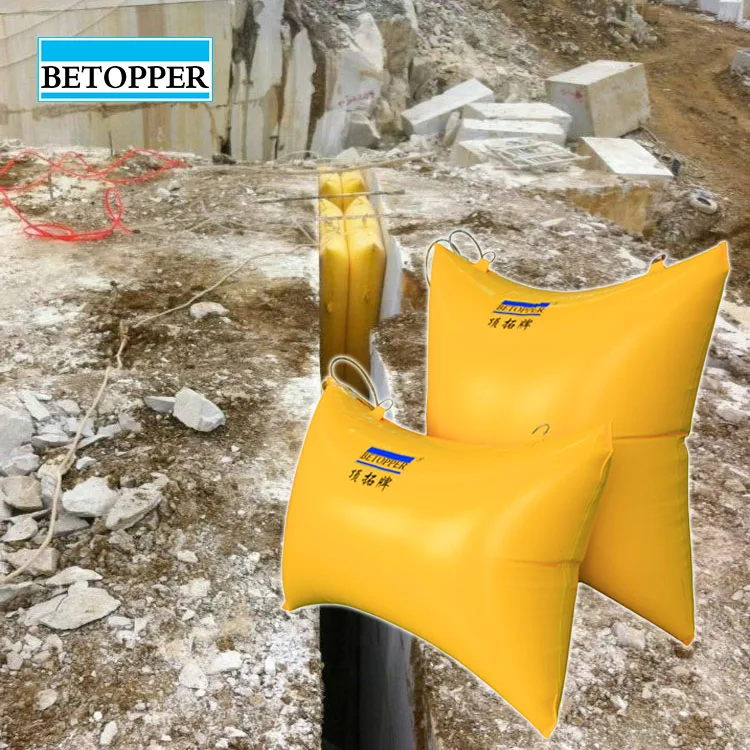

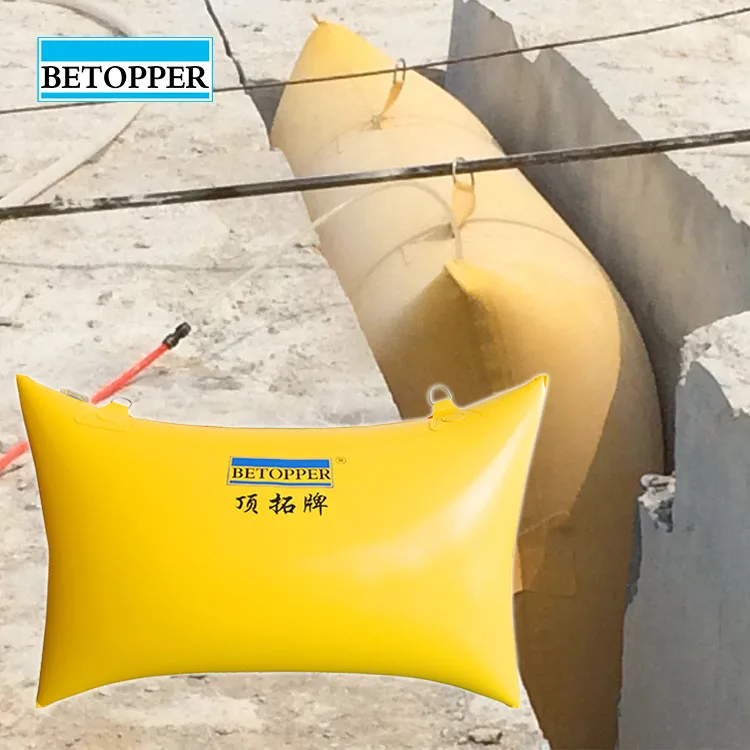

- Choose best acting point,place air pushing bag into gap entirely, fix it with ropes or steel rod through handle rings of the bag.

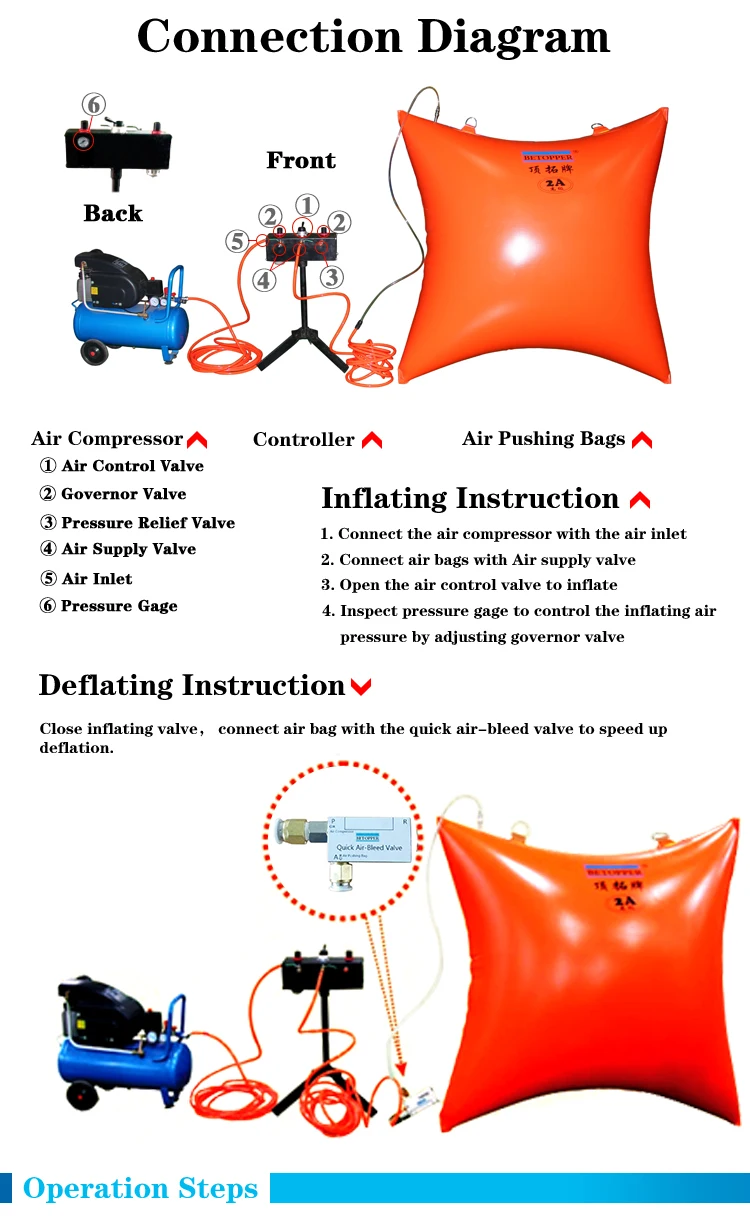

- Connect air compressor,controller and air pushing bag.
- Inflating air pushing bag by air compressor and keep air pressure stable at 0.3Mpa – 0.4Mpa
- Continue inflating until obtaining opening of 5-10cm gap, place appropriate stones to the gap.

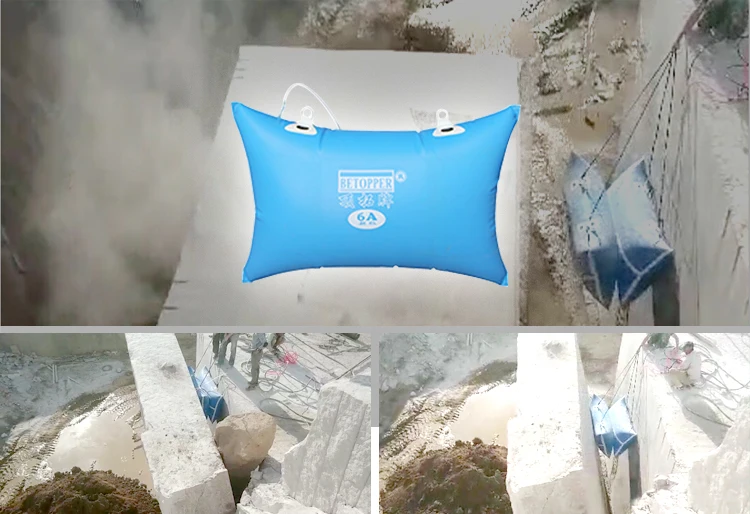

- Overlap two same sizes air pushing bags to overturn the block.
- Stop inflating, take out air pushing bag after deflating by quick air bleed-valve.
Advantages
- Only 7mm thick, can insert to gap very easy.
- Can protect block well, and improve a block yield a lot.
- Help to improve quarrying speed a lot.
- Reduce excavator works and protect excavator bucket teeth well, meanwhile, also can save a lot of oil, save costs.
- Can be used circularly , it can be used one to two years if protect well.
- It's safty and economy.
| Compare With Other Block Pushing Attachments | ||||||
| Reusability | Block Yield | Usage Costs | Safety Factor | Efficiency | Portability | |
| Betopper Air Pushing Bag | √ | √ | √ | √ | √ | √ |
| Excavator | √ | × | × | √ | × | × |
| Hydraulic Jack | √ | × | × | √ | × | × |
| Hydro Bag | × | √ | × | √ | √ | √ |
