Вэньчжоу, полностью автоматическая многофункциональная машина для производства нетканых сумок для футболок

Product Overview

Description

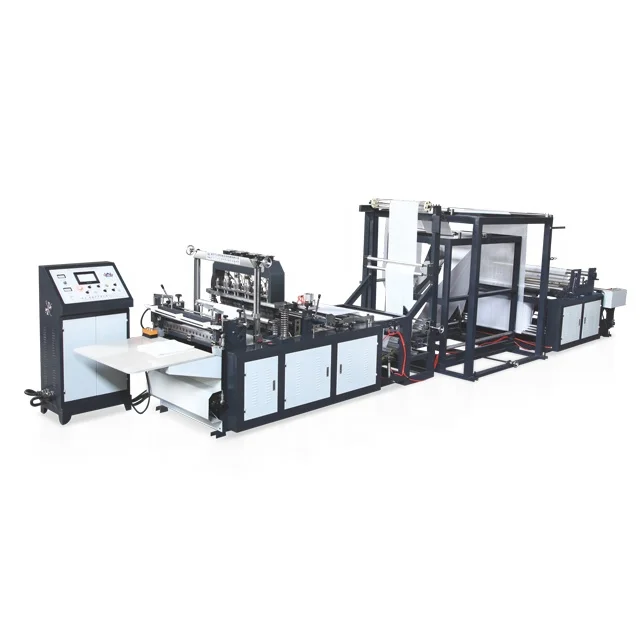

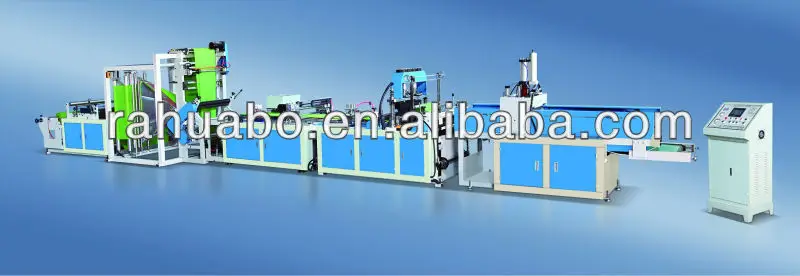

Name: Wenzhou full automatic Multifunctional non woven t-shirt bag making machine



HBL-AC 600/700/800


Product introduction:



This machine is suitable for non woven fabric material. It is the most advanced equipment and has the function of full automatic punching. The speed is about 20-60 pcs/min, it equals to 5 workers operating 5 hydraulic punching machines. It can produce T-shirt bags (vest bags), box bags, flat bags, drawstring bags and so on. It has widely used in clothing, footwear, wine, gifts packaging etc. The machine can instead of the traditional hand-sewing and reducing labor and manufacturing costs. It’s very popular in worldwide.

Features:


1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. This machine has the function of automatic punching.

6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.





Main Technical Parameter



Nonwoven Bag Making Machine Type	HBL-AC600	HBL-AC700	HBL-AC800
Production Speed	20-60pcs/min	20-60pcs/min	20-60pcs/min
Bag Width	100-800mm	100-800mm	100-800mm
Bag Length	200-480mm	200-580mm	200-680mm
Bag-Making Thickness	30-120g	30-120g	30-120g
Power Supply	380V/220V	380V/220V	380V/220V
Total Power	12-18KW	12-18KW	12-18KW
Overall Dimension (L*W*H)	9.6m*2m*2.1m	9.6m*2m*2.1m	9.6m*2.2m*2.3m
Weight	1300KG	1500KG	1700KG





Punching Machine Model	600	700
Max.bag making width	550mm	650mm
Max.bag making length	600mm	600mm
Speed	60pcs/min	60pcs/min
Total Power	1kw	1kw
Overall dimension	2.6m×1.05m×1.75m	2.6m×1.15m×1.75m
weight	500kg	550kg













This machine is suitable for non-woven fabric material. It can make following bags:

1. Flat Bag (D-cut Bag)
2. T-shirt Bag, Vest Bag (U-cut, W-cut)

3. Handle loop bag
4. Flat Bag with Bottom Folding (stand up bag)

5. Box Bag

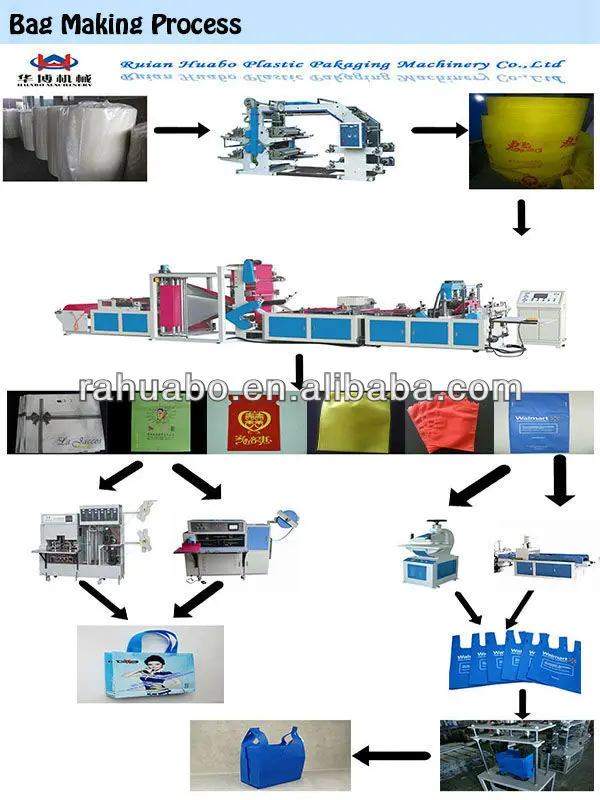

The production process:



Roll feed--Flap—Locate—Punch—Heat sealing—Fold—Heat sealing—Cutting off—Collect the finished products.





















Main Parts of Machine:

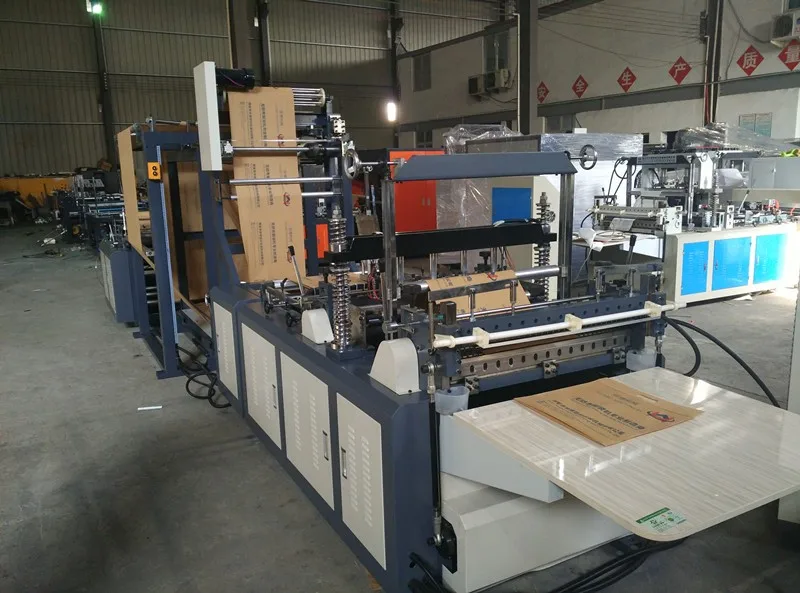

Workshop
