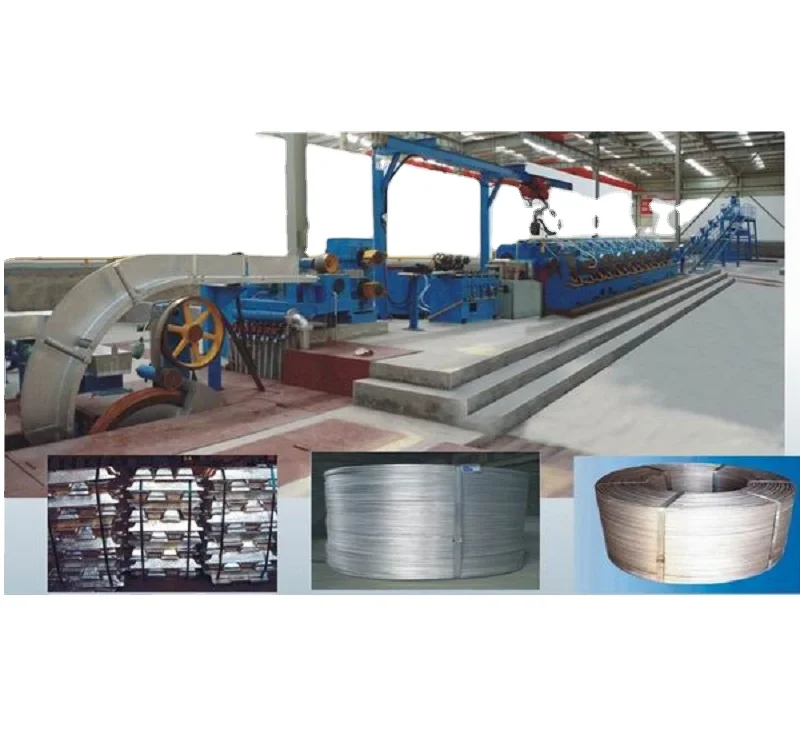

8mm,12mm Aluminum Rod Copper Rod Copper Strip Continuous casting and rolling machine line
- Category: Metal Casting Machinery >>>
- Supplier: Shanghai Orinno International Business Co. Ltd.
Share on (882879588):
Product Overview
Description
Products Description
The main technical parameters of the unit |
1,Rod casting machine main technical parameters: |
1.1 Equipment Model: CCRL250 * 20-I3 |
1.2 Annual production capacity: 3000 t |
1.3 Furnace structure: combined furnace of 3 (2 melting furnace, a holding furnace) |
1.4 Number of casting rods: 6 |
1.5 Casting rod diameter: 250 * 20mm |
1.6 Upward speed: 0 ~ 150mm/min |
1.7 Annual working time: 7920 hours |
1.8 Level tracking accuracy: ± 2mm |
1.9 The closing line into a circle Specifications: |
1.10 The copper melting Rate: 650kg / h |
1.11 Melting copper power consumption: <350kwh/ton |
1.12 The closing row in the form: hit volume |
1.13 Take-wheel drive by: |
1.14 Feeding methods: electric hoist block of electrolytic copper feed |
1.15 Upward Drive method: AC servo motor drive, the drive chain with no gap synchronous belt drive |
1.16 Cited copper bars on the the clamping way: manual clamping |
1.17 Operating interface: the data show that the servo motor is controlled by the touch screen display |
Used in the production of oxygen-free copper rod and aluminum rod
