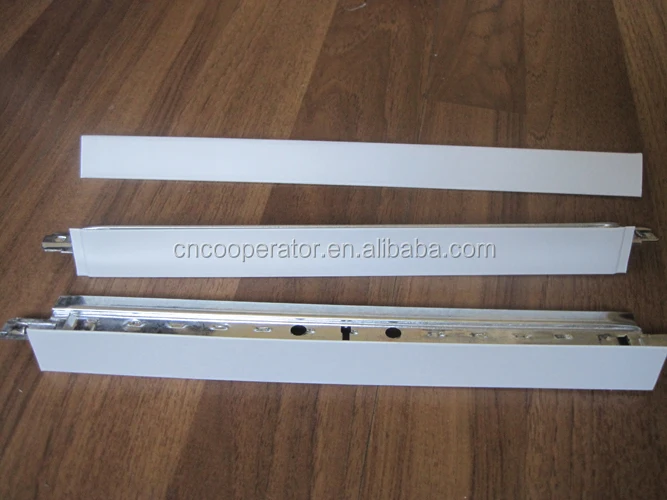

T bar ceiling suspension system, exposed t grid for gypsum ceiling tile, mineral fiber ceiling tile,etc

Product Overview

Description

• Eco-friendly
• Demountable designs
• Improved, easier to install
• Seismic and fire resistive designs
• Works with tiles of size 600 x 600mm, etc.
• Appropriate corrosion resistance for interior environments
• The industry standard of compatibility: acoustical tile, light fixtures and air diffusers


Dimension:

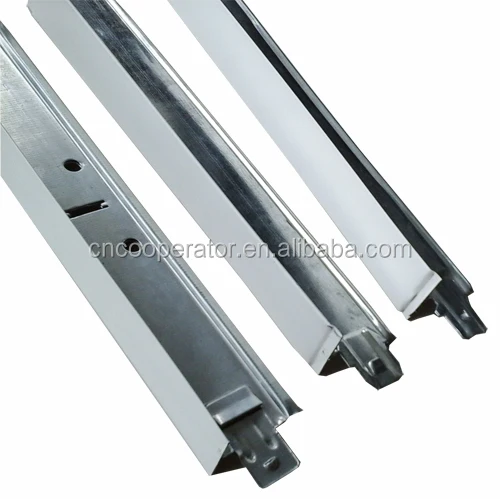

• Main Runner Size: 38mm x 24mm x 3600/3000mm
• Long Cross Tee Size: 26mm x 24mm x 1200mm
• Short Cross Tee Size: 26mm x 24mm x 600mm
• Wall Angle Size: 22mm x 22mm x 3000mm & 20mm x 20mm x 3000mm
• Sheet Thickness: 0.25-0.35 mm



• Main Runner Size: 32mm x 24mm x 3600/3000mm
• Long Cross Tee Size: 26mm x 24mm x 1200mm
• Short Cross Tee Size: 26mm x 24mm x 600mm
• Wall Angle Size: 22mm x 22mm x 3000mm & 20mm x 20mm x 3000mm
• Sheet Thickness: 0.25-0.35 mm

Specification:

• Material: High quality hot dipped Galvanized Iron Sheet
• Coating: 120gm/sq meter zinc coating
• Capping: 0.25mm pre coated white GI sheet



  Application :

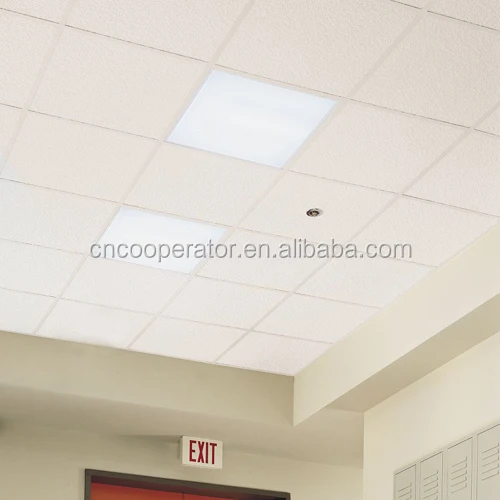

  • Widely used  in offices, hotels, retail spaces, schools.
  • Entertainment facilities, controlled environment facilities, semiconductor, pharmaceutical.
  • Aerospace, clean manufacturing areas, healthcare, food processing, and precision instrument assembly rooms.

Warranty Info:

• Guarantee: 40 Years at least !

Benefits:

• Cost control
• Fast, tight installations
• Global compatibility and availability
• Modification can be easily done after installation
• Demountable systems allow for quick access to large work areas above the ceiling
• Sustainable: 100% post consumer recycled content, 100% locally recyclable, global/regional manufacture
