Automatic mechanical steel wire straightening and cutting machine
US $115.00-$385.00
ZDW43J 6 * 1800 стальная катушка размывательная расправительная машина фидера
- Category: Metal Straightening Machinery >>>
- Supplier: Jiangsu Tewei Machine Tool Manufacturing Co. Ltd.
Share on (905415908):
Product Overview
Description
Product Description

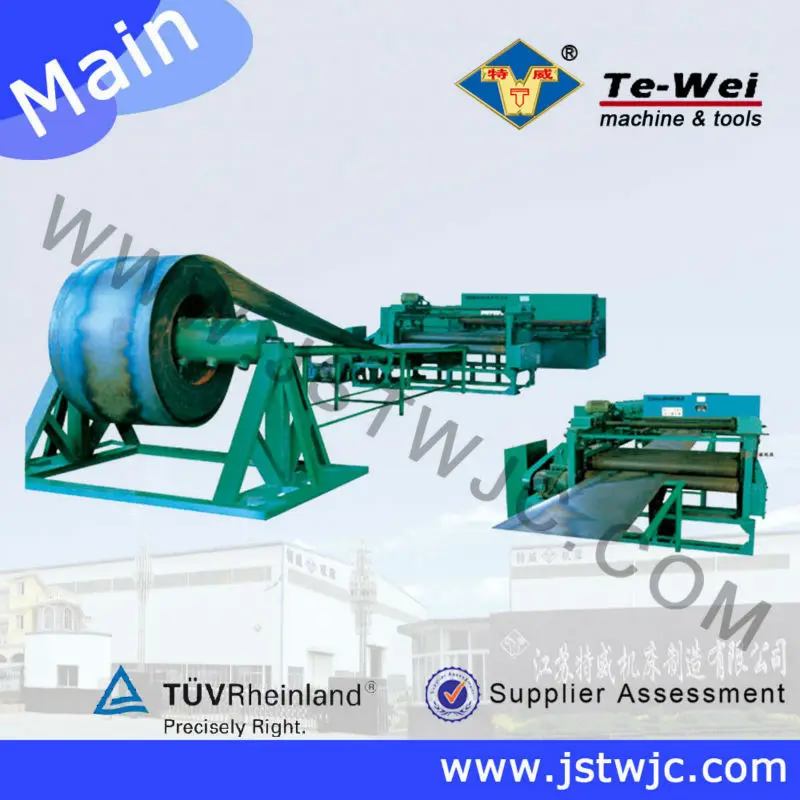

1. Machine Overview
This machine used to spread the steel coil, leveling and cut to the request size. After manualfeed into the leveling machine, As the cutting size, the unit will finish the leveling and cutting action.
2. Equipment Combination.
1).Decoiler---2).Side guiding unit---3).Leveling machine---4).Cutting machine---5).Stack table---6).Electric system
This machine used to spread the steel coil, leveling and cut to the request size. After manualfeed into the leveling machine, As the cutting size, the unit will finish the leveling and cutting action.
2. Equipment Combination.
1).Decoiler---2).Side guiding unit---3).Leveling machine---4).Cutting machine---5).Stack table---6).Electric system
3. Equipment Structure And Function:
(1). Uncoiler: Used to support the coil , Bearing 30 Tons. By the support shaft, frame and other components. Sent to board the first artificial leveling machine, Leveling machine driven by the coil to start.
(2). Side guiding: Sheet to prevent run-time deviation, both sides of the sheet width direction with vertical guide rollers, guide roller frame fixed to the respective sliding seat, through the hand wheel by the screw-nut fushi slide in the lead column along the width direction, to accommodate different width .
(3). 11 rollers leveler: pinch steel and steel plate for correction. From the base, frame, sliding seat rolls, leveler rolls 11 ( Under 5 On 6 ) , motor and other components to enhance the pressure adjusting mechanism . By the motor drive gear reducer, So that the next row of rollers are turning.
Adapt to the 2-8mm thickness, 1800mm width. Upper straightening rolls (5) Electric Lift, Pressure.
(4). Cutting: Down To Size After Shear. Mechanical Shears.
(5). Materials Sets: Carry On The Plates After Shearing
(6). Electric System: System Includes Console, Cabinet.
(1). Uncoiler: Used to support the coil , Bearing 30 Tons. By the support shaft, frame and other components. Sent to board the first artificial leveling machine, Leveling machine driven by the coil to start.
(2). Side guiding: Sheet to prevent run-time deviation, both sides of the sheet width direction with vertical guide rollers, guide roller frame fixed to the respective sliding seat, through the hand wheel by the screw-nut fushi slide in the lead column along the width direction, to accommodate different width .
(3). 11 rollers leveler: pinch steel and steel plate for correction. From the base, frame, sliding seat rolls, leveler rolls 11 ( Under 5 On 6 ) , motor and other components to enhance the pressure adjusting mechanism . By the motor drive gear reducer, So that the next row of rollers are turning.
Adapt to the 2-8mm thickness, 1800mm width. Upper straightening rolls (5) Electric Lift, Pressure.
(4). Cutting: Down To Size After Shear. Mechanical Shears.
(5). Materials Sets: Carry On The Plates After Shearing
(6). Electric System: System Includes Console, Cabinet.
Specification
SN | Name | Note | ||
1 | Coil Thickness | 2～6MM | ||
2 | Max Processed Width | 1800MM | ||
3 | Materials | Q235-A ΣB≤450MPA | ||
4 | Coil Weight | ≤25000KG | ||
5 | Coil Diameters | Ø800～Ø1800MM | ||
6 | Plate Open Speed | 125MM/S | ||
7 | Motor | Model | Y200l2-6 | |
Power | 22KW | |||
Rev. | 960R/MIN | |||
8 | Leveling Accuracy | ≥2MM/M² | ||
9 | Machine Weight | 13000KG | ||
Spare Parts Suppliers
SN | Name | Spec. | Qty | Supplier |
1 | Reducer | 50 | 1set | Taixing |
2 | Main Motor | 30 KW | 1set | Siemens Bade |
3 | Adjustable Motor | 3 KW | 1set | Siemens Bade |
4 | Coil Motor | 4 KW | 1set | Siemens Bade |
5 | Shear Motor | 5.5 KW | 1set | Siemens Bade |
6 | Shear Blade | 2032 MM | 1set | Shanghai |
7 | Bearing | Full Set | 1set | Hearing |
8 | Electric Components | 1set | Schneider |
Packing & Delivery
Recommend Products
Company Profile

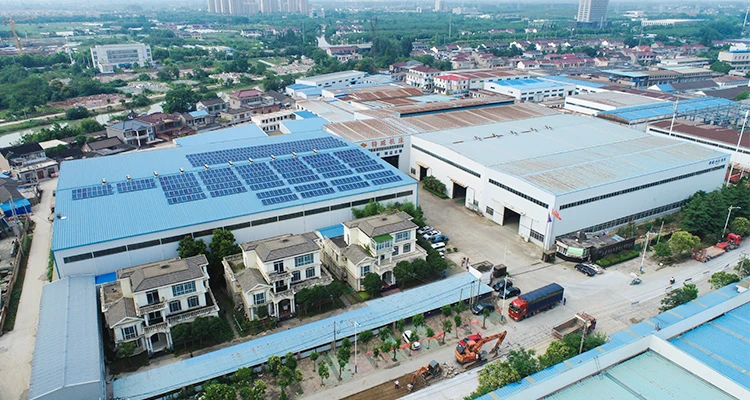

Our company is located in Jiangdu of Yangzhou City, on the side of Jianghang Channel, the cross point of Jinghu and Ningtong Expressway. We are engaged in forging machinery manufacturing industry. We specialize in producing plate benders, plate bevel shearing lines, mechanical scribing machines, hydraulic scribing machines, pipe straighteners, pipe benders, semi-automatic submerged arc welding lines, hydraulic plate cutting machines, mechanical plate cutting machines, three-roll bending machines, and large milling machines, as well as common type plate processing in the fields of light pole, electrical pole, machinery, electron, automobile, shipbuilding, electrical home appliance, cooking equipment, and building decoration. Our company has a strong technical force and advanced processing equipment, and attained ISO9001 international quality system certification in 2003.
