Price:$16,000.00 - $17,500.00

Quantity:


Product Overview

Description



Product Description

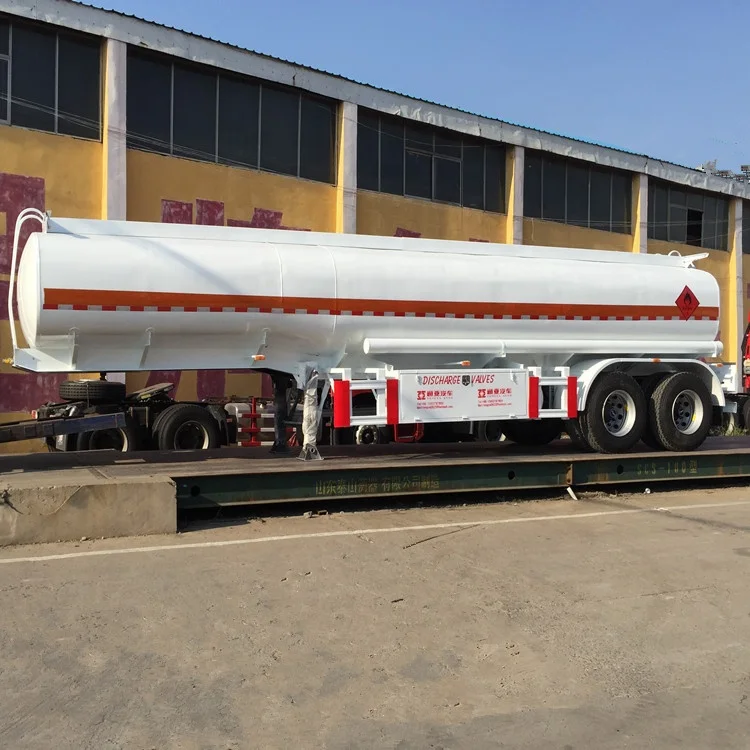

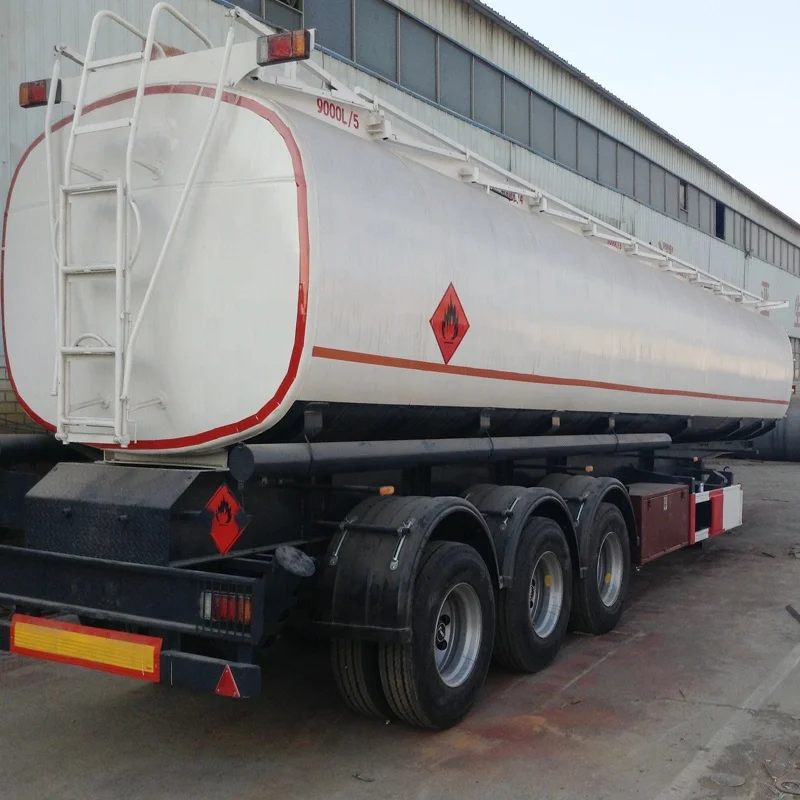

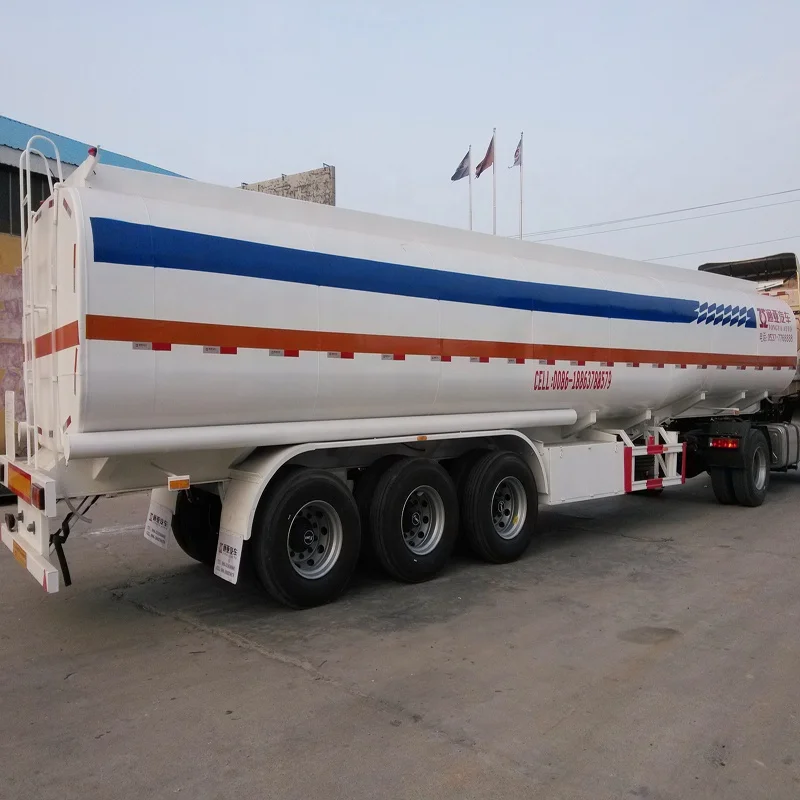

crude / OIL / FUEL tanker truck capacity semi trailer
High Quality Diesel Gas Tank Tanker Oil Trucks For Sale




Four-axle Fuel Tank Semi Trailer
acid tanker semi trailer


Apply for transporting Fuel, JET A-1, Water, Liquid chemical, Crude oil, Food oil etc. is widely used in oil depot, petrol station，oil field, chamical factory, food oil factory, bitumen factory etc.
Tank section style：Perfect circle；oval ;Rectangular circle
Tank body style: Straight style; Gooseneck style;full trailer style; V-type without stringer style etc.




Aluminium alloy Fuel Tank Semi Trailer
Three-axle Fuel Tank Semi Trailer


Material: Carbon steel, aluminum and stainless steel
Volume: 20m3-70m3
Compartments: 1 – 9
The automatic production line for tank manufacturing has developed advanced manufacturing processes for tank manufacturing from steel plate blanking, sheet milling, plate docking, reeling, reshaping, assembly, welding, forming and other processing steps and automated manufacturing equipment for each process




The tanker accessories include Euro standard manhole cover ,API adaptor valve, Gravity drop coupler,dust cap;bottom valve,Vapor vent valve;vapor adaptor valve;vapor recovery joint;optic sensor,optic socket,optic sensor tester;fuel predictor.




Using industrial automation technology, the manufacturing equipment in the tank manufacturing process, such as CNC cutting machine, CNC milling machine, transporting and turning machine, large jigsaw, CNC rolling machine, large expansion machine, template-less hemming machine, profile Tank ring seam plasma arc welding machine and other equipment, as well as roller transmission system, welding power source, workpiece displacement machine, conveying machine all realize digital control.


50m3 oil tanker semi trailer with 3 axles


Tank Body
Tank Body
Shape
Optional ( Round or Suare)
Dimension
13500mm*2490mm*3800mm ( Exact size depends on the final design)
Tare weight
About 12000KGS
Total Volume（m3）
50m³
Tanker Body Material
5mm or 6mm/ Q235 carbon steel
End Plate
5mm or 6mm /Q235 carbon steel
Manhole Cover
Cabon steel or API manhole cover, ∮500mm
Bottom Valve
Aluminum API Pneumatic Bottom Valve
Discharging Valve
Diameter is 3 or 4 inch
Compartments
5
Discharging Pipe
4”rubber hose, 2 pcs, 6m/each
Cat Walk
With (Common model or special design)
Chassis
Chassis
Main Beams
Weldding design , connected by bolts and nuts
Q345 carbon steel material
Axle
3 axles,FUWA brand
Landing Gear
JOST A300C or TONGYA 28T
King Pin
JOST 3.5 inch bolt-in king pin
Suspension
Mechanical suspension/Germany or America type /air suspension
Leaf Spring
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without
Pneumatic Braking System
WABCO RE 6 relay valve; Spring brake chamber（TKL brand）; one piece of 45L air tanks.
Rim
9.00-22.5/8.00-20/8.5-20 China Brand
Tire
12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
ABS
Optional
Painting
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories
One standard tool box
Shipping Terms
By Bulk Cargo ,RORO or 40HQ Containers


42m3 Aluminum alloy oil tanker semi trailer


Tank Body
Shape
Optional ( Round or Suare)
Dimension
11000mm*2490mm*3990mm ( Exact size depends on the final design)
Tare weight
About 8000KGS
Total Volume（m3）
42 m³
Tanker Body Material
6mm aluminum
End Plate
7mm aluminum
Manhole Cover
Aluminum alloy API manhole cover, ∮500mm
Bottom Valve
Aluminum API Pneumatic Bottom Valve
Discharging Valve
Diameter is 3 or 4 inch
Compartments
Optional
Discharging Pipe
4”rubber hose, 2 pcs, 6m/each
Cat Walk
With (Common model or special design)
Chassis
Main Beams
Weldding design or Special design I beam, connected by bolts and nuts
Axle
3 axles, FUWA brand
Landing Gear
 JOST A300C or TONGYA  28T
King Pin
JOST 3.5 inch bolt-in king pin
Suspension
America typesuspension
Leaf Spring
90(W)mm*13(Thickness)mm*10 Layer
Pneumatic Braking System
WABCO RE 6 relay valve; Spring brake chamber; one piece of 45L air tanks.
Rim
8.00-20China Brand
Tire
11.00R20 Brand can be Optional
ABS
Optional
Painting
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories
One standard tool box
Shipping Terms
By Bulk Cargo ,RORO


Send inquiry contact us for exclusive services and preferential price.
We are factory manufacturing, welcome you to visit our factory.








Related Products




Company Introduction












Our service


Pre-sale Service
1.Our products can be customized to your needs.Many styles for your choices.
2.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
3.All of our products are produce by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After-sale Service
1.We are very glad that customer give us some suggestion for price and products.
2.If any question, please contact with us freely by E-mail or Telephone.
E-mail:ctac@cnctac.com
Tel:0086-537-7766111


Packing&Shipping




FAQ


Q1、Why choose Tongya Automobile Co.,Ltd ?
1,China leading manufacturer of semi trailer and tanker trailer since 1982,China famous brand, Annual output of 10,000 units different kinds of semi trailers .
2,More than 19 years export experience since 2005, Fully understand different local specs and standard from more than 50 different countries .
3, Customized product is available, with modern and advance production line with all kinds of production equipment and production process
4, Professional technical team with 24 fully experienced engineers
Q2、What can you buy from Tongya Automobile Co.,Ltd?
Bulk Cement Tanker Semi trailer , Fuel Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Dump Trailer,dolly trailer ,Fence Semi-trailer,Side Wall Semi-trailer, full trailer, Flour tanker trailer, ISO bulk tanker container
etc.
Q3、Can I visit your factory?
Of course,welcome to visit our factory.we are located in Liangshan, Shandong Province, a face-to-face conversation can serve you better.
Q4、How about your delivery time?
10-30 days after receive the deposit, depend on the order quantity.
Q5、What payment terms do you use?
 T/T and L/C payment are acceptable.
Q6、Which incoterms 2010 terms can we work?
Normally we accept FOB, CFR, CIF.
Q7、Is it available to print our own brand on the vehicle?
Yes, we accept to do OEM for well known distributors and dealers.
Q8、What information should I let you know if I want to get a quotation?
First, please let us know which kind of trailers you want.
Second, Please let us know what kind of cargo that you will load with our trailers? Loading capacity? road condition?
Third, what trailer size is OK for you, and do you want customized product.
Four, your truck specs, like 2.0 or 3.5 inch fifth wheel ? fifth wheel height? 6*4 or 4*2 truck will use ?
Five, order quantity, destination port The more information you will provide, the more accurate and competitive price we can offer. Yes, we're looking for the agent all over the world, please contact us for further discussion.
