Product Overview

Description



Softel 24 Channel 16 Input IPTV SDI Full HD Encoder Cable TV Digital Headend Equipment


Products Description




I. Product Overview
SFT3542K-24 MPEG2 SD IP Encoder is a professional SD audio & video encoding and multiplexing device. It has 24 CVBS video input interfaces, 24 pairs of unbalanced audio input interfaces, supporting MPEG-2 video encoding, and MPEG 1 Layer 2 audio encoding. It can simultaneously encode 24 channel SD audio & video; moreover, it can multiplex the input TS to generate 24 SPTS or one MPTS output through Data1 port. In conclusion, its high integrated and cost-effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting, etc.

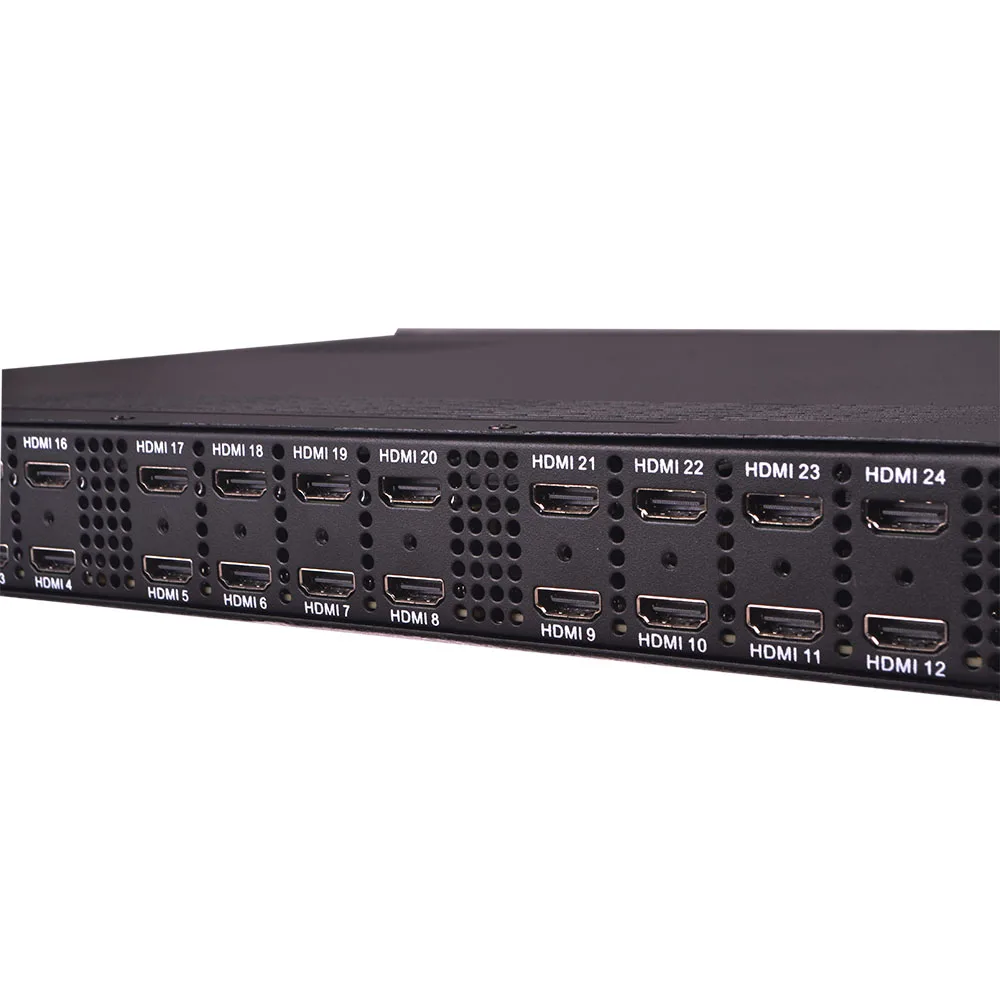

SFT3542L MPEG4 AVC/H.264 HD IP Encoder is a professional HD audio & video encoding and multiplexing device. It has 12 HD (8/16/20/24 HD optional) video input interfaces, supporting MPEG-4 video encoding and MPEG 1 Layer 2 audio encoding. This device can simultaneously encode 12(8/16/20/24 HDMI optional) channel HD audio & video; moreover, it has an IP output port that can support 1MPTS and 12SPTS (8/16/20/24 SPTS) IP out. In conclusion, its high integrated and cost-effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting, etc.




II. Features
SFT3542K
-24×CVBS video inputs, 24 pairs of unbalanced audio inputs.
-Support MPEG-2 Video encoding
-Support MPEG1 Layer II, AC3(2.0) Audio encoding and support audio gain adjustment
-Support IP(MPTS/SPTS) output (DATA1) over UDP and RTP
-support “Null PKT Filter” function
-Support PCR accurate adjusting
-Supports PAL and NTSC SD video formats
-Real-time effective encoding output bit-rate   monitoring
-Support PSI/SI editing and inserting
-Control via web management, and easy updates via web
-Lowest cost per channel, breakthrough price

SFT3542L
-8× HD video inputs with 8 SPTS and 1 MPTS output through Data 1 or Data 2
-12 × HD video inputs with 12 SPTS and 1 MPTS output through Data 1 or Data 2
-16 × HD video inputs with 16 SPTS and 1 MPTS output through Data 1 or Data 2
-20 × HD video inputs with 20 SPTS and 1 MPTS output through Data 1 or Data 2
-24 × HD video inputs with 24 SPTS or 1 MPTS output through Data 1 or Data 2
-Support MPEG4 AVC/H.264 video encoding format
-MPEG1 Layer II audio encoding format, support audio gain adjustment
-Support 1 ASI output (optional) as a copy of MPTS
-Support IP output over UDP and RTP
-Support QR code, LOGO, OSD insertion
-support “Null PKT Filter” function
-Support PID Remapping
-Support PCR accurate adjusting
-Support PSI/SI editing and inserting
-Control via web management, and easy updates via web
-Lowest cost per channel, breakthrough price


Details Images




Product Paramenters


Input
24 CVBS inputs, RCA interface
Video
Resolution
720×480_60i, 544×480_60i, 352×480_60i
352×240_60i,320×240_60i,176×240_60i, 176×120_60i
720×576_50i,704×576_50i,640×576_50i, 352×288_50i
320×288_50i, 176×288_50i, 176×144_50i,
Encoding
MPEG-2
Bit-rate
0.5Mbps~8Mbps each channel
Rate Control
CBR
GOP Structure
IBBP
Advanced Pretreatment
De-interlacing, noise reduction
Audio
Encoding
MPEG-1 Layer 2, AC3(2.0)
Sampling rate
48KHz
Resolution
24-bit
Bit-rate
128Kbps,192kbps,256kbps,320kbps,384kbps each channel
Multiplexing
Maximum PID
Remapping
180 input per channel
Function
PID remapping ( automatically or manually)
Accurate PCR adjusting
Generate PSI/ SI table automatically
Stream output
RF output (F type interface)
IP (MPTS/SPTS) output over UDP/RTP, DATA1(GE port)
System function
Network management(WEB)
Chinese and English language
Ethernet software upgrade
Miscellaneous

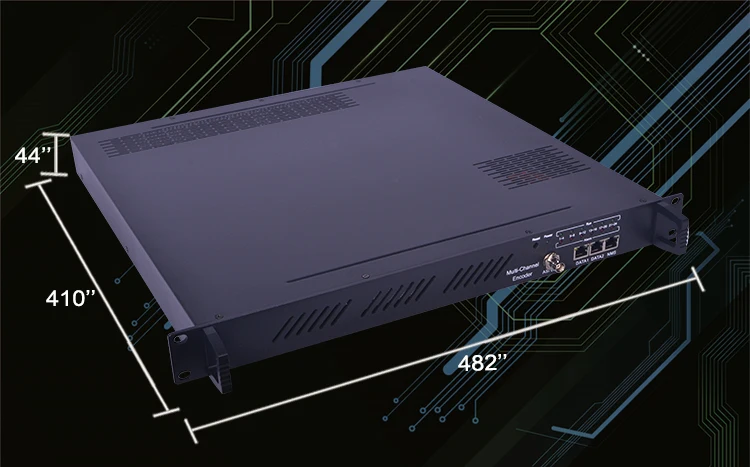

Dimension(W×L×H)
482mm×410mm×44mm
Approx weight
8kg
Environment
0~45℃(work)；-20~80℃（Storage）
Power requirements
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
Power consumption
20W


Input
12 HD inputs ( 8//16/20/24 input optional)
Video
Resolution Input
1920×1080_60P, 1920×1080_60i,
1920×1080_50P, 1920×1080_50i,
1280×720_60P, 1280×720_50P,
720×576_50i,720×480_60i,
Resolution Output
1920×1080_30P, 1920×1080_25P,
1280×720_30P, 1280×720_25P,
720×576_25P,720×480_30P,
Encoding
MPEG-4 AVC/H.264
Bit-rate
1Mbps~13Mbps each channel
Rate Control
CBR/VBR
GOP Structure
IP…P (P Frame adjustment, without B Frame )
Audio
Encoding
MPEG-1 Layer 2
Sampling rate
48KHz
Resolution
24-bit
Bit-rate
64kbps,128Kbps,192kbps,224kbps,256kbps,
320kbps,384kbps
Multiplexing
Maximum PID
Remapping
180 input per channel
Function
PID remapping ( automatically or manually)
Accurate PCR adjusting
Generate PSI/ SI table automatically
Stream output
12 SPTS IP or 1MPTS output over UDP/RTP, 1*1000 Base-T Ethernet interface
ASI output(optional) as copy of MPTS
System function
Network management(WEB)
Chinese and English language
Ethernet software upgrade
Miscellaneous
Dimension(W×L×H)
482mm×410mm×44mm
Approx weight
8kg
Environment
0~45℃(work)；-20~80℃（Storage）
Power requirements
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
Power consumption
70W
