Pet bottle blow molding machine

Product Overview

Description

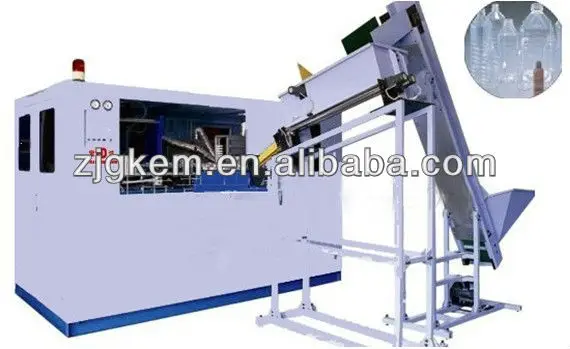

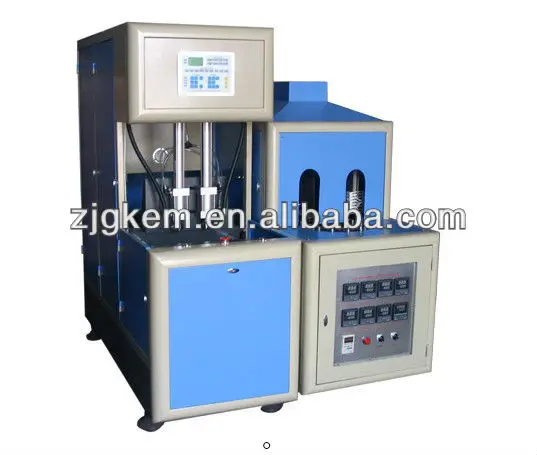

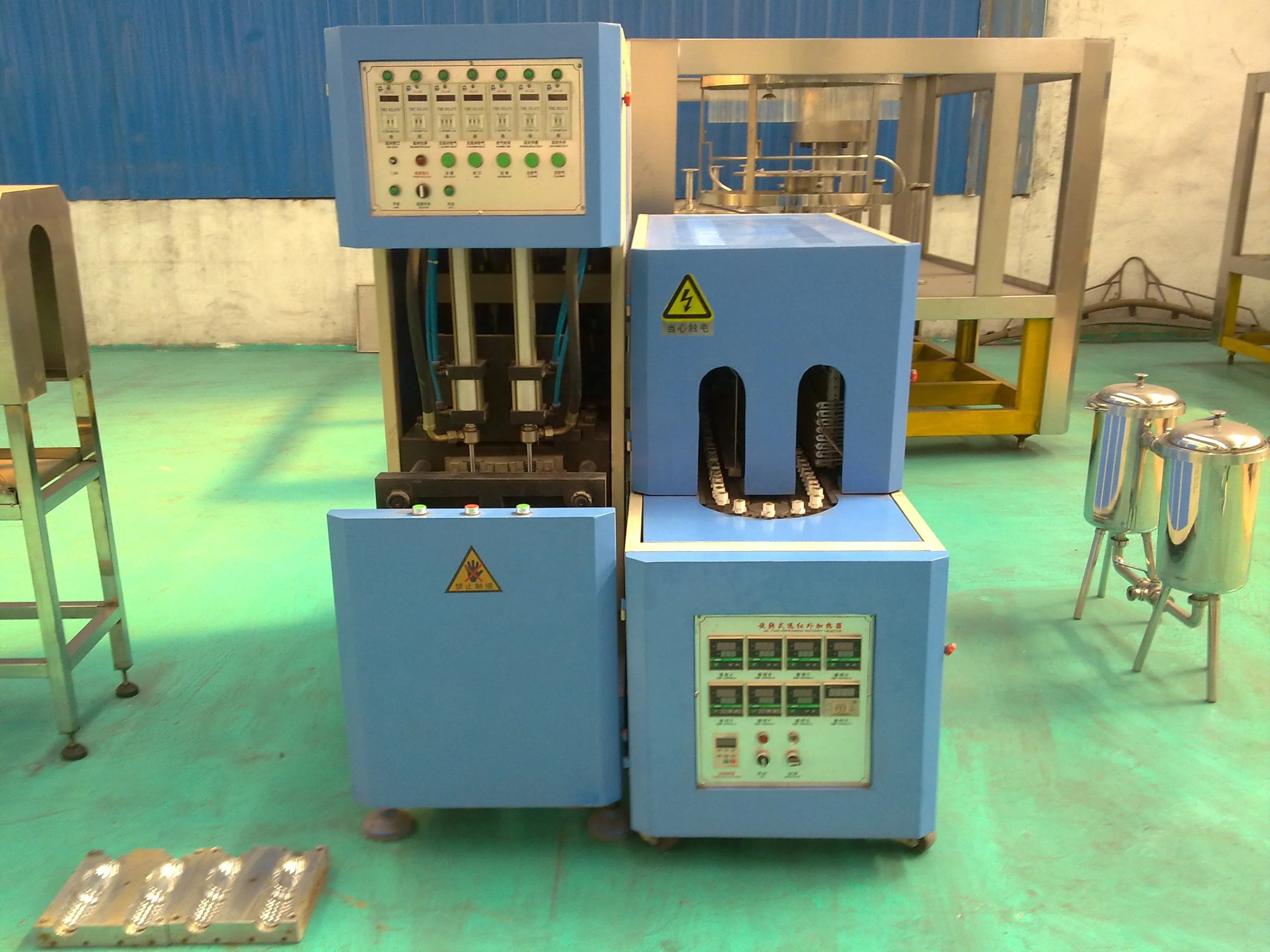

Pet bottle blow molding machine



Characteristic

 The series are fully-automatic pet stretch-blow molding machines(preheat). It has 3 to 16 cavities and the maximum capacity of the products is 2000mL. It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.

1).High Automatization

 2).High Intelligence:The machine can be controlled through touch screen and running status is shown on it.

 3).High Quanlity:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.

 4).High Speed:6000BPH(6-cavity), 8000BPH(8-cavity), 12000BPH(12-cavity), 16000BPH(16-cavity).

 5).No Contamination:Closed production zone, good self-lubrication system avoid contamination.
6).Low Cost:Low consumption of electricity, air and water.

7).High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.





technological parameter

Model	KM-A2
Productivity	Depend on bottle design	1800-2000PCS/H
Product type	Body diameter	20mm-100mm
	Height	50mm-350mm
	Neck diameter	15mm-38mm
Mold	Cavity	2cavities
	Mold thick	240mm
	Mold	500*500mm
Main machine power	Electrical source power	380v 3Phase /220v 3Phase  50/60HZ
	Rated Power	25kw
	Really use power	6kw
Air source	LP air compressor	1.0m3/min 1.0MPa
	HP air compressor	0.7m3/min 3.0MPa 2set
	Air dryer	1.0m3/min 3.0MPa 1set
Cooling water	Cooling water	10L/min
Size	L*W*H	1908*1280*1920mm
	Weight	2000kg
Auxiliary equipment(preform unscrambler)	L*W*H	2000*950*2480mm
	Weight	250kg
Resin available		PET



Main part:
Pneumatic part	Valve	SMC
	Cylinder
Electric part	PLC	LG Mitsubishi
	Operating system	LG /HITECH
	Relay	OMRON
	Infrared thermometer	America raytek
Note	All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product



Picture shows





er machine

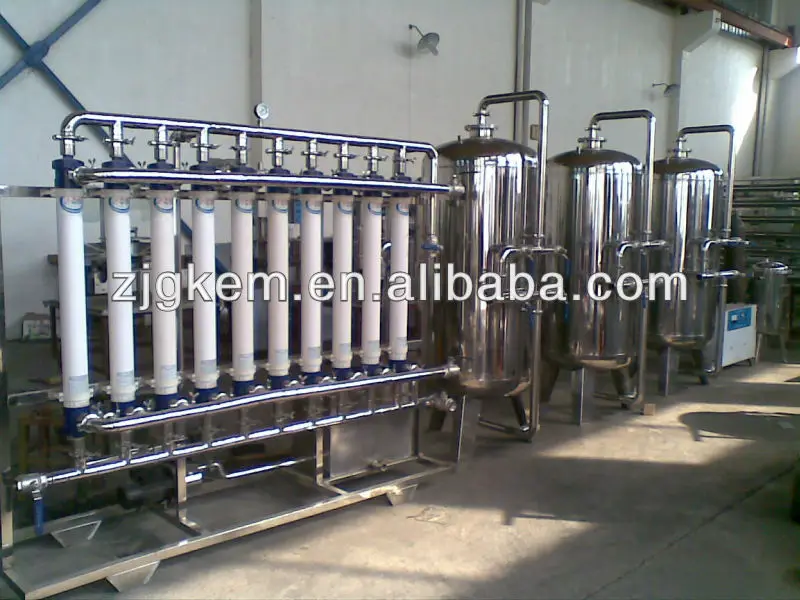

water treatment system

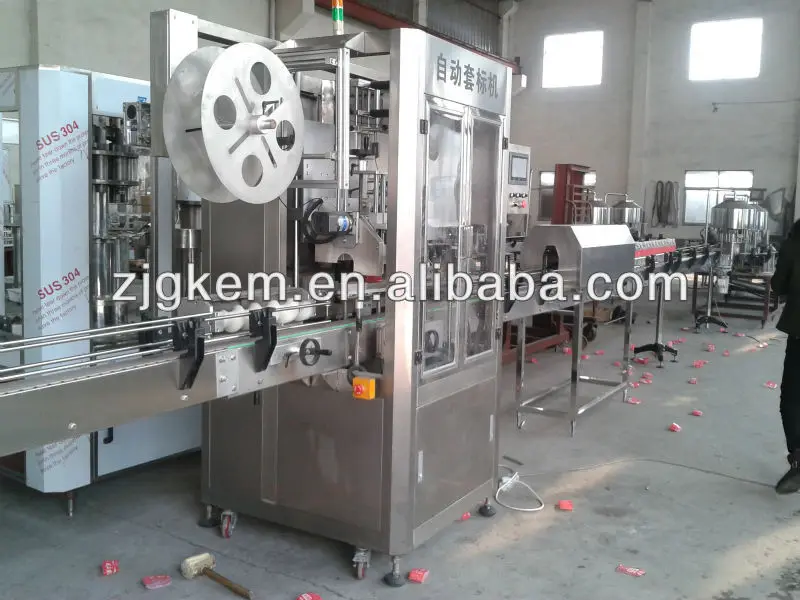

sleeve labeling machine

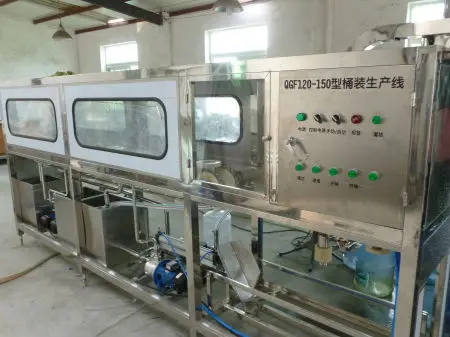

barrel water filling machine

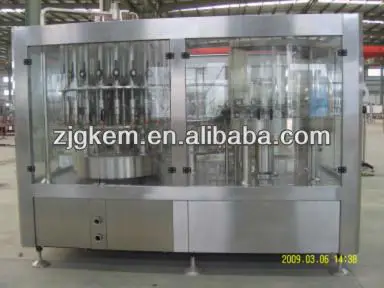

hot filling machine



can filling machine

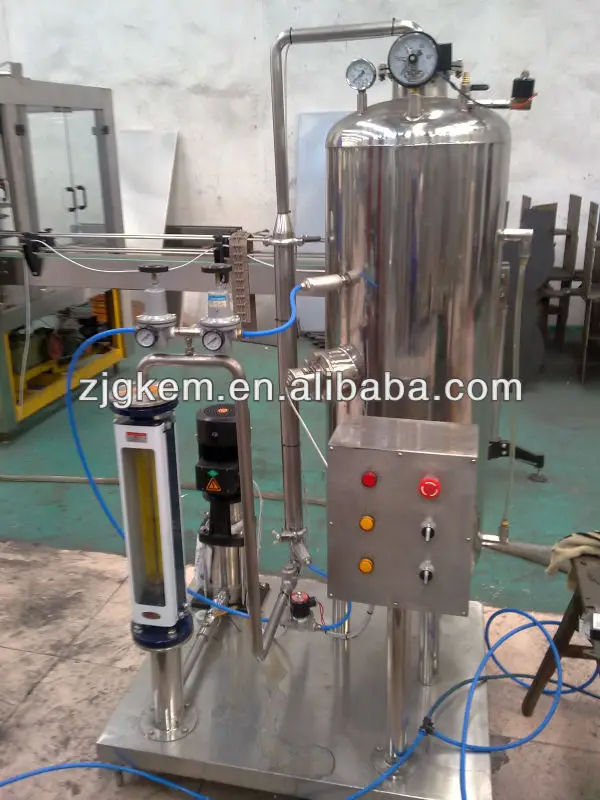

Drink mixer



certification

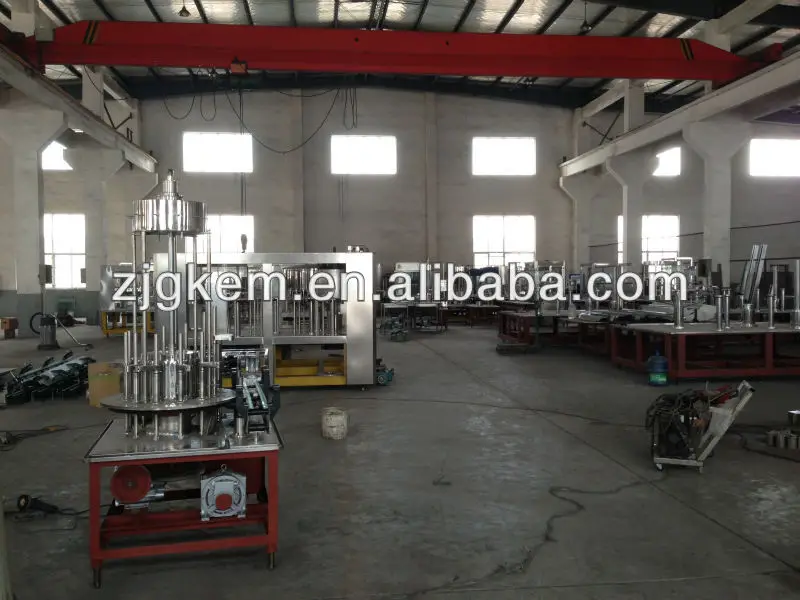

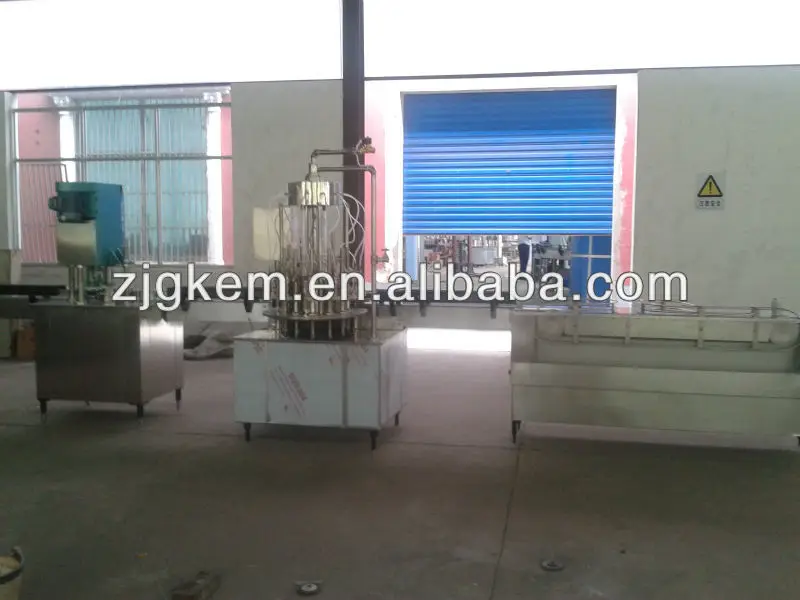

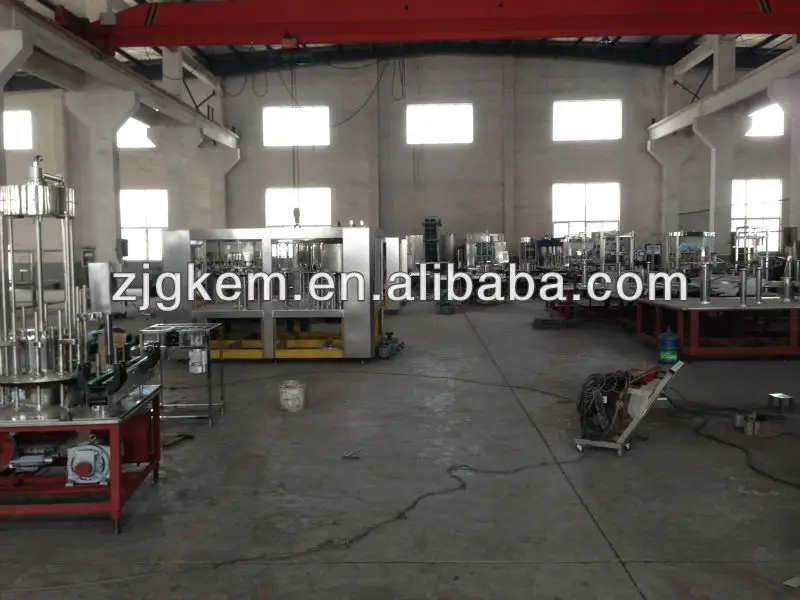

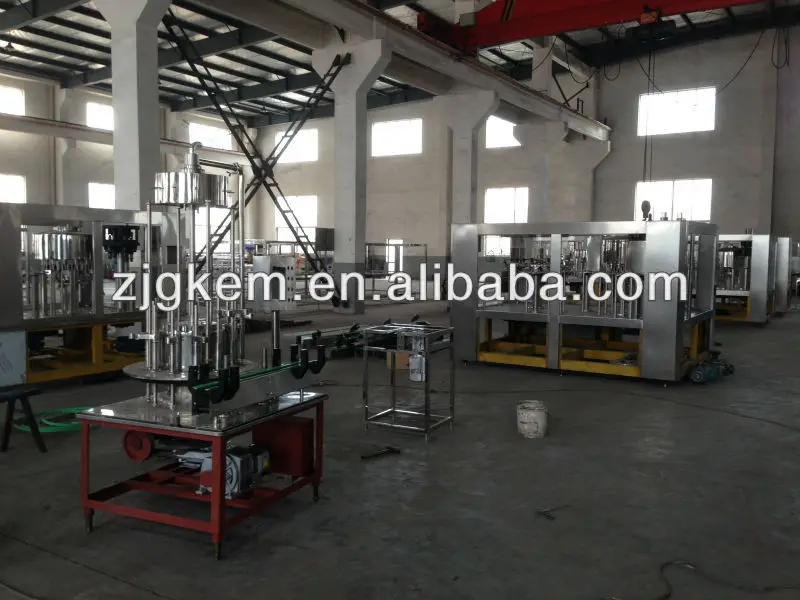

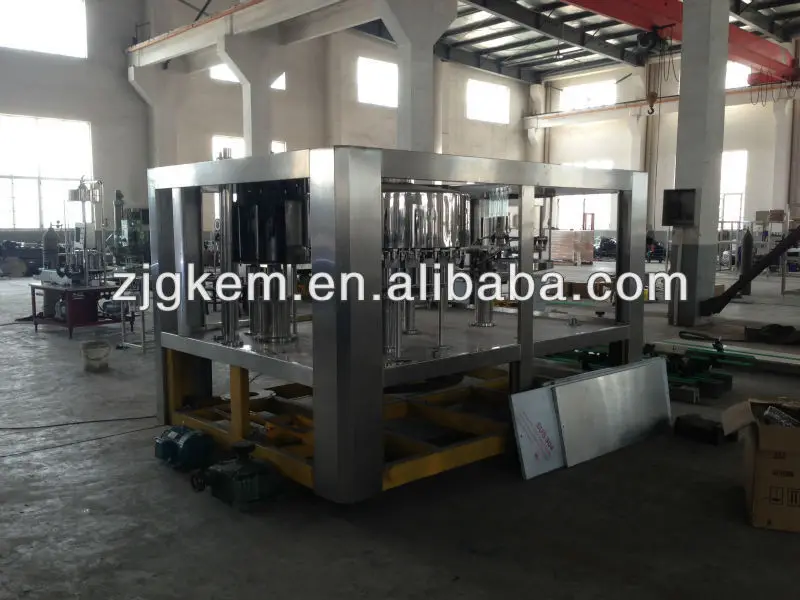

workshop









Zhangjiagang KEERMAN Machinery Company!
