Product Overview

Description

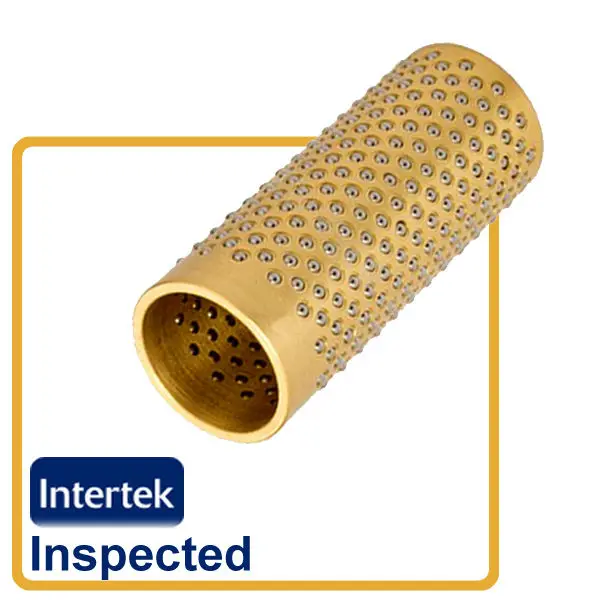

  brass ball bearing cage

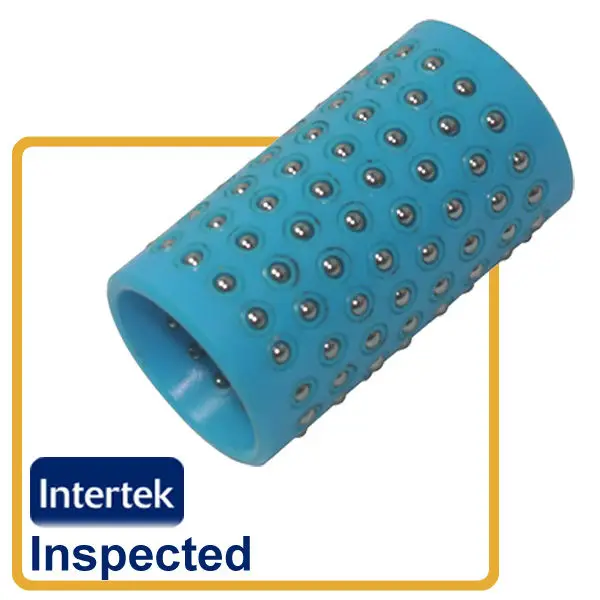

POM resin (FZP) base material and well arranged steel balls.



The products are widely used in machinery industry, such as cold punching mold, precision machine tools, etc.



• Features:

1. Quite low friction coefficient

2. Able to move in both radial and axial directions

3. High precision, can working in high speed

4. Normal size from 1950 to 80130



• Specifications:

Cage Material	FZB	Bronze + balls
	FZA	Aluminium + balls
	FZP	POM + balls
Load capacity		30N/mm2
Speed limit		6m/s
Yeild Strength		147~294N/mm2
Friction coef		0.01~0.08
Tolerance of balls		<0.002mm
Diamensions: Inner diameter:   d Outer diameter:  d+d0 Length:          L



• Packings:



• Other bushings:

Brass cage / Alumimnum cage / Composite bushing / Graphite bronze bushing / Wrapped bronze bushing / Sintered bushing





Our sliding bearings including:



SF-1(du) oilless bearing bushing (PTFE Composite)

SF-2(dx) slide bearing bushing (POM Composite)

FB090(FB090G) bronze bushing

FB092 bronze bushing

JDB,JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer



Also we can make customized bushings as per your drawings or samples.

Welcome inquiry us for details so that we can offer you related information at the first time!
