R22/R407/R134A мини промышленный водяной воздушный охладитель для пластиковой машины

Product Overview

Description

water chiller for hydroponics

Model		Unit	XC-LF1A	XC-LF2A
Cooling Capacity		KW	2.77	5.28
		Kcal/h	2382	4541
Compressor	Input Power	KW	0.75	1.5
	Rated power	HP	1	2
Power		1PH-220V/50HZ
Evaporator	Type	Shell and Tube
	Pipe Diameter	inch	1'	1'
Refrigerant	Type	R22
	Quantity	KG	1.6	1.8
Condenser (air chiller)	Type	Finned Copper Yube+Low Noise Outer Rotor Fan
	Fan Power	W	90*1	170*1
Cooling Water Flow		m³/h	0.476	0.908
Water Tank Capacity		Liter	20	20
Pump	Power	KW	0.37	0.37
		HP	0.5	0.5
	Distance	m	23	23
	Flow Rate	L/min	100	100
Dimensions(L*W*H)		mm	860*490*866	855*565*1026



for more information,pleases click to contact



CONTACT US

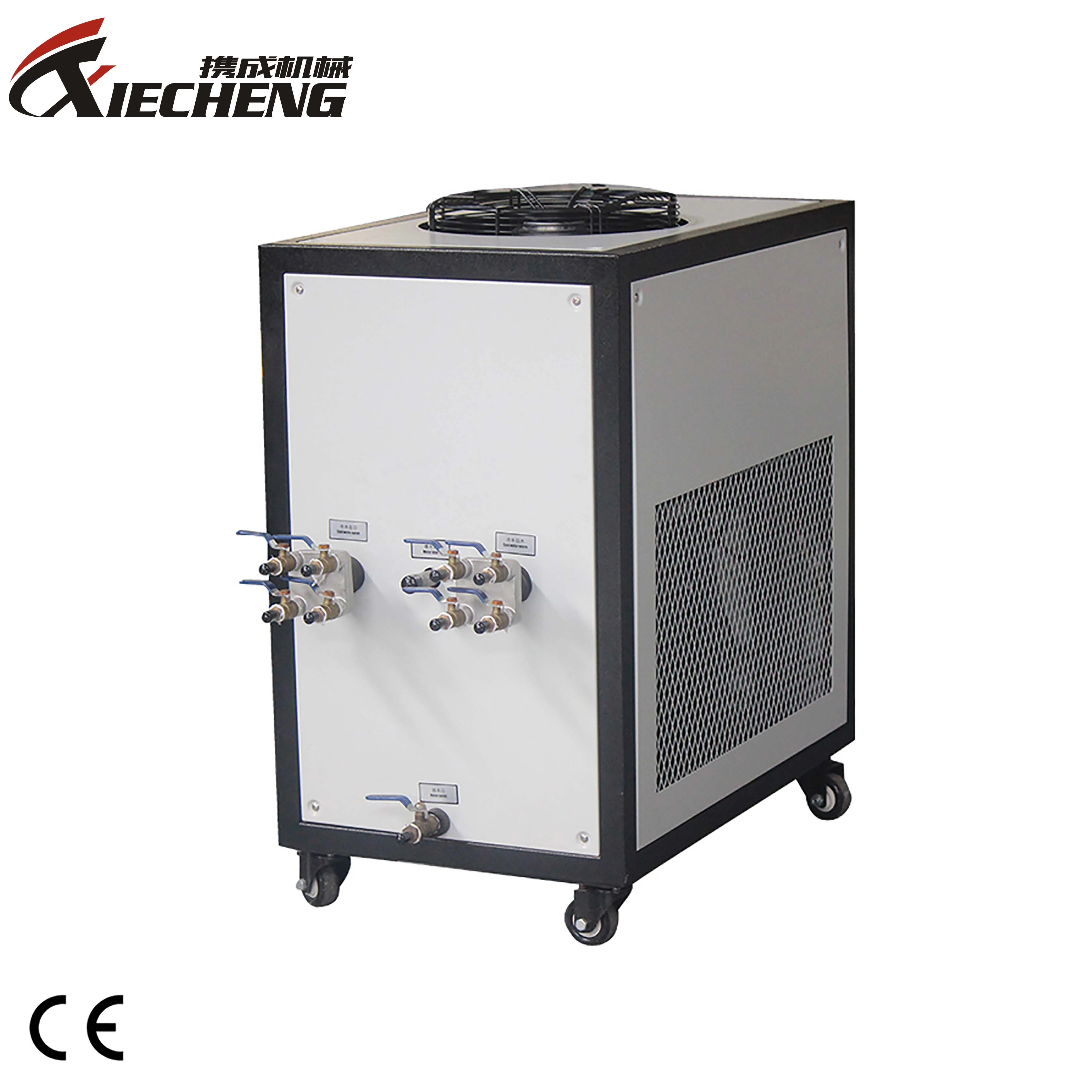

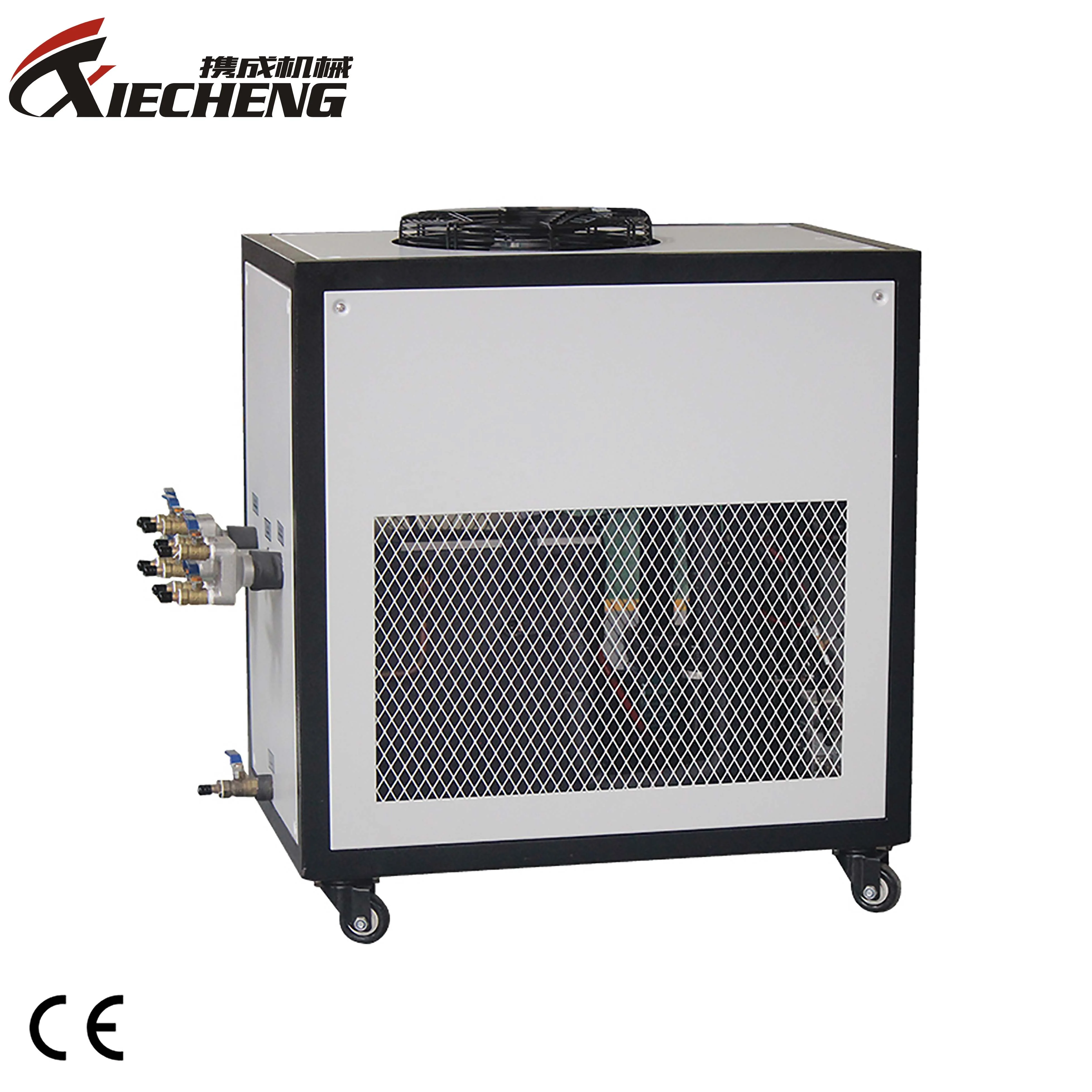

Air Cooled Chiller



The water chiller is to provide a cooling process in plastic molding,

to improve quality of molded products

and shorten period of injection molding cycles.

Hence maximizes productivity of plastic molding manufacturing



	P.I.D Microcomputer Full Function Control 1. The whole machine adopts Siemens electronic components 2. Easy to operate, accurate control of water temperature within 3℃ to 50℃ 3. The screen displays the setting temperature of cold water outlet, cold water inlet and equipment at the same time
Valley Wheel Vortex Compressor World famous brand fully enclosed scroll refrigeration compressor and evaporator combination, super cooling, quiet and energy-saving
	Cold and Hot Water Pressure Pump Table 1.Assemble pressure gauge, check the pressure of water pump when working 2.With current overload protection, high and low voltage suppression and electronic time delay and other perfect safety protection device, abnormal indication system
Efficient Water Pump Auenac stainless steel pump head, low noise, no leakage, no maintenance

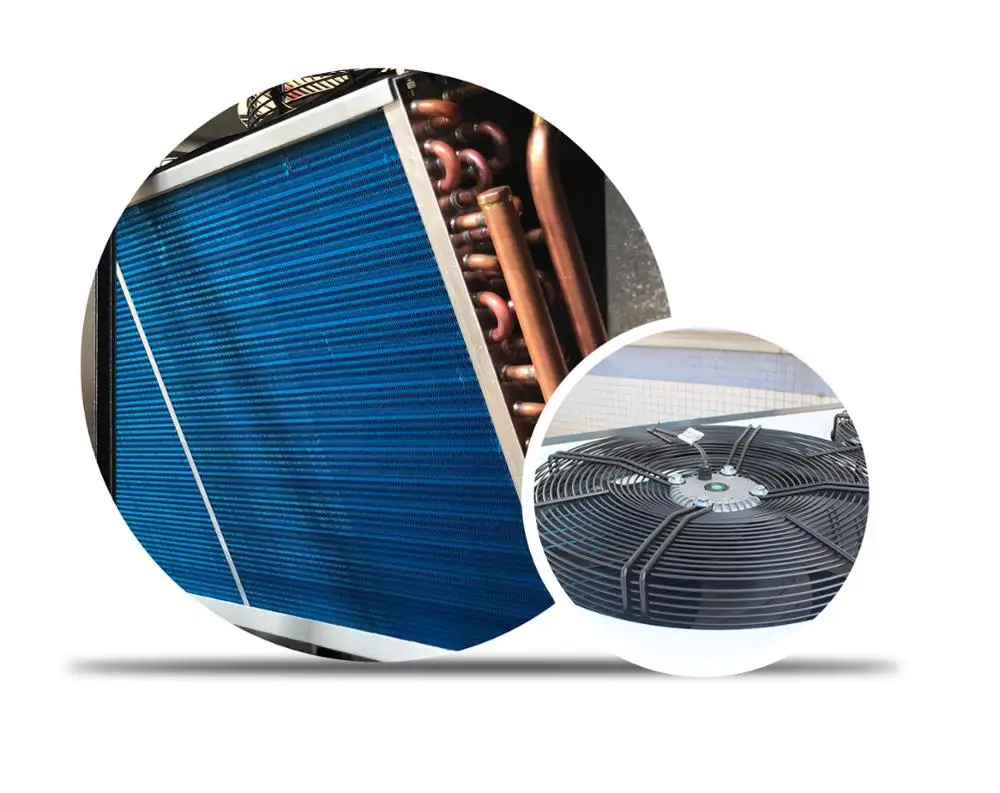

	Efficient Cooling System 1.Standard copper tube cover aluminum fin condenser, with excellent heat conduction performance radiator 2.Heat dissipation fan, enhances heat dissipation effect







Industrial Chiller

^{Industrial chiller, other names: water chiller, water cooling machine.}

^{Widely used for Plastic molding, electronics industry, electroplating industry,}

^{Machinery industry, construction industry, vacuum coating and food industry etc.}

^{Divided into water cooled chiller/air cooled chiller}





for more information,pleases click to contact



CONTACT US

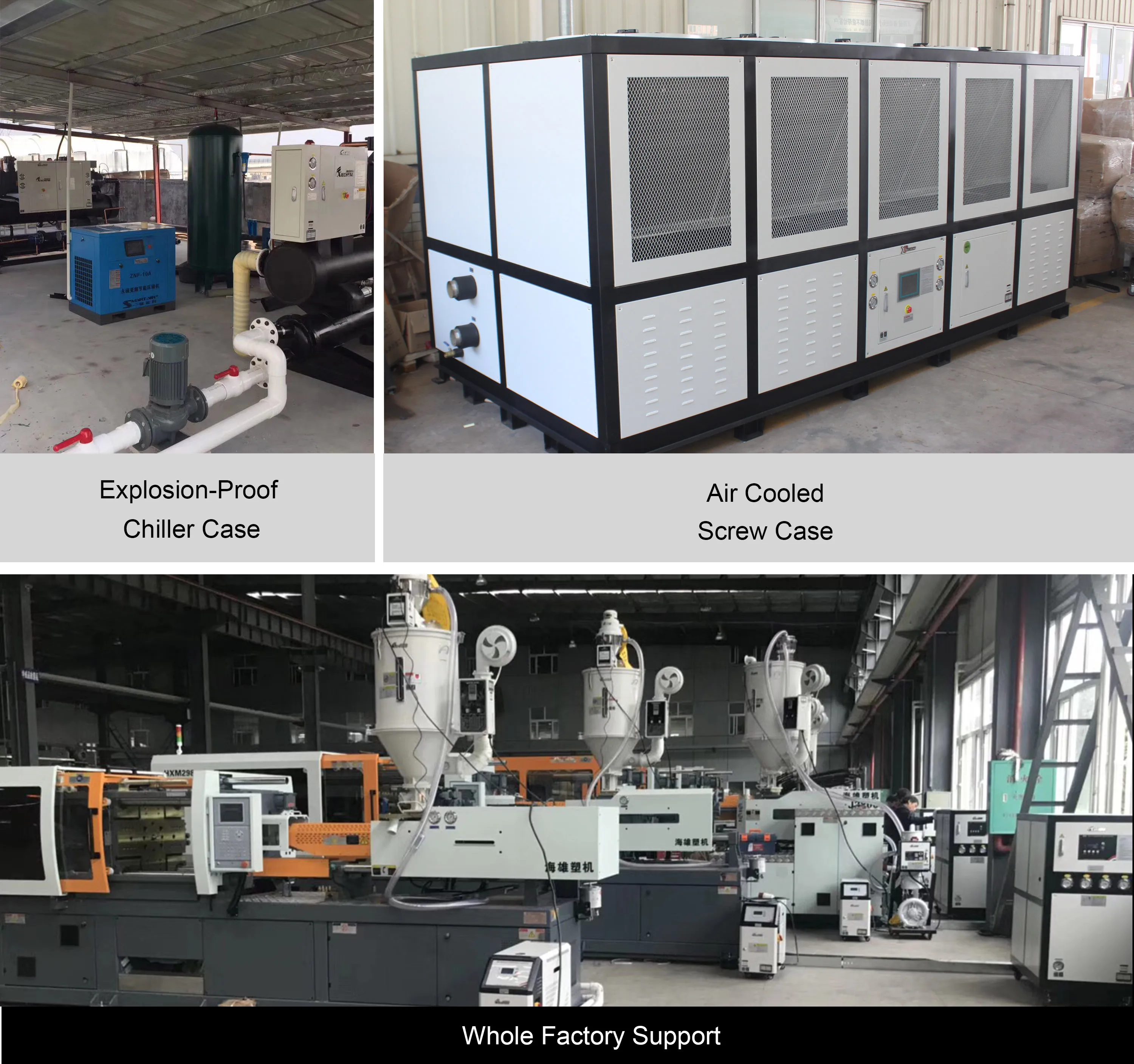

Customer Case

^{User-centered service and detailed control}

^{can provide customers}

^{with cost-effective and reasonable solutions}







About Us

^{Tailored to your specific needs}

^{User-centric service and detailed control}

^{Provide cost-effective and reasonable solutions}

^{Good maintenance service}





Certification

^{Quality Management System certified}

^{By SGS/Quality Management}

^{System certified by BV}





Exhibition

^{Established an international sales team}

^{for overseas market explorations}





FAQ

Frequently asked questions when buying products



Q: How many years have your factory been established?

A:Our factory established from 2009,

but most of our engineers are working in this industry over 15 year.



Q: How long is your delivery time ?

A:we have a few stock .but if produce,

1 set for normal machine need about 3-7 working days ,

if 1 or more containers, need about 15-20 working days.



Q:how long is the warranty?

A:Within 1 year from date of the factory, if parts failure or damage

(because of the quality problem ,except wearing parts),

our company provide these parts for free.



Q:What is your payment term ?

A:TT 100% before shipment ,LC at sign,

Western Union or Trade Assurance order recommended.
