ZXCD 2400B Block Foam Cutting Machine

Product Overview

Description

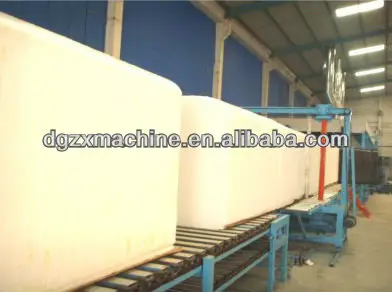

This foam machine  is setup on the exit of machine oven which linked with the foaming machine.  It is used for cut off the continuous foam blocks to a certain length, and in order to transit, storage and future process. This machine controlled by digital system, fitted with very thin and sharp blade. Which running in a high speed from left to right, cutting the level foam. Its operation is handy and the cutting is exact.



Main Technical Specification



Model	ZXCD-2400B
Cutting foam width	2380mm
Cutting foam height	1300mm
Blade frame moving          speed	21m/min
Conveyer belt speed	0~8m/min
Total power	8.69Kw
Machine weight	2000Kg
Machine external size	L6000*W4550*H4000mm
