DWC 40 industrial wood chippers for sale

Product Overview

Description

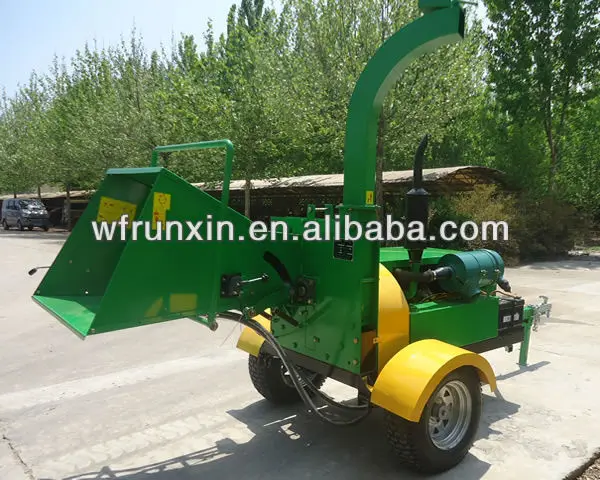

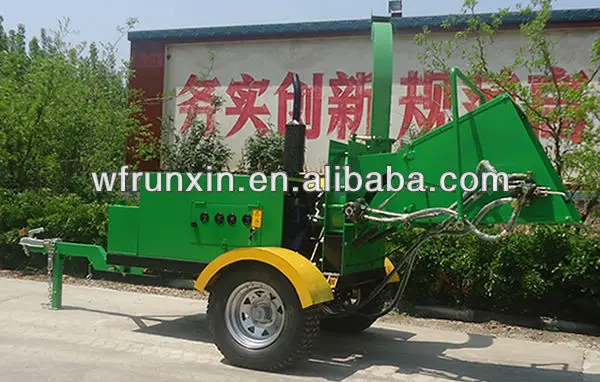

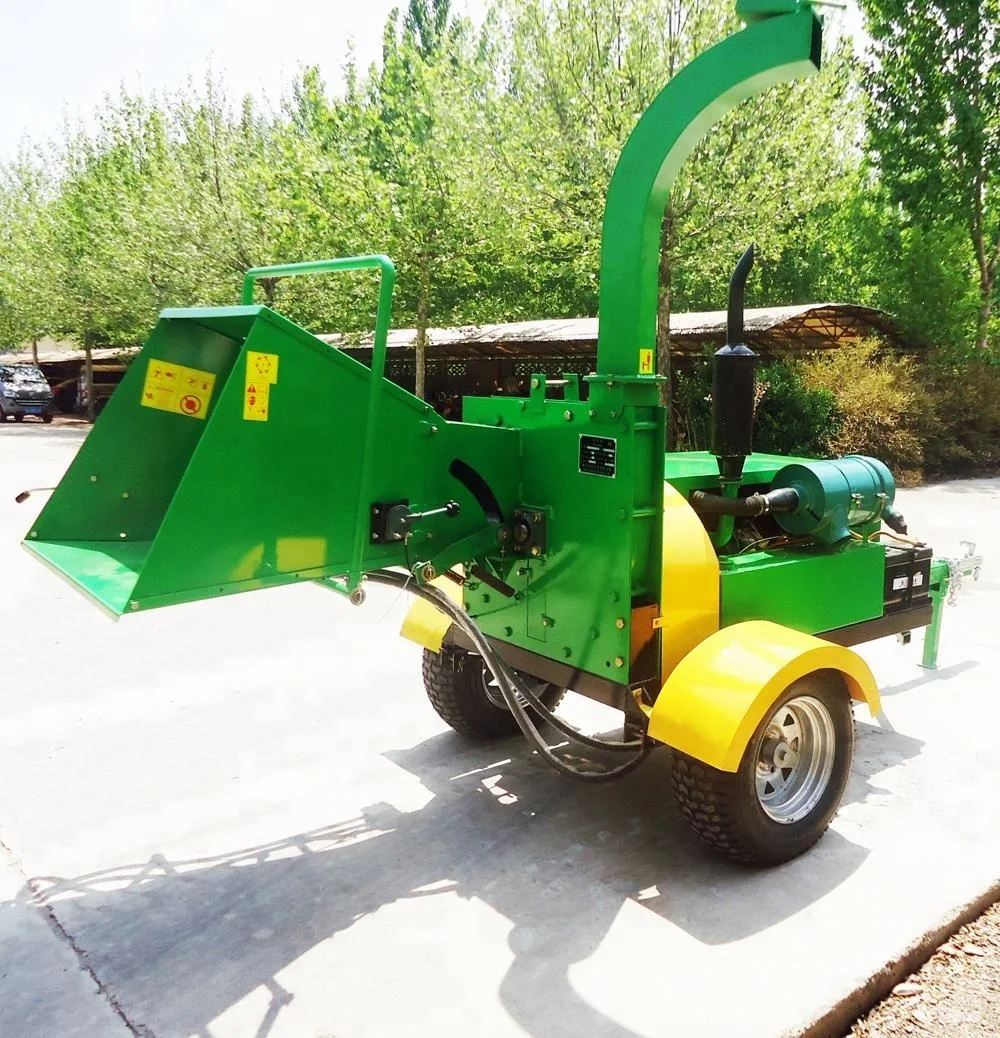

DWC-40 industrial wood chippers for sale

The  industrial wood chipper employ steel disc with rectangle blades mounted upon it and fans upon the other side. While powered by engines, the disc will rotates. the blades cut the wood branch into pieces and the fans blow the chips out from chute.



TECHNICAL PARAMETER



Model		DWC-40
Engine	model	Laidong 4L22B diesel engine
	type	Four cylinders,Horizontal,four-stroke
	Rated power	25.7KW/2350rpm
	Fuel consumption rate	<238g/KW.h
	Engine oil consumption	<1.5g/KW.h
	Cooled style	Water-cooled
	start	Electric start
Feeding system		hydraulic
Chipper capability		200mm
Flywheel diameter		640mm
Flywheel weight		85kgs
Blades number		1 stationary blade, 2 rotary blades
Feed Hopper inner Opening		200*220mm
Discharge Hood Height		2000mm
Rated RPM		1280
Weight		800kgs
Working efficiency		9-13cbm/h






40HP industrial wood chipper for sale



Industrial wood chipper are used for making wood chips(10-50mm adjustable).

CE and ISO approved
