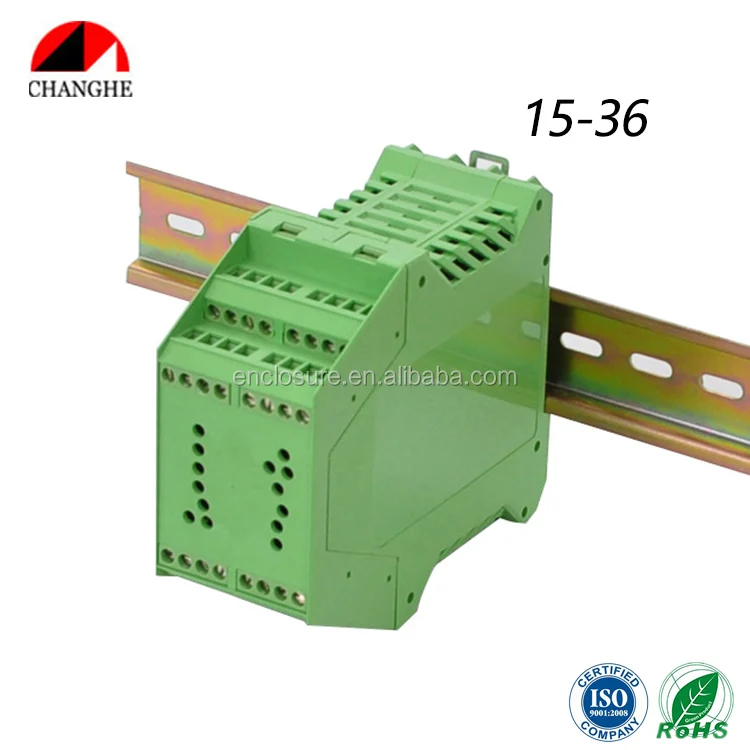

CHANGHE DIN Rail Terminal Enclosures provide users with more than 70 options. They are widely applied in modular PLC, controller unit, and modular distributor. We can provide customized molding based upon standard enclosures to meet your specific requirements. To request a free sample, please contact our sales team>>
Technical Features:
- External size (LxWxH): 112x100x45mm - Terminal blocks: 16 x 2 Pin - Screws: M3 - Vertical mounting of PCB - Fit for 35mm mounting rail - Standard color: green
Technical Data
Ingress protection
IP20~IP40 IEC60529 : 2001
Temperature range (short term)
-40℃ ~ 80℃ IEC60068:1997
Temperature range (long term)
-20℃ ~ 60℃ IEC60068:1997
Electrical insulation
Total insulation
Flammability rating
PA:UL94_5VA ABS:UL94HB UL94
Non-toxicity
Halogen Free
Terminal blocks
250V/6A
Mounting method
35mm DIN rail
Dimension Chart
DIN Rail Terminal Enclosures
CHANGHE DIN Rail Terminal Enclosures provide users with more than 70 options. They are widely applied in modular PLC, controller unit, and modular distributor. We can provide customized molding based upon standard enclosures to meet your specific requirements.
