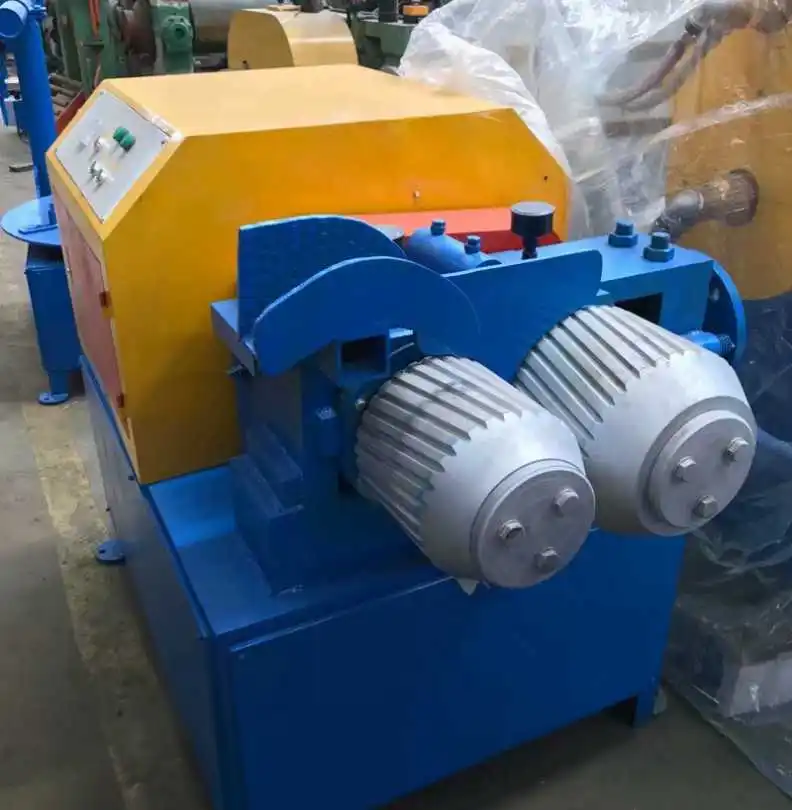

Small size tire crusher machine/waste tire recycling machine

Product Overview

Description

semi-auto Rubber powder machine/Used tire recycling machine



1.Make waste tire break into powder;
2.28-30mesh rubber powder
3:no waste of the whole line

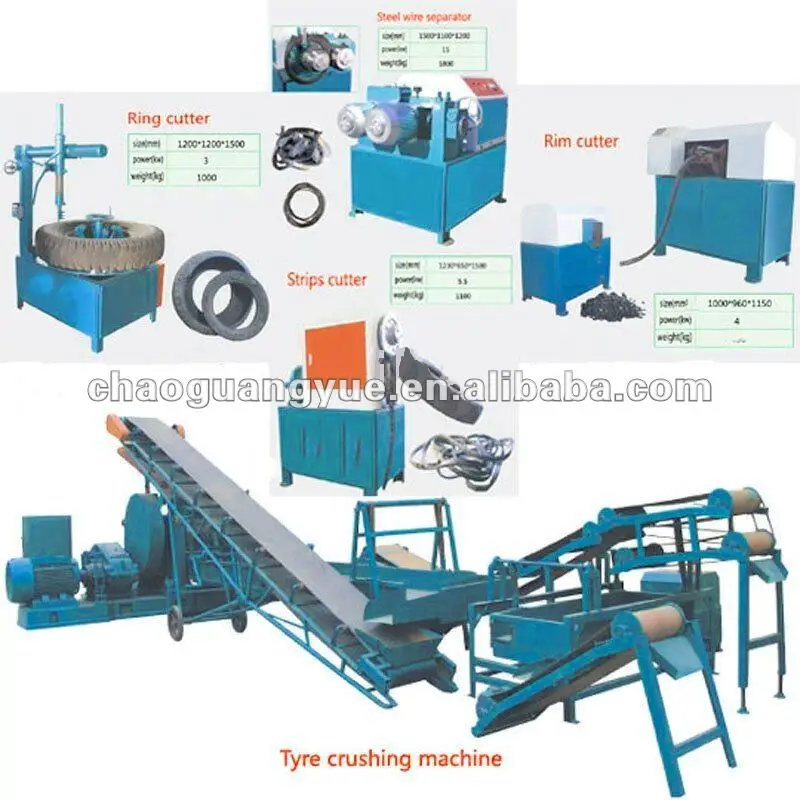

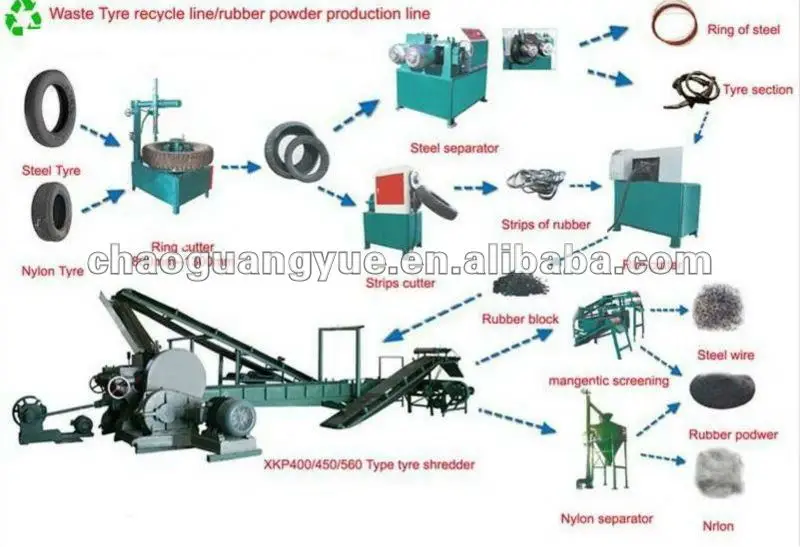

Process flow



waste tire→cutting diameter of hub→cutting strips→cutting blocks→separate steel wire→crush rubber blocks→making powder→magnetic separation→final products(rubber powder)







 Factory direct sales,with high quality and competitive price

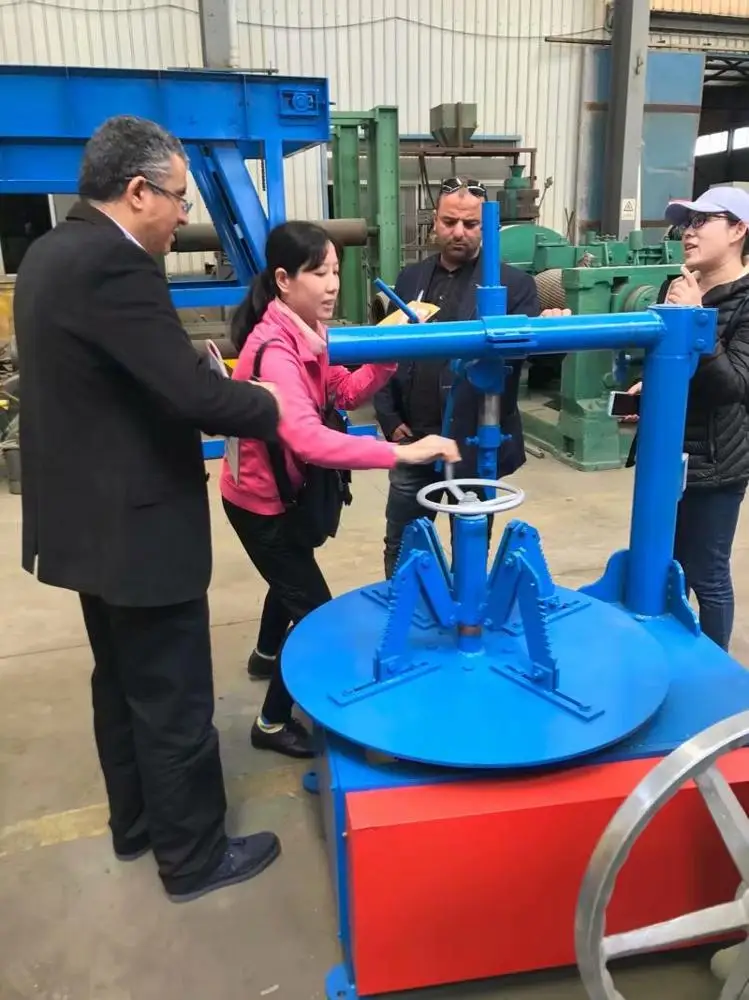

1.Ring cutter



Function: will whole tire cutting into tire crown, the side of the tire and inner circle.



Power	Blades rotating speed	Adapt tire	Productivity	Dimensions	Weight
3kw	15R/MIN	650-1200	30strips	1150*850*1200	0.5t

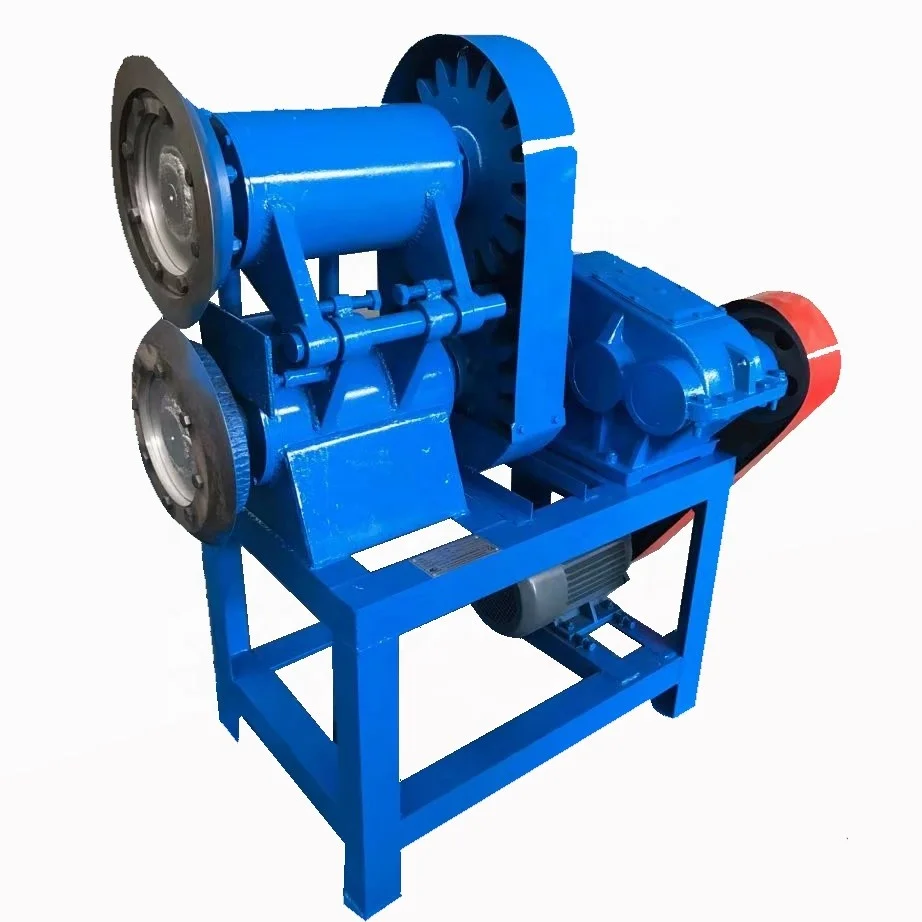

2.Strips cutter



Function: various tire, glue, glue board piece cut into long strips.



Power	Productivity	diameter	Output size	Equipment size	weight
4kw	20strips/h	650-1200	25-55	1230*650*1580	0.8t





3.Rim cutter



Functions: this machine should cut machine tyres, used for supporting the use of the strip cut into 3-5CM glue pieces.



Power	Productivity	Output size	Equipment size	weight
7.5kw	0.8-1.0t/h	35*35	780*550*1210	0.8t





4.Steel wire separator



Function: tyres circle wire centrifuges, mouth will tire of coarse steel mouth circle parts with rubber effective separation



Power	Blades rotating speed	Adapt tire	Productivity	Demensions	Weight
11kw	18R/MIN	650-1200	1-2strips/min	1.7*1.2*1.3m	1500kg













.
