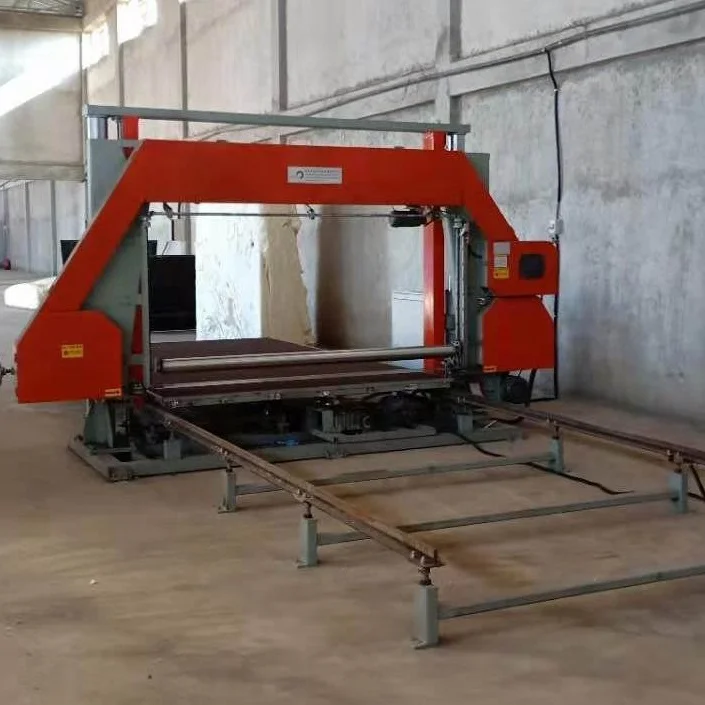

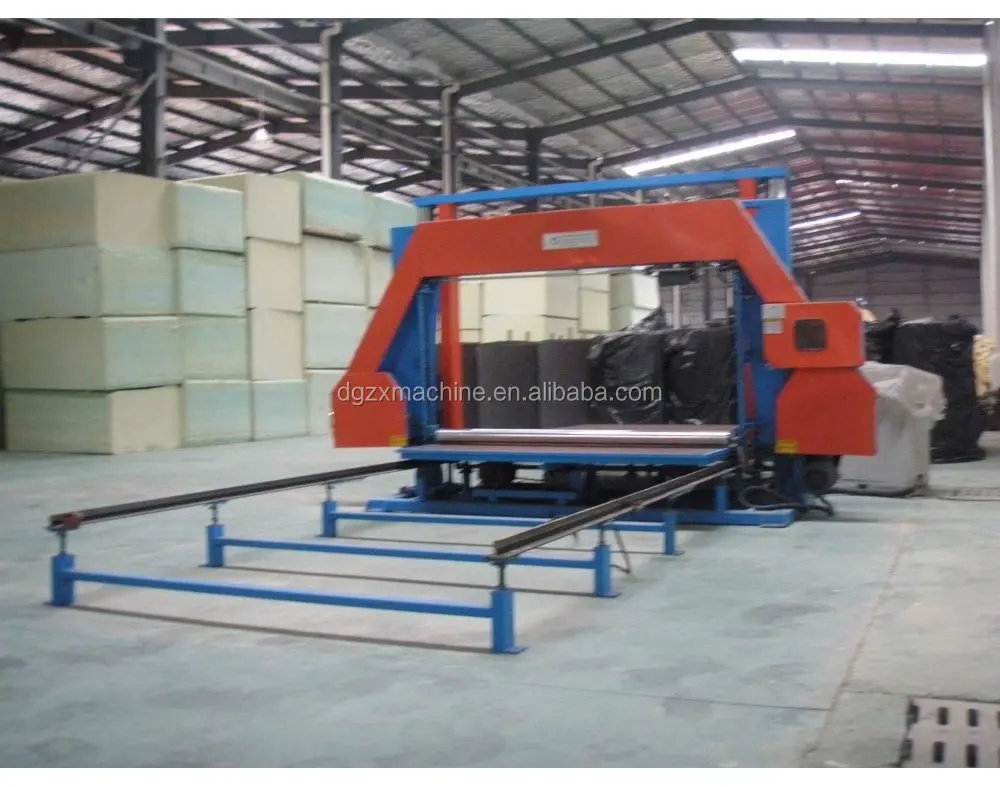

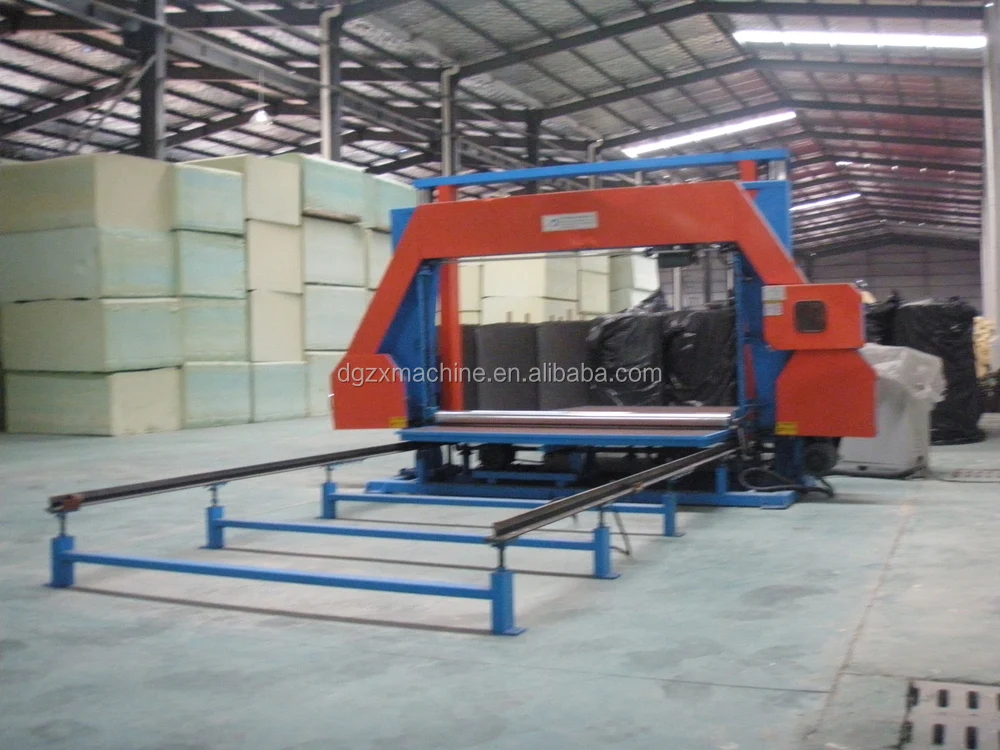

ZXPQ 1650/2150 Horizontal Foam Cutting Machine

Product Overview

Description

This cutting machine is mostly used for the reciprocating action for flatly slicing of quadrat sponge.Fully automatism number controlled. Its operation is simple and cutting is exact. You can choosing  vacuum equipments for this machine. So the sponge rubber fixed more firmly, and the effect of cutting is better.



Main specification



Model	ZXPQ-1650	ZXPQ-2150
1.Cutting foam size	W1650mm*L2000mm	W2150mm*L2000mm
2.Cutting height	H1200mm	H1200mm
3.Cutting speed	0-25m/min	0-25m/min
4.Cutting thickness	2.5-200mm	2.5-200mm
5.Cutting density(max)	80Kg/m3	80Kg/m3
6.Blade length	8500mm	9480mm
7.Total power	8.12Kw	8.12Kw
8.Machine weight	2000Kg	2200Kg
9.Machine external size	L5800*W3500*H2400mm	L7800*W4200*H2400mm
