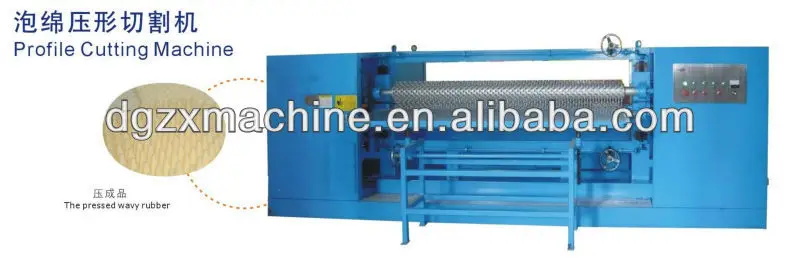

ZXYX 1650/2150 Foam Profile Cutting Machine

Product Overview

Description

This foam profile machine  is mostly used to have foam rubber pressed wavy rubber. It is appropriate for electron, delicate instrument, car seating, sanitarian thing and richarticle of packing. You can choose the dentiform roller to make different kind of the patterns.



Main specification



Model	ZXYX-1650	ZXYX-2150
Profiling width max	W1650 mm	W2150 mm
Profiling depth max	30 mm	30 mm
Profiling axletree turning speed	0~25 r/min	0~25 r/min
Motor power	8.92Kw	8.92Kw
Cutting speed	0~25 mm	0~25 mm
Blade length	L9260 mm	L10400 mm
Machine weight	2000 Kg	2500 Kg
Machine external size	L4200XW1250XH1550mm	L4700XW1250XH1550mm
