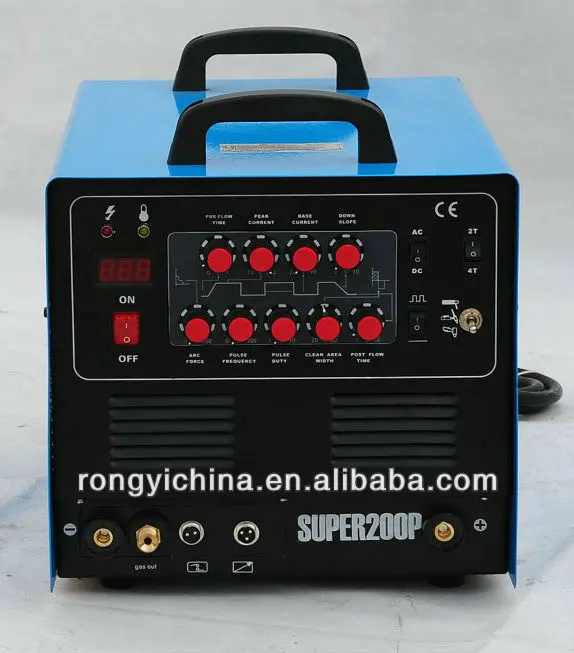

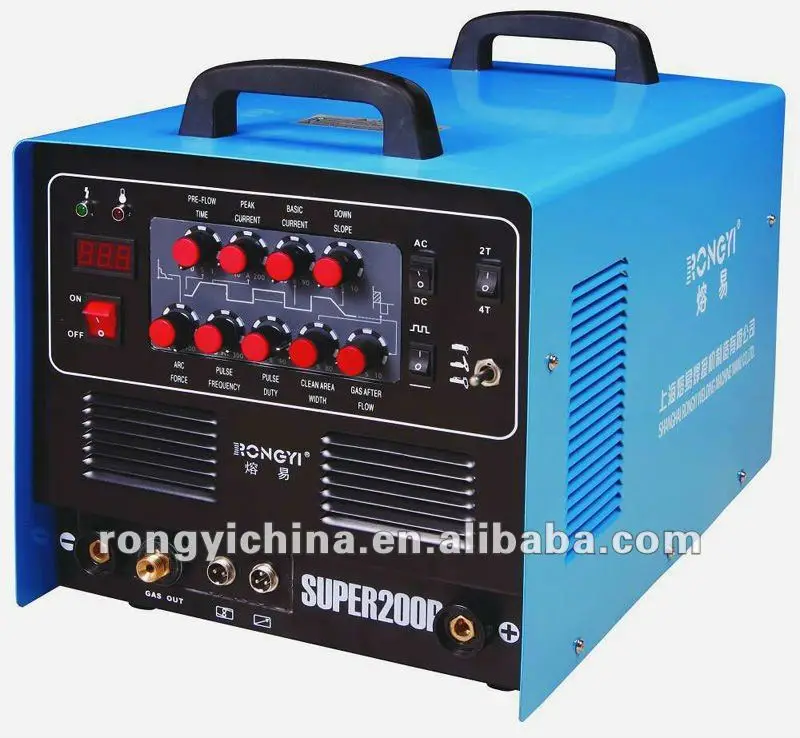

SUPER200P Ac/Dc Pulse 3 In 1 Welding Equipment Machine From China

Product Overview

Description

Features of SUPER200P AC/DC PULSE TIG/MMA/CUT 3 in 1 welding machine:



1.Reactive power correction, MOSFET, AC/DC or pulse output , soft switch, inverter with 100 kHz high frequency;

2.Compact structure, stable welding current, steady and intensive arc, reliable and durable, easy for maintenance;

3.Excellent control performance, multiple functions of TIG, MMA and CUT;

4.With pulse function;

5.Thermostatic protection, over-voltage protection, over-current protection, under-voltage protection, pedal control interface for safe operation;

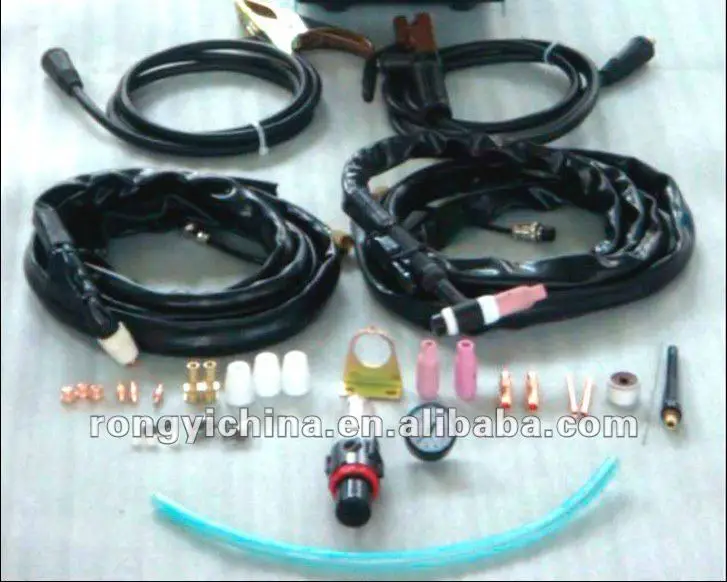

6.Complete accessories: welding torch, cutting torch, welding holder, earth clamp, compressed air regulator, etc.





The parameters of SUPER200P AC/DC PULSE TIG/MMA/CUT 3 in 1 welding machine is as following:



Model Spec.	SUPER200P
Power supply voltage	AC 220±10% V / 50~60 Hz
Power supply capacity	4.6 kVA
Rated input current	20.7A
Output current range(TIG)	10-200 A
Output current range (MMA)	10-170 A
Output current range (CUT)	25-50 A
No-load voltage (TIG)	56 V
No-load voltage (MMA)	56 V
No-load voltage (CUT)	220 V
Pre-flow time	1-3 S
Post-flow time	2-10 S
Attenuation time	0-5 S
Efficiency	85%
Air pressure	0.4 MPa
Cutting thickness	1-10 mm
Insulation grade	B
Cosφ (η)	0.95
Protection	IP 21 S
Net Weight	23.5 kg
Dimensions (mm)	520*330*375



* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY RONGYI.
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.



The data in the above table is only for reference. Please subject to the nameplate
on the device.

Our Certifications





Products and Package





FEATURES of Multi-function AC/DC PULSE TIG/MMA/CUT Welding tools SUPER-200P:

1.Reactive power correction, MOSFET, AC/DC or pulse output , soft switch, inverter with 100 kHz high frequency;

2.Compact structure, stable welding current, steady and intensive arc, reliable and durable, easy for maintenance;

3.Excellent control performance, multiple functions of TIG, MMA and CUT;

4.The model with P means function of pulse with 9 regulator knobs, and the model without P has only 5 regulator knobs;

5.Thermostatic protection, over-voltage protection, over-current protection, under-voltage protection, pedal control interface for safe operation;

6.Complete accessories: welding torch, cutting torch, welding holder, earth clamp, compressed air regulator, etc.
