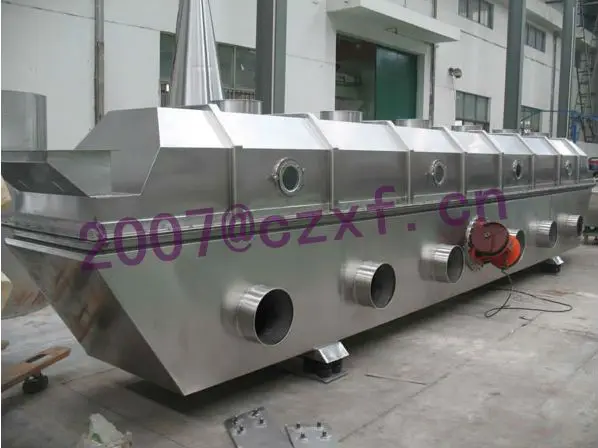

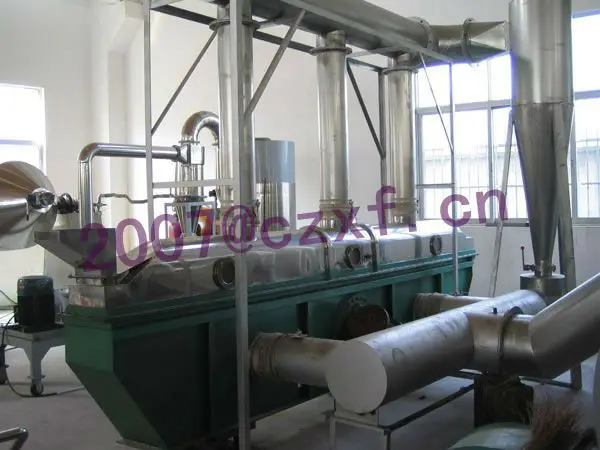

Working principle: Raw material is fed into the machine from inlet, and moves forward continuously along with the level of fluidized-bed under action of vibration. The hot air passes through fluidized-bed and carries out heat exchange with damp raw material. Then the damp air is exhausted out through cyclone separator and duster, and the dry raw material is discharged through discharge outlet.
Scope of application:
1) Pharmaceutical and chemical industries: all kinds of press tablet and granule, boric acid, borax, dihydroxybenzene, malic acid, maleic acid 2) Foodstuff and construction material industries: lees, monosodium glutamate, edible sugar, edible salt, mine residue, bean, seeds 3) Can also be used for raw materials to add up damp or cooling

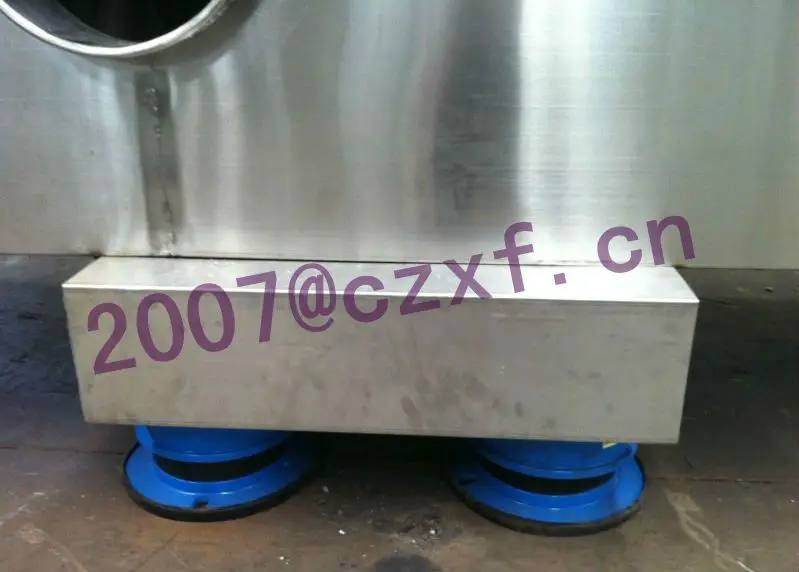

Features: 1) Raw material is heated evenly and heat exchange is fully used. Dry capacity is high. Compared with ordinary drier, the energy can be saved about 30% 2) Vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life 3) The fluidized state is stable and no dead angle and phenomenon of breaking out 4) Good in regulation and wide in suitability 5) Small for damaging the surface of raw material. The equipment can be used for drying raw materials that are easy broken. The drying effect can not be affected even if raw materials giving anomalous shape 6) It is effective to prevent from cross pollution between raw materials and air, because the equipment adopts fully closed structure. The environment of operation is clean.
Technical Parameters
Model(ZLG)
Fluid bed ()
Inlet Temp (°C)
Outlet Temp(°C)
Capacity of vaporized moisture (kg/h)
Vibration Motor
Model
Power (kw)
3×0.30
0.9
70-140
40-70
20-35
ZDS31-6
0.8×2
4.5×0.30
1.35
70-140
40-70
35-50
ZDS31-6
0.8×2
4.5×0.45
2.025
70-140
40-70
50-70
ZDS32-6
1.1×2
4.5×0.60
2.7
70-140
40-70
70-90
ZDS32-6
1.1×2
6×0.45
2.7
70-140
40-70
80-100
ZDS41-6
1.5×2
6×0.60
3.6
70-140
40-70
100-130
ZDS41-6
1.5×2
6×0.75
4.5
70-140
40-70
120-140
ZDS42-6
2.2×2
6×0.90
5.4
70-140
40-70
140-170
ZDS42-6
2.2×2
7.5×0.60
4.5
70-140
40-70
130-150
ZDS42-6
2.2×2
7.5×0.75
5.625
70-140
40-70
150-180
ZDS51-6
3.0×2
7.5×0.90
6.75
70-140
40-70
160-210
ZDS51-6
3.0×2
7.5×1.2
9
70-140
40-70
200-260
ZDS51-6
3.0×2
Company profile:
Xianfeng Drying is a large enterprise in China dryer industry and owns an import&export license. It has passed the ISO9001:2008 quality management system and ISO14001:2004 Environment Management system.
In the passed years, our company is mainly engaged in studying and developing the drying equipment, at the same time, we also made a further study about the granulating( pelleting), coating, mixing equipment, and has good ability to design non-standard equipment, manufacturing and engeering. Achievement plentiful, the result is remarkable. Now our products sell all over the world and have been exported to USA, Israel, Brazil, South Africa, Japan, Sudan, South Korea, Thailand, Vietnam. Indonesia, Philippines and so on.
After-sell service:
All our machines guaranteed for trouble free performance for a period of 12 months from commissioning in buyer place.
Installation, commissioning, training for buyer's technicians and other after sell service all for free.
The buyer shall bear all expenses incurres in the trip of sell's delegation for erection, commissioning and training, including air tickets, meal, hotel accommodation and local transportation.
