SJ45/переменного тока 50-800 двойной винт 3 слоя меньше отходов энергосберегающие ABA тип пленки дуя
20 000,00 $ - 21 000,00 $

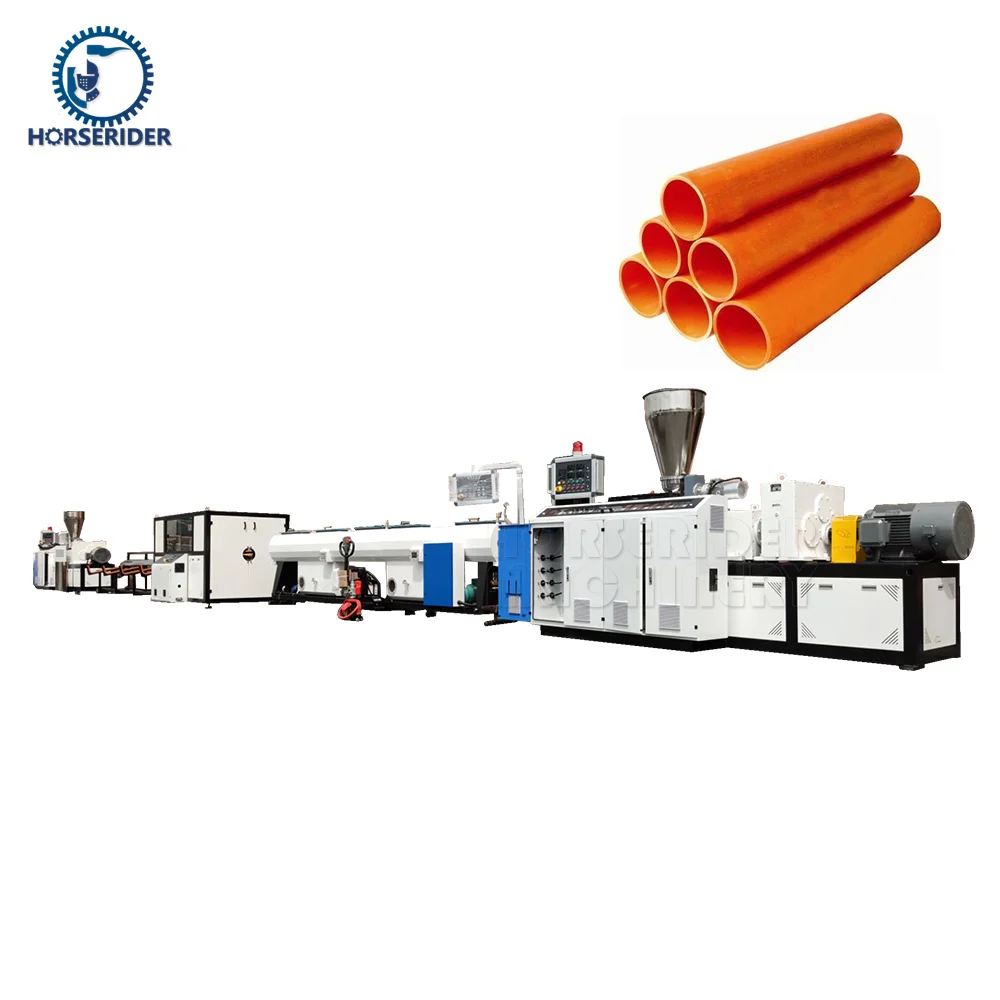

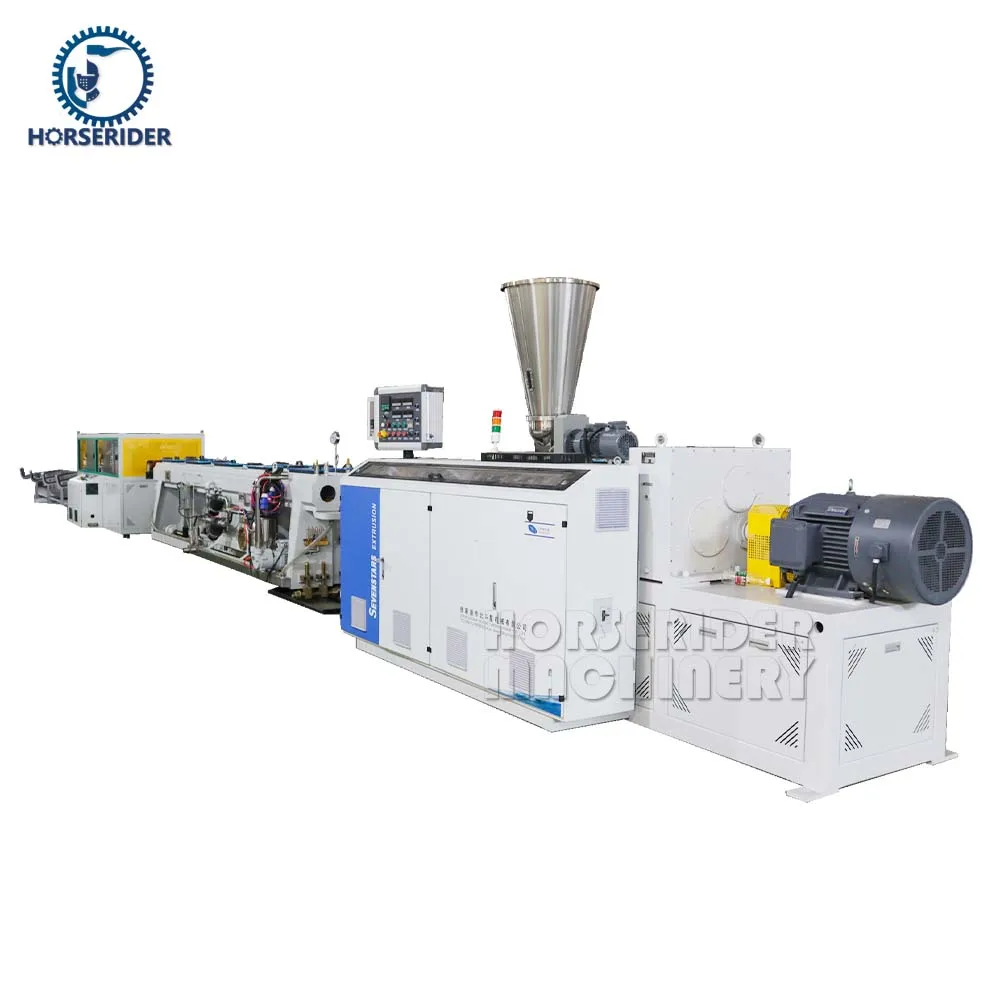

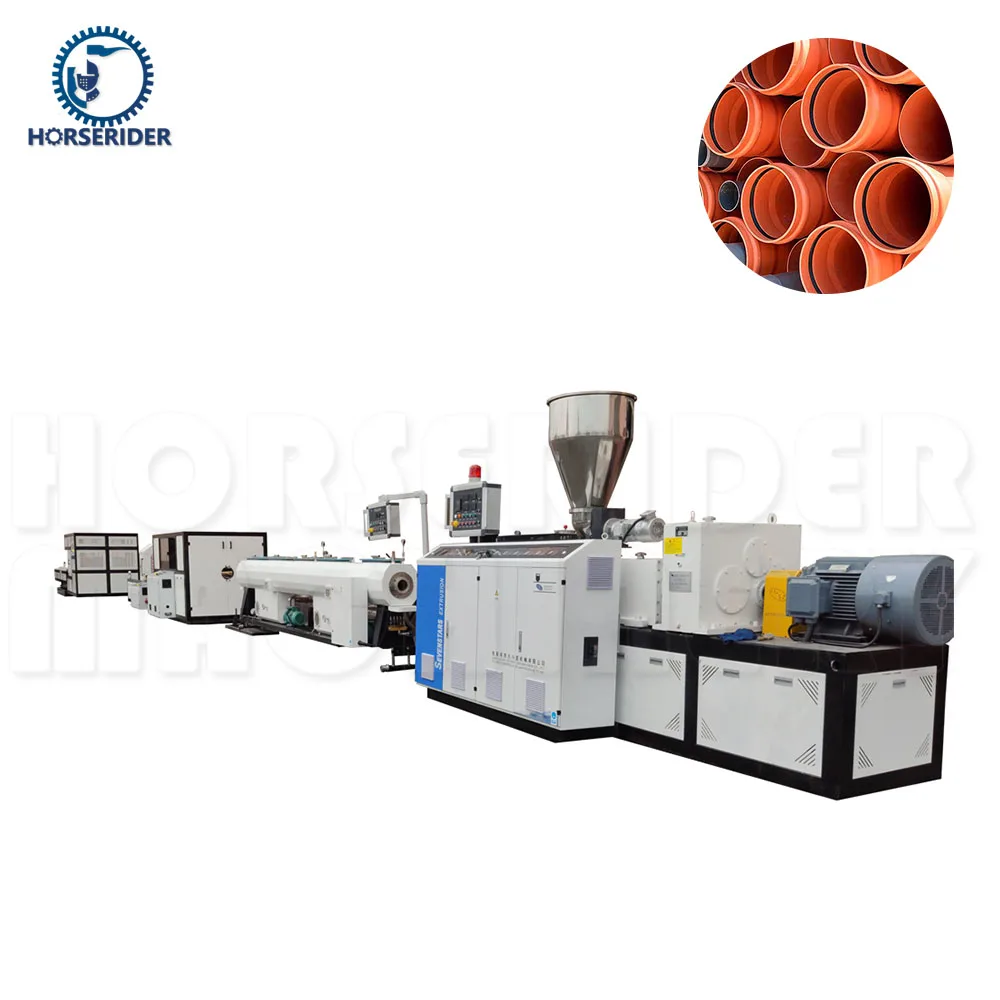

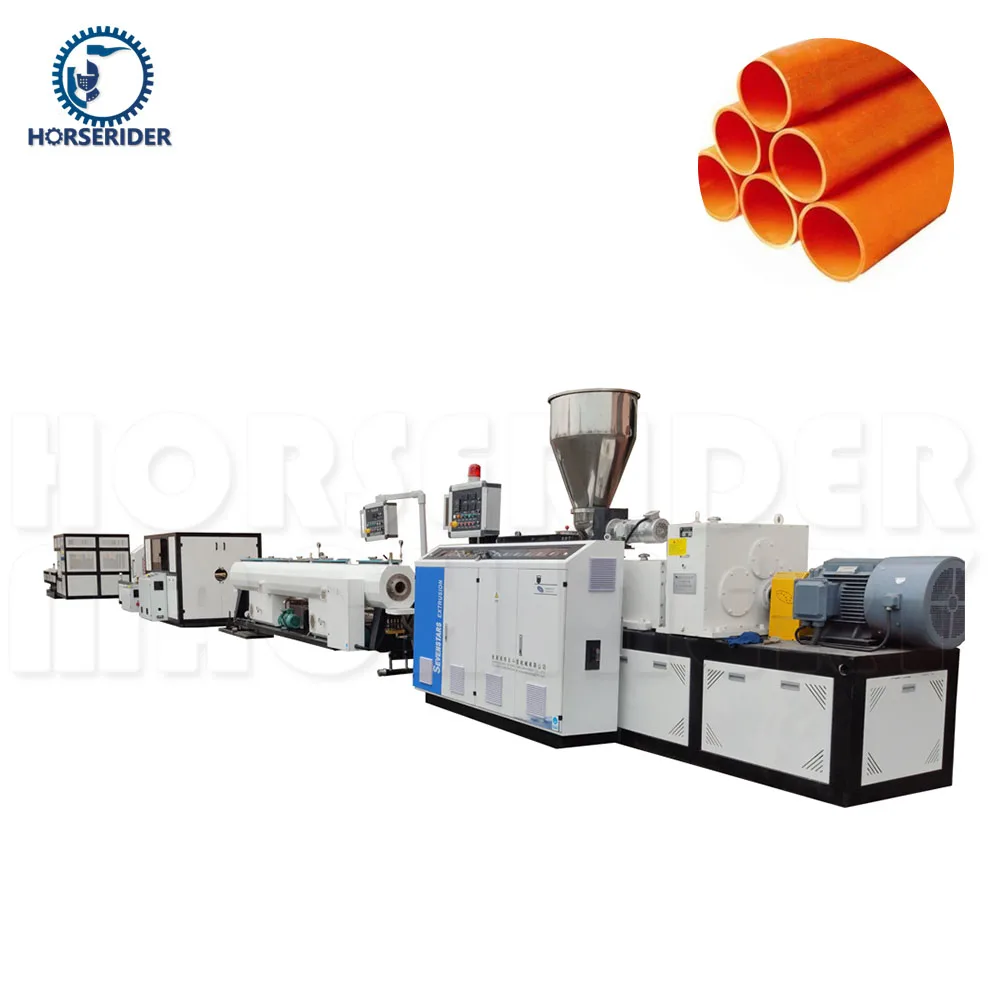

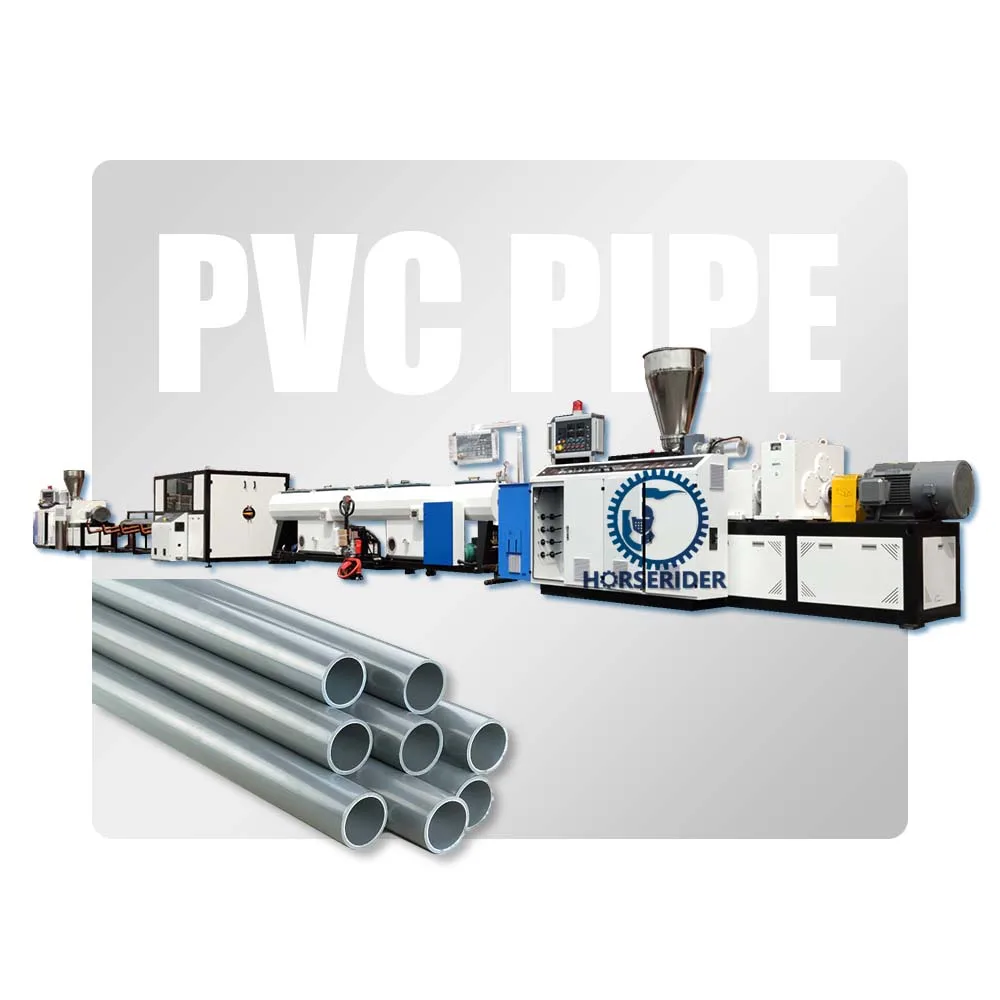

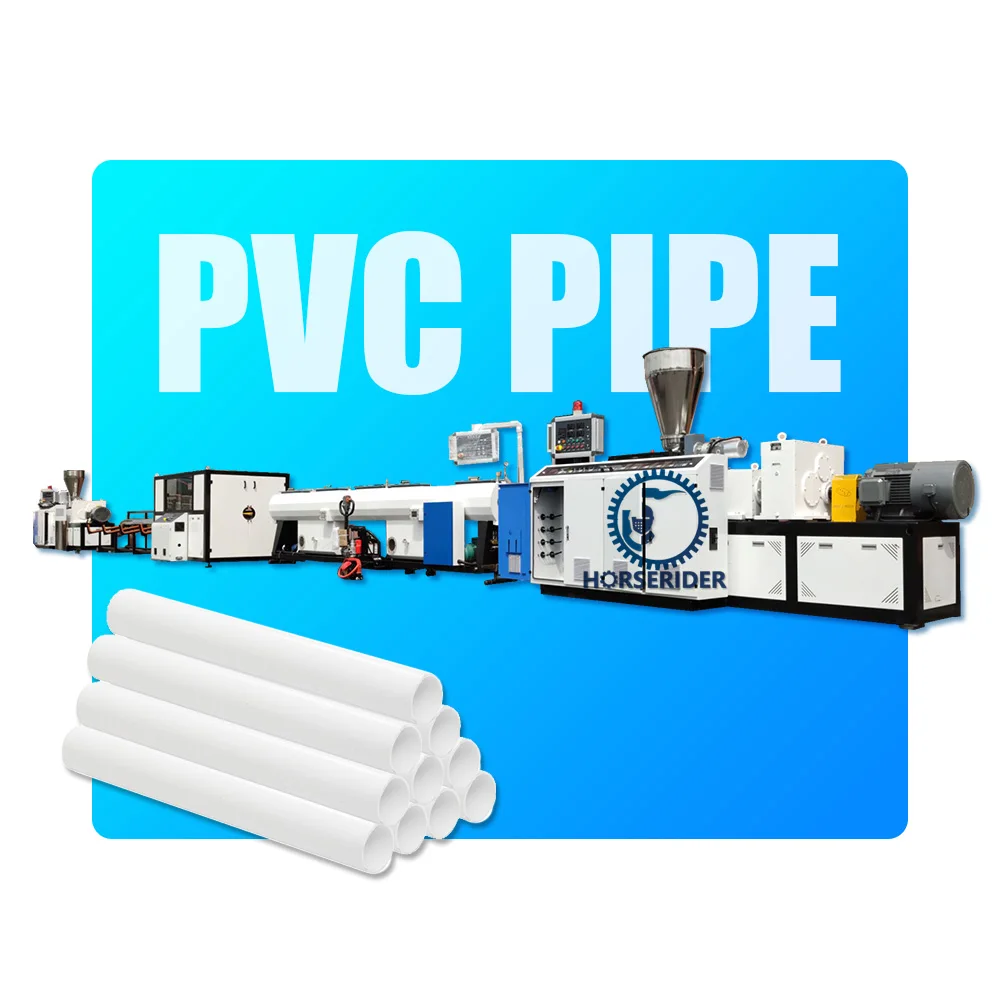

Машина для производства ПВХ электрическая машина труб
- Категория: Plastic Extruders >>>
- Поставщик: Zhangjiagang Horserider Machinery Co. Ltd.
Сохранить в закладки 10000009548013:
Описание и отзывы
Характеристики
Product Description
Advantages:
The series extruders with appropriate die-mould and auxiliary machine can directly convert thermoplastic especial PVC powder into pipe,plate sheet,film and profile,and also provide function of modifying and pelleting.The extruders are derived by A.C motor with a thruster to steepless regulate.It is also equipped with the over-load protection and stoppage alarming system .The screw's core and the outside of barrel is cooled by circulation of oil,includes vacuum venting and forced feeding.
Application:
Diameter 16mm-800mm series PVC pipe extrusion production line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industried such as agriculture and constructional plumbing, cable laying etc.

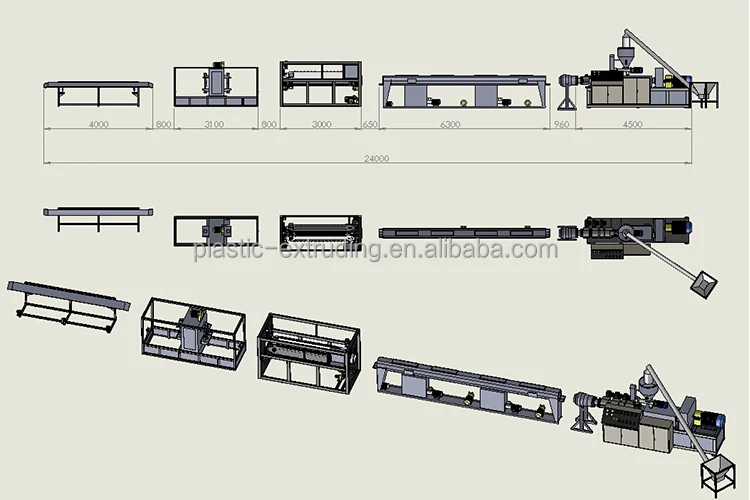

PVC pipe extrusion line flow chart:
PVC pipe line includes the following parts:
Spring feeder→Conical twin-screw extruder→mould→vacuum calibration tank→ haul off→cutter→ stake etc.
The extruder and haul off adopt imported AC frequency control device, vacuum pump and haul off motors adopt high-quality products.
The haul off methods are two-claw, three -claw, four-claw, and six-claw etc.
You may choose saw blade cutting type or planetary cutting type. It is additionlly attached with length counter and intensifying device. This line is of reliable performance and high production effeciency.
The extruder and haul off adopt imported AC frequency control device, vacuum pump and haul off motors adopt high-quality products.
The haul off methods are two-claw, three -claw, four-claw, and six-claw etc.
You may choose saw blade cutting type or planetary cutting type. It is additionlly attached with length counter and intensifying device. This line is of reliable performance and high production effeciency.
Detailed Images

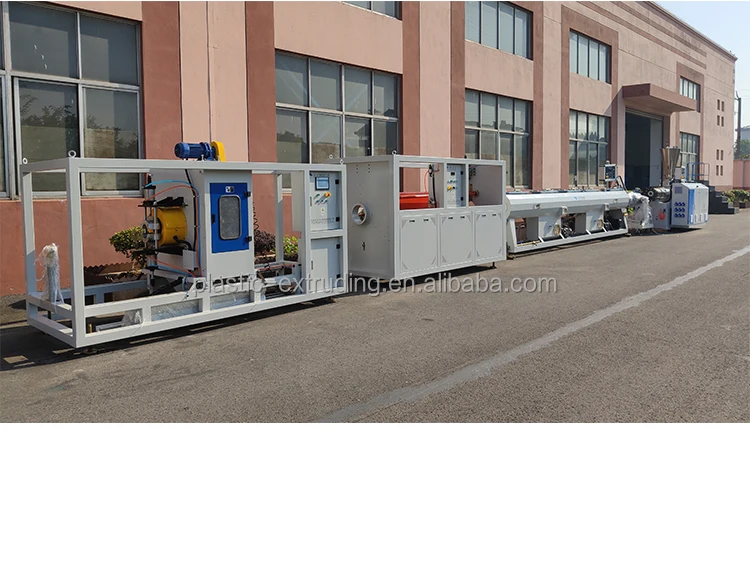

PVC one cavity pipe extrusion line
PVC one cavity production line
——— One cavity pipe extrusion line
Φ20-Φ630 series PVC pipe extrusion machine line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industries such as agricultural and constructional plumbing, cable laying etc.
This line is composed of conical twin screw extruder, vacuum calibration tank haul off, motors, cutter and stacker etc. The extruder and haul off methods are two-claw, three-claw, four-claw, six-claw, eight-claw, ten-claw, twelve claw etc. You may choose saw blade cutting type or planetary cutting type. It is additionally attached with length counter and intensifying device.
This line with reliable performance and high production efficiency. Our company can also manufacture special pipe production lines, e.g., spiral silencing pipe and core foaming pipe according to your requirement.
Conical twin screw extruder
Mould
Vacuum calibration tank
Haul off machine
Cutting machine
-------------------------------------------------------------------------------------------------------------------------------------------
PVC two cavity pipe extrusion machine line
PVC double-pipe production line
———Two cavity PVC pipe extrusion line
The production line is developed with the advanced technology of west Europe by our company.
The main machine is SJSZ55/120 or SJSZ65/132 conical twin screw extruder is equipped with double-tube single control stainless steel spraying calibration; it avoids waste condition when one tube is adjusted and the other one is affected.
The auto single-control double drawing machine and cutting machine are combined with the front double calibration technology to make operation more flexible let you enjoy economic benefit which is brought by separate-control double tube extruding.
Conical twin screw extruder
Double cavity mould
Vacuum calibration tank
Haul off and cutting machine
Cutter
-------------------------------------------------------------------------------------------------------------------------------------------
PVC four cavity pipe extrusion machine line
PVC four cavity production line
———Four cavity PVC pipe extrusion line
Four cavity PVC electrical tube, water supply pipe extrusion line can extruder four pipes at same time on one machine.
This line can save investment cost in factory building and production, which increase the capacity a lot and reduce production time.
SJSZ65conical twin-screw extruder can easily reach 5.5-6.5ton/per day, the production speed take 16mm as example can get more than8-10m/min.
The whole line is composed of conical twin-screw extruder 65mm,4 cavity mould,4 cavity cooling calibration tank,4 station hauloff,4 station cutter and 4 station tipping table.
The whole line is composed of conical twin-screw extruder 65mm,4 cavity mould,4 cavity cooling calibration tank,4 station hauloff,4 station cutter and 4 station tipping table.
Conical twin screw extruder
Four cavity mould
Vacuum calibration and cooling tank
Laser printer
Haul off machine
Haul off belt type
Cutting machine
Automatic PVC pipe Socketing machine
-------------------------------------------------------------------------------------------------------------------------------------------
Product Paramenters
Model/Item | Pipe range | Extruder | Max output | Max speed | Total power |
PVC-50*2 | 16-50 mm | SJSZ65/132 | 250 kg/h | 10 m/min | 85 kw |
PVC-63 | 16-63 mm | SJSZ51/105 | 150 kg/h | 10 m/min | 60 kw |
PVC-110 | 50-110 mm | SJSZ55/110 | 180 kg/h | 10 m/min | 70 kw |
PVC-160 | 63-160 mm | SJSZ65/132 | 300 kg/h | 5 m/min | 90 kw |
PVC-250 | 110-250 mm | SJSZ65/132 | 300 kg/h | 3.5 m/min | 120 kw |
PVC-315 | 160-315 mm | SJSZ80/156 | 400 kg/h | 3 m/min | 160 kw |
PVC-450 | 250-450 mm | SJSZ92/188 | 700 kg/h | 1.5 m/min | 200 kw |
PVC-630 | 315-630 mm | SJSZ92/188 | 700 kg/h | 0.9 m/min | 230 kw |
Our Company
FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight or Alibaba trade assurance.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare pats?
A5:Yes,We provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q6:What is the voltage?
A6 380V 50hz 3 phase or any other voltage according to client's requirement.
Q7:If you support Alibaba trade assurance pay?
A7:Yes.100% support.
Our Service
