Высоковольтные литий-ионные аккумуляторы 10 кВтч 15 20 штабелируемые батареи Lifepo4 для домашней системы хранения энергии
63 443,81-72 343,75 ₽
20 кВтч Высоковольтная батарея lifepo4 ip65 hv перезаряжаемые Аккумуляторы для хранения энергии с bms
- Категория: >>>
- Поставщик: Shenzhen Improve Battery Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 10000014977069:
Описание и отзывы
Характеристики
Products Description
Product Paramenters
Datasheet | Specification | |||||||||||
Battery Modules | 51.2V 100Ah (5120Wh) | |||||||||||
Stacked Battery Quantity | 3 | 4 | 5 | 6 | 7 | 8 | ||||||
Total Voltage | 153.6V | 204.8V | 256.0V | 307.2V | 358.4V | 409.6V | ||||||
Total Energy | 15.36kWh | 20.48kWh | 25.6kWh | 30.72kWh | 35.84kWh | 40.96kWh | ||||||
Size (L* W*H) | 600*400*750 mm | 600*400*900 mm | 600*400*1050 mm | 600*400*1200 mm | 600*400*1350 mm | 600*400*1500 mm | ||||||
Approx. Weight | 162.1Kg | 207.9Kg | 253.7Kg | 299.5Kg | 345.3Kg | 391.1Kg | ||||||
Life Cycles | 6000 Cycles (80%DOD), at 25°c | |||||||||||
Charge | ||||||||||||
Standard Charge Current | 50A | 50A | ||||||||||
Max. Charge Current | 100A | |||||||||||
Charge Current | 175.2V | 233.6V | 292.0V | 350.4V | 408.8V | 467.2V | ||||||
Discharge | ||||||||||||
Max. Continuous Discharge Current | 100A | |||||||||||
Discharg Cut-off Voltage | 134.4V | 183.2V | 234.0V | 286.8V | 341.6V | 398.4V | ||||||
General | ||||||||||||
Anode Material | LFP/LiFeP04 | |||||||||||
Temp | Charge: 0~50℃ Discharge: -20~60℃ Storage: 15~35°℃ | |||||||||||
Communication | PCS*1 CAN*1 RS485*1 | |||||||||||

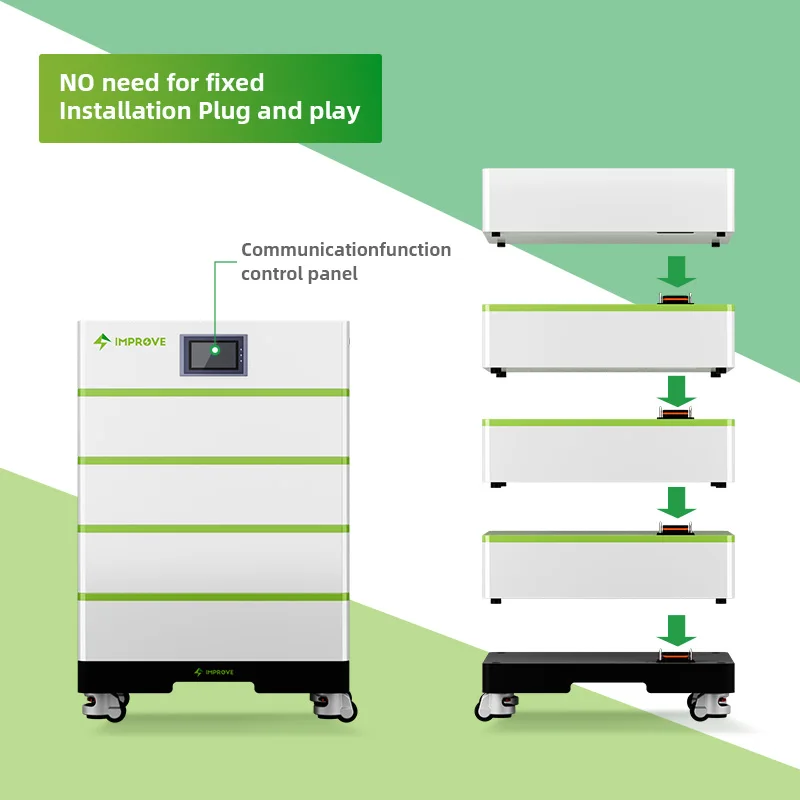

NO need for fixed Installation Plug and play

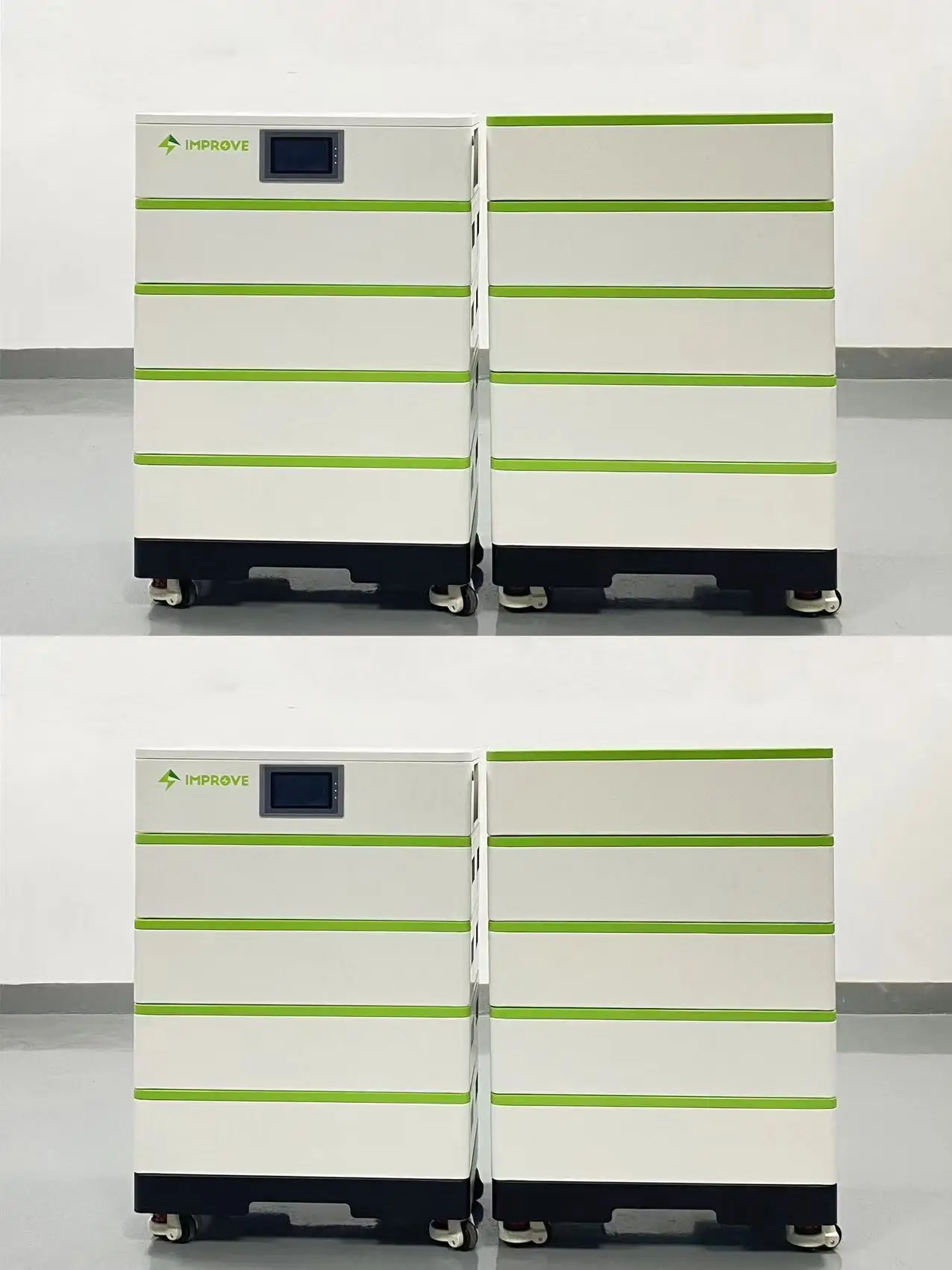

Product Photos

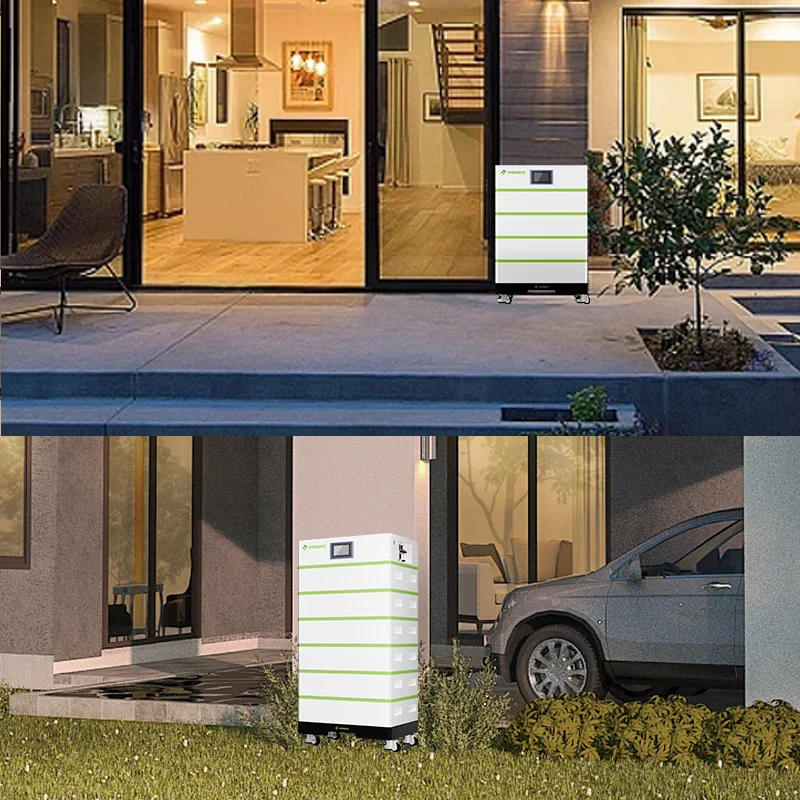

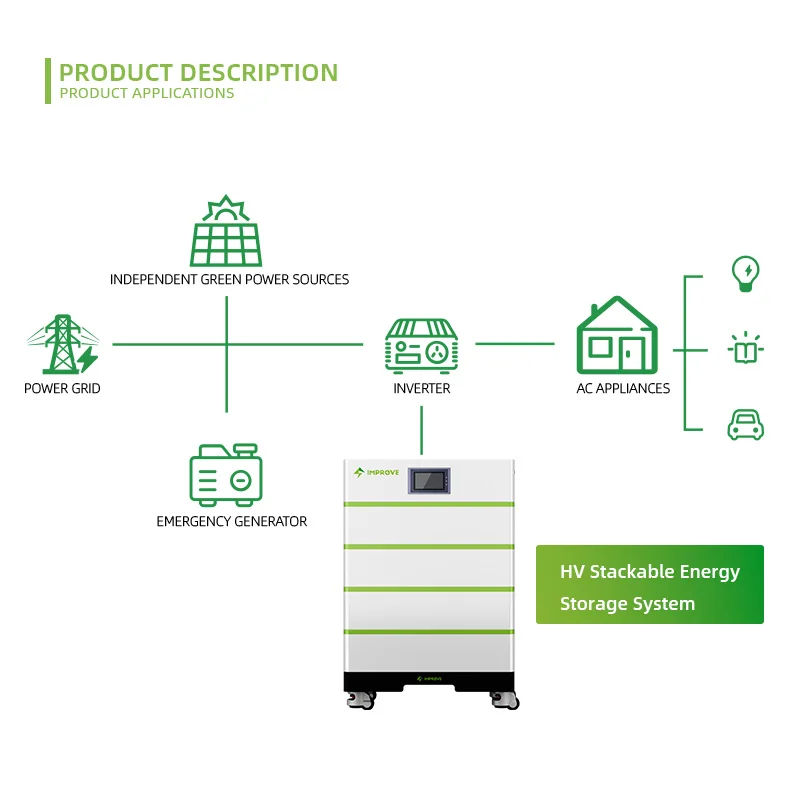

WIDELY USED SCENARIOS
POWER BACKUP / ENERGY STORAGE SOLAR ENERGY
HV Stacked LiFePO4 Lithium Battery Home Energy Storage Systems Main Features:
1.Long Life Cycle
Improve high voltage stackable lithium battery adopts lithium iron phosphate (LFP) battery with high safety and long service life,more than 4000 cycles,100A continuous discharge current, and wide operating temperature range.
External weak current switch reduces product power consumption and improves the safety of transportation and storage.
2.Easy Management
The high voltage stackable lithium battery is a modular battery energy storage solution that is easy to install, saves space, and each module can be managed and operated independently to ensure system safety.
The rolling base, manual switch, visual monitoring interface, easy installation and stylish design make it an ideal residential and small business solution.

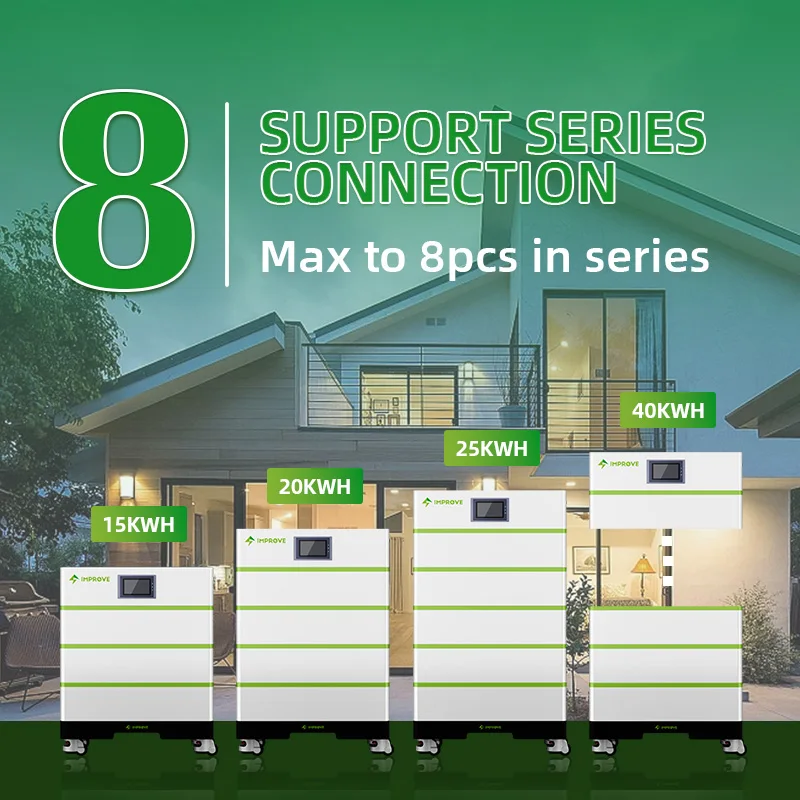

3.Strong Expansibility
The stacking storage system provides flexible configurations from 153.6V to 409.6V voltage and 15kWh to 40kWh capacity. It’s the easiest battery to upgrade in the future.
No wiring between modules, and no conduit/wiring needed when it comes time to upgrade.
4.Safety and Reliability
High voltage stackable batteries provide a reliable solution for homeowners looking for large-capacity solar energy storage for whole-home backup.
It can also be easily monitored and managed, giving you peace of mind and control over your battery.
5.Advanced BMS
The advanced BMS (Battery Management System) has multiple protection functions to protect the safety of power supply in an all-round way.
Connect:fancy@impbattery.com
1.Long Life Cycle
Improve high voltage stackable lithium battery adopts lithium iron phosphate (LFP) battery with high safety and long service life,more than 4000 cycles,100A continuous discharge current, and wide operating temperature range.
External weak current switch reduces product power consumption and improves the safety of transportation and storage.
2.Easy Management
The high voltage stackable lithium battery is a modular battery energy storage solution that is easy to install, saves space, and each module can be managed and operated independently to ensure system safety.
The rolling base, manual switch, visual monitoring interface, easy installation and stylish design make it an ideal residential and small business solution.
3.Strong Expansibility
The stacking storage system provides flexible configurations from 153.6V to 409.6V voltage and 15kWh to 40kWh capacity. It’s the easiest battery to upgrade in the future.
No wiring between modules, and no conduit/wiring needed when it comes time to upgrade.
4.Safety and Reliability
High voltage stackable batteries provide a reliable solution for homeowners looking for large-capacity solar energy storage for whole-home backup.
It can also be easily monitored and managed, giving you peace of mind and control over your battery.
5.Advanced BMS
The advanced BMS (Battery Management System) has multiple protection functions to protect the safety of power supply in an all-round way.
Connect:fancy@impbattery.com
Company Profile
