Products Description

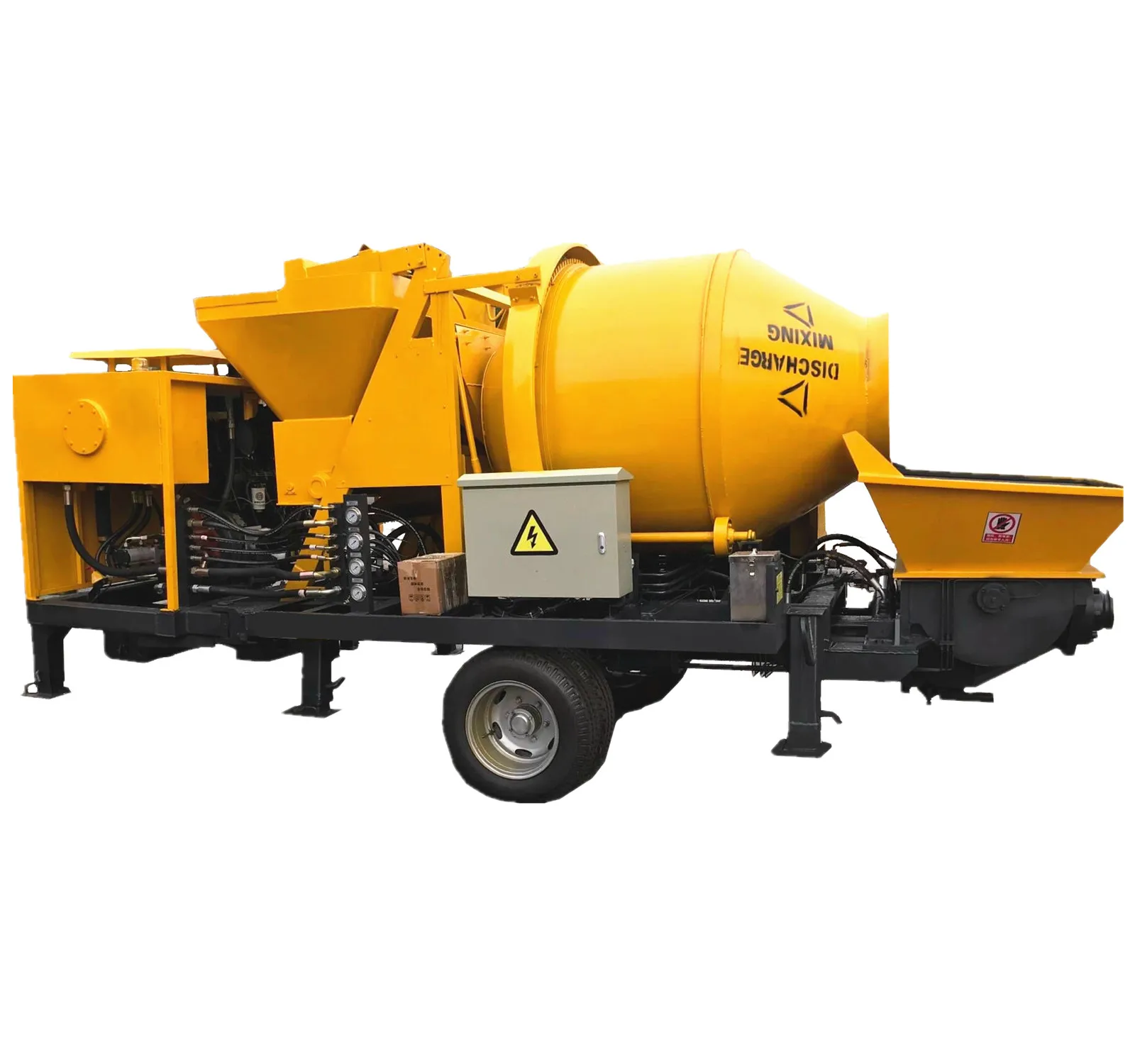

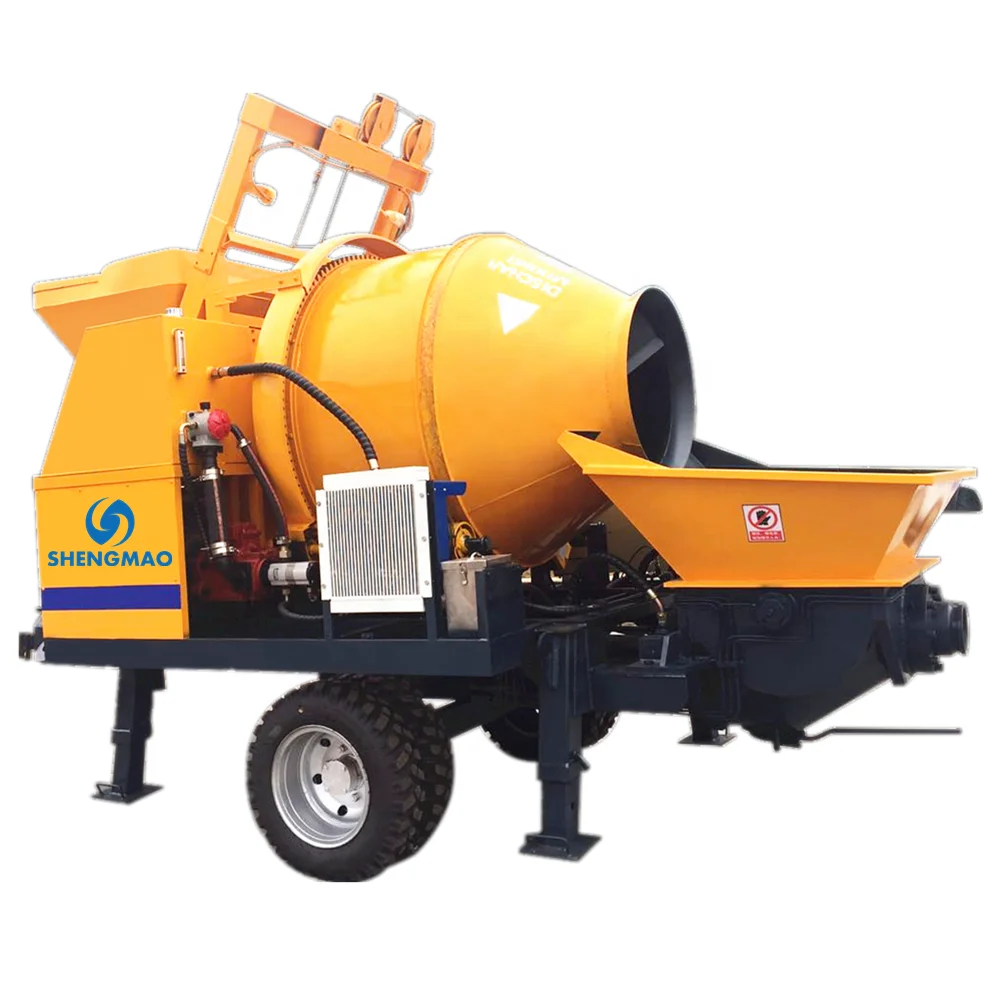

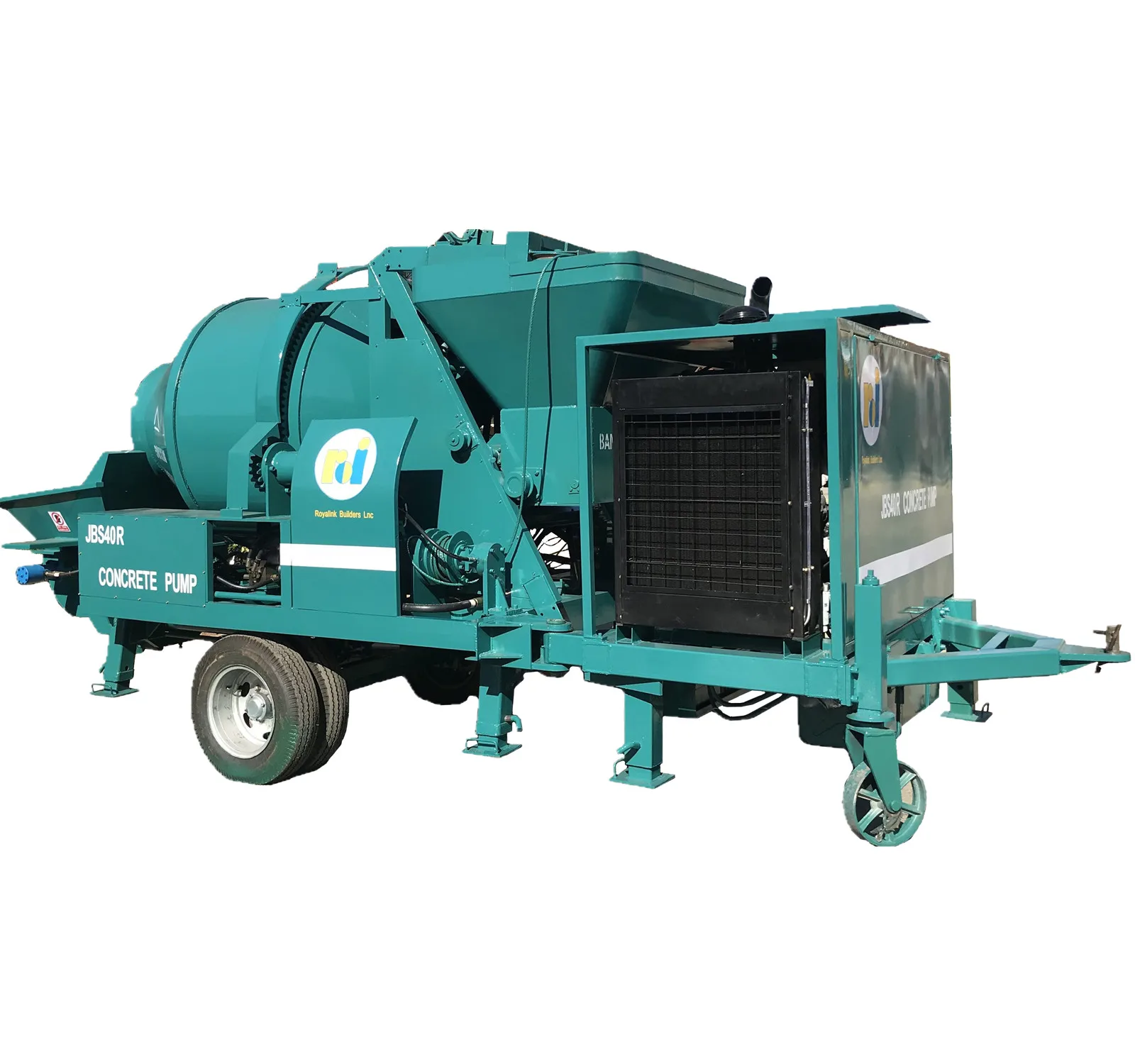

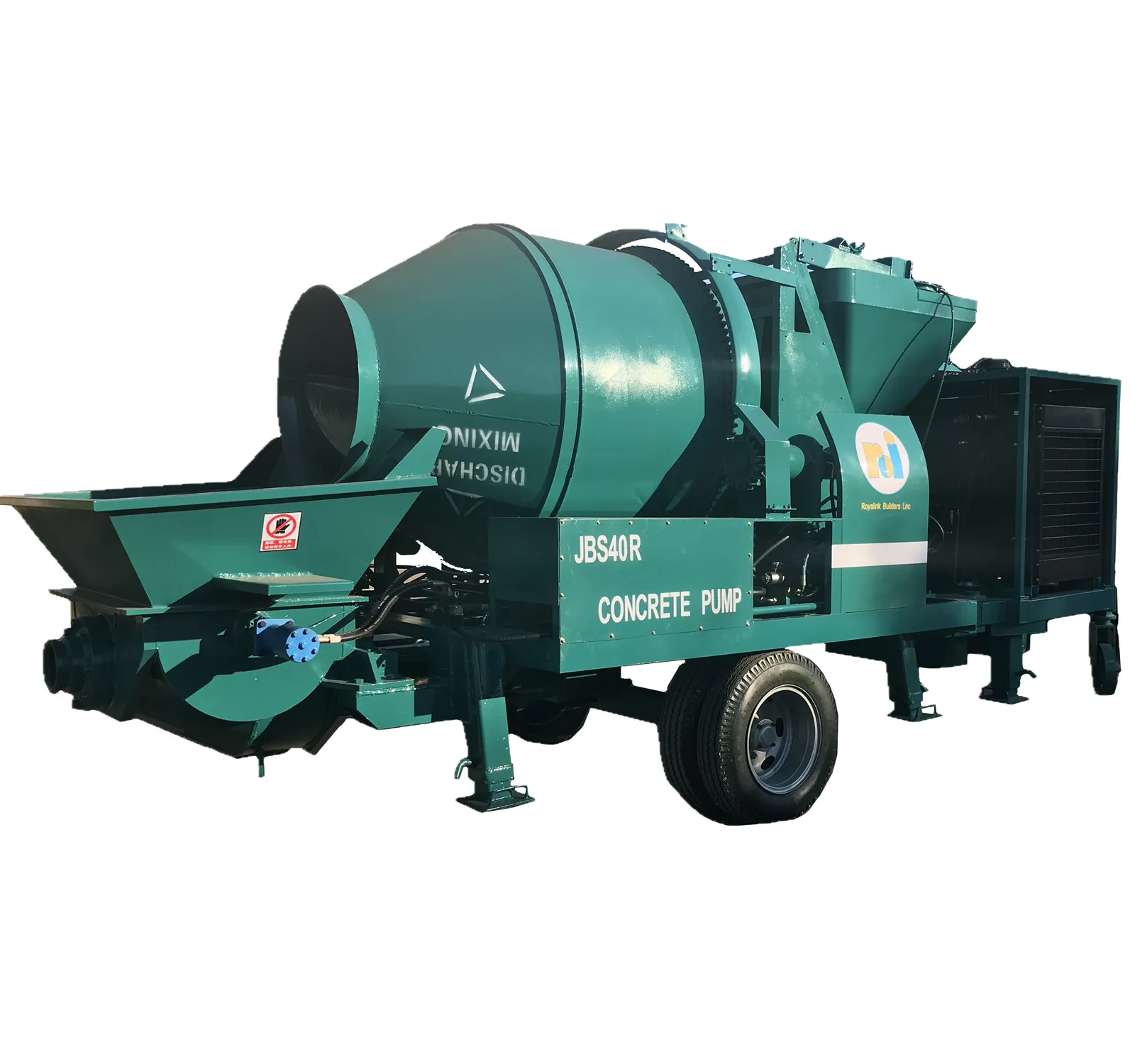

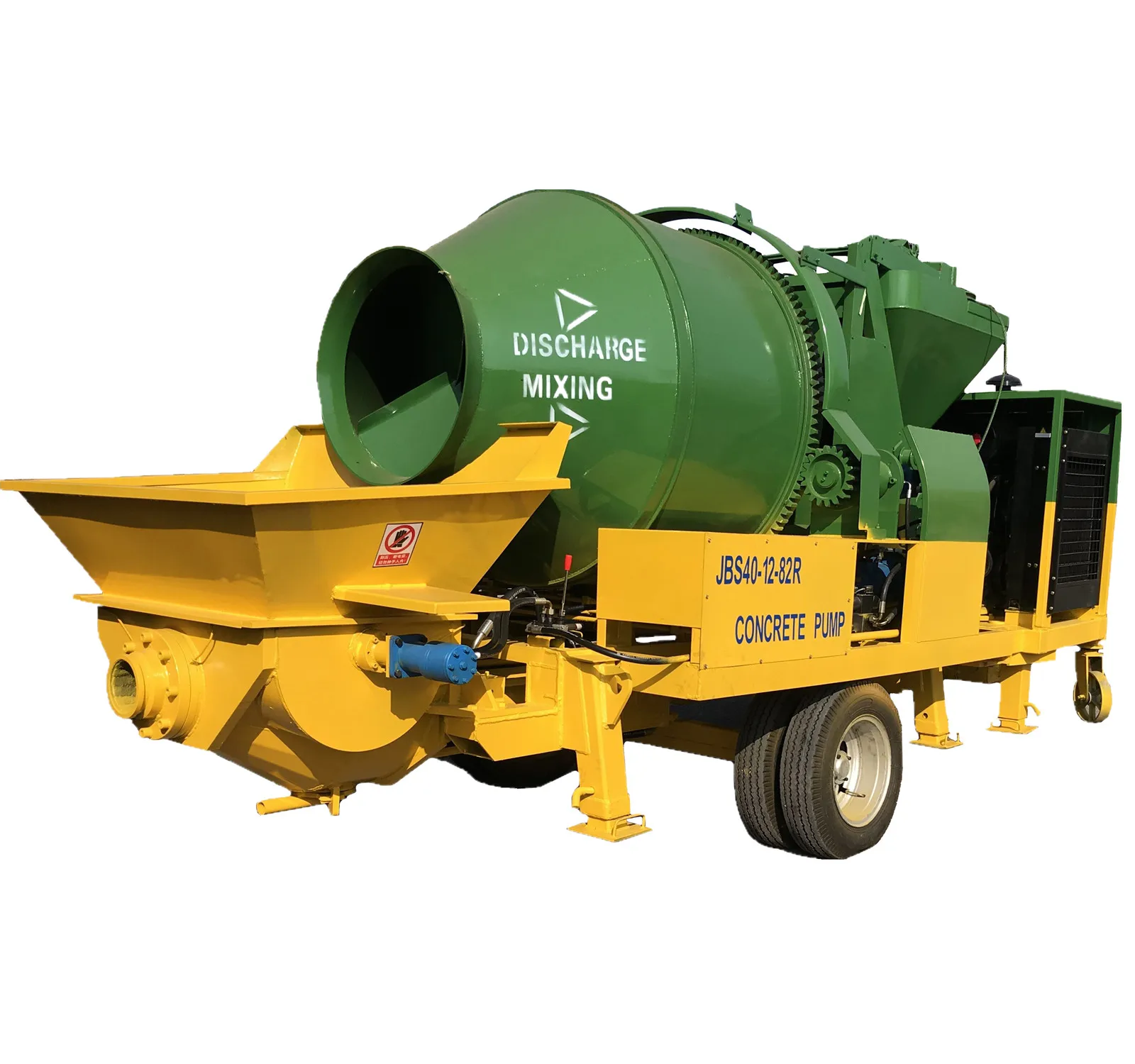

2023 Hot Sale Portable Construction Work Concrete Mixer Pump

Concrete mixer pump combines the functions of concrete mixer and concrete pump. It can produce concrete and deliver it to job site. Nowadays, it is widely in small and medium projects, especially residential and commercial housing projects.

For our concrete mixer pump, we can use drum mixer or planetary mixer. Our engineers can help customer to choose the right concrete mixer pump as per their projects.


Items
JBS40-10-84R
JBS40-10-82R
LHB40-10-82R
Max. theo. pumping capacity
40
40
40
Max. theo. mixing capacity
15
15
22.5
Max. concrete pumping pressure
10 Mpa
10 Mpa
10 Mpa
Distribution valve type
S Valve
S Valve
S Valve
Concrete cylinder (diameter*stroke)
Ф180*1000
Ф180*1000
Ф180*1000
Hopper capacity
400 L
400 L
400 L
Outlet diameter
Ф150 mm
Ф150 mm
Ф150 mm
Diesel engine brand
Weifang
Weichai
Weichai
Main hydraulic pump
FLUTEK Kawasaki
FLUTEK Kawasaki
FLUTEK Kawasaki
Diesel engine power
84 kw
82 kw
82 kw
Rated speed
2200 r/min
2200 r/min
2200 r/min
Circuit type
Open circuit
Open circuit
Open circuit
Pumping system pressure
32 Mpa
32 Mpa
32 Mpa
Mixing system pressure
6-8 Mpa
6-8 Mpa
6-8 Mpa
Oil tank capacity
370 L
370 L
370 L
Max. conveying distance (v/l)
70/300 m
70/300 m
70/300 m
Max. aggregate diameter
40 mm
40 mm
40 mm
Inside diameter of delivering pipe
Ф125 mm
Ф125 mm
Ф125 mm
Pipe
100 m
100 m
100 m
Overall dimensions (L*W*H)
6000*2300*3150 mm
6000*2300*3150 mm
3800*2200*2100 mm
Total weight
6700 kg
6800 kg
5500 kg


Detailed Images










Machine Parts

Name: diesel engine

Brand: Weichai

Original: China

The best diesel engine here in China. It can ensure the power supply of the concrete mixer pump.



Machine Parts

Name: Hydraulic pump
Brand: FLUTEK Kawasaki
Original: Korea
Hydraulic pump is one of the most important parts of concrete mixer pump, because it generates hydraulic pressure to deliver concrete to the job site.



Machine Parts

Name: Hydraulic oil pipe
Brand: Manuli
Original: Italy
The working hydraulic oil pressure is 10 Mpa, so the hydraulic oil pipes must be very good quality to sustain the very high hydraulic oil pressure.



Main Features

Name: PLC
Brand: OMRON
Original: Japan
We all know the importance of PLC to a machine. Even all parts of the machine is good, but the PLC quality is poor, the machine can not work well. OMRON PLC is one of the best in the world.
