Membrane Process Natural Gas CO2 Removal Equipment
Advanced Natural Gas Decarbonization Membrane Equipment
Membrane natural gas carbon dioxide removal product is an efficient and environmentally friendly natural gas purification solution. The use of advanced membrane separation technology can effectively remove carbon dioxide in natural gas, improve the quality and calorific value of natural gas, and provide a reliable guarantee for your energy utilization.
Process Flow Diagram
Firstly, raw natural gas is pretreated by filtration and pressure regulation, and then separated by membrane components using different gas molecules in the membrane with different penetration rates. On one side, carbon dioxide-rich permeable gas is obtained, and on the other side, most of the carbon dioxide-removed product gas is obtained. Permeable gas can be compressed and recycled or discharged. The product gas is transported or further processed after drying, pressure regulation and metering.
Product Paramenters
Capacity | 10000 Nm³/h | 30000 Nm³/h | 80000 Nm³/h |
Decarbonization Efficiency | 85% | 90% | 93% |
Opreation Pressure | 5 MPa | 7 MPa | 12 MPa |
Temperature | -10 - 35℃ | 5 - 40℃ | 0 - 50℃ |
Product Advantage
1. Efficient Separation. It can achieve highly selective separation of carbon dioxide and high decarbonization efficiency, which can reduce the carbon dioxide content in natural gas to a very low level.
2. Energy Saving and Environmental Protection. compared with the traditional chemical absorption method, the membrane separation technology does not need to use chemical reagents, does not produce secondary pollution, and is more environmentally friendly. At the same time, the technology uses less energy and reduces operating costs.
3. Easy Operation. The equipment has a high degree of automation, simple and convenient operation, without complex manual intervention.
4. Small Footprint. The membrane separation equipment has a compact structure, small footprint, and is suitable for various site conditions.
5. High Reliability. Using high-quality film materials and advanced manufacturing processes, the equipment has high reliability and stability, and can run continuously for a long time.
Project Case
PROJECT CASE
Application: natural gas
Capacity: 120,000Nm3/D
CO2 Removal Efficiency: from 50% to10%
Capacity: 120,000Nm3/D
CO2 Removal Efficiency: from 50% to10%
PROJECT CASE
Application: natural gas
Capacity: 1,300,000Nm3/D
CO2 Removal Efficiency: from 40% to 2%
Capacity: 1,300,000Nm3/D
CO2 Removal Efficiency: from 40% to 2%

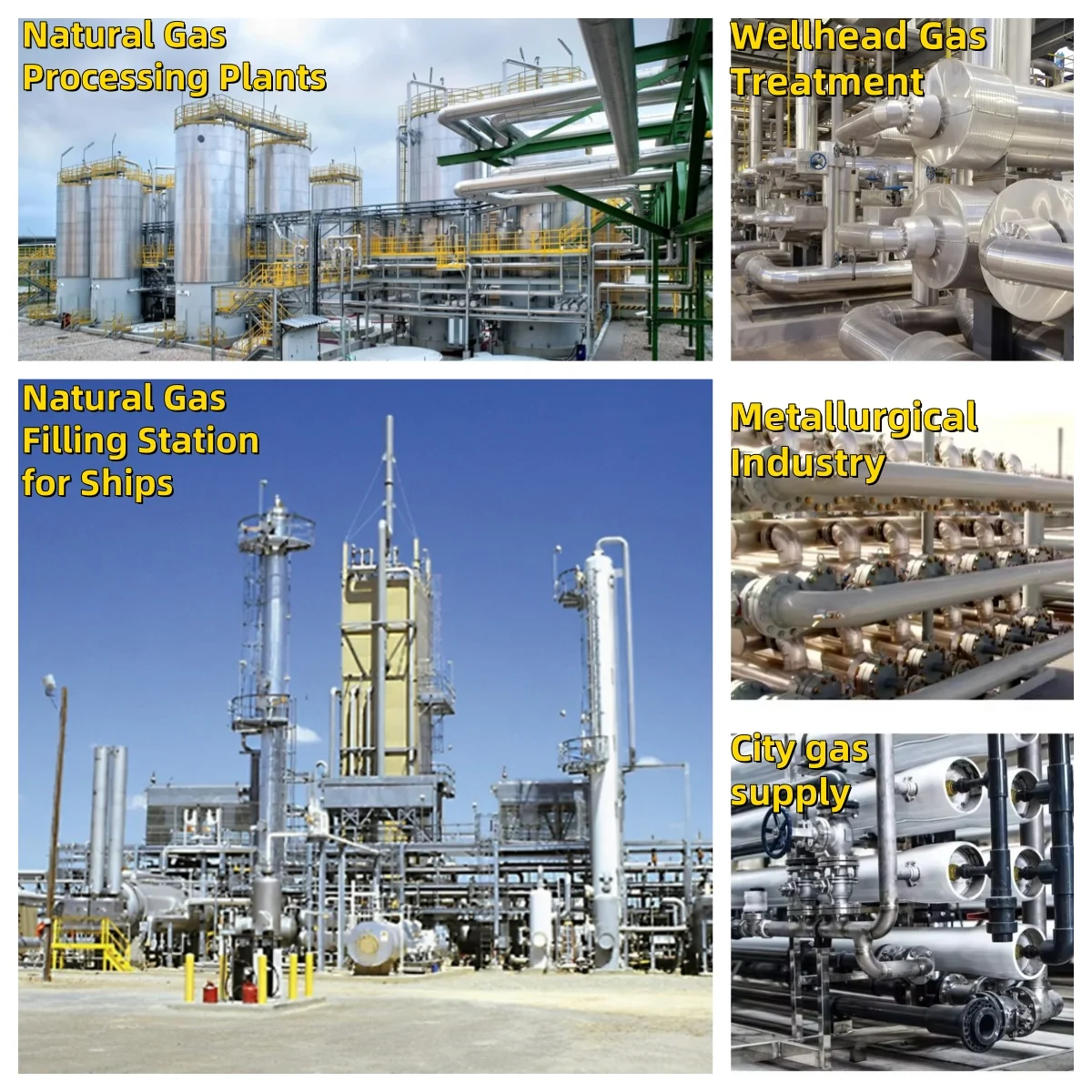

Product Application
Company Profile
Wobo's products cover the fields of new energy, energy, metallurgy, petrochemical, electronics, food, machinery, building materials, medicine, new materials, petrochemical, chemical fiber, heat treatment, glass, national defense and aerospace, and are sold to more than 100 countries and regions.
We strive to provide products with the highest quality and service, and complete with the highest standards. All our products have undergone rigorous testing, and now we have obtained CE,ISO,ASME . Our goal is 100% customer satisfaction,we will provide high-quality productsand value-added services.
