Заводская Жесткая ПВХ спираль и встроенный Дуэльный шланг для перекачки бензина дизельного топлива этанола
99,19 ₽ - 121,23 ₽
Заводская цена черный 6 дюймов 250 мм 10 бар sdr 17 SDR26 PN6 pe100 hdpe трубы qatar philippines прейскурант для водоснабжения
- Категория: >>>
- Поставщик: Henan Exlon Environmental Protection Technology Co. Ltd.
Сохранить в закладки 11000000343926:
Описание и отзывы
Характеристики
Supply :HDPE pipes and fittings
Standard :ISO4427/ IPS/DIPS
Sizes :DN20-DN2000 ( 1/2 inch-65 inch)

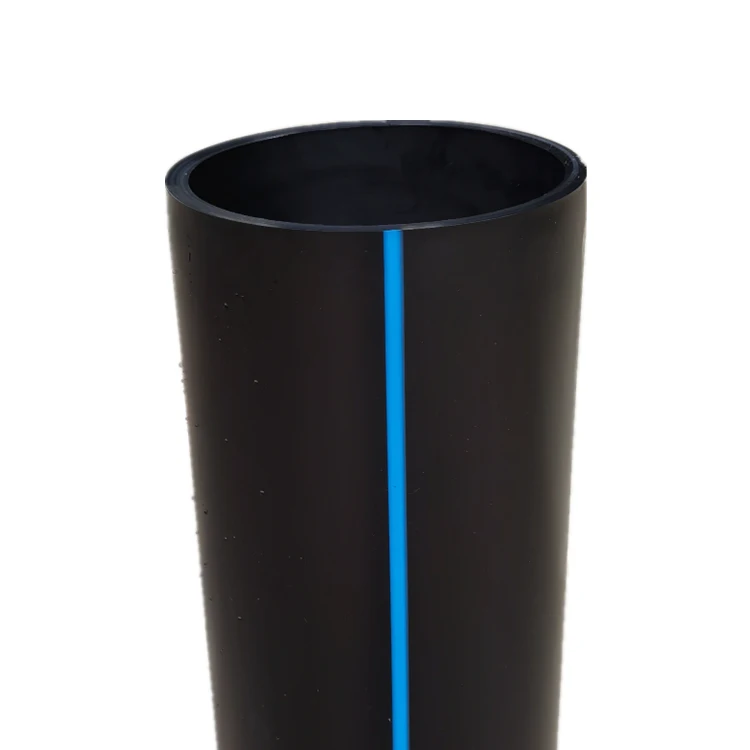

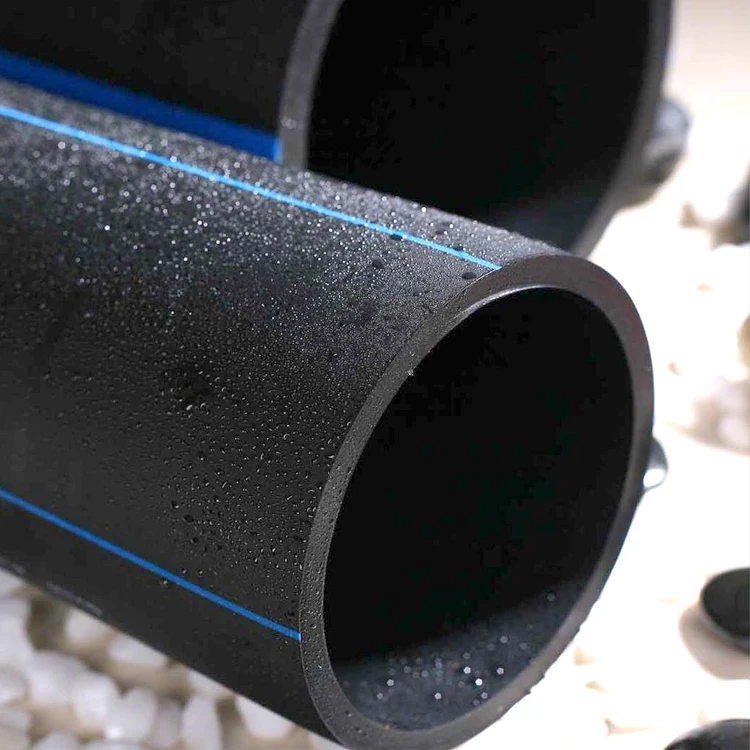

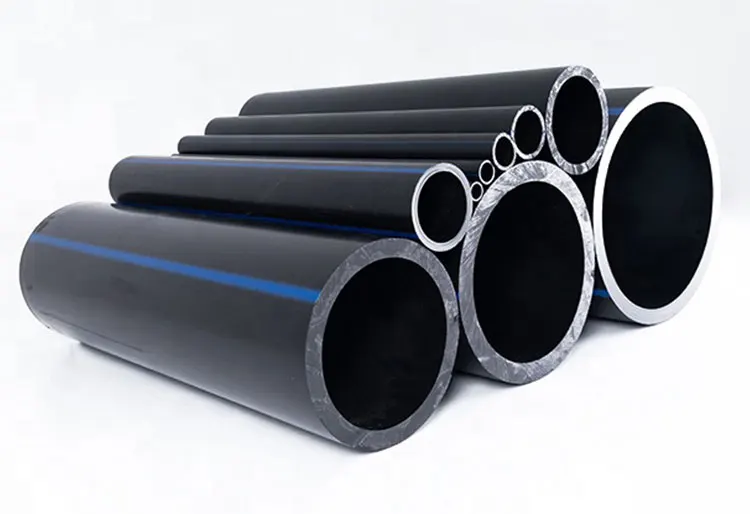

Factory Price Black Color SDR11 PN16 PE100 HDPE Pipe
Product Paramenters
HDPE Pipe Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | ||
SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | |||
OD(inch) | OD mm) | thickness | thickness | thickness | thickness | thickness | thickness | |
1/2 | 20 | 2.3 | 2.3 | |||||
3/4 | 25 | 3.0 | 2.3 | 2.3 | ||||
1 | 32 | 3.6 | 3.0 | 2.4 | ||||
1 1/4 | 40 | 4.5 | 3.7 | 3.0 | 2.4 | |||
1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3.0 | |||
2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | |||
2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | |||
3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | ||
4 | 110 | 12.3 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 | |
5 | 125 | 14.0 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 | |
140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | ||
6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | |
7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | |
8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | |
225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | ||
10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | |
11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | |
12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15.0 | 12.1 | |
14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | |
16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | |
18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | |
20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | |
22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | |
24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30.0 | 24.1 | |
28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | |
32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 | |
36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | ||
40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | ||
48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | |||
55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | |||
60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | |||
65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 | |||
Details Images
Features Of Factory Price Black Color SDR11 PN16 PE100 HDPE Pipe
made from polyethylene is a cost effective solution for a broad range of piping problems in municipal, industrial, marine, mining, landfill, duct and agricultural applications. It has been tested and proven effective for above ground, surface, buried, sliplined, floating, and sub-sur face marine applications.
made from polyethylene is a cost effective solution for a broad range of piping problems in municipal, industrial, marine, mining, landfill, duct and agricultural applications. It has been tested and proven effective for above ground, surface, buried, sliplined, floating, and sub-sur face marine applications.
Applications
Factory Price Black Color SDR11 PN16 PE100 HDPE Pipe are used in varied industries like Agriculture, Chemical, Industrial, Sewage and Drainage, Sprinkler Irrigation, Industrial Effluents and House services connection works as well.
AGRICULTURE & IRRIGATION
Flood Irrigation (Suction & Delivery pipes in pump sets)
Sprinkler Irrigation (Crops, Lawns, Golf course, Gardens)
Drip irrigation(Plantations, Orchards, Nurseries)
Flood Irrigation (Suction & Delivery pipes in pump sets)
Sprinkler Irrigation (Crops, Lawns, Golf course, Gardens)
Drip irrigation(Plantations, Orchards, Nurseries)
WATER SUPPLY
Potable water supply
Water mains
For Drinking water supply
Service Pipes
Potable water supply
Water mains
For Drinking water supply
Service Pipes
SEWAGE & INDUSTRIAL EFFLUENT DISPOSAL
Domestic Sewage System
Sanitary System
Petrochemical Industry
Fertilizer Industry
Domestic Sewage System
Sanitary System
Petrochemical Industry
Fertilizer Industry
DUCTING
Air-compressor for pumping
Telecommunication, as conduits for OFC
ELECTRICAL INSTALLATIONS
Conduits for Cables
Air-compressor for pumping
Telecommunication, as conduits for OFC
ELECTRICAL INSTALLATIONS
Conduits for Cables
DRAINAGE PIPES
Surface & Rain water
Waste Water Mains
Sub-soil water
Surface & Rain water
Waste Water Mains
Sub-soil water
OCEAN PROJECT
Floating bodySand discharge
Fish farm
Precautions:
DO ✔：
Keep the pipes and fittings away from sharp objects, heat sources, and toxic and corrosive materials. Before you need to use pipes
and fittings, keep the protective packaging intact. Prevent dust or other materials from entering the pipe. Untie the pipe and
allow it to heat up in the sun before burial.
DON"T ❌:
Throw pipe from delivery vehicles. Place pipeand fittings incontact withlubricating oil,gasoline,solvents,or other aggressive
materials. Heat pipe with an open flame.
Keep the pipes and fittings away from sharp objects, heat sources, and toxic and corrosive materials. Before you need to use pipes
and fittings, keep the protective packaging intact. Prevent dust or other materials from entering the pipe. Untie the pipe and
allow it to heat up in the sun before burial.
DON"T ❌:
Throw pipe from delivery vehicles. Place pipeand fittings incontact withlubricating oil,gasoline,solvents,or other aggressive
materials. Heat pipe with an open flame.
Company Profile
Packing&Shipping
FAQ
Q: What is your MOQ?
A: As customer's request. Q: Why choose us? A: We are a professional and leader of HDPE pipe factory, we offer pipeline system one stop services with competitive price and fast delivery time, and we insure our quality is the second to none.
Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us which product and quantity that you need, we will contact you immediately.More specify the information that you provided more faster and easier you will get the quotation.
Q: Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China.
Q: Do you have customized pipe fittings?
A: We can make any plastic pipe fittings according customer drawings.
Q: What's the payment term?
A:Order amount <10,000USD, 100% T/T in advance. USD10,000
