Китайская деревообрабатывающая фабрика индивидуальная производственная линия стальные двери Высокоэффективная МДФ дверей
- Категория: >>>
- Поставщик: Foshan Leader Machinery Co. Ltd.
Сохранить в закладки 11000005710323:
Описание и отзывы
Характеристики
SOLUTION

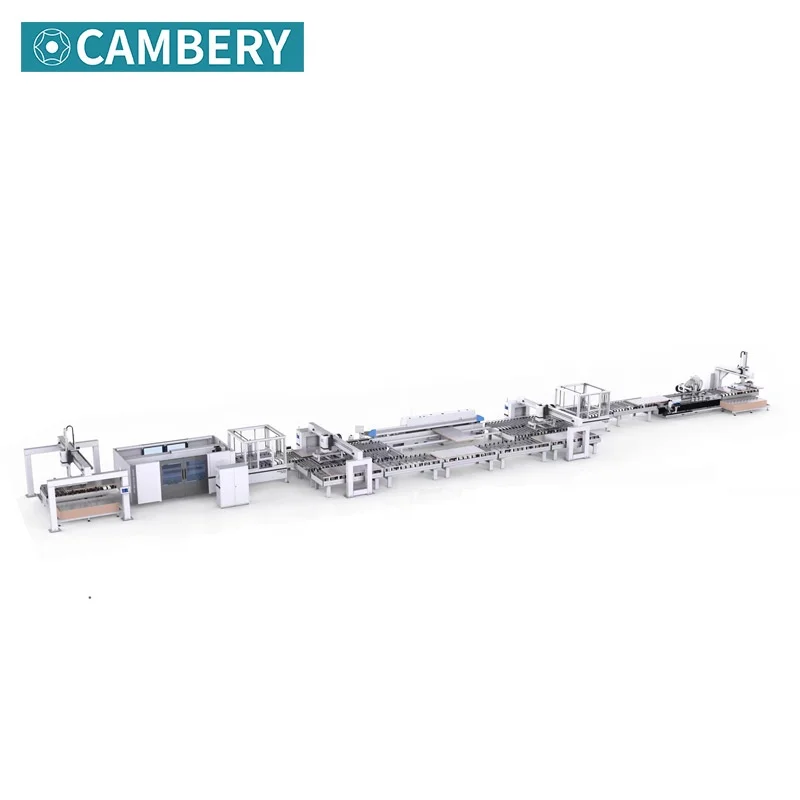

Automatic Wooden Door Production Line
The Automatic wooden door production line comprises a four-side saw, edge banding machine, door hinge/door lock hole, and up/down hardware pre-assembly machine. This wooden door production line only needs 3-4 people and can produce 350-400 doors a day/8 hour. Leadertech has a professional team of engineers who will design a tailored solution for you, providing the one-stop service from factory layout to machine operation.
Product Characteristics:
● 3 Layer construction
● Surface: WPC/MDF/ PVC/veneer/HPL panel
● Core: Solid wood + Foam, Hollow core, solid core
● Glue on edge-banding: EVA
● Edge Tape: PVC/ Veneer
● This production line can reach up to 350-400 pieces of standard-size door within 8 hours
● 3-5 workers are needed, saving labor costs.
● Surface: WPC/MDF/ PVC/veneer/HPL panel
● Core: Solid wood + Foam, Hollow core, solid core
● Glue on edge-banding: EVA
● Edge Tape: PVC/ Veneer
● This production line can reach up to 350-400 pieces of standard-size door within 8 hours
● 3-5 workers are needed, saving labor costs.
Layout：
PARAMETER INFORMATION

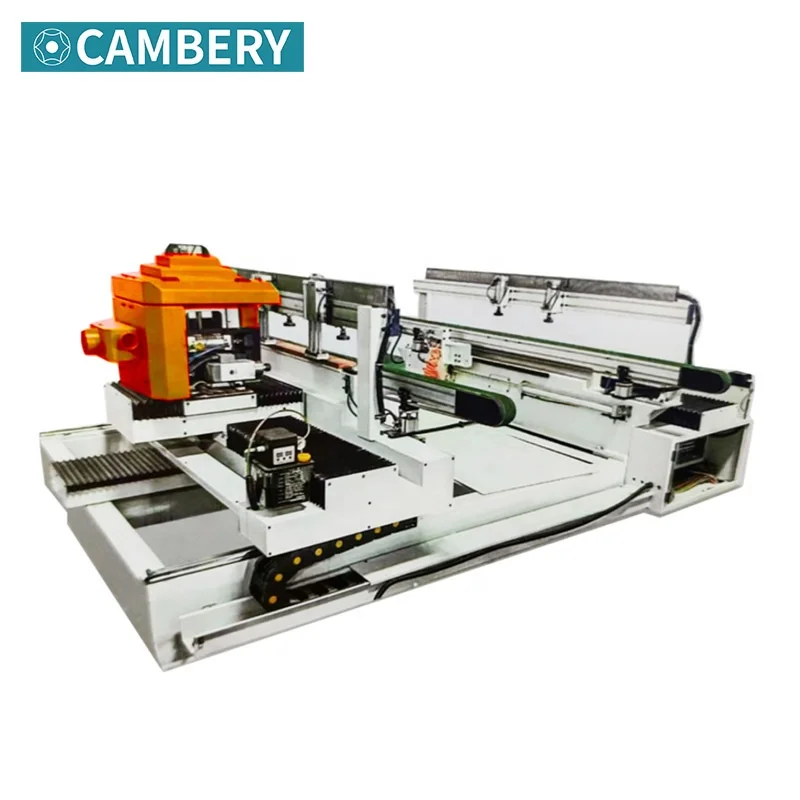

01 Four Sides Sawing
Saw cutting table outer contour
Overall Size
Overall Size
● Space:
Approx. 5410 mm*3600 mm*2300 mm
● Total power: 33 kw
● Power Loaded: 380 V 50 Hz 3 Phase
● Pneumatic loaded：0.6~0.8 MPa
Approx. 5410 mm*3600 mm*2300 mm
● Total power: 33 kw
● Power Loaded: 380 V 50 Hz 3 Phase
● Pneumatic loaded：0.6~0.8 MPa
● Door size:
Length: 1800-3000 mm
Width: 550-1100 mm
Thickness: 30-65 mm
● Saw Power：
Main saw 7.5 KW 4 SET
● Scoring Saw 0.75 KW 4 SET
Length: 1800-3000 mm
Width: 550-1100 mm
Thickness: 30-65 mm
● Saw Power：
Main saw 7.5 KW 4 SET
● Scoring Saw 0.75 KW 4 SET

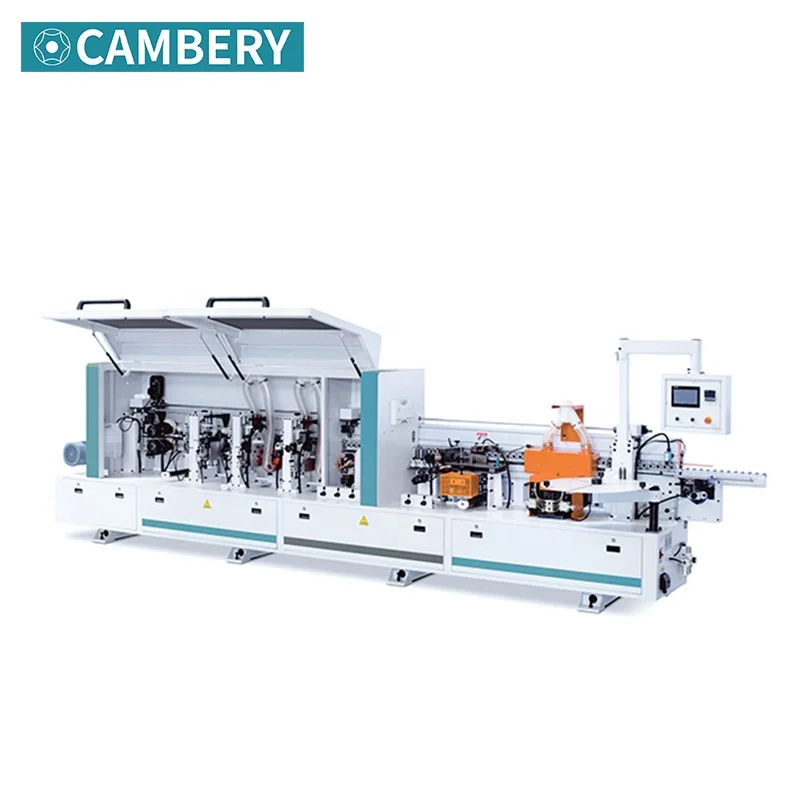

02 Edge banding of Flush Doors
● Space: Approx. 5800 mm*800 mm*1600 mm
● Total power: 16 kw
● Power Loaded: 380 V 50 Hz 3 Phase
● Pneumatic loaded：0.6~0.8 MPa
● Feeding Speed: Up to 23 m/min
● Panel Size:
● Total power: 16 kw
● Power Loaded: 380 V 50 Hz 3 Phase
● Pneumatic loaded：0.6~0.8 MPa
● Feeding Speed: Up to 23 m/min
● Panel Size:
Min. Working Size: From 120 mm*95 mm
Thickness: 9-60 mm
Edge Tape:
Thick: 0.4-3 mm
Width: 12-65 mm
Thickness: 9-60 mm
Edge Tape:
Thick: 0.4-3 mm
Width: 12-65 mm

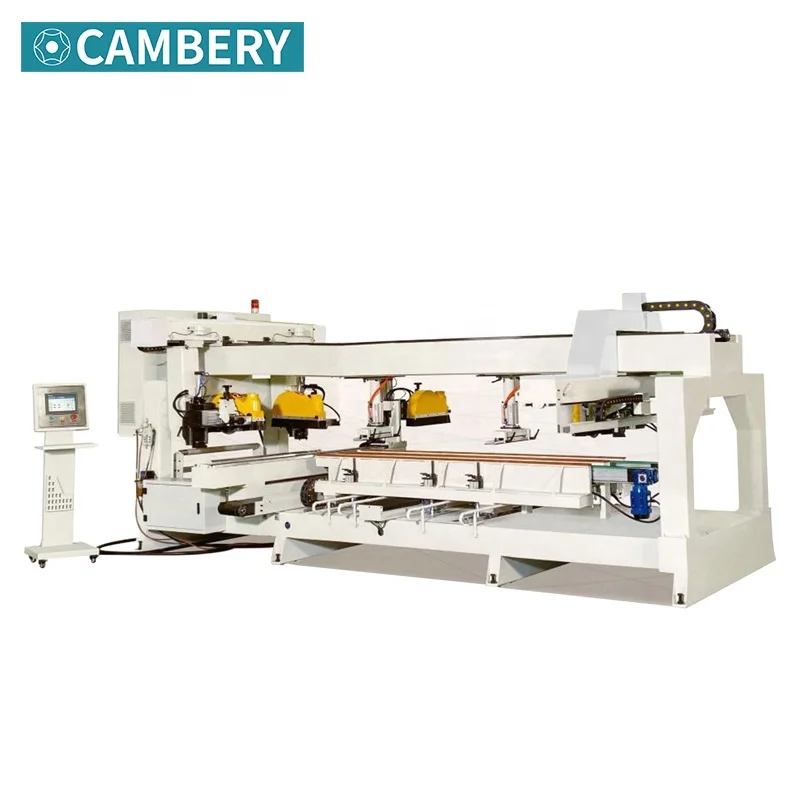

03 Making keyholes and door hinge hole
● Space: 4300 mm*2000 mm*1850 mm
● Total power: 28 kw
● Power Loaded: 380 V 50 Hz 3 Phase
● Pneumatic loaded：0.6~0.8 MPa
● Top Spindles:
3.7 kw @9000 r/min, for scoring or boring.
3.7 kw @9000 r/min, for slot milling.
● Side Spindles:
3.7 kw @9000 r/min, for scoring or boring.
0.75 kw @9000 r/min, for slot milling.
● Working Size: Up to 3000*1100*80 mm
● Milling Depth: Up to 115 mm
● Total power: 28 kw
● Power Loaded: 380 V 50 Hz 3 Phase
● Pneumatic loaded：0.6~0.8 MPa
● Top Spindles:
3.7 kw @9000 r/min, for scoring or boring.
3.7 kw @9000 r/min, for slot milling.
● Side Spindles:
3.7 kw @9000 r/min, for scoring or boring.
0.75 kw @9000 r/min, for slot milling.
● Working Size: Up to 3000*1100*80 mm
● Milling Depth: Up to 115 mm

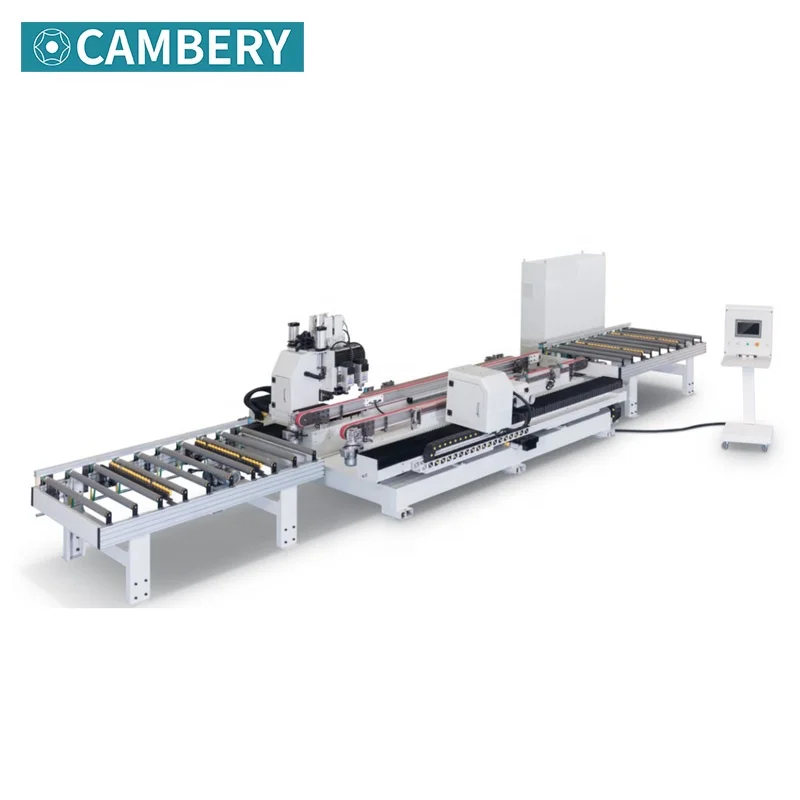

04 Making door Top/Bottom hole
● Space: 4500 mm*2000 mm*1850 mm
●Total power: 26 kw
●Power Loaded: 380 V 50 Hz 3 Phase
●Pneumatic loaded：0.6~0.8 MPa
●Spindles:
3.7 kw @9000 r/min 2 set
0.75 kw @9000 r/min 2 set
●Working Size: Up to 3000*1100*80 mm
●Milling Depth: Up to 115 mm
●Total power: 26 kw
●Power Loaded: 380 V 50 Hz 3 Phase
●Pneumatic loaded：0.6~0.8 MPa
●Spindles:
3.7 kw @9000 r/min 2 set
0.75 kw @9000 r/min 2 set
●Working Size: Up to 3000*1100*80 mm
●Milling Depth: Up to 115 mm
Wooden Door Production Processes
HOT SALE
COMPANY OVERVIEW
WELCOME TO VISIT US
Cooperation with up to 50 countries around the world.
Cooperation with up to 50 countries around the world.
OUR CERTIFICATION
FAQ
Q1. Warranty
A1. 12 months warranty is effective from the date of acceptance of the machine.
Q2. Payment Terms
A2. TT 30% down payment, 70% before shipment.
Q3. Delivery Time
A3. 15-30 working days from the receipt of the down payment.
Q4. Machine installation
A4. Cambery could assign the technician to the place for the on-site installation if requested by the purchaser.
Q5. Technical Support
A5. Every machine is assigned by a specialist. The response is available within 12 hours while the solution for the
troubleshooting is provided within 48 hours.
Q6. Demo and Testing
A6. Cambery built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’ demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.
A1. 12 months warranty is effective from the date of acceptance of the machine.
Q2. Payment Terms
A2. TT 30% down payment, 70% before shipment.
Q3. Delivery Time
A3. 15-30 working days from the receipt of the down payment.
Q4. Machine installation
A4. Cambery could assign the technician to the place for the on-site installation if requested by the purchaser.
Q5. Technical Support
A5. Every machine is assigned by a specialist. The response is available within 12 hours while the solution for the
troubleshooting is provided within 48 hours.
Q6. Demo and Testing
A6. Cambery built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’ demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.
Похожие товары
MERV 6 плиссированный воздушный фильтр, воздушный фильтр для печи переменного тока 100% синтетических электростатических сред для эффективности G4 с низким потоком воздуха
3,88 $ - 6,80 $
Сетевой видеорегистратор Dahua наблюдения 4MP Lite ИК фиксированная-Фокусное глазного яблока, круглые инфракрасные сетевые камеры IPC-HDW2431T-AS-S2
49,00 $ - 53,00 $
Оптовая продажа джинсов с вышивкой на заказ, джинсы для женщин, брюки, женские прямые брюки с высокой талией и широкими штанинами
7,50 $ - 10,50 $
RTS цифровая приставка Full HD MPEG4 Поддержка PVR Wifi Автомобильный приемник DVB-T2 ТВ декодер
6,20 $ - 8,00 $
FC 5th generation полный автомобиль газовый комплект 4 цилиндр cng Комплект бензинового двигателя gnv сжатого природного газа Автогаз gnv автомобиля kit
100,00 $ - 115,00 $
Лидер продаж, безмасляный компрессор прокрутки 8 бар для печатной машины Heidelberg
868,00 $ - 1 022,00 $

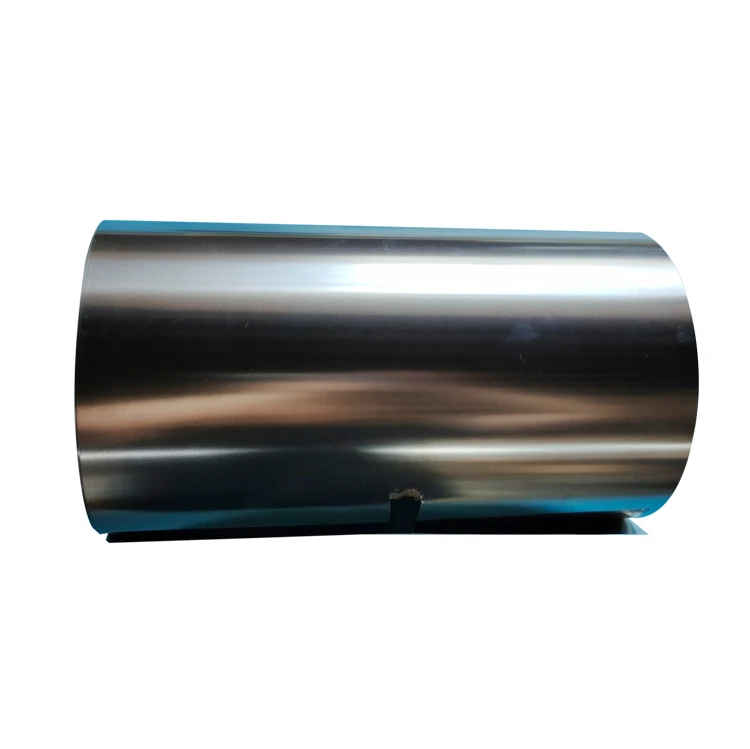

0,15*300 мм стандартный тип S31603 отожженная фольга SUS316l
