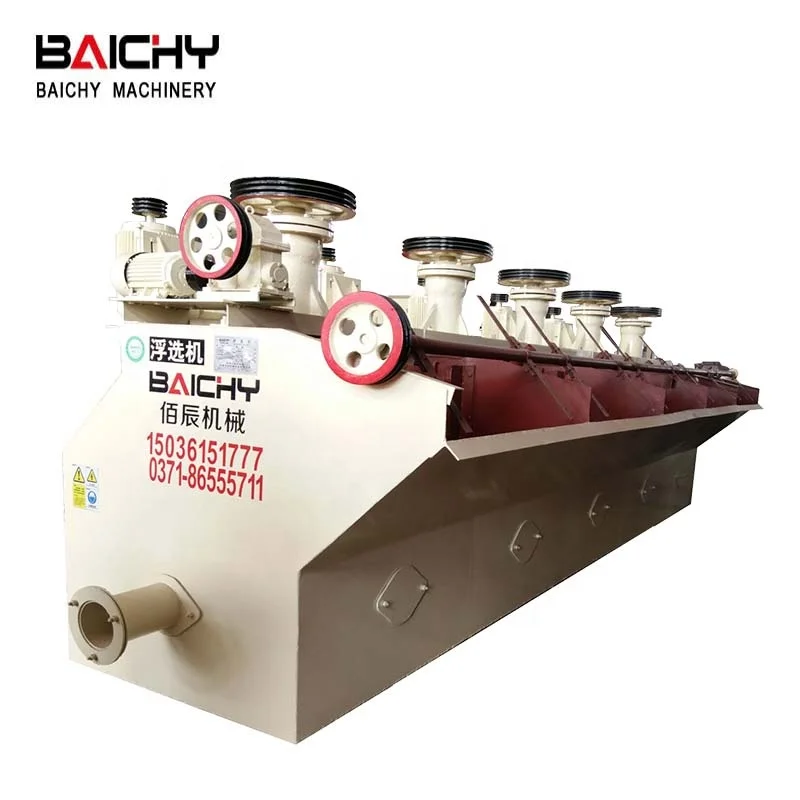

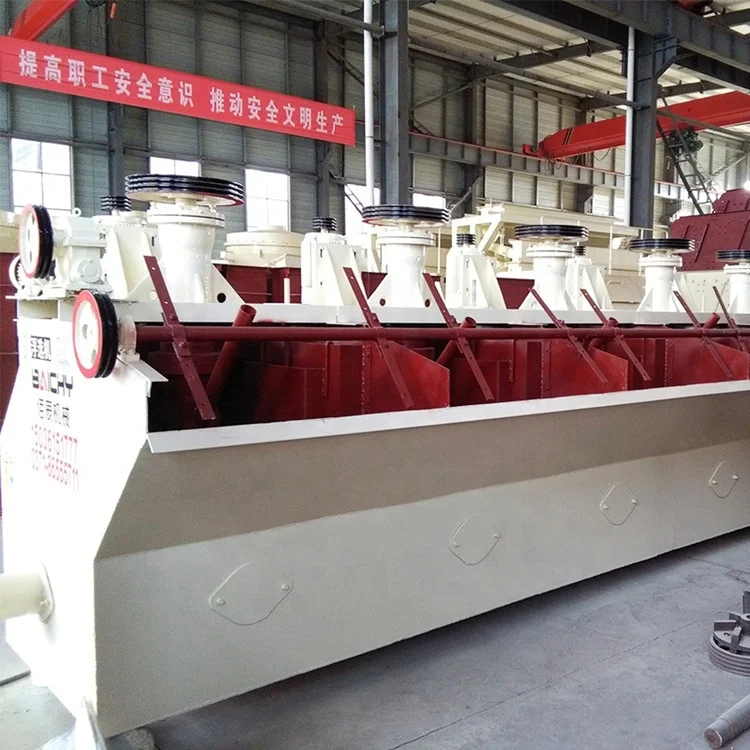

Оборудование для обработки меди сепаратор майнинга руды производственная линия флотационная машина
- Категория: Mining Machinery >>>
- Поставщик: Baichy Heavy Industrial Machinery Co. Ltd.
Сохранить в закладки 11000005723636:
Описание и отзывы
Характеристики

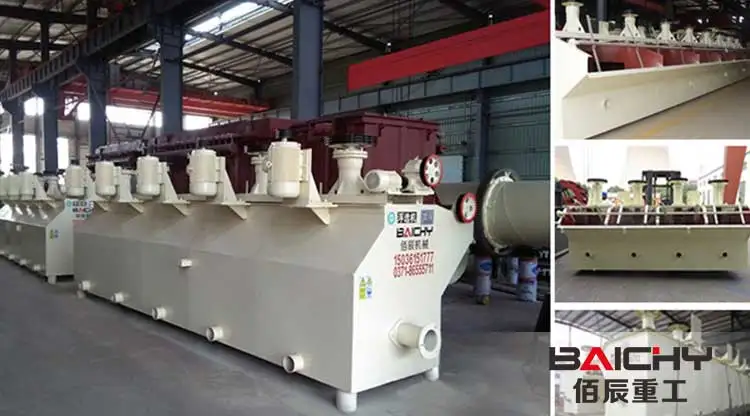

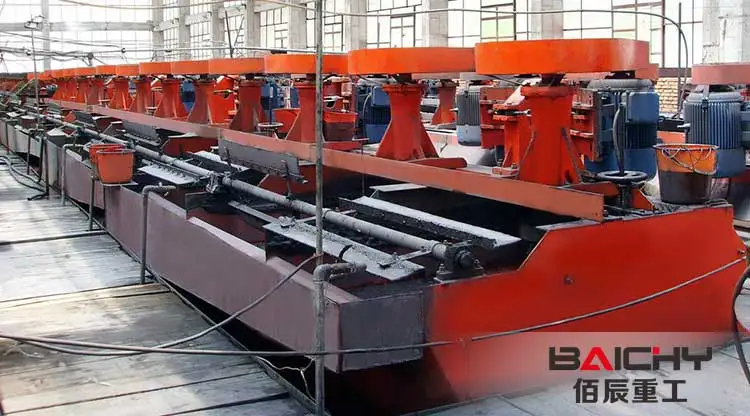

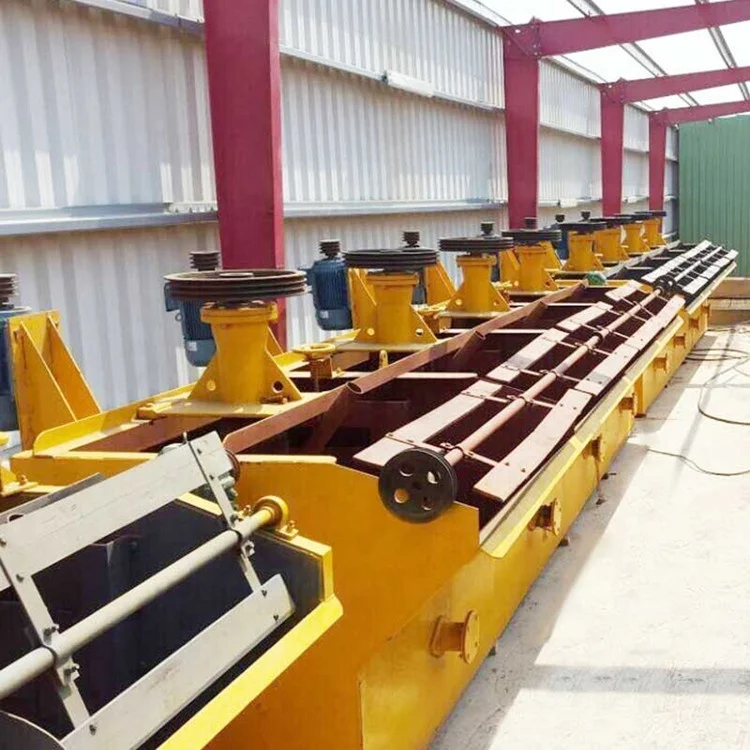

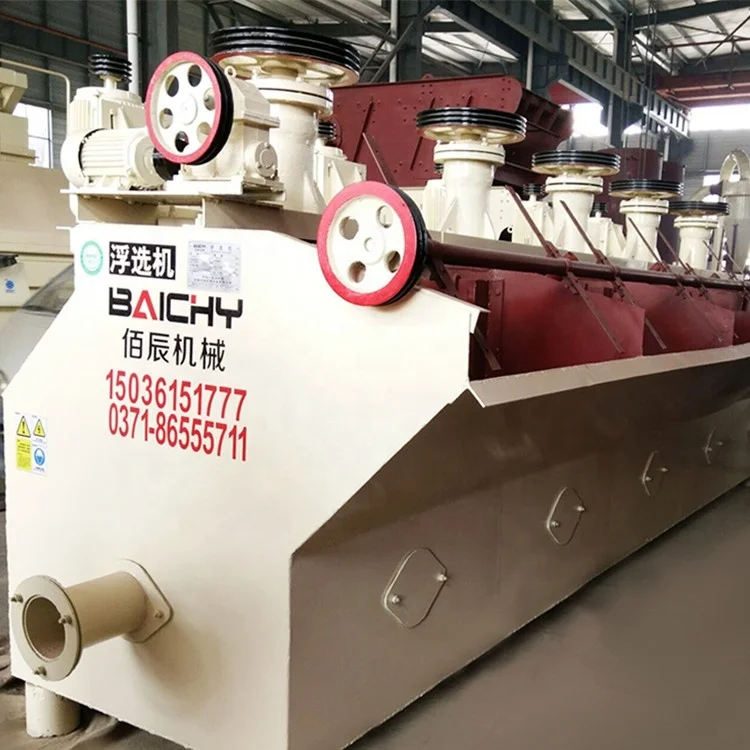

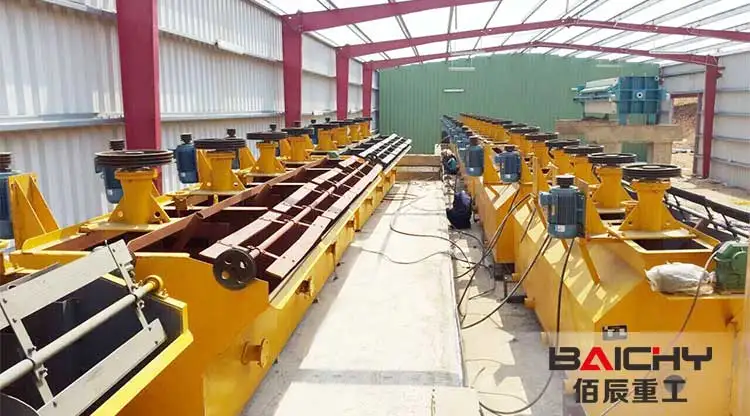

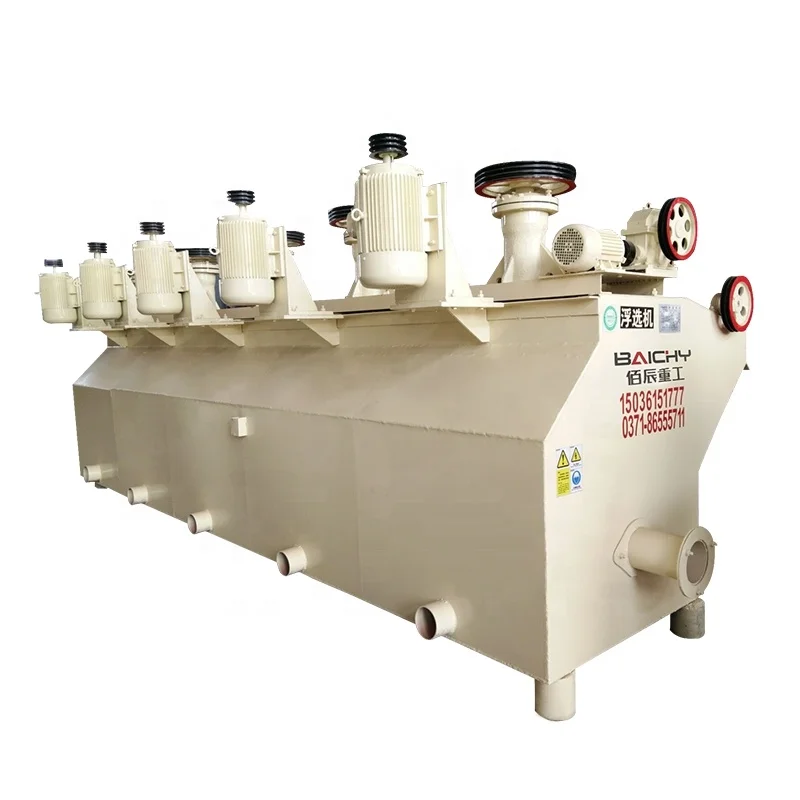

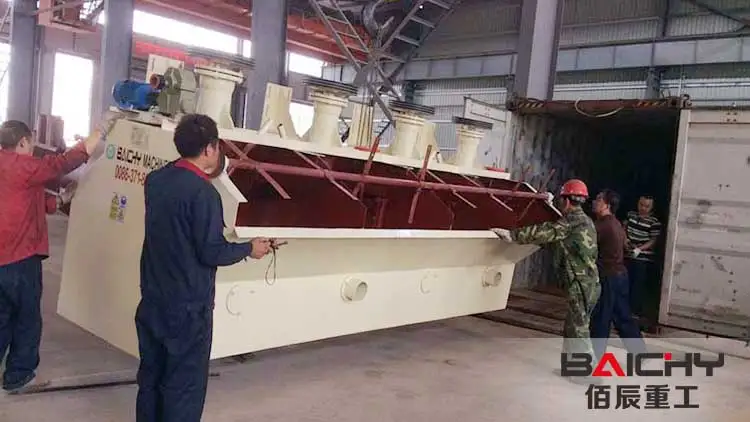

Copper Mining Processing Plant Equipment, Ore Mining Separator Processing Plant Production Line,Gold Ore Flotation Machine![Flotation-machine]()
Flotation machine can be used for many ore beneficiation . It is subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed.
Application: Metal ore such as gold, silver, copper, Lead (Pb), Zinc (Zn), Tin, Nickel (Ni) and so on, non-metal mineral, raw body and materials of chemical industry.
The flotation machine is mainly used for sorting non-ferrous metals such as copper, zinc, lead nickel and gold, and can also be used for rough selection and selection of ferrous and non-metal. The motor is driven by the motors V-belt drive to rotate the impeller, which generates centrifugal force to form a negative pressure On the one hand, it absorbs sufficient air to mix with the slurry. On the one hand, it mixes the slurry with the drug, and refines the foam to make the mineral bond foam Mineralized foam is formed on the slurry surface. Adjust the height of the shutter and control the liquid level so that the useful foam is scraped off by the scraper
Working principle

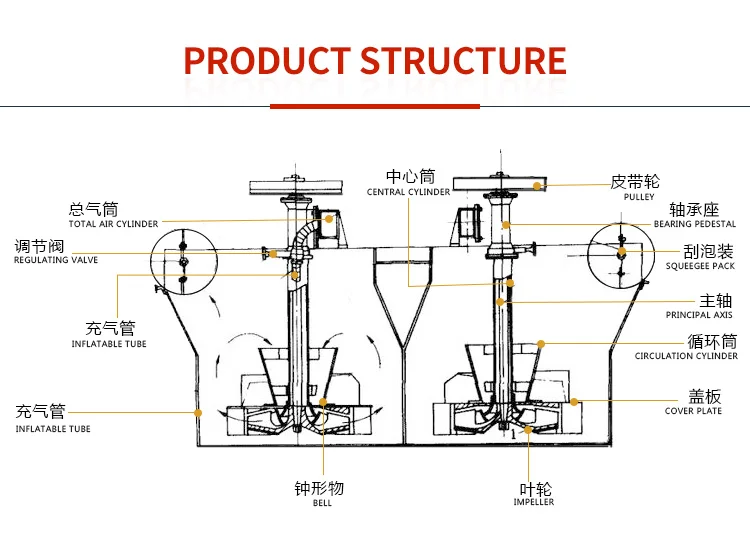

When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
| Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 | |
| Volume (m³) | 0.37 | 0.7 | 1.2 | 2.8 | 4 | |
| Impeller diameter(mm) | 300 | 350 | 450 | 550 | 650 | |
| Capacity (m³/min) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 | |
| Impeller Speed(r/min) | 352 | 400 | 312 | 268 | 238 | |
| Impeller motor | Model | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y180L-6 |
| Power (Kw) | 1.5 | 3 | 5.5 | 11 | 15 | |
| Scraper motor | Model | Y90S-4 | Y90L-4 | |||
| Power (Kw) | 1.1 | 1.5 | ||||
Features
1.Simple structure, strong agitation ability, and low energy consumption.
2.The impeller is equipped with holey cylinder air alloter.
3.The air scattering is uniform and the mixing effect of air and slurry is good.
4.U-shaped tank, little sedimentation of sand.
5.Solid particles can be fully suspended, high flotation index.
6.Long service life of vulnerable parts.
6 Types of Gold Ore
Gold exists in quartzite. Usually, quartz appears as small stones in large cracks in riverbeds or mountain slopes and has crystals in different colors such as white, yellow, pink, purple, gray, or black. The most common types of quartz with gold ore are rose quartz gold ore and rainbow gold ore. A high gold-quartz ore contains 25% gold by mass, and it occurs in areas where the bedrock is fractured by tectonic and volcanic activity.

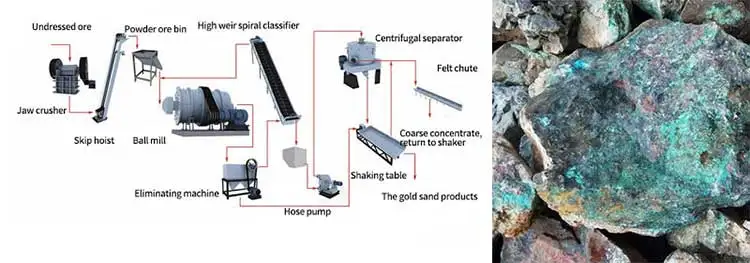

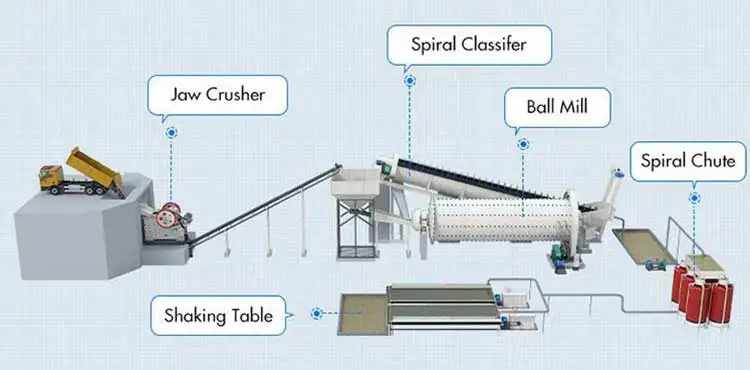

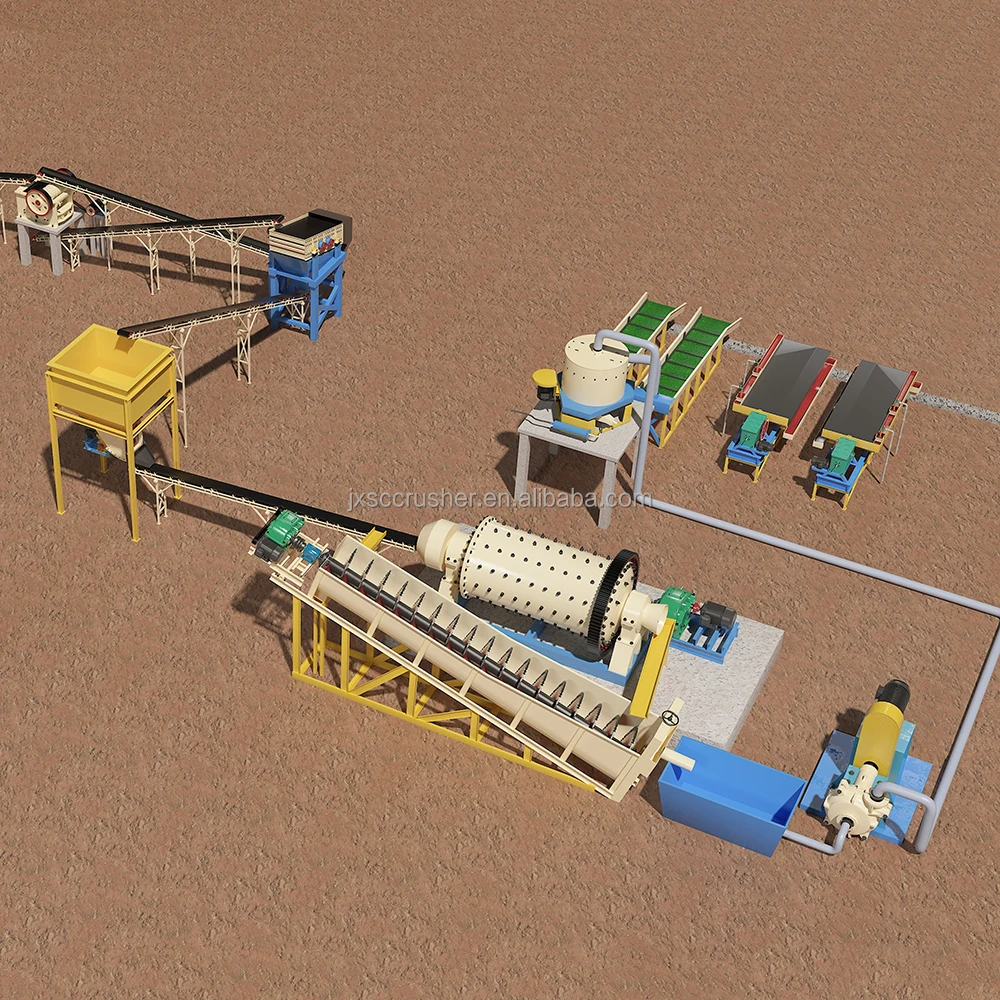

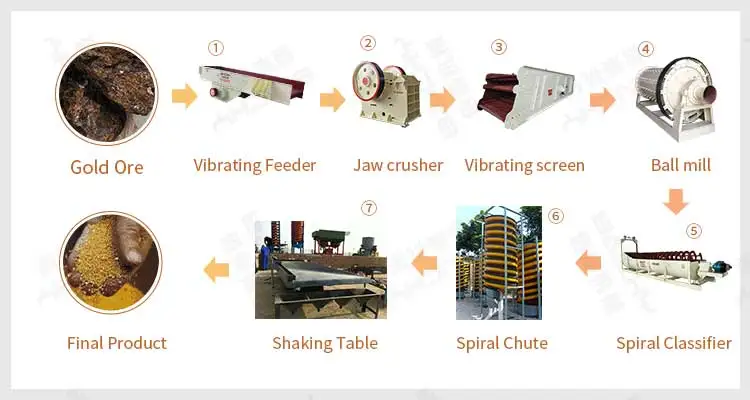

Flow chart of gold ore processing
Placer gold ore with high gold content mostly exists in the form of particles. Therefore, the ideal method to process placer gold ore is gravity separation.
According to different physical and chemical properties of different types of gold ores, flotation separation utilizes various reagents to make the gold attached to the bubbles then scraping these gold particles from blades to get the concentrate.
 |  |  |
Jaw Crusher
| Impact Crusher | Cone Crusher |
 |  |  |
Grinding Mill
| Baill Mill | Mobile Crusher Plant |
20 national service mileage:
Service mileage for local customers to provide equipment installation, commissioning and after-sales service
Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focus on 4 series products: stone crusher machines, sand making equipment, powder grinding mills, mineral processing equipment and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
Похожие товары
Полная производственная линия по обработке гравитационной сепарации 10 Tph завод производству камней и
10 000,00 $ - 30 000,00 $

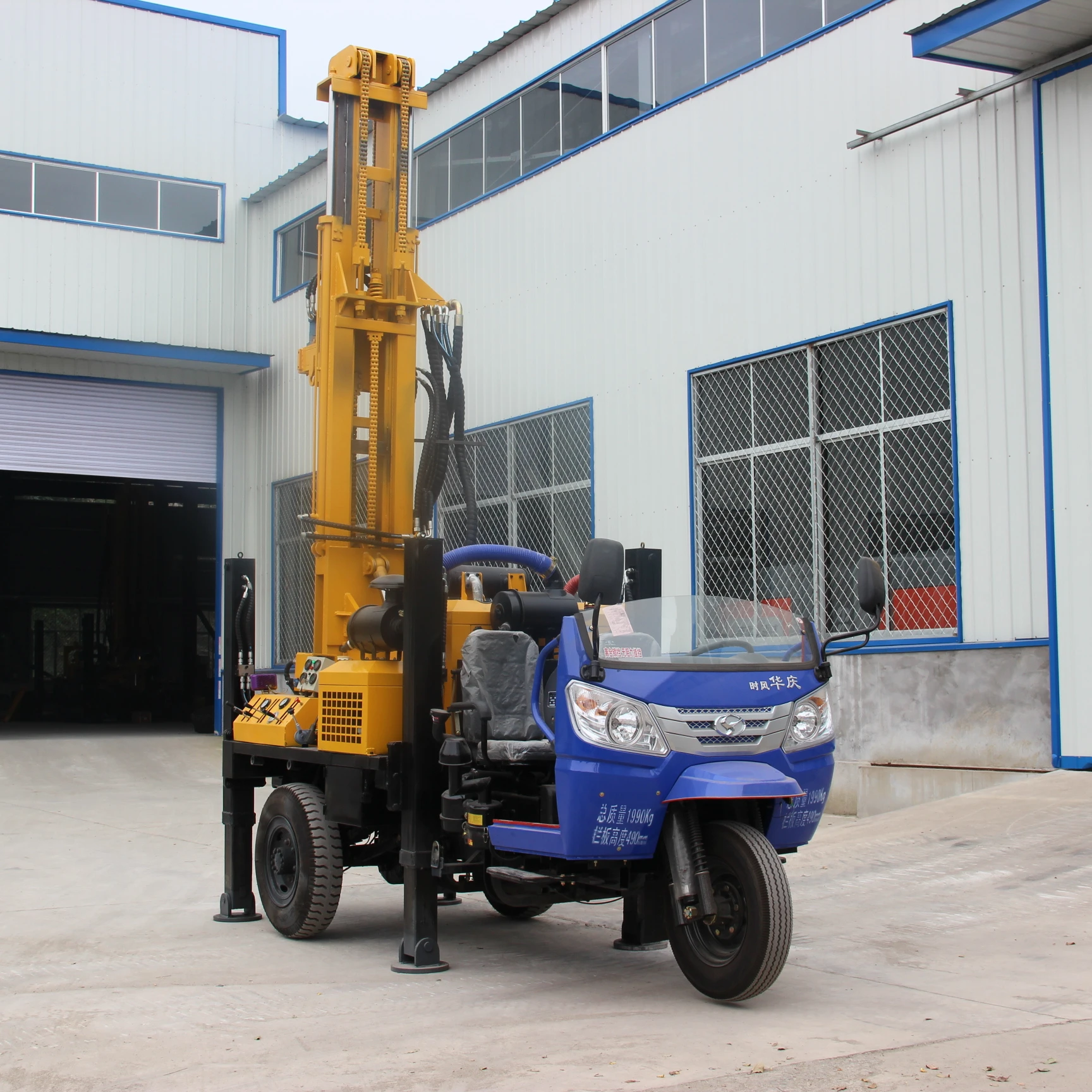

200 м низкая цена пневматическая буровая трехколесная установка для бурения водяных
