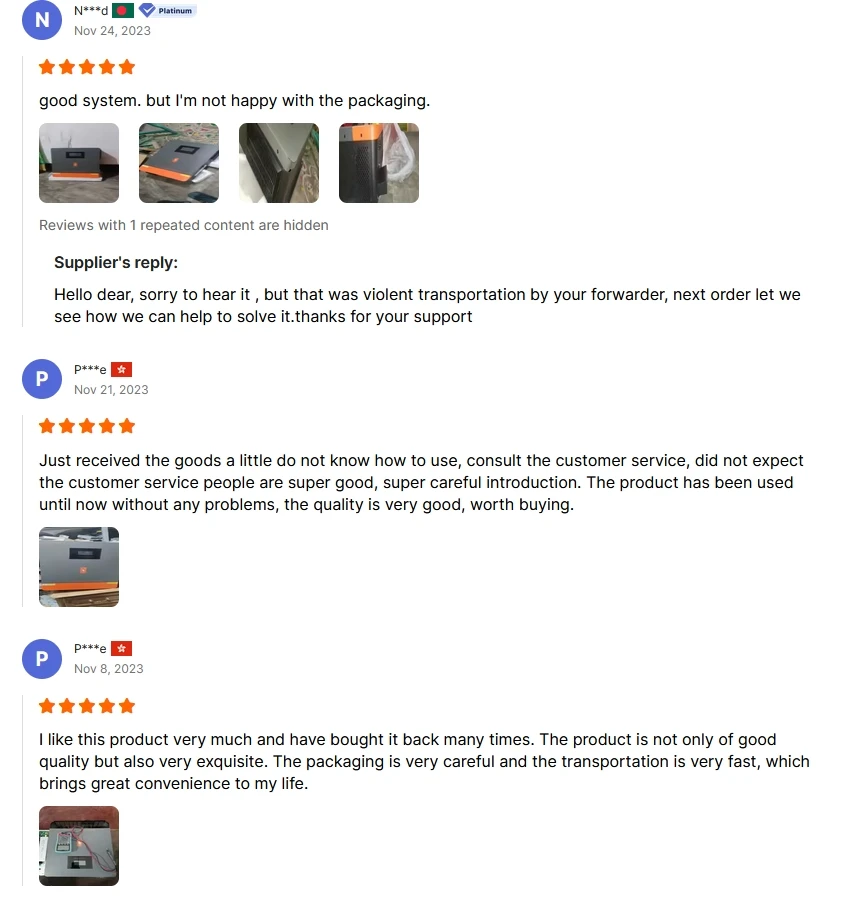

Good reviews
Products Description

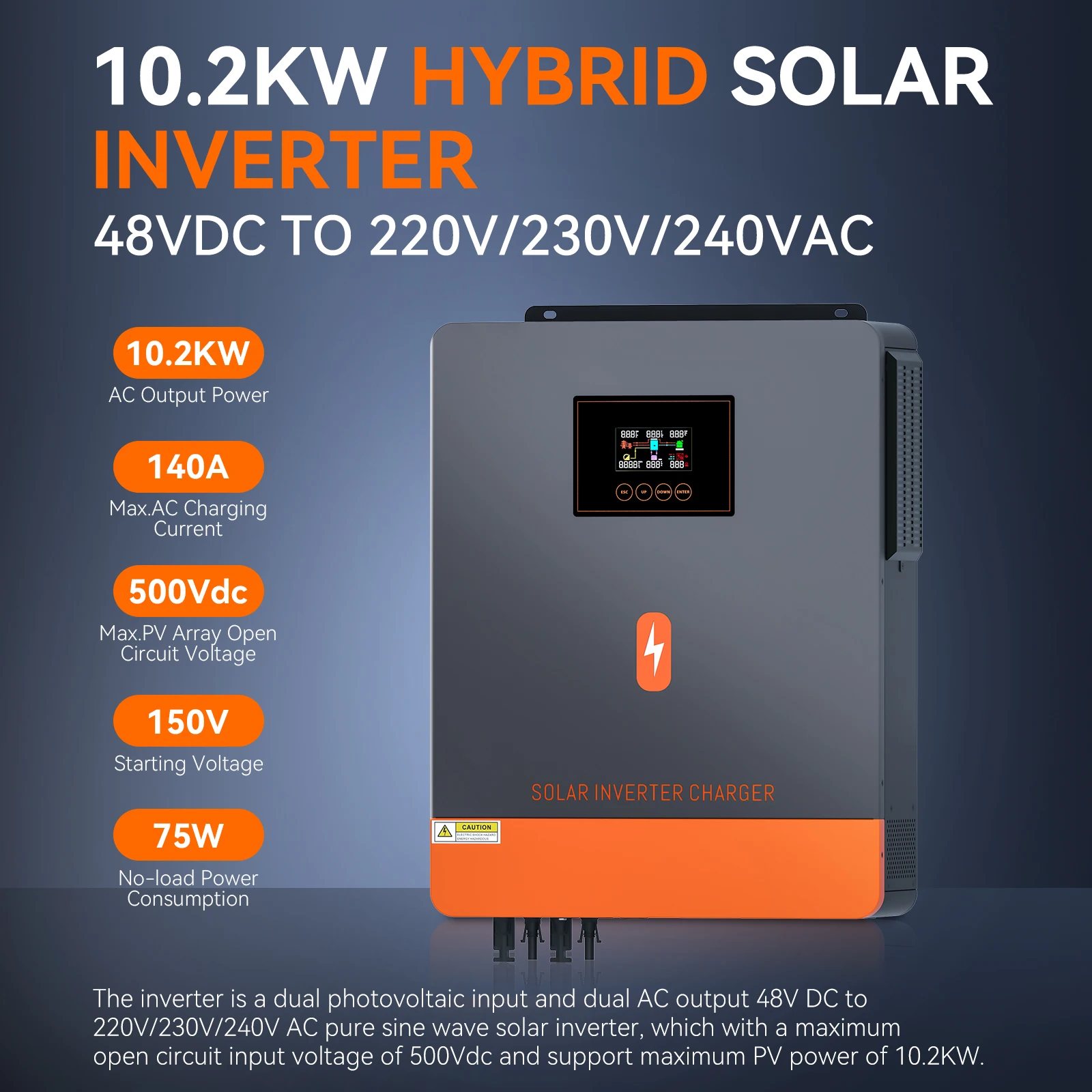

PowMr 8.2KW 10.2KW 48V DC 220/230V AC Pure Sine Wave Solar Inverter Double MPPT On/Off Grid Solar hybrid Inverter
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer
uninterruptible power support with portable size.
Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current,
AC/solar charger priority, and acceptable input voltage based on different applications.
uninterruptible power support with portable size.
Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current,
AC/solar charger priority, and acceptable input voltage based on different applications.
Features
1.Pure sine wave solar inverter（on/off Grid）
2.Inverter running without battery 3.Output power factor 1.0
4.High PV input voltage range(90~500VDC)
5.WIFI&GPRS can be used with IOS and Android
6.Built-in anti-dusk kit for harsh environment
7.Built-in 160A（for 7.2KW/8.2KW）/180A（for 10.2KW）MPPT solar charge
8.Smart battery charge design to optimize battery life
9.One-click restoration to factory Settings
10.Dual output
11.Built-in Lithium battery automatic activation
12.Touch button
Installation Instructions
The following illustration shows the basic application for this inverter/charger. It also includes the following devices to have a complete running system:
• Generator or Utility.
• PV modules
Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners.
• Generator or Utility.
• PV modules
Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners.
Product Paramenters
Model | MPS-V MAX 8.2KW | MPS-V MAX 10.2KW | ||
Phase | 1-phase | |||
Maximum PV Input Power | 8200W | 10200W | ||
Rated Output Power | 8200W/8200VA | 10200W/10200VA | ||
Maximum Solar Charging Current | 160A | 180A | ||
GRID-TIE OPERATION | ||||
PV Input(DC) | ||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |||
MPPT Voltage Range | 90VDC~450VDC | |||
Number Of MPPT Trachers/Maximum Input Current | 1/27A | |||
GRID OUTPUT(AC) | ||||
Nominal Output Voltage | 200/230/240VAC | |||
Output Voltage Range | 195.5~253VAC | |||
Nominal Output Current | 35.6A | 44.3A | ||
Power Factor | >0.99 | |||
EFFICIENCY | ||||
Maximum Conversion Efficiency(DC/AC) | 98% | |||
TWO LOAD OUTPUT POWER(V2.0) | ||||
Full Load | 8200W | 10200W | ||
Maximum Main Load | 8200W | 10200W | ||
Main Load Return Voltage | 2733W | 3400W | ||
Main Load Cut Off Voltage | 44VDC | 44VDC | ||
Main Load Return Voltage | 48VDC | 48VDC | ||
OFF-GRID OPERATION | ||||
AC INPUT | ||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC / 180VAC | |||
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |||
Maximum AC Input Current | 40A | 50A | ||
Nominal Operating Frequency | 50/60Hz | |||
Surge Power | 16400W | 20400W | ||
PV INPUT(DC) | ||||
Maximum DC Voltage | 500VDC | |||
MPPT Voltage Range | 90VDC~450VDC | |||
Number of MPPT Trackers/Maximum Input Curren | 1/27A | |||
BATTERY MODE OUTPUT(AC) | ||||
Nominal Output Voltage | 48VDC | 48VDC | ||
Output Wavefrom | Pure sine wave | |||
Efficiency(DC to AC) | 94% | |||
BATTERY & CHARGER | ||||
Maximum Solar Charging Current | 160A | 180A | ||
Maximum AC Charging Current | 140A | 160A | ||

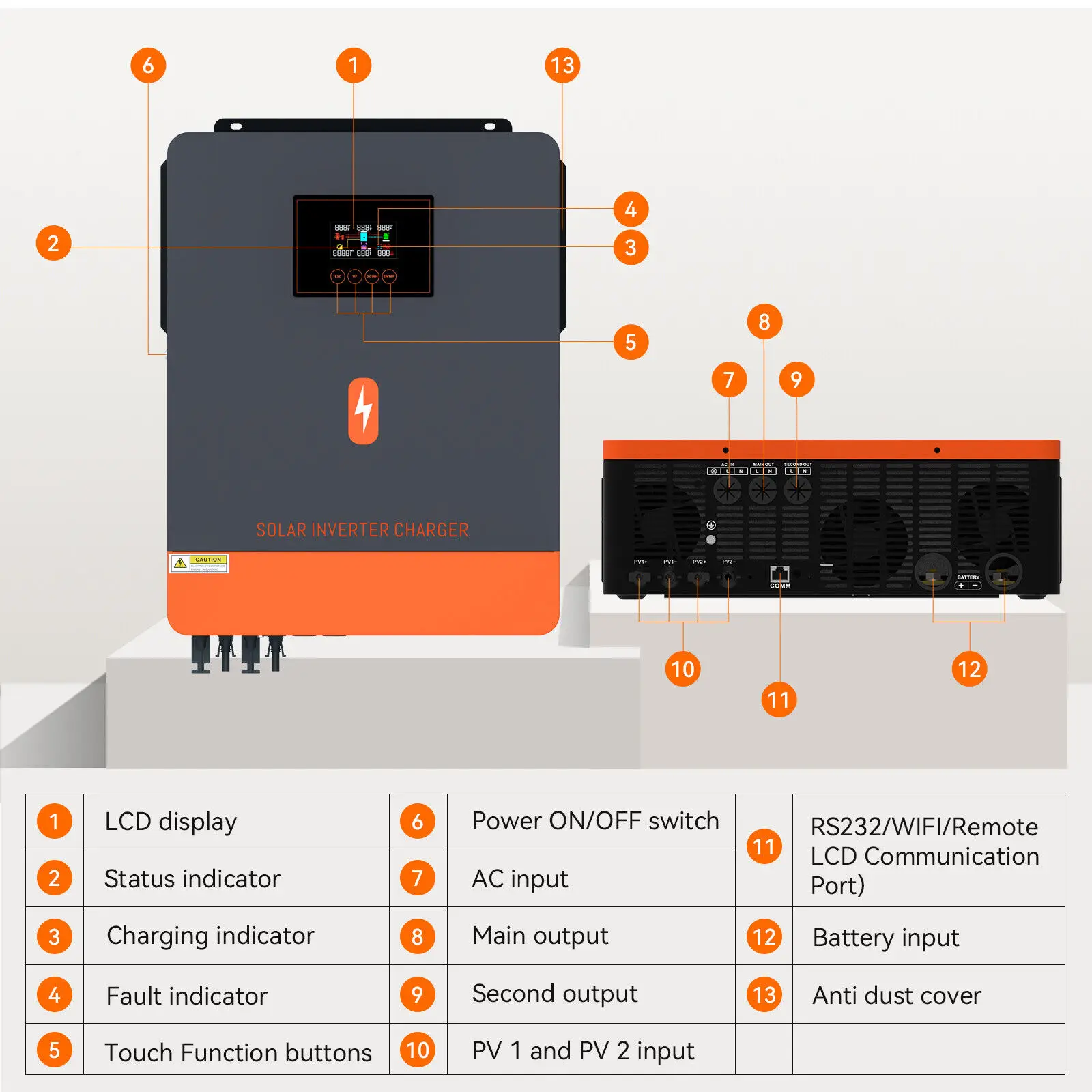

Details Images
Product packaging
Q1: How to insatll and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
Q2: What if I don't have export experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
Q3. We want to know month capacity.
A3: 20000-30000PCS per Month.
Q4: How is your technical support?
A4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
Q5: How can I make sure it's a secure transaction ?
A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the
payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information,Alibaba will release us the money.
Q6: Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7:How to become your agent?
A7:Contact us through Alibaba, we will give you the best price and look forward to your greetings
