EPEVER UC серии инвертор солнечного заряда 3 5 кВт/5 кВт
350,00-382,00 $
HKIVI 6 4 кВт 8 10 48 В чистый синусоидальный инвертор 120 А MPPT солнечный для системы солнечной энергии
- Категория: >>>
- Поставщик: Sichuan Roncy Technology Co. Ltd.Sichuan Ltd.
Сохранить в закладки 11000020843409:
Описание и отзывы
Характеристики
VR
Source Factory 3KVA 4KVA 5KVA 6KVA 10KVA 12KVA
2400W 3200W 4000W 4800W 6400W 8000W 10000W
24/48VDC 110VAC 220VAC 230VAC Off Grid Solar Inverter
trictly comply with ISO quality management system
products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.
The VS series multi-function inverter/charger is a compact device that combines the functions of an inverter, MPPT solar charger, and battery charger to provide uninterrupted power support.
At the same time, this inverter supports different types of batteries such as lead-acid and lithium-ion.
With its user-friendly LCD display, users can easily configure settings such as battery charging current, AC/solar charger
priority, and acceptable input voltage for various applications.
According to your needs, please feel free to contact us and know about other possible system architectures.

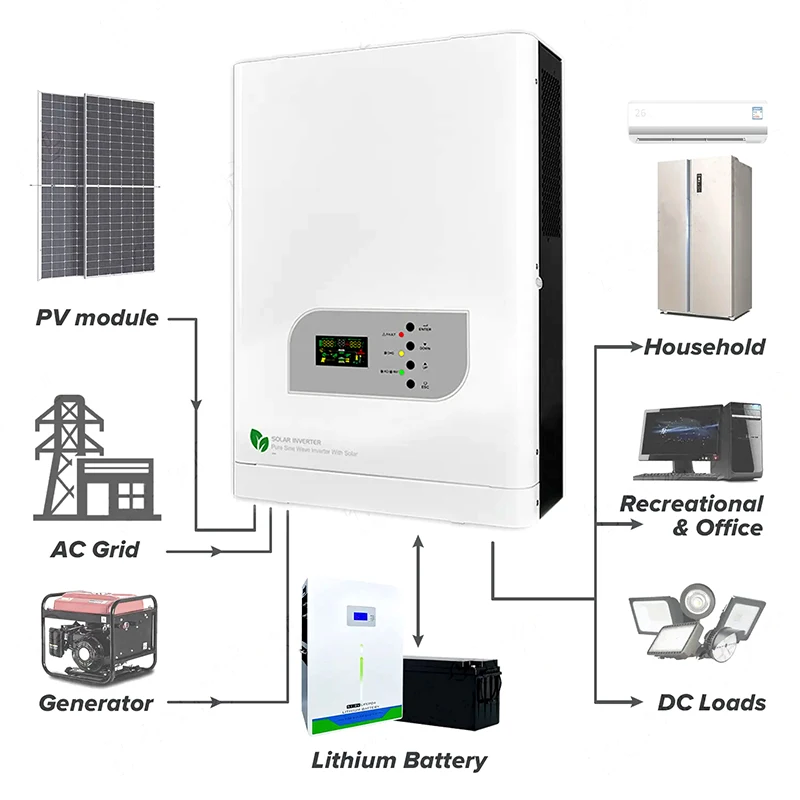

This inverter can power various electrical appliances in home or office environments, including light tubes, fans, refrigerators,
air conditioners, and other motor-type appliances.
Product Paramenters
Model | VS3024/48 M6 | VS4024/48 M6 | VS5024/48 M6 | VS6048 M8 | VS8048 M8 | VS10048 M8 | VS12548 M8 | ||||||
AC Input voltage | 220VAC(standard) | ||||||||||||
Input voltage range | 154-264VAC±3V(Nor Model)185-264VAC±3V(UPS model) 175-285VAC±3V(AVR Type) | ||||||||||||
Input frequency | 50/60Hz±5% | ||||||||||||
Out put power | 3000VA 2400W | 4000VA 3200W | 5000VA 4000W | 6000VA 4800W | 8000VA 6400W | 10000VA 8000W | 12500VA 10000W | ||||||
AC model output Voltage | The output voltage under the mains is the same as the input voltage(with AVR function 220V±10%) | ||||||||||||
Battery model output frequency | The output frequency under the mains is the same as the input frequency | ||||||||||||
Battery model output voltage | 220VAC±10% | ||||||||||||
Battery model output frequency | 50HZ or 60HZ±1% | ||||||||||||
Battery model output wave | Pure sine wave | ||||||||||||
Battery type | External lead-acid battery,Gel battery, water battery or Lithium battery | ||||||||||||
Battery voltage | 24/48VDC | 48VDC | |||||||||||
Battery charging voltage | 27/54VDC | 54VDC | |||||||||||
Maximum PV array power | 24V:1600W 48V:3200W | 6400W | |||||||||||
Solar input voltage range | 24V: MPPT 30V-150VDC 48V: MPPT 60V-150VDC | 48V: MPPT 60V-150VDC | |||||||||||
Maximum PV Display Open Circuit Voltage | 150VDC | 150VDC | |||||||||||
Maximum solar charging current | 60A | 120A | |||||||||||
Maximum AC Charge Current | 29A/15A | 35A/20A | 48A/24A | 29A | 38A | 48A | 60A | ||||||
Battery charging voltage range | 154-280VAC | ||||||||||||
Transfer time | ≤10ms(UPS) / ≤20ms(INV) | ||||||||||||
load peak ratio | (MAX)3:1 | ||||||||||||
Protective function | Under the mains∶input overcurrent fuse Under inverter: overload protection,short circuit protection, Iow voltage protection, (with battery anti-reverse connection,board). | ||||||||||||
Status Display | You can view parameters such as AC voltage, AC frequency, PVvoltage, PV current, output voltage, output frequency, battery voltage, load current and other parameters by turning the page keys. | ||||||||||||
Voice prompt | Low battery protection buzzer long beep Low battery buzzer beeps every second Machine fault buzzer beeps Overload buzzer beeps When the overload is less than 130%, the buzzer will sound every second,and the output will be turned off after 30S. When theover load is greater than 150%,the output will be turned off after 300mS. | ||||||||||||
Operating temperature | 0℃~40℃ | ||||||||||||
Storage temperature | -15℃~45℃ | ||||||||||||
Relative temperature | -10℃~90℃ no condensation | ||||||||||||
Noise | ＜45dB | ||||||||||||
Remind
To ensure the appropriate matching of the battery capacity for the system, it is crucial to consider the specific usage
requirements of the load and application scenarios. Failing to do so can result in either insufficient battery capacity or excessive waste of power generation.
requirements of the load and application scenarios. Failing to do so can result in either insufficient battery capacity or excessive waste of power generation.
For more information, please consult the manual recommendation or reach out to our online customer service.
Toroidal Transformer-Less Interference-High Efficiency
Multifunction Control Panel-Ease of Operation
Multifunction Control Panel-Ease of Operation
You can enjoy the WIFI function of this Hybrid Inverter by purchasing the WIFI module separately and connecting it to the APP.This will allow you to monitor the inverter's performance.
Why Choose Us
Professional manufacturer for solar & UPS system products in China.
Offer stable quality products with reasonable price and nice sales/after-sales service.
You can get suitable products with long time service and market sales support from us.
Of course, we also support OEM/ODM cooperation.
FAQ
Q1: Why you should choose us?
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pc
for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pc
for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Похожие товары
Смарт-Гибридный инвертор EPEVER UC серии 3.5kw/5.5kW
350,00-382,00 $
DC-AC 8000 Вт инвертирующий усилитель мощности для солнечной панели система питания продажи
175,00-178,00 $
Growatt SPF5000ES высокочастотный чистый синусоидальный инвертор 5000 Вт автономный для автономной системы
355,00-375,00 $
Автономный солнечный инвертор с инвертором тока 12 В постоянного в 220 переменного батареи из Китая
Китайский производитель 3kw 4kw 6kw 8kw 10kw 12kw высокочастотный Гибридный солнечный инвертор для домашнего использования

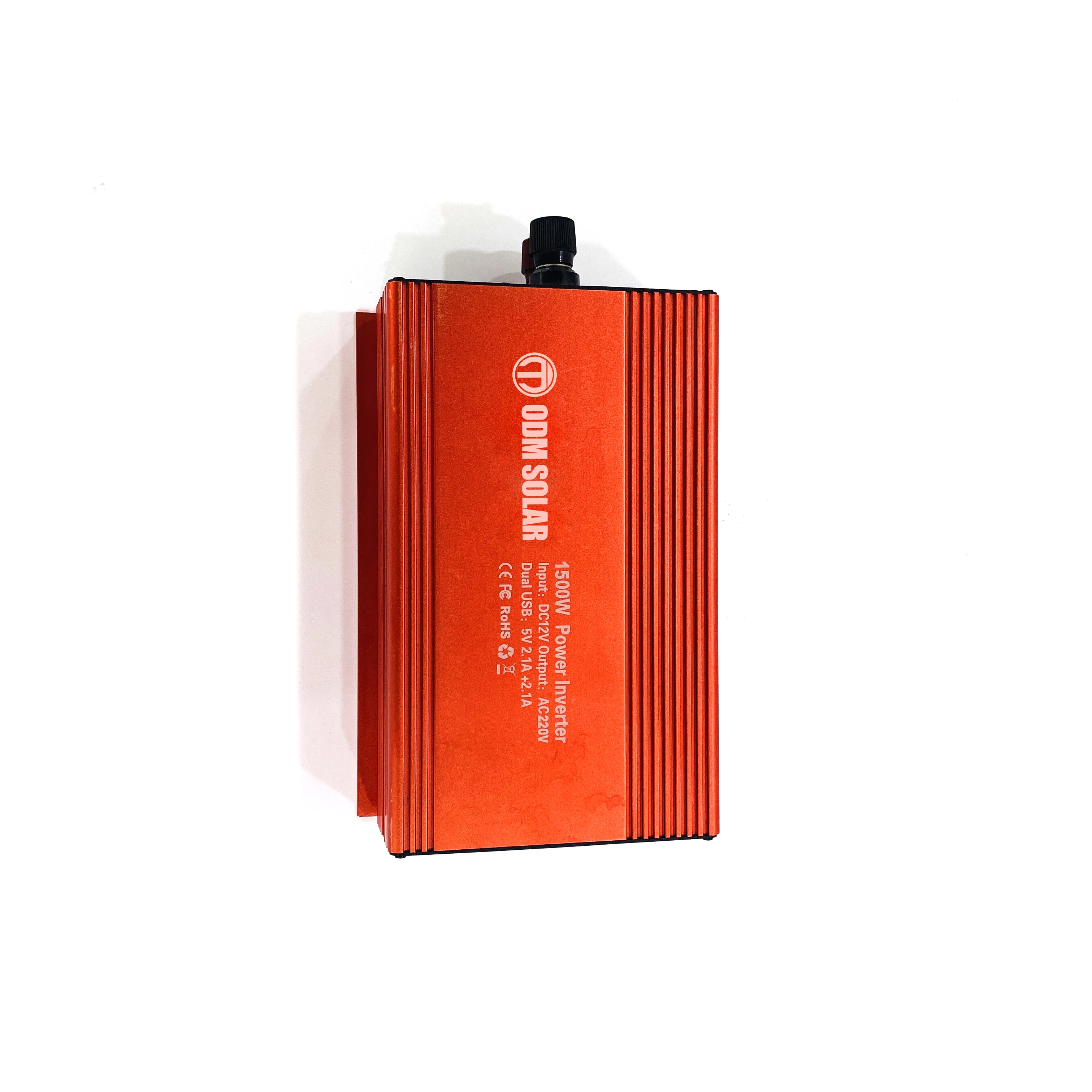

Модифицированный синусоидальный инвертор мощностью 1500 Вт (пик 3000 Вт) безопасно преобразует аккумулятор 12 В постоянного тока в источник питания переменного 230
