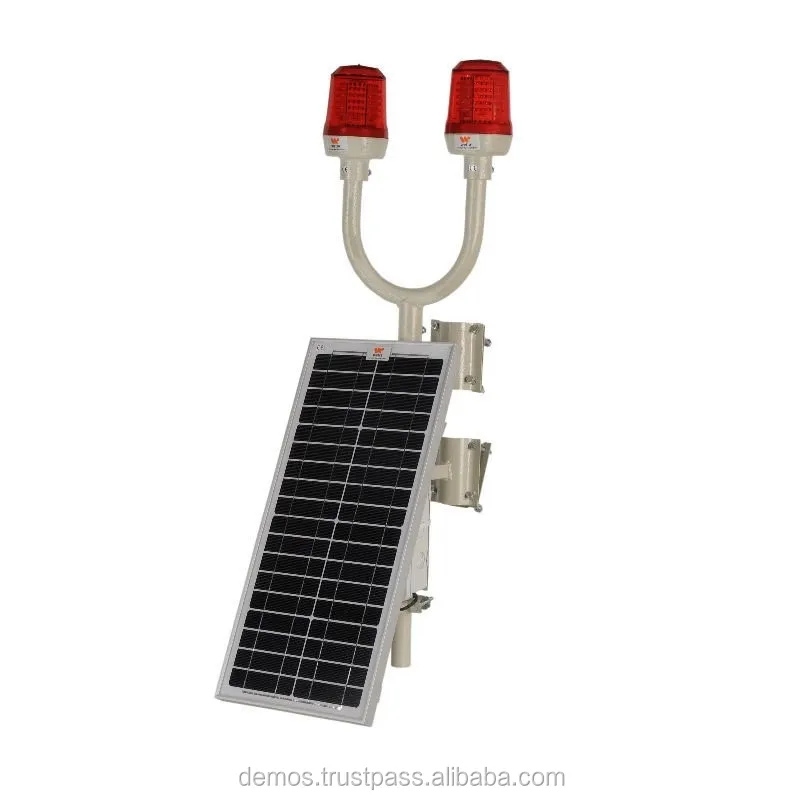

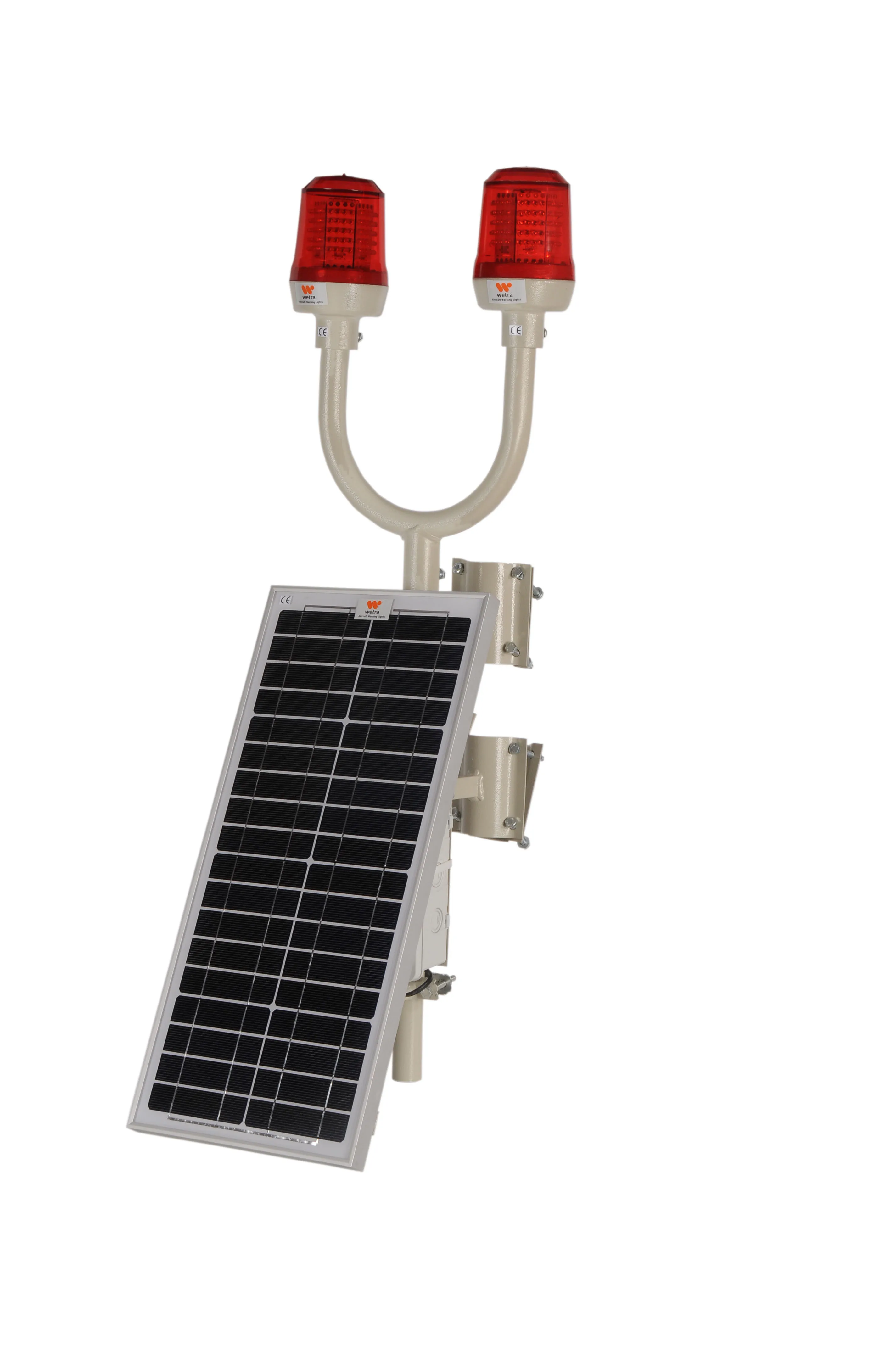

Двойной авиация непроходимость свет L 810 Строб Красный флэш памяти или устойчивое горение авиационные сигнальные огни с фотоэлементом
- Категория: >>>
- Поставщик: DEMOS ENDUSTRIYEL SISTEMLER SANAYI VE TICARET LIMITED SIRKETI
Сохранить в закладки 120207828:
Описание и отзывы
Характеристики
Products Description

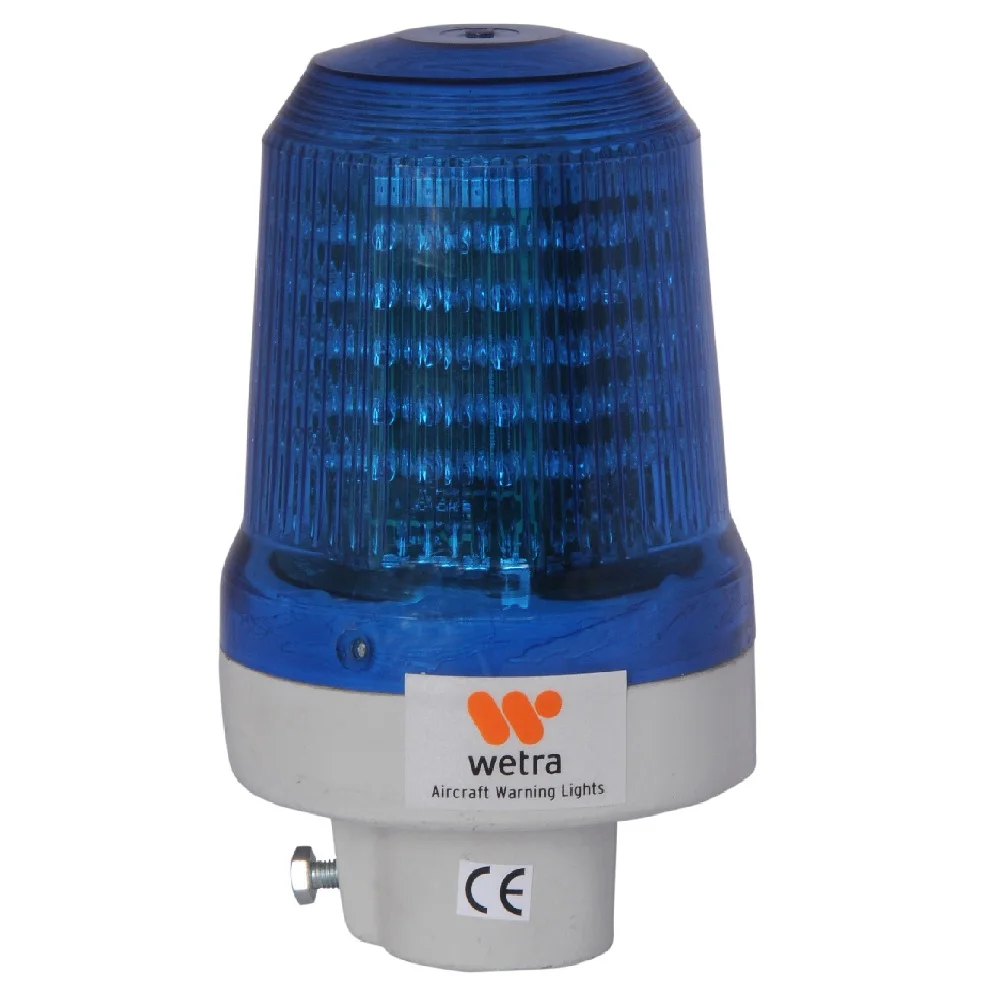

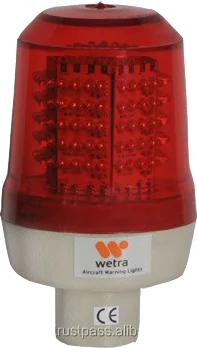

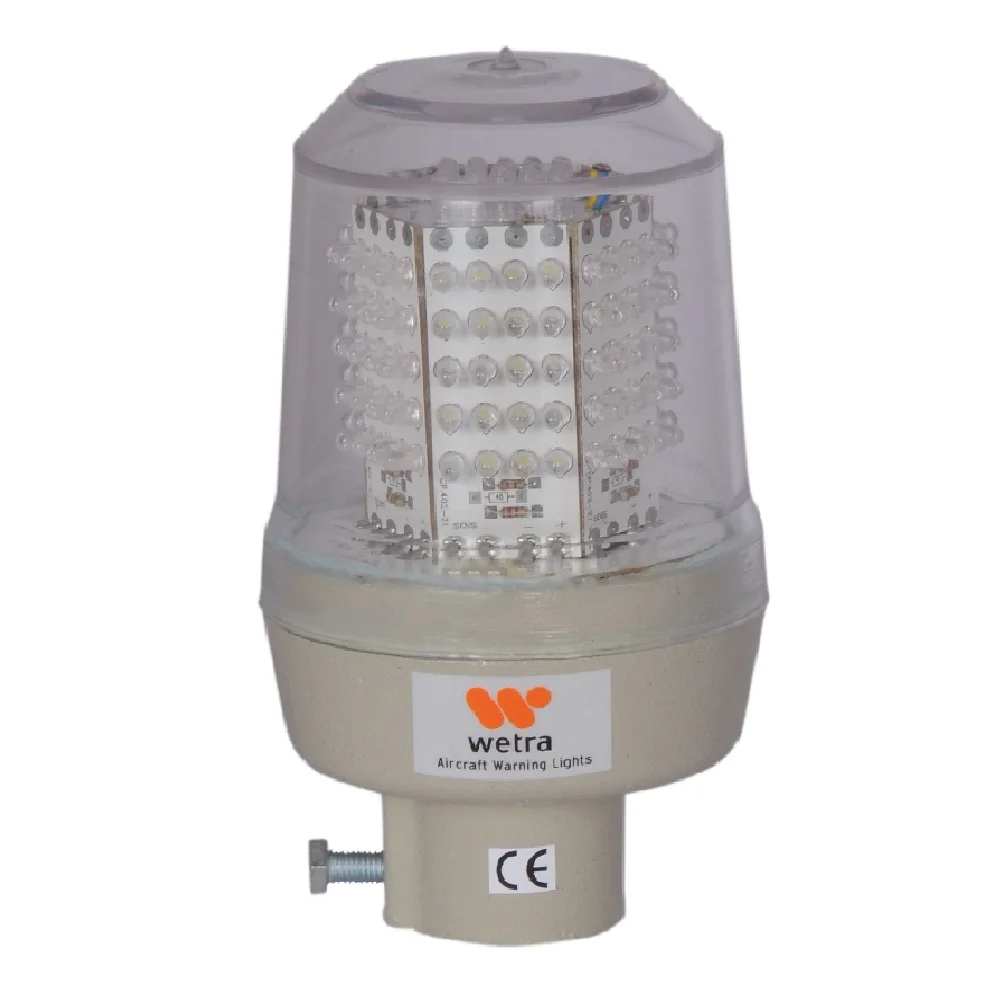

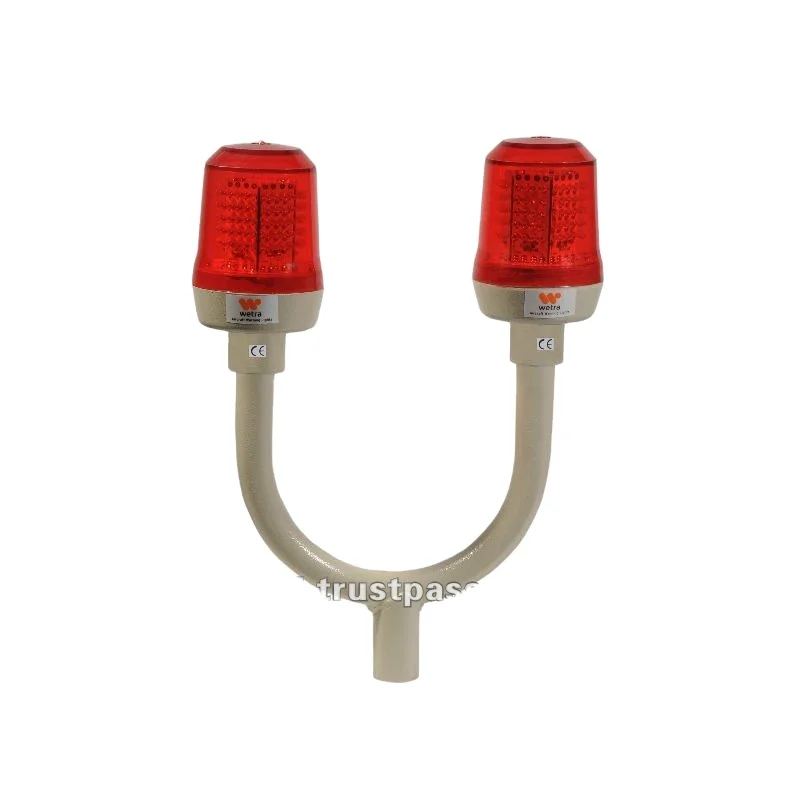

WETRA LED twin aviation obstruction light. Compliance with ICAO
(International Civil Aviation Organization) Annex 14 Type A-Type B and FAA (Federal Aviation Administration) L-810 SHGM (Sivil Havacilik Genel Mudurlugu). Multi-LED type twin aircraft warning light, has a photocell option, steady or flash burning warning light with colour option.
(International Civil Aviation Organization) Annex 14 Type A-Type B and FAA (Federal Aviation Administration) L-810 SHGM (Sivil Havacilik Genel Mudurlugu). Multi-LED type twin aircraft warning light, has a photocell option, steady or flash burning warning light with colour option.

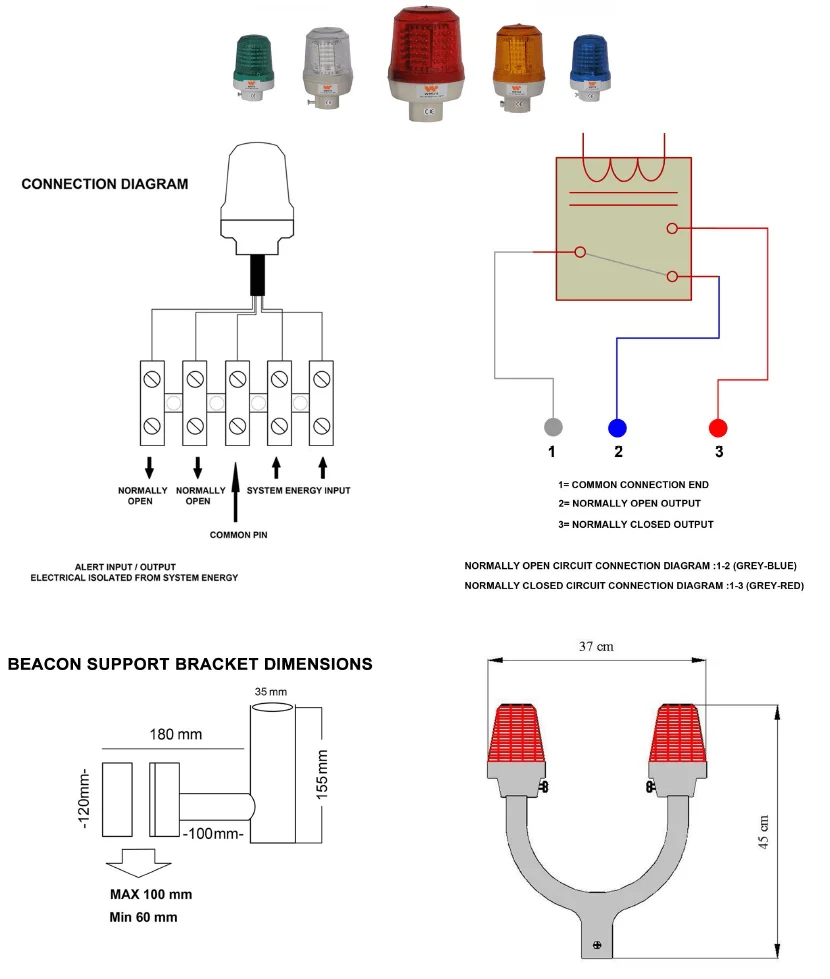

Mounting Details
Product Specifications
KEY FEATURES | ||||||
Light Source | Based on LED technology | |||||
Operation Voltage | 220V, 110V, 48V, 24V and 12V | |||||
Body Material | Aluminium | |||||
Light Color | Red, Blue, White, Yellow or Green | |||||
Installation | With Bracket | |||||
Op. Temperature | -55⁰C and +55⁰C | |||||
Candela | >32 candela light intensity | |||||
Life | Long life time >10 years | |||||
ELECTRICAL FEATURES | MECHANICAL FEATURES | OPTICAL FEATURES | OPTIONS | INTERNATIONAL REGULATIONS |
Power supply AC or DC | Warming, icing and ignition-resistant polycarbonate UV dome | 360⁰ horizontal beam radiation with special LED technology | Single/Twin light (backup light) | ICAO Annex 14 |
Power consumption 6-7 Watt/hour | Aluminium body | Vertical beam spread >10⁰ | 12-24-48-110-220 voltage options | FAA |
LED feeded with constant current | Silicon gasket | Optical reflector | Fault alarm | CE |
Degree of protection IP 65-66, Nema 4X | Cd emission +4⁰ and +8⁰ | Infrared available | TSE | |
Operation temp. -55⁰C and +55⁰C | Beacon support bracket | |||
Light unit weight 3,5kg | Night and day detection with microprocessor or photocell |
Aplications
TALL BUILDINGS
Tall structures and building either temporary or permanent, which has the potential to endanger aviation in navigable airspace or has the potential to interfere with the operation of navigation, should be lighted.
TELECOMMUNICATION TOWERS
Telecommunications & Radio Towers are, typically, tall structures designed to support antennas for telecommunications and broadcasting, including television. They are among the tallest man-made structures.
CHIMNEYS
A chimney is a typical cylindrical and vertical structure that provides ventilation for hot flue gases or smoke from a boiler, stove, furnace or fireplace to the outside atmosphere, flare stacks lights may be displayed as low as 20 feet (6-m) below the top to avoid effect of deposits.
WIND TURBINES
A single wind turbine or wind turbine farms, which has the potential to endanger aviation in navigable airspace or has the potential to interfere with the operation of navigation, should be lighted.
TOWER CRANES
A crane is a type of tall machine, generally equipped with a hoist rope, wire ropes or chains, and sheaves that can be used both to lift and lower materials and to move them horizontally.
BRIDGES
Bridges and other major projects, which has the potential to endanger aviation in navigable airspace or has the potential to interfere with the operation of navigation, should be lighted.
Company Profile
ABOUT US
Wetra is a registered trademark of Demos Endustriyel Ltd. Company. In the terms of LED obstruction lights, Wetra is the market
leader in domestic market, Turkey. Also Wetra aviation obstruction lights are mostly exported to Middle East, Latin America, North
Africa, Australia and Europe. Wetra become one of the most preferred aircraft and marine lights brand in national and domestic
market with innovative perspective. The expert team of Wetra closely follow the international regulations and local regulations.
We design systems according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Authority), SHGM (Turkish
Civil Aviation Organization) standarts. In addition to these regulations we can also design a system for each countrys
regulations.
leader in domestic market, Turkey. Also Wetra aviation obstruction lights are mostly exported to Middle East, Latin America, North
Africa, Australia and Europe. Wetra become one of the most preferred aircraft and marine lights brand in national and domestic
market with innovative perspective. The expert team of Wetra closely follow the international regulations and local regulations.
We design systems according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Authority), SHGM (Turkish
Civil Aviation Organization) standarts. In addition to these regulations we can also design a system for each countrys
regulations.
By the following the latest developments in the national and international markets and we have been able to increase the quality of our production and service quality and have become a reliable company in the telecomunication and aircraft warning lights market.
Wetra aviation obstruction lighting also supply Luxsolar brand obstruction lights for applications such as onshore/offshore platforms, high-voltage masts, cooling towers and heliports lighting. All aviation obstruction light systems that we offer are fully compliant to ICAO and FAA regulations and guide the customers about what kind of obstruction lights system that meets the requirements stated in visual aids for denoting obstacles regulation of ICAO.
System Designer for ICAO and FAA Compliant Aviation Obstruction Lights
We design aviation obstruction light systems for your project. We prepare layout drawings that show the type, quantity and
location of the aviation obstruction lights on your ptroject. Those layout drawings also show the wiring between control panels and lights. There are international and domestic regulations and legislations regarding obstruction lighting. We apply those regulations according to your building, chimney, crane, wind turbine etc. such tall structures projects.
Nowadays, construction industry produces tall buildings, skyscrapers etc. So such structures shall be marked with appropriate aviation obstruction lights in order to avoid any collision of air planes, helicopters, drones. So aircraft warning lights are indispensible for air traffic safety.
location of the aviation obstruction lights on your ptroject. Those layout drawings also show the wiring between control panels and lights. There are international and domestic regulations and legislations regarding obstruction lighting. We apply those regulations according to your building, chimney, crane, wind turbine etc. such tall structures projects.
Nowadays, construction industry produces tall buildings, skyscrapers etc. So such structures shall be marked with appropriate aviation obstruction lights in order to avoid any collision of air planes, helicopters, drones. So aircraft warning lights are indispensible for air traffic safety.
Manufacturer and Supplier in Istanbul
Our company, Demos is a leading manufacturer and supplier of aviation obstruction lights located in Istanbul / Turkey. We keep stocks for standard model products and we can manufacture and deliver unique systems for the projects of our clients in a very short period of time.
Since our facility and warehouse are in Istanbul, we can ship the aviation obstruction light system orders by air, sea and truck transportation at competitive costs.
Since our facility and warehouse are in Istanbul, we can ship the aviation obstruction light system orders by air, sea and truck transportation at competitive costs.
Reasonable prices, Excellent custom care services
We reply the emails of our customers within 24 hours. We provide after sales services.
Certificates and Standards
Wetra Aviation obstruction LED lights are in compliance with ICAO (International Civil Aviation Organization) Annex 14 and FAA AC/150 international standards. Also Wetra led aircraft warning lights have CE certificate, Wind test and LVD test reports.
Frequently Asked Questions (FAQ)
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 2-3 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for aircraft warning light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly we arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products. (One way shipping belongs to customer)
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
Contact Informations
Our experienced Wetra Team will provide the best aviation obstruction lights system according to your needs and ICAO and FAA regulations with best price and fast delivery advantages. Please keep in touch with us for your aircraft warning light requirements.
Website : www.wetraobstructionlight.com
Phone : +90 216 415 80 87E-mail : demos@demos.com.tr
