SGK160 50-160 мм автоматическая машина для скручивания ПВХ труб
21 000,00 $ - 25 000,00 $
Производитель Автоматических трубопроводов серии SGK U образные пластиковые трубопровода производственная линия
- Категория: Pipe Belling Machines >>>
- Поставщик: Zhangjiagang Gerui Science & Technology Development Co. Ltd.
Сохранить в закладки 1600050806045:
Описание и отзывы
Характеристики
Product Description

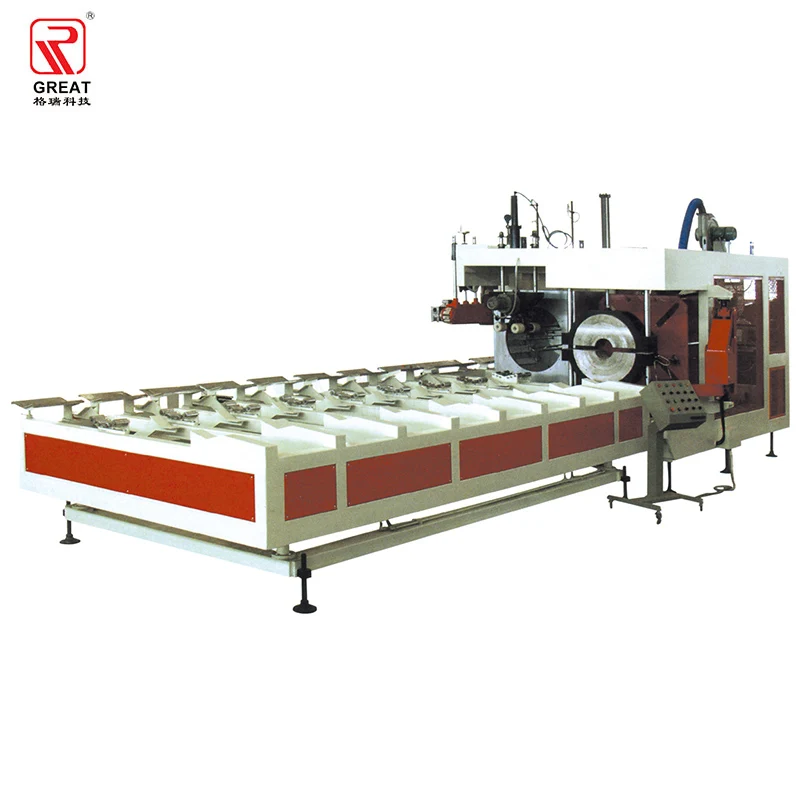

SGK series plastic pipe AUTO Belling-Machine
This machine is suitable for the expansion of PVC, PE and PP plastic pipes. It can be used not only on-line with the pipe production line, but also as a stand-alone machine. The small tube can be enlarged at one time and the big tube can be enlarged at the other.

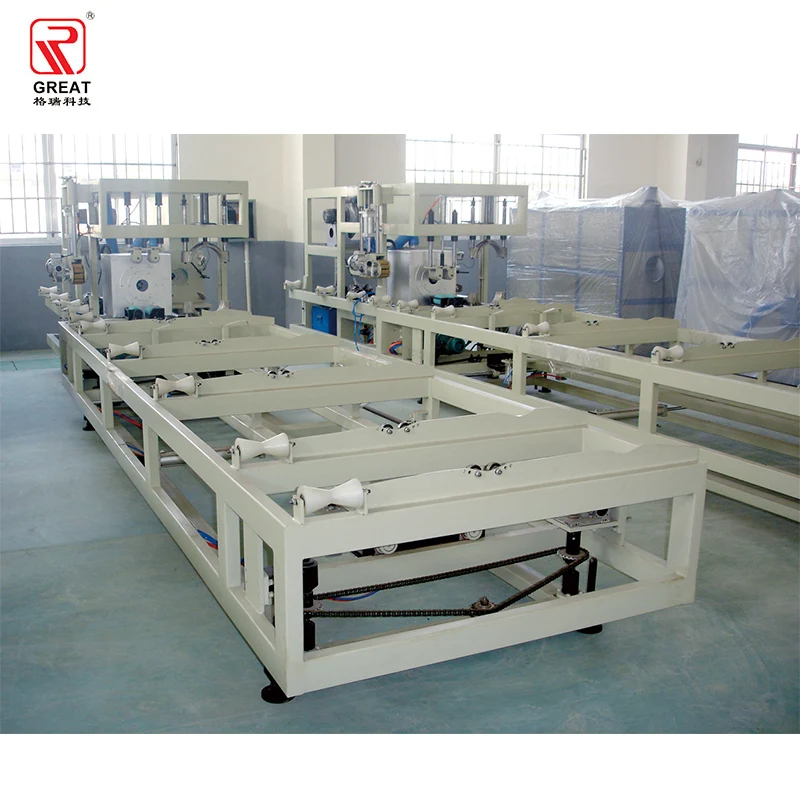

This machine is mainly composed of two parts: headframe and base. The working head rack is composed of a heating box and an expanding die head. The base is mainly used to support the pipe, and it is positioned correctly and automatically at different working positions of the working head rack to complete the heating and expansion of the pipe.
The operation of the equipment and the enlargement cycle (such as temperature control, heating time, forming, cooling, etc.) are automatically completed by PLC.
The machine has the advantages of reasonable structure, beautiful appearance, advanced technology, convenient operation and high degree of automation.
Work procedure of expander:
1. Pipe preheating
The pipe is preheated by heating on the working head. The heating temperature is set and controlled by a temperature control instrument. In the heating box, the pipe is heated by the inside and outside of the heating pipe and the pipe rotates to ensure the uniform heating of the pipe enlargement surface.
2. Pipe flaring

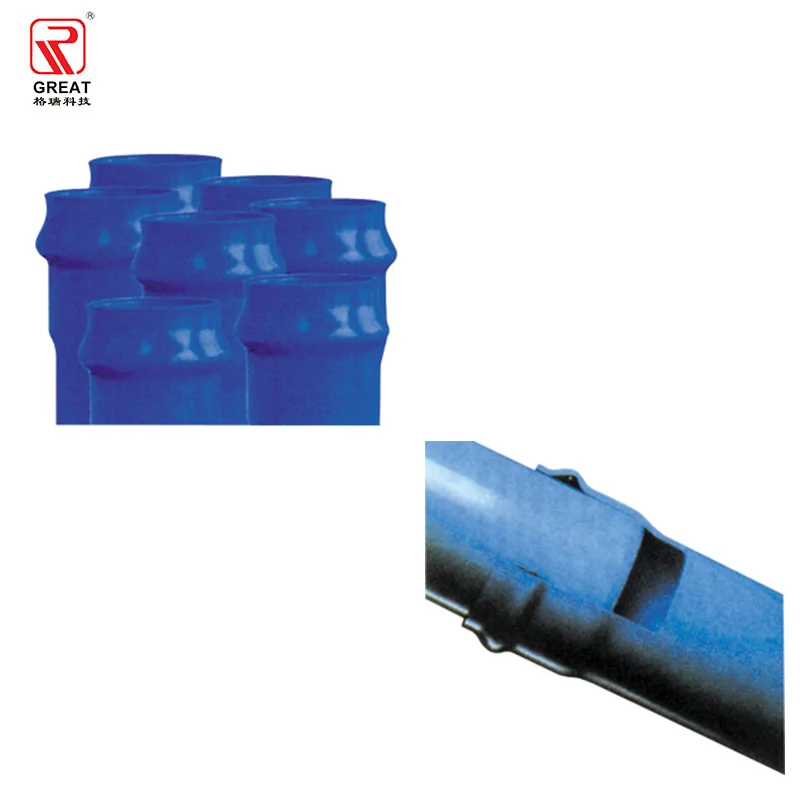

The special expanding die is used to insert the preheated inner hole of the pipe, and the expanding part of the pipe is enlarged or undertook to enlarge.
3. Cooling of flared Pipe
The expanding part is cooled by cold air, and the cooling time is adjusted.
This machine is mainly composed of two parts: headframe and base. The working head rack is composed of a heating box and an expanding die head. The base is mainly used to support the pipe, and it is positioned correctly and automatically at different working positions of the working head rack to complete the heating and expansion of the pipe.
The operation of the equipment and the enlargement cycle (such as temperature control, heating time, forming, cooling, etc.) are automatically completed by PLC.
The machine has the advantages of reasonable structure, beautiful appearance, advanced technology, convenient operation and high degree of automation.
Work procedure of expander:
1. Pipe preheating
The pipe is preheated by heating on the working head. The heating temperature is set and controlled by a temperature control instrument. In the heating box, the pipe is heated by the inside and outside of the heating pipe and the pipe rotates to ensure the uniform heating of the pipe enlargement surface.
2. Pipe flaring
The special expanding die is used to insert the preheated inner hole of the pipe, and the expanding part of the pipe is enlarged or undertook to enlarge.
3. Cooling of flared Pipe
The expanding part is cooled by cold air, and the cooling time is adjusted.
Detailed Images
Size Information
Diameter mm) | φ160-φ400m/m | Eletric system | Max. Capacity(KG/H) | |
Length | 4-6m | Compressed air pressure | 27.9 | |
Hydraulic system | Water supply pressure | 15.9 | ||
Oil pump motor model | Y100L1-4, 3kw,speed: 1430r/min | Controller | FXIN-40MR-001+FXON-40ER | |
Variable plunger pump model | V22-A1-R-A preset pressure: 6,3Mpa | Power | 28KVA | |
Displacement | 0-22L/min | Voltage | AC380V 50Hz | |
System working pressure | 4-6.3Mpa | Size | 7500×3150×2100MM | |
Hydraulic Oil | 46# | Weight | 4500KG | |
Heating system | I # Heating furnace heating power: 1KW×12+0.7KW×2=13.4KW | Height | 1000±10MM | |
II # Heating furnace heating power: 1KW×12+0.7KW×2=13.4KW | Production cycle | 2-40 pcs/h | ||
Maximum temperature of air | 380℃ | Machine system | ||
SKT series Belling model | Electrical System,Hydraulic system,Computer system | |||
Related Products
Customer Photos
Packing&Shipping
Company Introduction
Our company occupies an area of 20,000 square meters, and we own 7,000-square-meter international standard factory building.Ourcompany is a professional comprehensive plastic machinery manufacturer which integrates researching, developing and manufacturing together. We have obtained the ISO9001 certificate.We produce various plastic machines, such as single-screw-stem extruders, conedouble -screw-stem extruders, high-speed mixers, sets of production lines of pipes, plates, sheet materials and various kinds of auxiliary machines. They are well sold in Chin and about 30 foreign countries, such as Russia, Malaysia, Lebanon, Myanmar and South Africa. They are praised by masses of our consumers.
FAQ
Q:Are you machinery factory or trading company?
We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
Experienced mechanical designer customized-design provided.
Q:How can we visit your company and machines?
We are located in Zhangjiagang City which is about 2.5 hours nearby Shanghai Airport.If customer want to visit our factory,we will
pick up you at the airport.
Q:What`s the payment method?
T/T, L/C, etc
Q:How long is the warranty?
12 months
Q:How long is the delivery time?
Under normal conditions, products are delivered within 45 working days.
Q:How to install machine when machine arrive?
We will arrange our engineer to customer factory for installation and teach customer`s worker how to operate the machine
We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
Experienced mechanical designer customized-design provided.
Q:How can we visit your company and machines?
We are located in Zhangjiagang City which is about 2.5 hours nearby Shanghai Airport.If customer want to visit our factory,we will
pick up you at the airport.
Q:What`s the payment method?
T/T, L/C, etc
Q:How long is the warranty?
12 months
Q:How long is the delivery time?
Under normal conditions, products are delivered within 45 working days.
Q:How to install machine when machine arrive?
We will arrange our engineer to customer factory for installation and teach customer`s worker how to operate the machine
