Европейская версия внутрисетевого гибридного инвертора 5 кВт 10 15 20 30 40 50 80 Солнечный инвертор
37 597,71 ₽

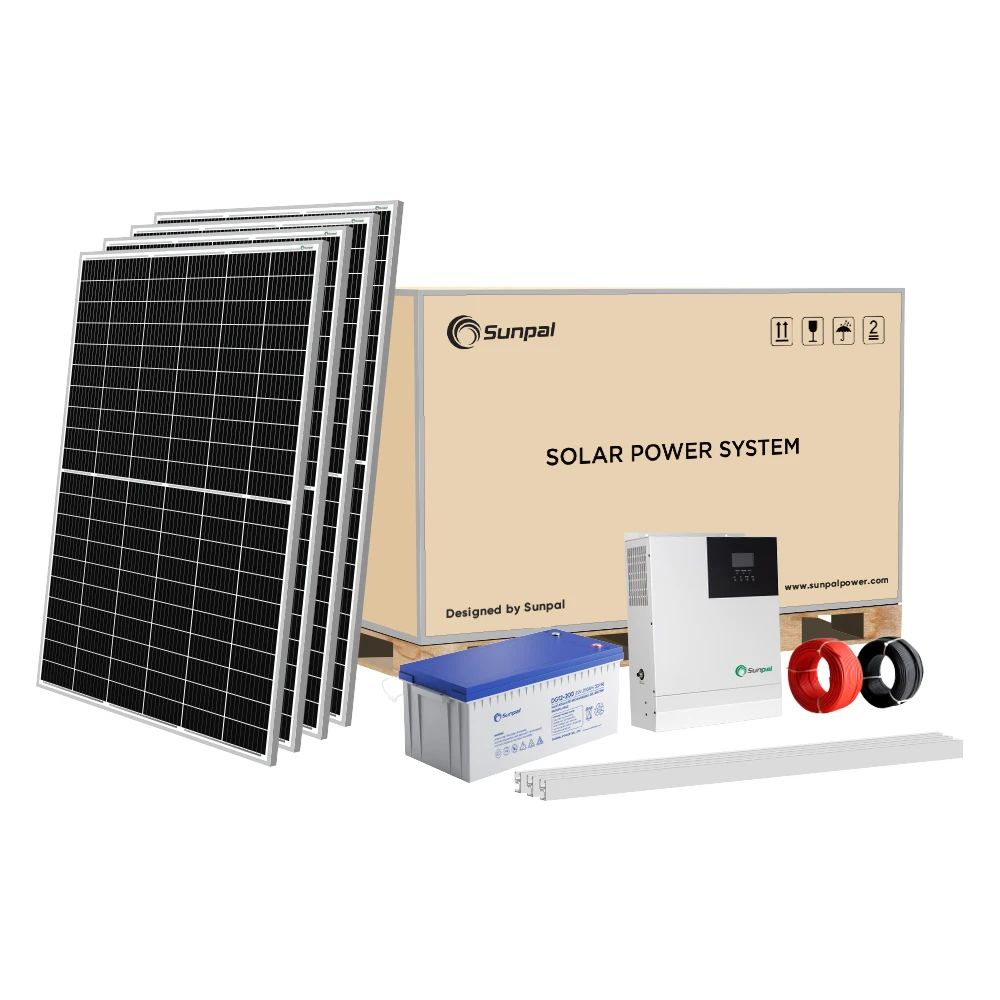

Sunpal полный комплект фотоэлектрической системы 3 кВт 5 10 солнечных генераторов пакет для домашнего
- Категория: Solar Energy Products >>>
- Поставщик: Sunpal Power Co. Ltd.Sunpal Ltd.
Сохранить в закладки 1600062046517:
Описание и отзывы
Характеристики
Product Description
Warranty
How it works

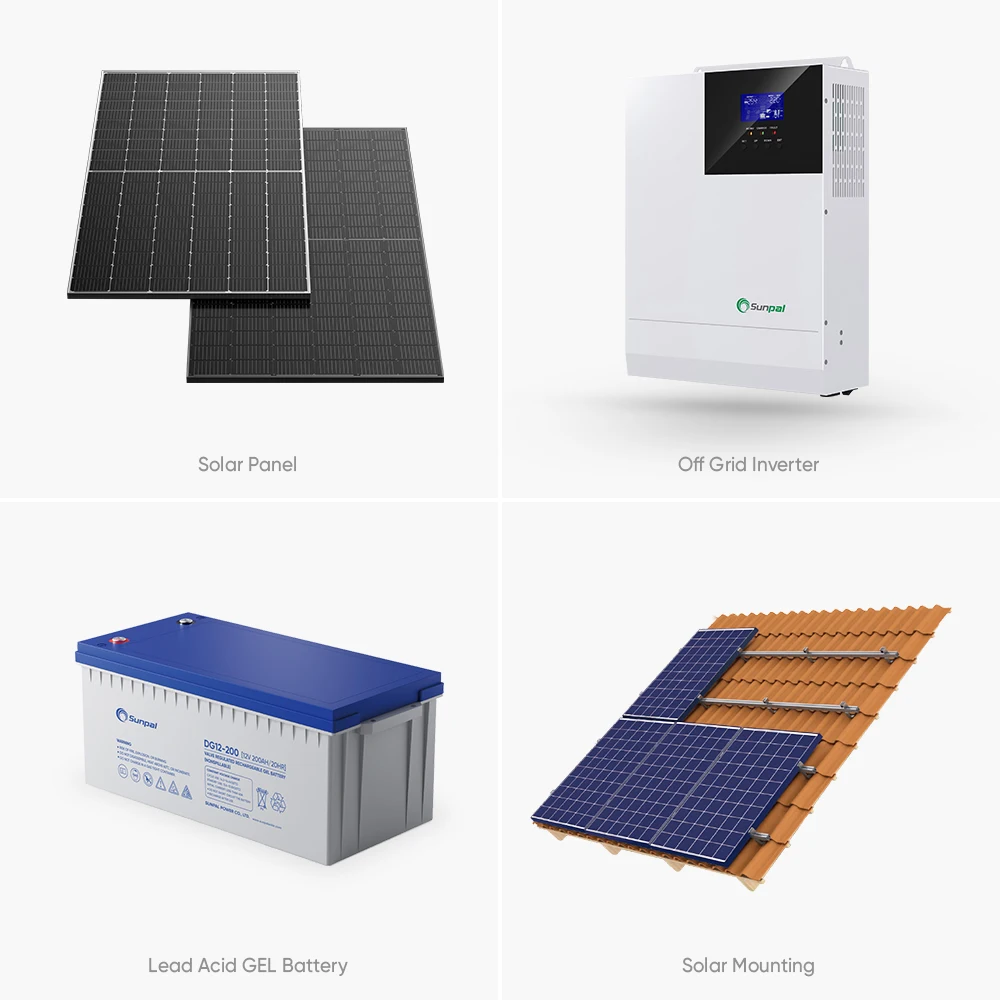

What's Included:
Model | SP-3KW-OFF | SP-5KW-OFF | SP-10KW-OFF | ||
Half Cut Mono 550W Solar Panel | 6 Pieces | 8 Pieces | 20 Pieces | ||
PV Combiner Box | 3 Input 1 output 1 Piece | 4 Input 1 output 1 Piece | 4 Input 1 output 2 Pieces | ||
Off-Grid Hybrid Inverter | HF4830S60 | HF4850S80 | HFP4850S80/2PCS | ||
GEL Battery | 12V 200AH/4PCS | 12V 200AH/4PCS | 12V 200AH/8PCS | ||
DC Cable 4mm2 | 100 meter | 200 meter | 400 meter | ||
MC4 Connector | 10 Pairs | 10 Pairs | 10 Pairs | ||
Mounting System | Customized Product Based On Installation Roof/Ground | ||||
PV Installation Tools | Wire Cable Cutter & Stripper, Disassembly Tool | ||||
Model | SP-15KW-OFF | SP-20KW-OFF | SP-30KW-OFF | ||
Half Cut Mono 550W Solar Panel | 24 Pieces | 32 Pieces | 48 Pieces | ||
PV Combiner Box | 4 Input 1 output 3 Piece | 4 Input 1 output 4 Piece | 4 Input 1 output 5 Pieces | ||
Off-Grid Hybrid Inverter | HFP4850S80/3PCS | HFP4850S80/4PCS | HFP4850S80/6PCS | ||
GEL Battery | 12V 200AH/12PCS | 12V 200AH/16PCS | 12V 200AH/20PCS | ||
DC Cable 4mm2 | 600 meter | 800 meter | 1000 meter | ||
Mounting System | Customized Product Based On Installation Roof/Ground | ||||
PV Installation Tools | Wire Cable Cutter & Stripper, Disassembly Tool | ||||
Product Details
Peak Power Watts: 550W
Maximum Power Voltage: 42.06V
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm
Dimensions:2279x1134x35mm
Weight:26.9 kg
All-in-one hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave
output.
Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sinewave.
Advanced MPPT technology with an efficiency of 99.9%.
output.
Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sinewave.
Advanced MPPT technology with an efficiency of 99.9%.
Open station supports one-click installation and registration Problem support one-click dispatch and navigation Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability
DG (Deep Cycle GEL ) series is pure GEL battery with 20 years flfloating design life, it is ideal for standby or frequent cyclic
discharge applications under extreme environments. By using strong grids, high purity lead and patented Gel electrolyte, the DG series offers excellent recovery capability after deep discharge under frequent cyclic discharge use, and can deliver 450 cycles
at 100% DOD
discharge applications under extreme environments. By using strong grids, high purity lead and patented Gel electrolyte, the DG series offers excellent recovery capability after deep discharge under frequent cyclic discharge use, and can deliver 450 cycles
at 100% DOD
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mmL Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Cross Section: 4mm2, 6mm2 OptionalRated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
Professional Packing

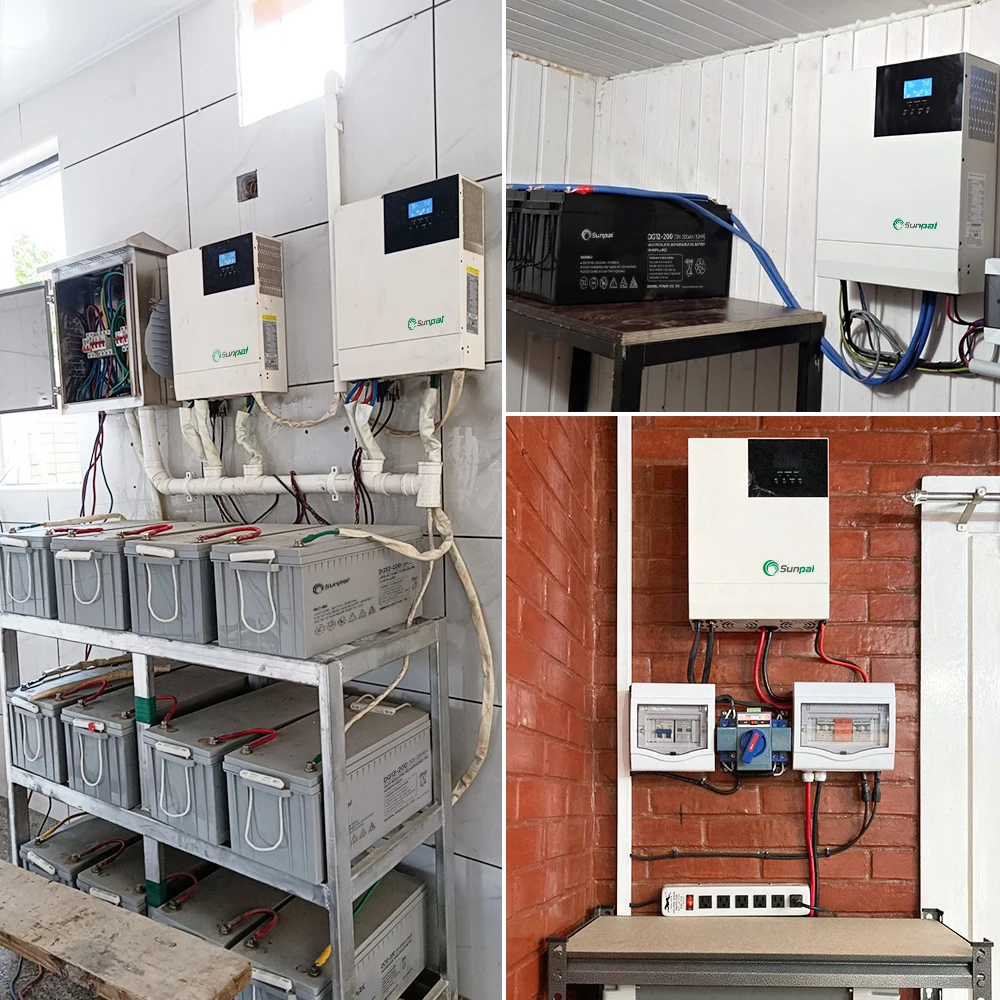

Sunpal Project Case

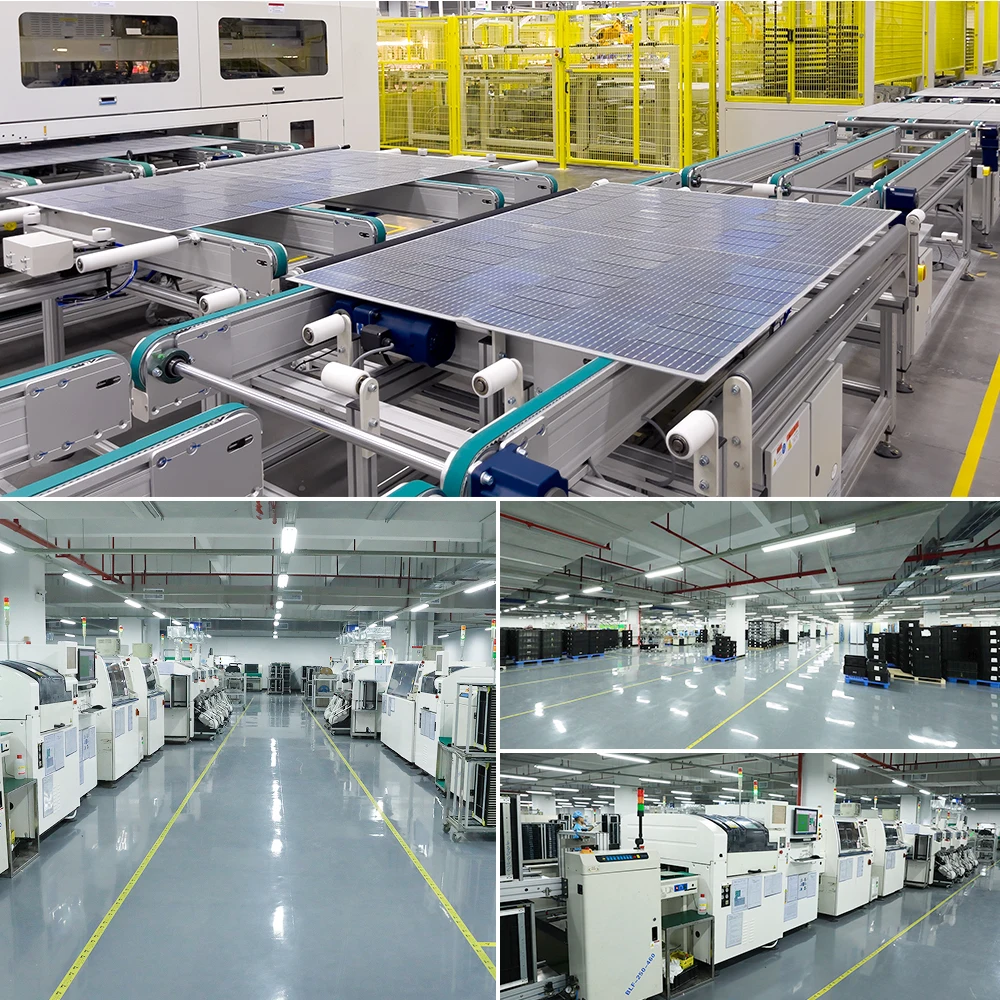

Our Factory
exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of
development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.
Customized Reviews
Contact Us
FAQ
We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries and solar mounting systems, and all related solar accessories.
B: Are you a factory or trading company?
We are a factory with more than six years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately
If you want to know more information, you can send inquiry to our team, we will cover more details.
B: Are you a factory or trading company?
We are a factory with more than six years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately
If you want to know more information, you can send inquiry to our team, we will cover more details.
